Stephen96

Member

• Feb 14, 2020

• #1

Anybody removed the front passenger seat on the l322 before just wondering how hard it is or if its straight forward? Mine is a 54 plate vogue



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Feb 14, 2020

• #2

Again, it is all in the RAVE manuals I linked to the other day.



RangeRoller dt

Well-Sprung Member

• Feb 14, 2020

• #3

Search is working again now also



Stephen96

Member

• Feb 14, 2020

• #4

Saint.V8 said:

Again, it is all in the RAVE manuals I linked to the other day.

Click to expand...

I must of over looked it @Saint.V8 I downloaded a pdf version on phone but theres so many pages I must of missed it



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Feb 14, 2020

• #5

Because I am feeling generous, you can have this one:

Get it off your phone and onto a PC....much easier!



Stephen96

Member

• Feb 14, 2020

• #6

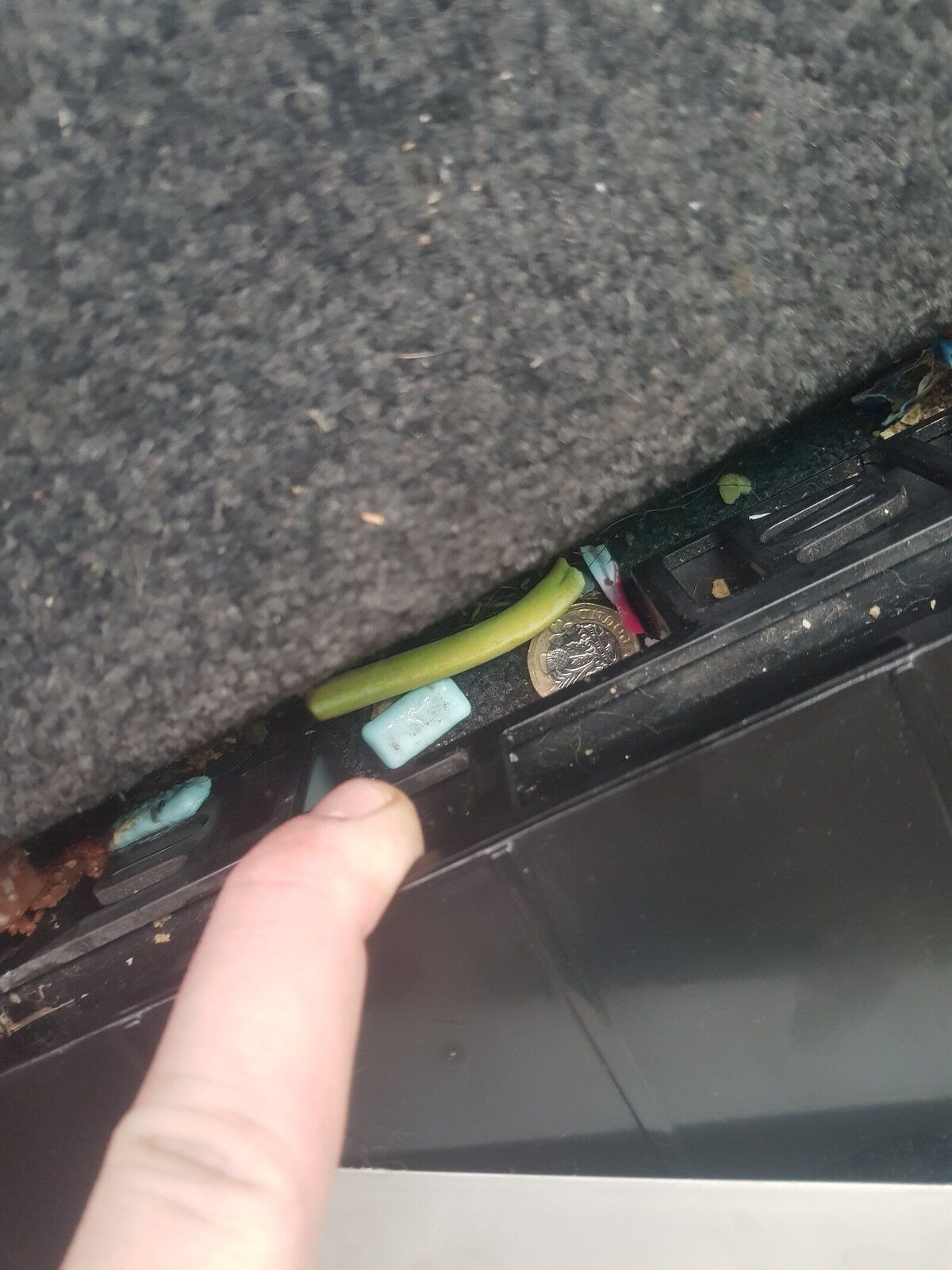

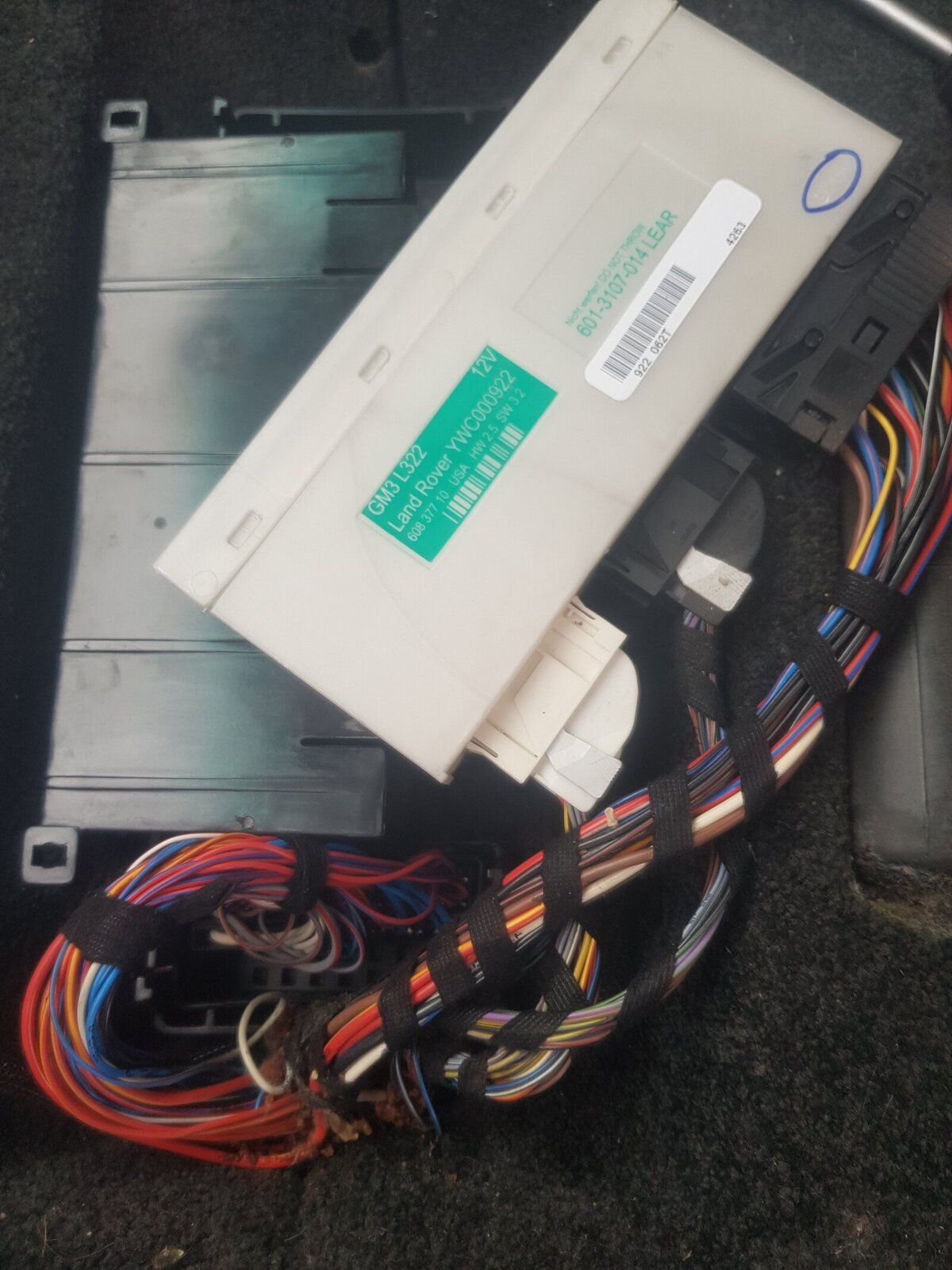

I managed to get to the Bcu the owner before me obviously wasnt very hygienic as found some kind of mouldy sticky substance all in the wiring but on plus side two pound coins.



Attachments

•

  277.9 KB · Views: 116
•

  202.7 KB · Views: 93
•

  226.8 KB · Views: 112

Henry_b

Think outside, no box required.

• Feb 14, 2020

• #7

£2 jeez that doubles the value of an L322



Stephen96

Member

• Feb 14, 2020

• #8

Henry_b said:

£2 jeez that doubles the value of an L322

Click to expand...

Just pulled carpet up after removing passenger seat and unlocking the BCM and found a pool if you can see on pic.



Attachments

•

  237.2 KB · Views: 113

Last edited: Feb 14, 2020

Henry_b

Think outside, no box required.

• Feb 14, 2020

• #9

Stephen96 said:

Just pulled carpet up after removing passenger sea and unlocking the BCM and found a pool if you can see on pic.

Click to expand...



Stephen96

Member

• Feb 14, 2020

• #10

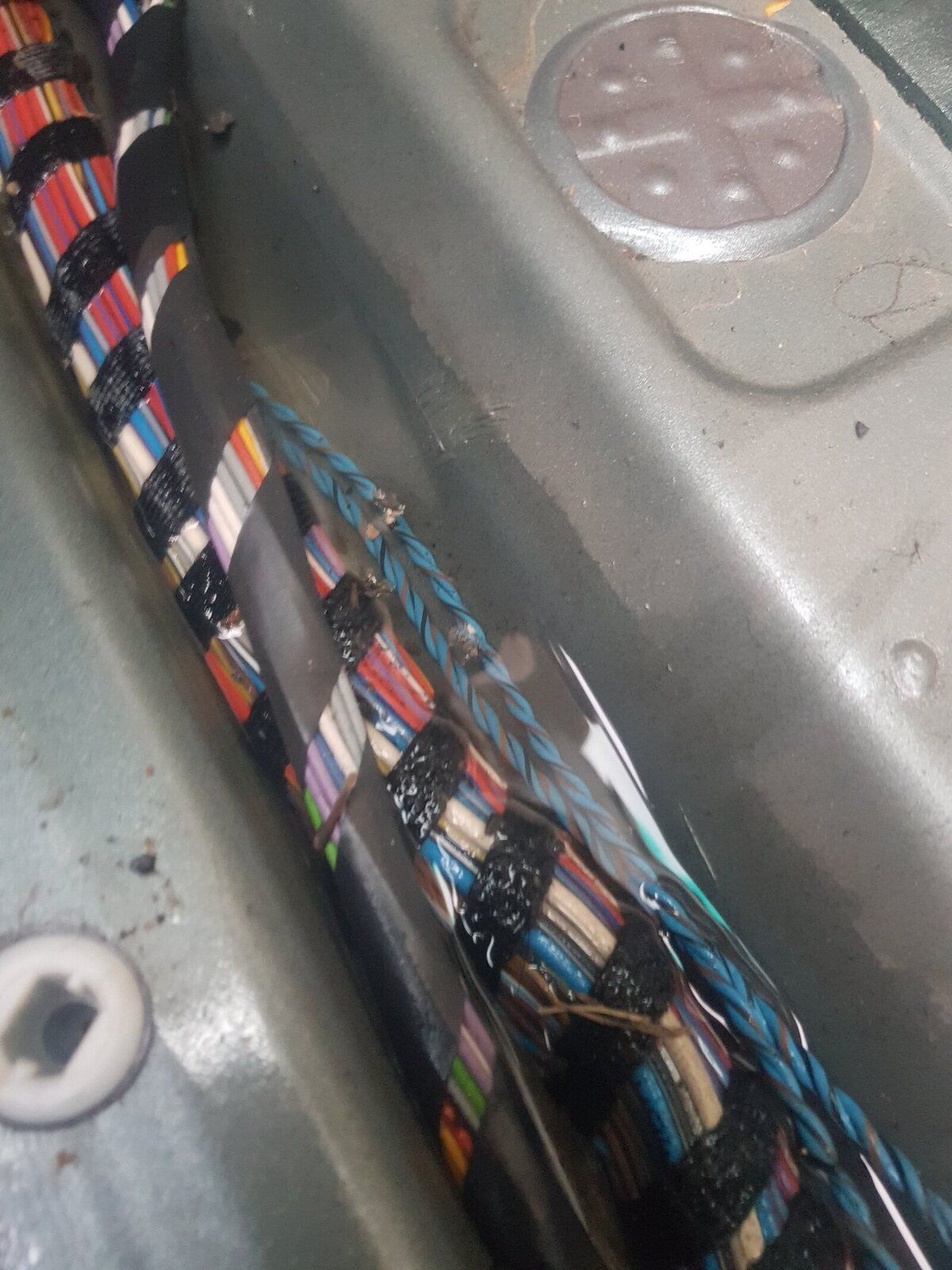

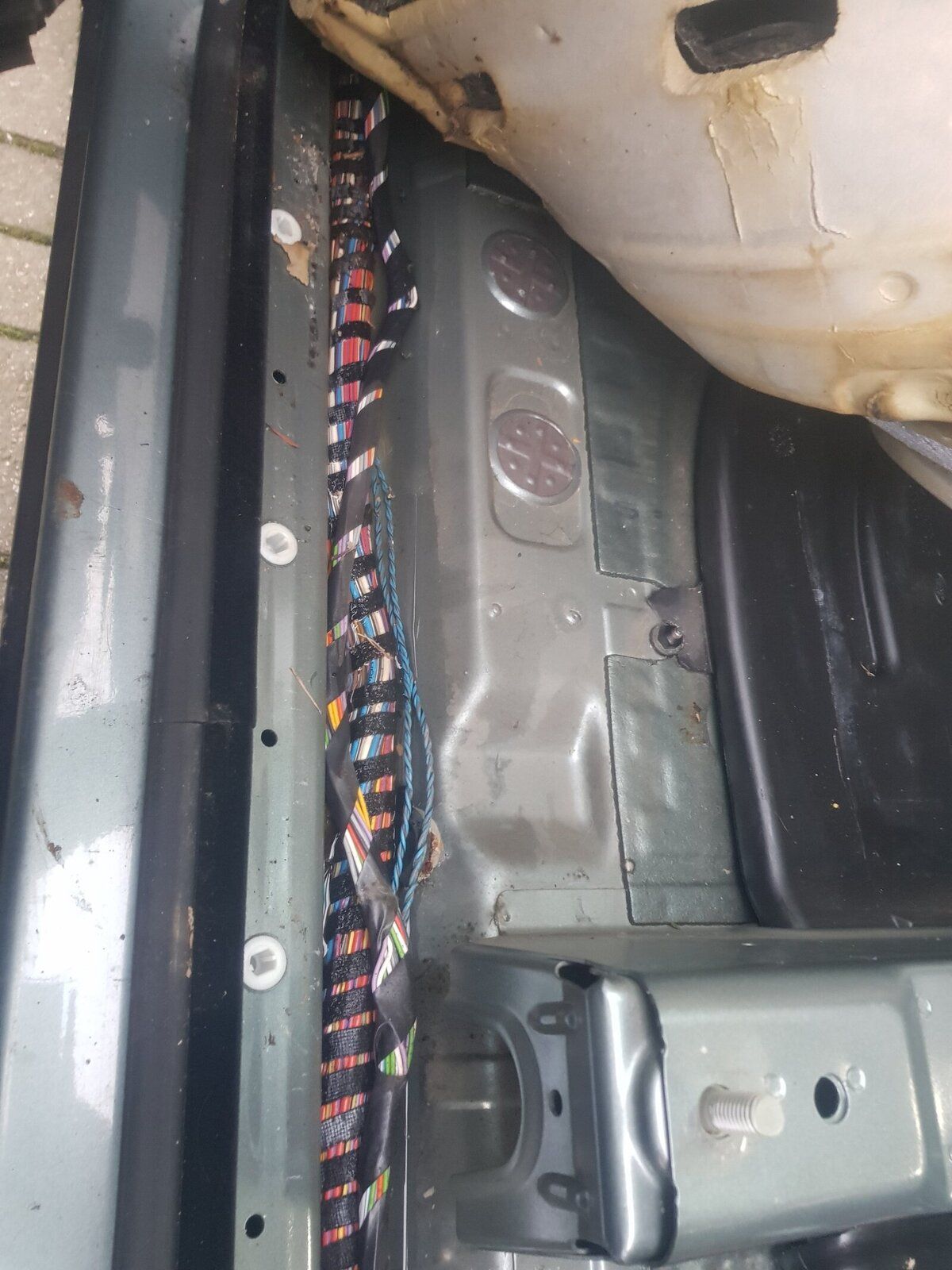

It gets worse, all the wiring is sat flooded all along I'm not sure were its come from, one of the drains blocked mabey, any suggestions wood be appreciated also is it true that the sunroofs are prone to this happening?



Attachments

•

  245.6 KB · Views: 99
•

  218.8 KB · Views: 136

Datatek

Well-Known Member

• Feb 14, 2020

• #11

Stephen96 said:

It gets worse, all the wiring is sat flooded all along I'm not sure were its come from, one of the drains blocked mabey, any suggestions wood be appreciated also is it true that the sunroofs are prone to this happening?

Click to expand...

Blocked sunroof drains are a common problem.



Stephen96

Member

• Feb 14, 2020

• #12

Datatek said:

Blocked sunroof drains are a common problem.

Click to expand...

Is this a tube and is this something else that's in the RAVE manual ect were its located?



Stephen96

Member

• Feb 14, 2020

• #13

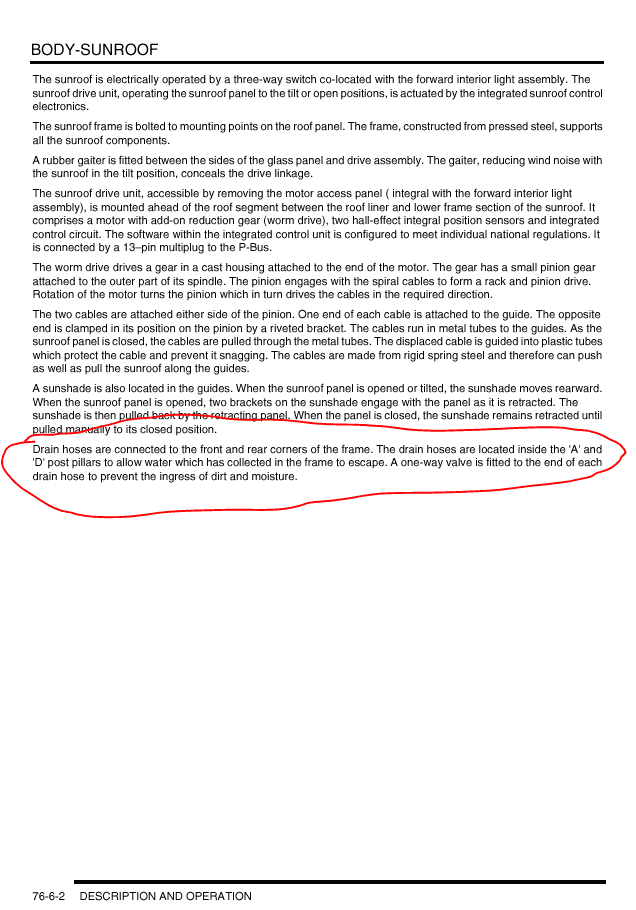

Never mind just found an old post were Saintv8 said it runs down the A pillars and C pillars haha.



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Feb 14, 2020

• #14

Stephen96 said:

Never mind just found an old post were Saintv8 said it runs down the A pillars and C pillars haha.

Click to expand...

I was close....it is the A and D pillars (windscreen pillars and the tailgate pillars)

It's amazing whats in RAVE



Stephen96

Member

• Feb 15, 2020

• #15

I'm guessing theres not much you can do with the bcu I have had it out and all looks clean and dry circuit board looks healthy no signs of water even though I can't actually get it out of the plastic casing itself, I have noticed people tend to just get a new or second hand BCU I'm guessing thats all I can do since the circuit board isn't really accessible but also I have read if I get another it will need an update so how much am I looking at for this update as I don't have the programme or software to do this?
