cornish rattler

Well-Known Member
Hi guys
I am in the middle of swapping my 90 from Def 200tdi engine to a Disco 200tdi engine and realised that the power steer pump to box pipe doesn't fit the Disco's pump and before anyone ask's i have tried swapping the pumps over, everything swaps over except the Disco's double pulley as the Def's boss is bigger than the inside of the Disco's pulley and the bolt hole configuration is slightly different and different thicknesses of pulley fixing bolts aswell so i need a Disco pump to box power steer pipe, anyone got the part number please :)

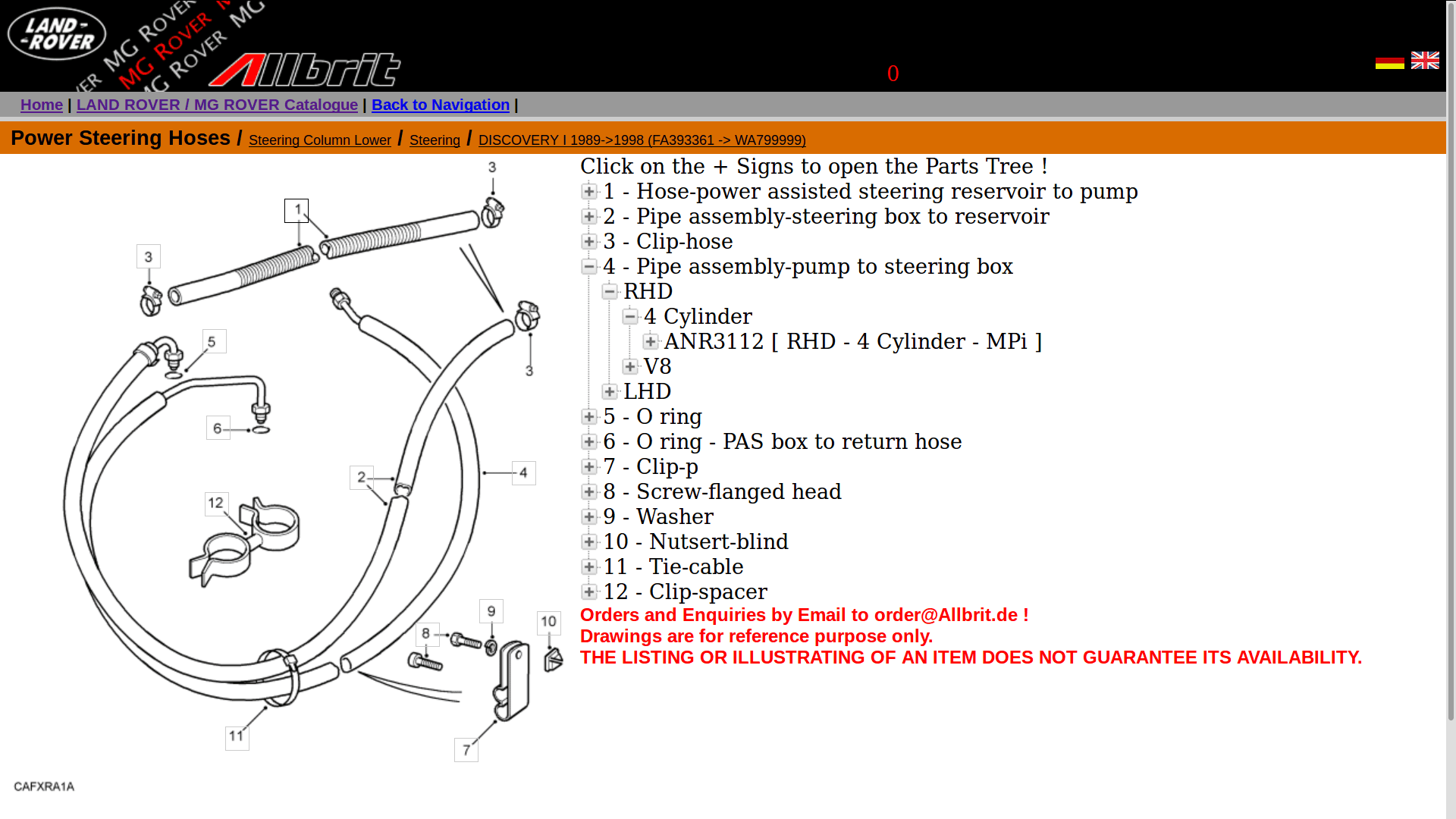

4 Cylinder RHD. Pressure pipe pump to steering box ANR3112 at £89.12 each. OR http://www.rimmerbros.co.uk/Item--i-ANR3112
as in:-
