Littelwill said:

Hey guys,

As title my P38 now has NEW front to back and all rubber flexi hose brake lines...

Issue is When it came to putting the lines back into the brake block (thing below the brake fluid tank) I cant remember which way round the two rear lines go!!!


please could some kind soul help so I can finish the job tonight...


Thanks

W

Click to expand...

Littelwill said:

Problem is they are above and below each other and have no numbers on them

Click to expand...

Littelwill said:

Hmmm helpful... what difference does it make? Do you know?

Click to expand...

Littelwill said:

Hmmm helpful... what difference does it make? Do you know?

Click to expand...

Littelwill said:

Cheers Grrrrr I think its sorted bled up as per RAVE and have a really solid peddle and it stops great.
If your under yours tomorrow it would be great if you could look anyway and post it up here just for someone else in the future.

Click to expand...

Grrrrrr said:

It'll be when I get home from work.

I've had my modulator / master cylinder out in the past. I'll have a dig around and see if I can find some photos. Got a feeling the original lines may have had little labels on.

Click to expand...

Grrrrrr said:

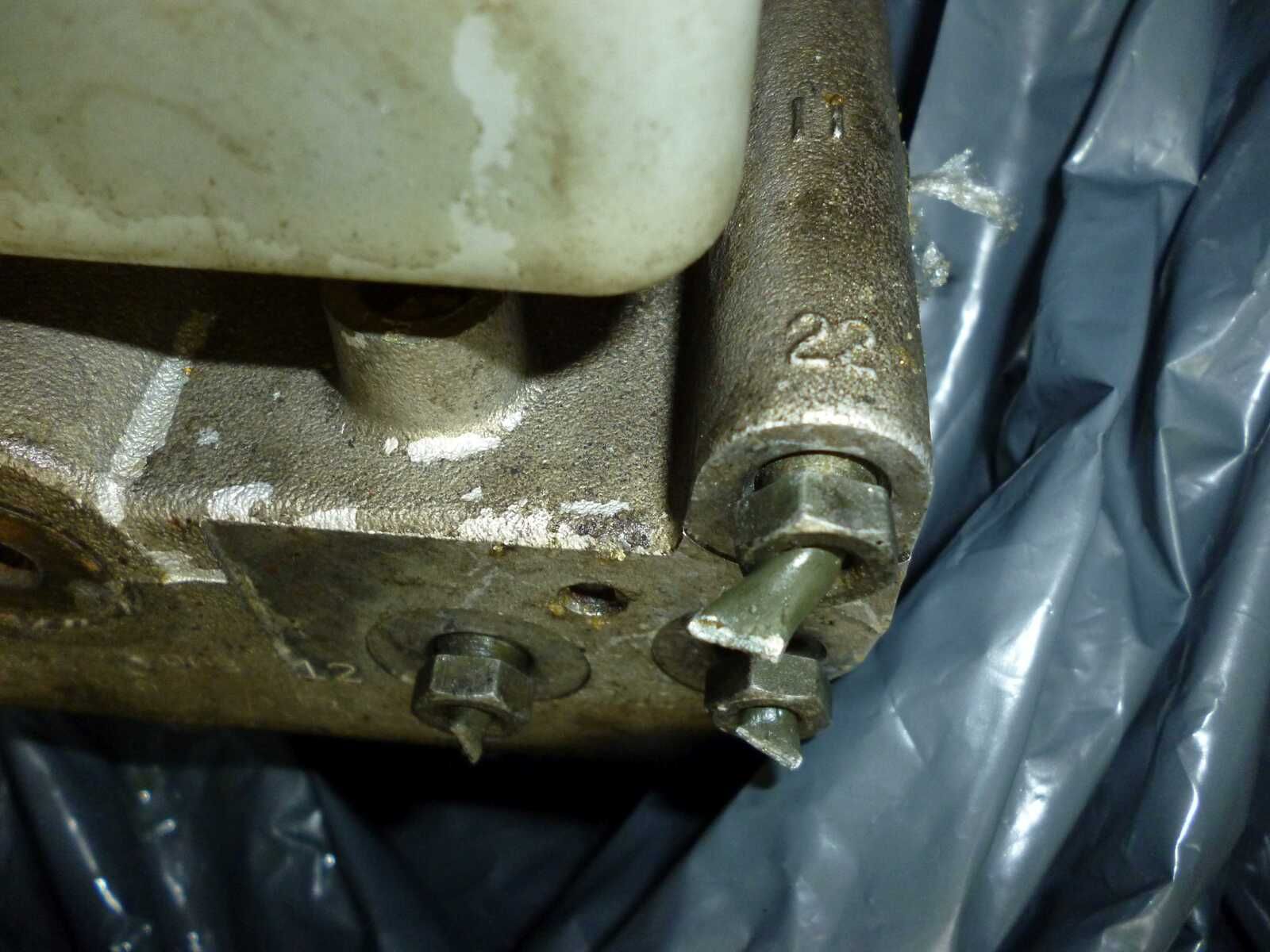

The labels are numbers that match the ones on the modulator. 23,24 rear left of the modulator as you look from the front of the car and 21,22 front right of the modulator.

Bugger. Files too large to upload. Trying again ... think that worked.

It was a bit hard to follow the pipes all the way back but I think 21 went NSR and 22 went OSR.

EDIT: this is pre 4W TC. No TC and 2W TC are the same. Don't know if it is the same on the 1999 onwards models.

Click to expand...

wammers said:

They do indeed


Told him this earlier he says there are no numbers on the modulator. Think he needs to take another look. See post #2.

Click to expand...
