I would imagine all the bits are available for the mechanical side of the change. The diesel came with a manual box so all bits to take the R380 in the P38 are available.
Not sure how much of an electrical/electronic nightmare it maybe.
But I would have to say very doable with patience and time for sure.
Uness you are getting somebody else to do it then it could get costly.
Why?
J
Not sure how much of an electrical/electronic nightmare it maybe.
But I would have to say very doable with patience and time for sure.
Uness you are getting somebody else to do it then it could get costly.
Why?
J
I just prefer manuals and wanted to know wether it's something an amateur could do themselves.
If you need something to do I am sure it is possible for a reasonably mechanical savvy person.
As said the electrics/electronics would probably be more of a challenge. But wiring diagrams are available so I dont see why not.

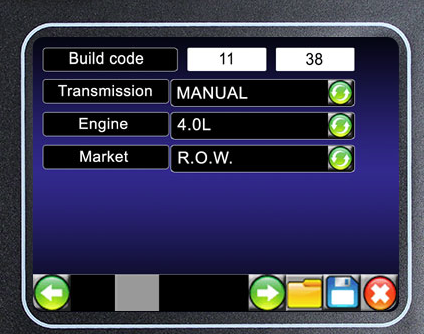

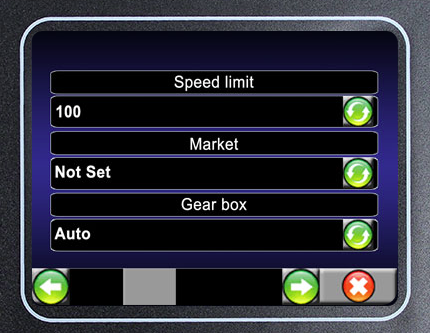

It was (the 4.0) fitted in the Disco as a manual so the settings to change should be available in the ECU and the BECM has a manual setting, if they work together is another thing. So that said do you have a Nanocom?
J
Weren't some of the ex police 38's manuals?
Apparently yes, 6 out there somewhereWeren't some of the ex police 38's manuals?
.
Cop a load of this ex-police Range Rover P38A
This ex-police Range Rover P38A was part of the fleet operated by Cheshire Constabulary. Nobody wanted to see a ‘blues and twos’ Range Rover P38A in their…
petrolblog.com
I couldnt resist a search
.J
Because they were thraped my good man to keep up with the scoobies and rs louts
Last edited:
RangeRoller dt
Well-Sprung Member
It’s not like a straight swap or for the feint of heart.
You don’t have a clutch pedal or associated requirements like master/slave cylinders, cooling for it, electrics all sorts of niggles before you even get to adapting a box to fit. That doesn’t mean it can’t be done just rather involved, and it won’t be drivable the whole time it takes.
One member even put a manual box in an L322 which he uses regularly so anything is possible if you aremad committed enough.
Have a good read through related historic posts in the searchbar while you ponder your possibilities. It’s been discussed previously and if you are serious about it there’s a lot of homework to do
You don’t have a clutch pedal or associated requirements like master/slave cylinders, cooling for it, electrics all sorts of niggles before you even get to adapting a box to fit. That doesn’t mean it can’t be done just rather involved, and it won’t be drivable the whole time it takes.
One member even put a manual box in an L322 which he uses regularly so anything is possible if you are
Have a good read through related historic posts in the searchbar while you ponder your possibilities. It’s been discussed previously and if you are serious about it there’s a lot of homework to do
My P38 is the Thor engine so I imagen a discovery 2 box could fit?
And no I don't have a nano com just a icarsoft cr max
Nano com is just slightly above what I can afford.
If it comes out of a V8 it will mate up.
But........
You will need bits to beable to put the BW transfer box on as its not a direct swap. So do a bit of searching around.
But again as they fitted the manual in the Diesel P38 the bits are out there.
I can only say that it can be done in reverse as I am collecting bits myself to go from BW to LT.
But the output to go into the BW is different to the LT as the splines are different. So it could mean an output shaft change, I dont know.
Like I said all the bits are there its just hunting down the bits of the jigsaw
.Dont forget you will need the flywheel end bits too.
Have a look around your icarsoft it may have the ability to change the settings.
If not then let peeps know where you are and somebody maybe close enough to pop round and help.
J
icarsoft CR Max does not do P38 settings. Their "coverage" says it does most of the ECU's but I have tried it, and it has limited coverage. It also identified the AT box as diesel, but gets the engine correct as GEMS !! Nothin else connects.
Same thing with my Delphi CDP.
Same thing with my Delphi CDP.
Last edited:
Il take note ,If it comes out of a V8 it will mate up.
But........
You will need bits to beable to put the BW transfer box on as its not a direct swap. So do a bit of searching around.
But again as they fitted the manual in the Diesel P38 the bits are out there.
I can only say that it can be done in reverse as I am collecting bits myself to go from BW to LT.
But the output to go into the BW is different to the LT as the splines are different. So it could mean an output shaft change, I dont know.
Like I said all the bits are there its just hunting down the bits of the jigsaw
Dont forget you will need the flywheel end bits too.
Have a look around your icarsoft it may have the ability to change the settings.
If not then let peeps know where you are and somebody maybe close enough to pop round and help.
J
Seems an awful amount of work , but its worth it .
brianp38dse
Well-Known Member
They did a 4,o petrol manual there is a box on ebay
infact there are quite a few bits on there.
infact there are quite a few bits on there.
That would. Solve the problems
Knew they made a few but didn’t know there was that many.
J
This is what I want to find out about, wether you can mate that to a Thor p38 , wiring the xyz switch and the low range is what I don't understand.
Datatek
Well-Known Member
No XYZ switch on a manual and no Auto Box ECU either
Once you have toggled to manual it doesn’t need or take any commands from the XYZ.
The wiring for a few things will be needed.
I suspect them to be the same as manual on the wiring dia in Rave.
Hi/lo is a dashboard switch?
But the breaker with the box may have other bits you need.
J
The wiring for a few things will be needed.
I suspect them to be the same as manual on the wiring dia in Rave.
Hi/lo is a dashboard switch?
But the breaker with the box may have other bits you need.
J
