M

Millertime_9

Active Member

• Jun 23, 2019

• #1

Had spots on my (annoyingly) recently jet washed driveway under where the disco is parked

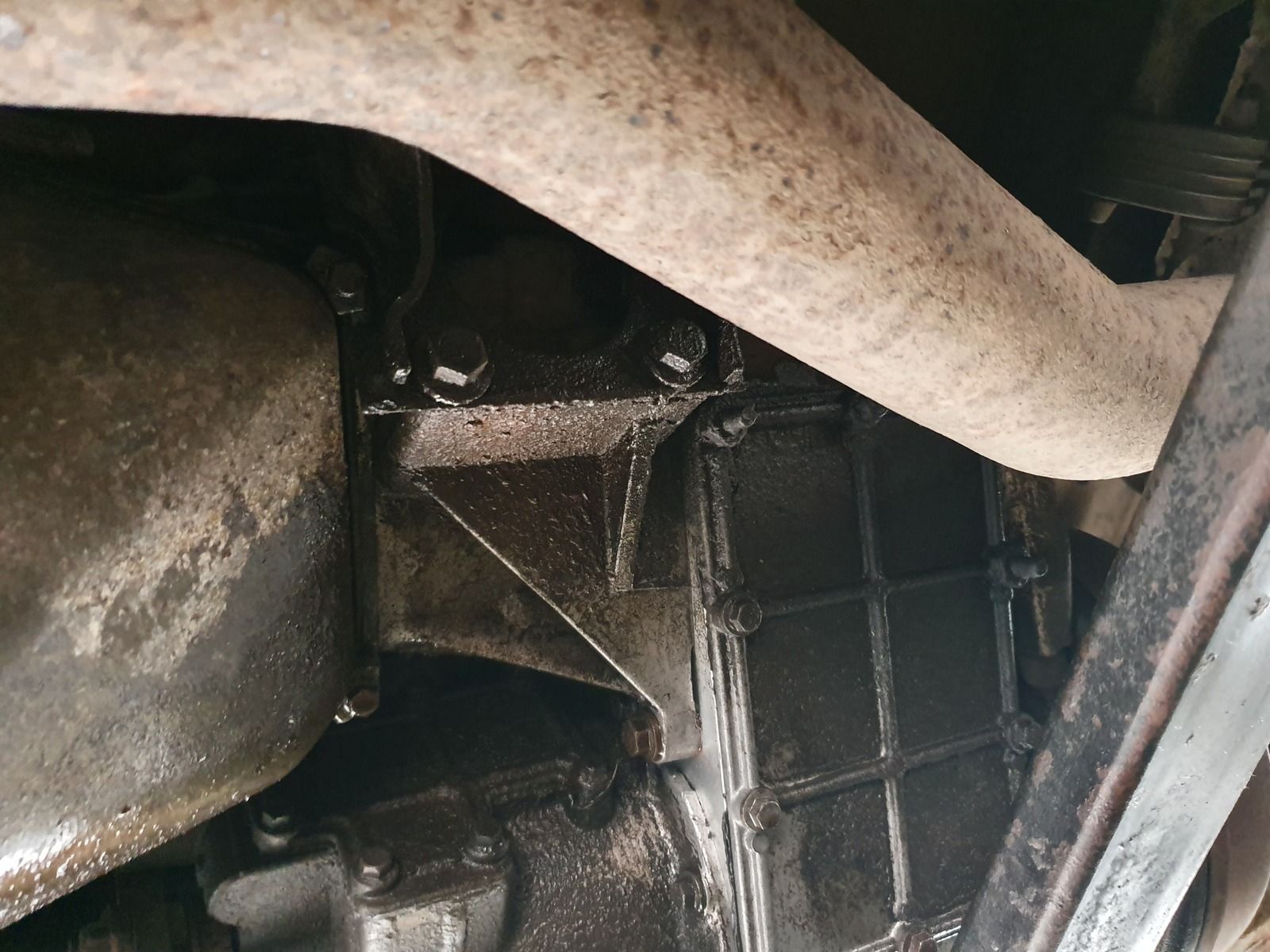

Just crawled underneath and this bit is wet...

Anyone any idea what this is?

I could be wrong but appears to be coming from a bolt on this part?



Attachments

•

  226.7 KB · Views: 93

jamesmartin

Well-Known Member

• Jun 23, 2019

• #2

it could be but a favourite is the end of the intermediate shaft were it pokes out of the casing just above that bolt



M

Millertime_9

Active Member

• Jun 23, 2019

• #3

jamesmartin said:

it could be but a favourite is the end of the intermediate shaft were it pokes out of the casing just above that bolt

Click to expand...

Ah ok, what would that require for fixing?

Is that engine oil coming out then?



jamesmartin

Well-Known Member

• Jun 23, 2019

• #4

if its that t box pulling off and nut from the other side undone, sump plate removed,box upside down, tap shaft through enough to change o ring clean oil from shaft and hole and before fitting put a ring of silicone sealant around the o ring and push shaft home, tighten the shaft nut till all free play is removed from the intermediate gear then stake nut
