Hi,

I just replaced my bulkhead and wings, i had removed the battery earth strap and connot remember where it should be connected to the body.

Any help would be great



ed.poore

Active Member

• Jan 15, 2010

• #2

Mine (a 2.25 diesel) was connected onto one of the supports of the battery holder / platform thingy. Basically just a hole drilled through the support and bolted on.



Q

QED

New Member

• Jan 15, 2010

• #3

Just need a good clean firm connection to the body.



Sirus

Your all Banned except me

• Jan 15, 2010

• #4

QED said:

Just need a good clean firm connection to the body.

Click to expand...

Shouldn't that be chassis???



ed.poore

Active Member

• Jan 15, 2010

• #5

Sirus said:

Shouldn't that be chassis???

Click to expand...

Depends how good his connection between the body and the chassis is . A lot of the dash stuff is earthed through the bulkhead.



oxides

Well-Known Member

• Jan 15, 2010

• #6

Mine is earthed to the engine block and the radiator support bracket - definitely not standard, but it works. As the engine sits on rubber mounts, it sort of makes sense to provide a good return from the starter motor via the block.



Last edited: Jan 15, 2010

S

Steve Ashworth

Active Member

• Jan 17, 2010

• #7

Mine is connected to the bottom of the battery tray, which in turn is connected to the chassis.
I believe this to be the norm.
Provided that it is a good clean secure connection you will br OK...

Steve



W

waddle

New Member

• Feb 4, 2010

• #8

mine bolts on directly to the chassis right next to the clutch slave cylinder
works fine



Leon.

Active Member

• Feb 4, 2010

• #9

mine is connected to the pate in front of the rad. as long as it is clean then it is good.



Flat 6

Member

• Sunday at 16:12

• #10

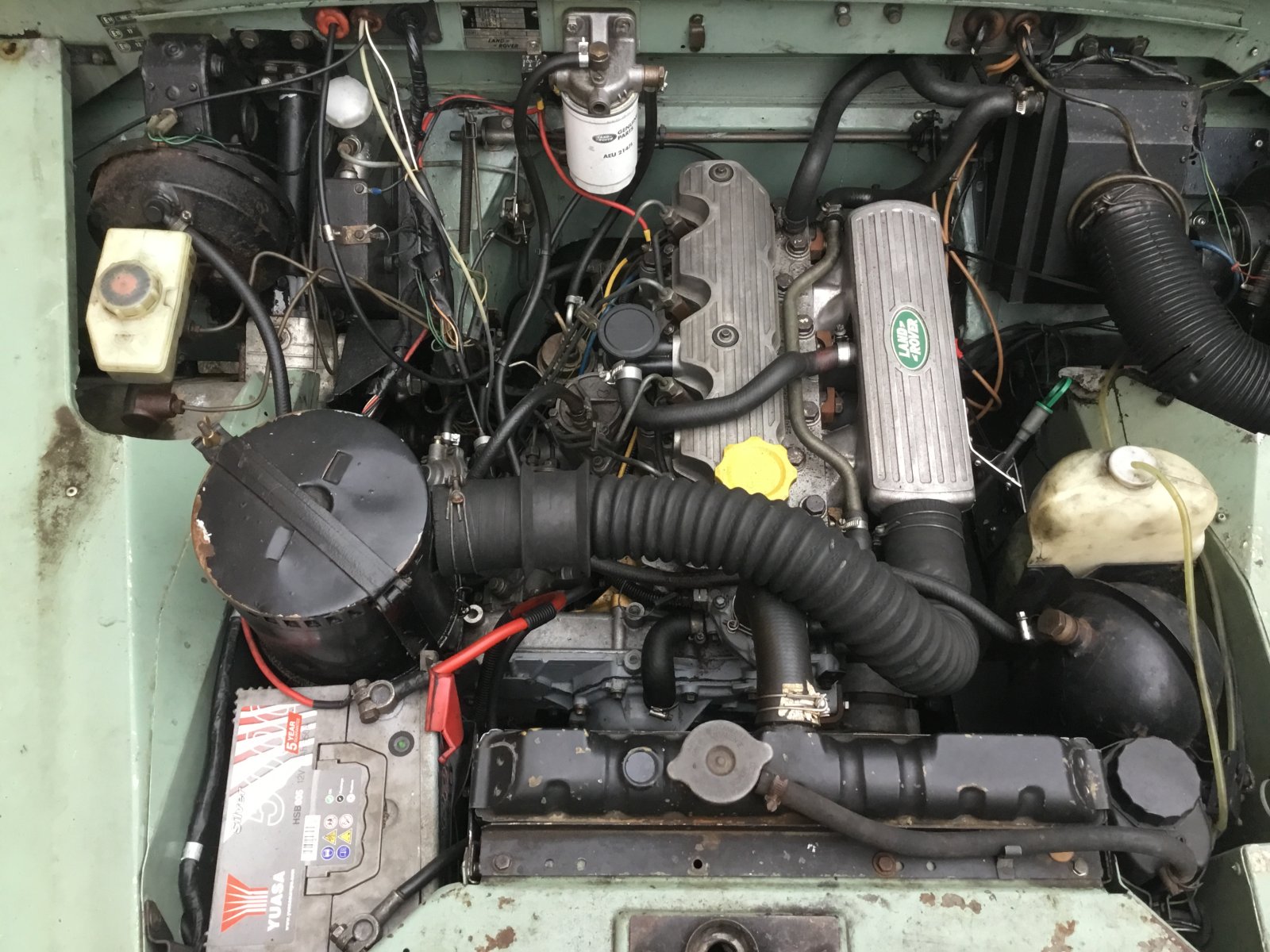

Hi. My engine earth goes straight to negative terminal on battery. Is that a problem? A



tottot

Well-Known Member

• Yesterday at 19:25

• #11

Flat 6 said:

Hi. My engine earth goes straight to negative terminal on battery. Is that a problem? A

Click to expand...

No, not that I can see.



steve2286w

Well-Known Member

• Yesterday at 19:39

• #12

I would add a second earth strap to the chassis from engine if not got one already as the engine and gearbox sits on rubber mounts



Flat 6

Member

• Yesterday at 23:02

• #13

OK. So the earth strap from the battery bolts to the housing for the radiator. Maybe the engine earth should go there instead of direct to the battery? Looking at my ‘71 Spitfire the only connection from the negative post of the battery is to the body.
