L

Landyfella

Active Member

• Jul 23, 2020

• #1

The plugs that came out are NGK bp5es.

thanks.



M

Mark Frewin

Member

• Jul 23, 2020

• #2

Hi These are for the 8.1 same as Champion N12Y. The 8.1 head has markings on it just next to the carb next to one of the cylinder head bolts a figure of eight.
7.1 uses Champion N8 or the NGK Bp6es this is according to land rover handbook



L

Landyfella

Active Member

• Jul 23, 2020

• #3

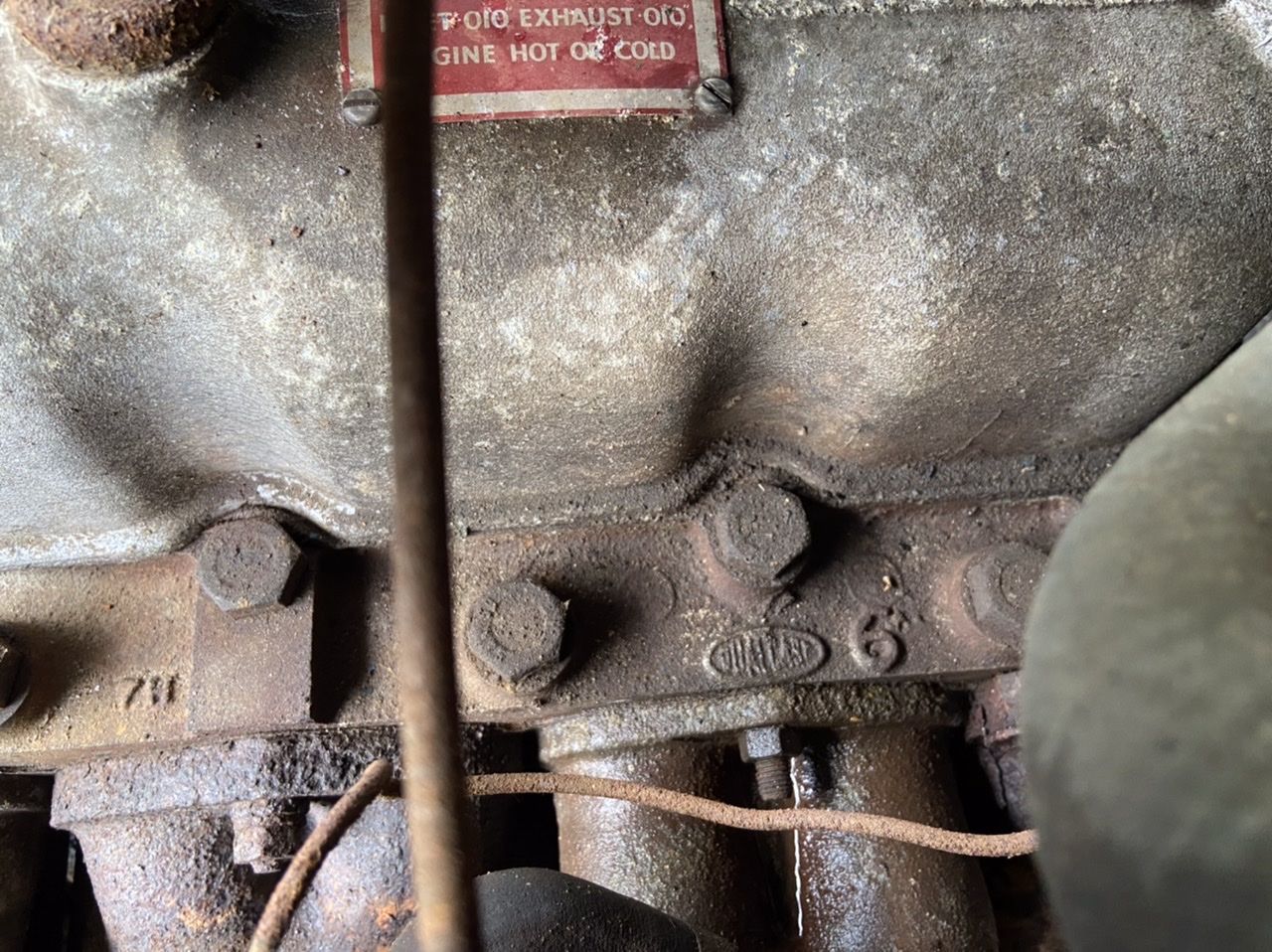

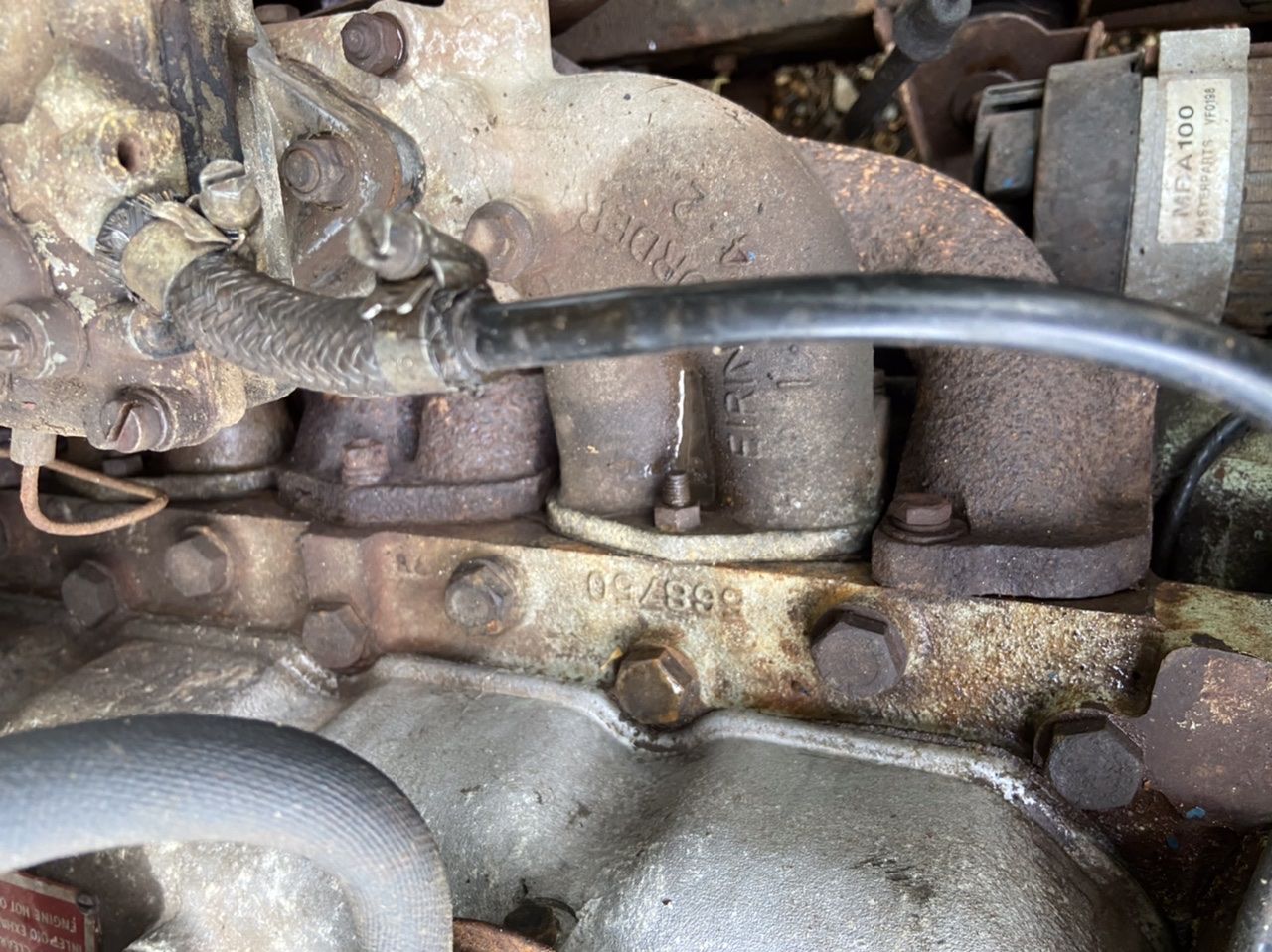

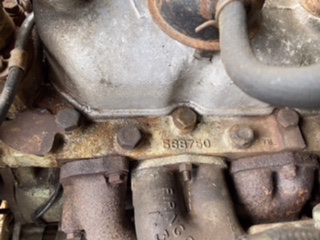

Thx. My head has 7h on it so must be 7:1?



Attachments

•

  34.3 KB · Views: 209
•

  276.2 KB · Views: 190
•

  222.6 KB · Views: 187

M

Mark Frewin

Member

• Jul 23, 2020

• #4

In your second picture right next to 7H on the raised part just in front of the bolt head is a faint 8. Its large and sort of engraved. You have the 8:1 head so your plugs are correct



Blackburn

Well-Known Member

• Jul 23, 2020

• #5

Maybe someone had the head skimmed to give 8:1.



M

Mark Frewin

Member

• Jul 23, 2020

• #6

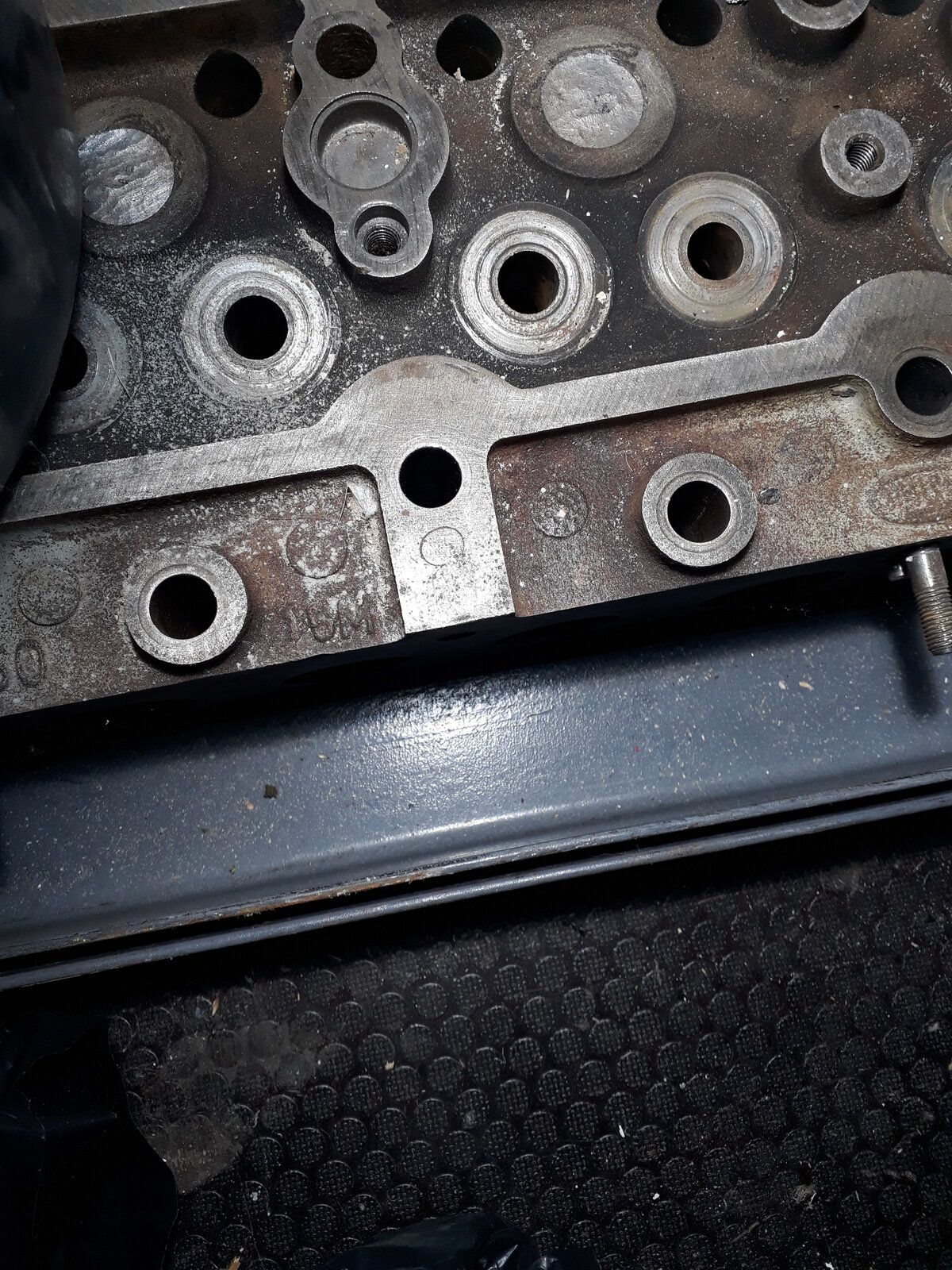

I think the 7H is just a casting mark. The 8 is the same as my spare cylinder head. Pic attached
