its been blanked off, but leaving the system in situ, so it looks normal, but dont do ought

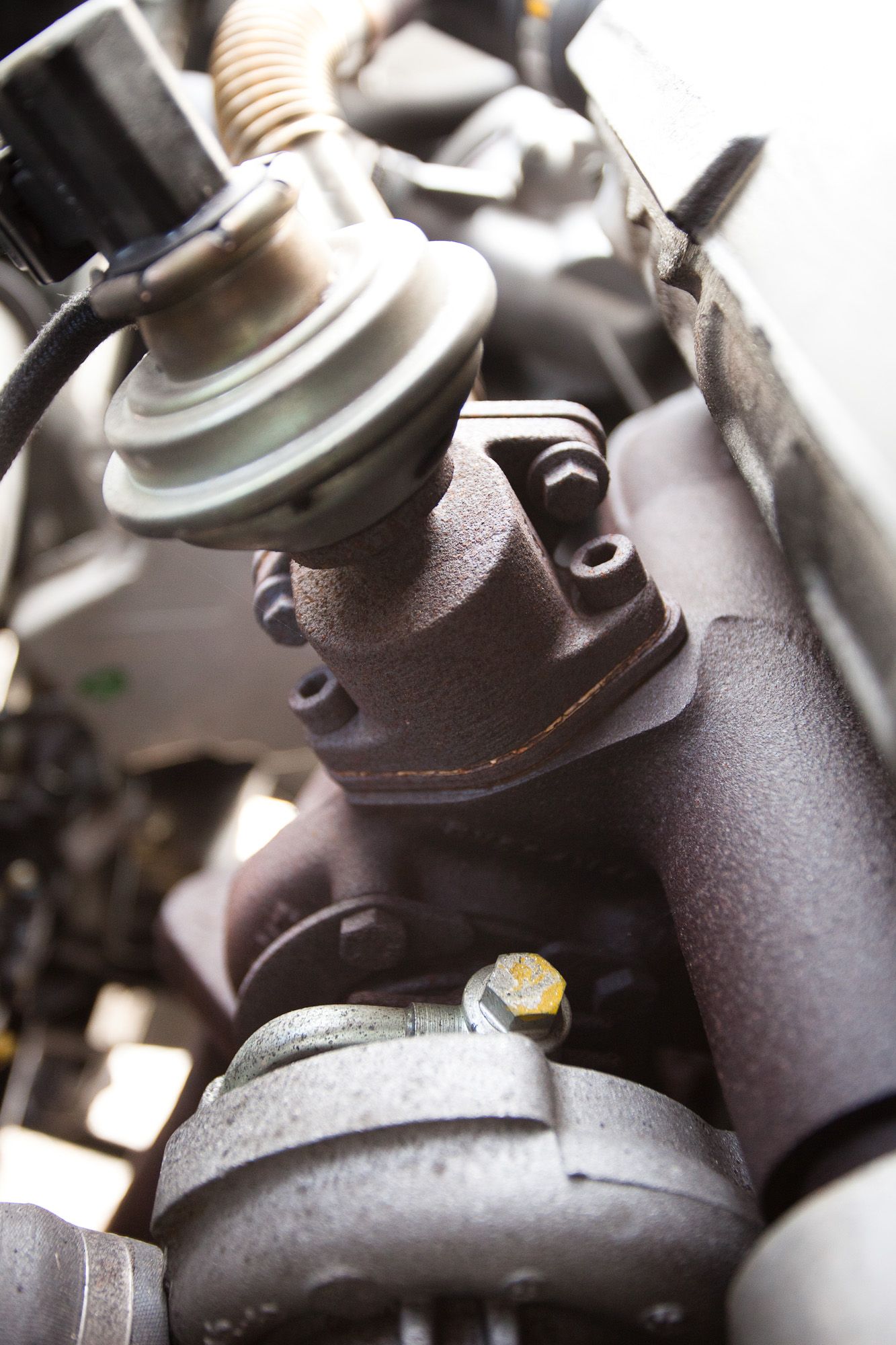

if yu check the 2 pics, the first one has been blanked at the EGR input, yours has been blanked at the output.
They both work just as well, but yours is more likely to be picked up by the new MOT regs.
They both work just as well, but yours is more likely to be picked up by the new MOT regs
.fredrikarnell
New Member
That looks like its still in place when blanked they normally look like this
Thanks for the reference pic, mate! Now, when looking real close at it, you can actually see the plate that is present on my EGR (slightly to the left of the upper blanking plate screw). Applying what Mad Hat Man says, it would mean your EGR is "double" blanked???
Does anyone have a pic of an "un-blanked" and untouched EGR valve? (they exist?) To compare.
I revise whot i said....... yours is only blanked if that plate is a blanking plate and not an insulation plate .
.fredrikarnell
New Member
If these photos are anything to go by, it certainly seems like this plate is not there before any "mod" hands.
Difflock.com: Remove the EGR valve - Land Rover 300TDi
Difflock.com: Remove the EGR valve - Land Rover 300TDi
fredrikarnell
New Member
I revise whot i said....... yours is only blanked if that plate is a blanking plate and not an insulation plate
I suppose which one I have can only be found out by opening the darn thing up? (which is what I am trying to avoid, seeing the state of those bolts...)
It however seem likely that it has not been blanked off since I bought this Defender (6 months ago now) with only 38'000 km on the clock from a guy who just had no mechanical clue (always stealer treatment of the car during its 14 year of "pre-me" existence).
fredrikarnell
New Member
I revise whot i said....... yours is only blanked if that plate is a blanking plate and not an insulation plate
What would be the purpose of an "insulation" plate?
Insulation!:doh:
fredrikarnell
New Member
Gave you a volley there right...
Insulating metal from metal... hmm... Just don't get why it should be needed.
coz the egg-sauce gets hot - and the valve (which electrically controlled) dont like getting too hot?
