So here we go. Series 3 diesel. Fuel and temp guage stopped working yesterday, after I'd pulled the dash forward to put a new bulb in charge light.
I've checked the voltage stabalizer it's working correctly, when I pulled the dash forward the fuel guage started to go up, push it home and off it dropped. 3 times I did this just for the sheer amusement lol. I can't see any loose connections or wire that's not connected. What am I missing something stupid I guess.



tottot

Well-Known Member

• Apr 5, 2024

• #2

Contacts in the fuse box under steering wheel often cause issues.



boguing

Well-Known Member

Full Member

• Apr 5, 2024

• #3

And simply the age of the bird's nest rammed in there. Next job on mine is a new loom.



alanm1

Member

• Apr 5, 2024

• #4

tottot said:

Contacts in the fuse box under steering wheel often cause issues.

Click to expand...

That's my first thinking



alanm1

Member

• Apr 5, 2024

• #5

boguing said:

And simply the age of the bird's nest rammed in there. Next job on mine is a new loom.

Click to expand...

In fairness its relatively new not much extra odjob wiring lol



mystery

Well-Known Member

• Apr 6, 2024

• #6

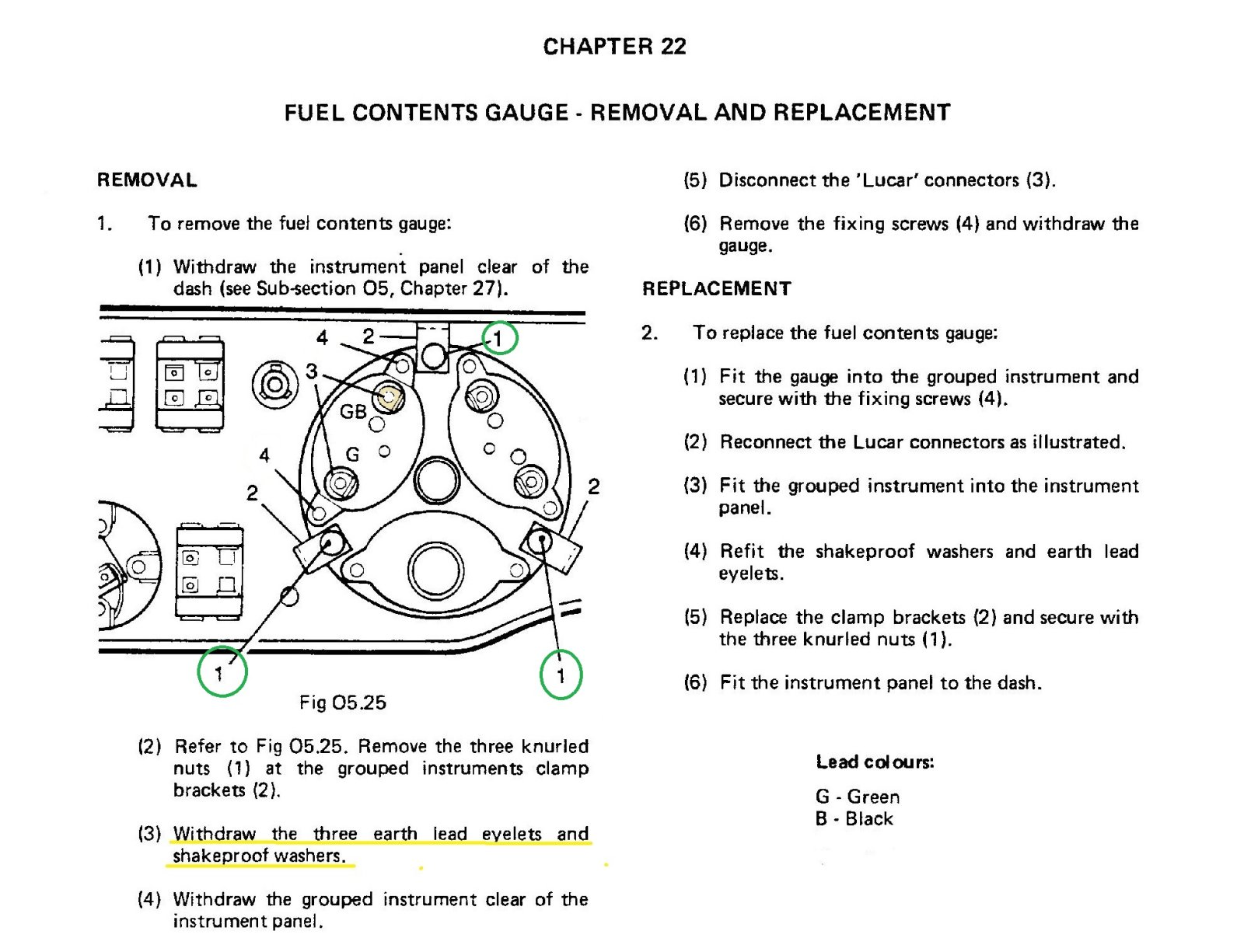

have you checked the earth lugs on the instrument cluster



Attachments

•
  GAUGE REMOVAL.jpg

  254.9 KB · Views: 35

W

Wildefalcon

Well-Known Member

• Apr 6, 2024

• #7

Earth lugs gets my vote.



alanm1

Member

• Apr 6, 2024

• #8

All sorted, 2 problems an earth had jiggled loose and the voltage stabaliser was also faulty. Thanks for the help guys.
