Parisien · Feb 26, 2014

The radio began hissing and crackling quite a bit, turns out the front speakers are playing up and I need the amps, can anyone point me in best direction to get these or part numbers? Thanks

P

gazzab79 · Feb 26, 2014

Yours is a late model isn't it? If so it won't have door amps just the big one behind the sub.

Parisien · Feb 26, 2014

Yes....2000 Vogue, Harman Kardon system.

Sub being where?

I know in boot on left hand side an double speaker unit type box

P

Datatek · Feb 26, 2014

Mines a late 2000 DHSE, no sub in the rear or amp, just the CD autochanger.

Parisien · Feb 26, 2014

Further research needed then....unless anyone has the HK system in situ and knows more?

P

dogsbody · Feb 26, 2014

Parisien said:
The radio began hissing and crackling quite a bit, turns out the front speakers are playing up and I need the amps, can anyone point me in best direction to get these or part numbers? Thanks

P

Unlikely that two amps would have developed the same fault at the same time so you've either got a fault between the head unit and the amps or a single rear amp and a problem there.

gazzab79 · Feb 26, 2014

My 2000 had the single amp. It's hidden right down inside the quarter panel. The new type amps are prone to failing

Parisien · Feb 26, 2014

Thanks guys, is there a part number or diagram I can get it off?

P

gazzab79 · Feb 26, 2014

Rave for wiring.

Parisien · Feb 26, 2014

Oh, cheers, think I have that downloaded, must have a browse

P

Parisien · Feb 26, 2014

Ok, my PDF download doesn't have anything in it, can someone give me a reliable link please?

P

gazzab79 · Feb 26, 2014

I would but I have it in a disc. There was a rave thread the other day.

Parisien · Feb 26, 2014

Hi Gazza.....see thread below, need an Apple friendly link/download

P

MrGorsky · Feb 26, 2014

Yours has the Premium system fitted I think if you've got the HK set-up.

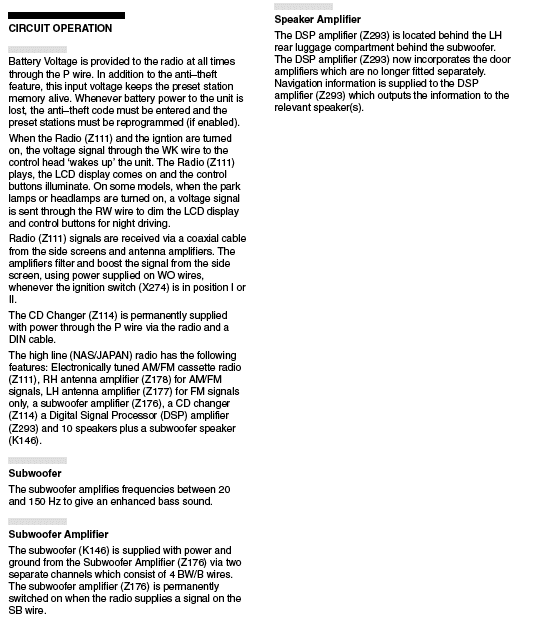

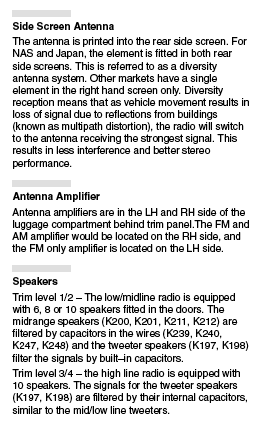

Here is the circuit operation page from RAVE...

You can download the Electrical Trouble Shooting manual for 1999 MY onwards

ON THIS LINK.

The diagrams and everything you need are all in there.

Whether you got the sub-bass woofer thing was all down to what trim level was requested (and paid for) when the car was ordered. There was Lo/Mid/Hi and Premium. I think the HK system with the DSP amp in the back next to the sub-bass woofer was the Premium option, so well done you, you've got a great stereo!

gazzab79 · Feb 27, 2014

Yeah good system but amps are poor and fortunes to replace, although someone on ebay is now doing repairs on them I think

Parisien · Feb 27, 2014

Guys, as ever, thanks. A bit more research to do and hopefully get sorted

P

Parisien · Feb 27, 2014

Is this the item I am potentially looking for?

range rover p38 amp | eBay

P

Parisien · Feb 27, 2014

gazzab79 said:
Yeah good system but amps are poor and fortunes to replace, although someone on ebay is now doing repairs on them I think

Did a few searchs for repairs of same Gazza, nothing coming up

P

Datatek · Feb 27, 2014

I'd be looking for damp connectors, maybe even on the head unit.

Parisien · Feb 27, 2014

I'll do that Datatek, the back speakers are working ok, so will check simpler fixes first, plus still have 2 litres of water in spare wheel well on a weekly basis!
