A

Alvis48

New Member

• Nov 2, 2017

• #1

Hi. I am planning to fit discovery2 front discs to an Alvis. I need to know the internal dimension of the disc to see if it will fit my hubs, any help please? Also centre hole diameter.



Last edited: Nov 2, 2017

brian47

Well-Known Member

• Nov 2, 2017

• #2

Alvis48 said:

Hi. I am planning to fit discovery2 front discs to an Alvis. I need to know the internal dimension of the disc to see if it will fit my hubs, any help please? Also centre hole diameter.

Click to expand...

The only dimensions I can find for the D2 front discs is the external diameter of 297.2mm +/-0.2mm and a nominal thickness of 25mm +/- 0.1mm.

Before you invest too much in your project, I would advise that you get hold of a scrap brake disc to see if the rest of the Alvis front rolling gear will accept it.

The wheel stud pattern could give you a bit of a headache too.



Last edited: Nov 2, 2017

A

Alvis48

New Member

• Nov 2, 2017

• #3

The Alvis pcd is 5x5", I intend to drill the discovery2 disc to match. New discs are not that expensive, however some dimensions from someone who has one would be useful before purchase.



brian47

Well-Known Member

• Nov 3, 2017

• #4

Alvis48 said:

The Alvis pcd is 5x5", I intend to drill the discovery2 disc to match. New discs are not that expensive, however some dimensions from someone who has one would be useful before purchase.

Click to expand...

That's why I said get a single scrap disc from a breaker's yard. It's got to be cheaper to do all your measuring and trial and error working out on a scrap unit than to start on new discs until you know exactly what and how you're going to do.
New discs would be very expensive if you try to modify them and then find you have to sling the set of new discs away 'cos it didn't work.



sierrafery

Well-Known Member

• Nov 4, 2017

• #5

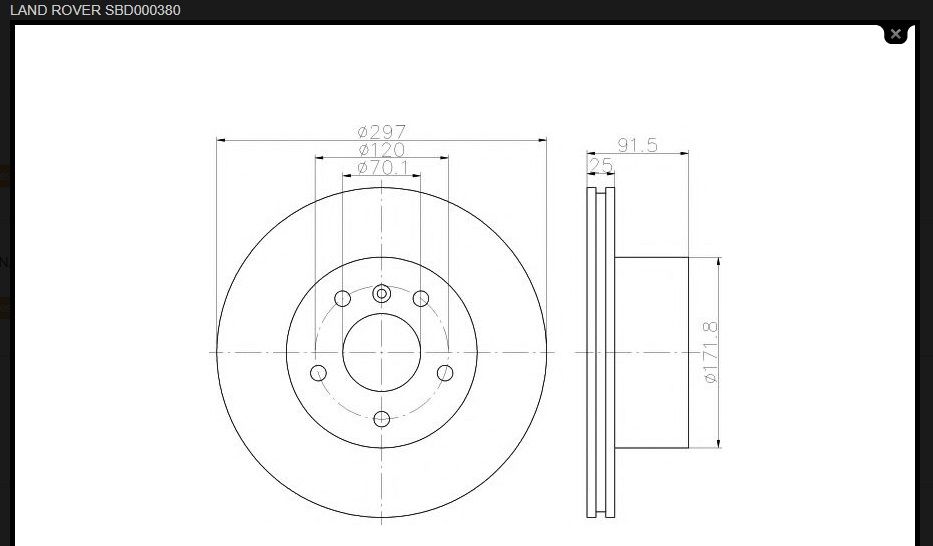

here you go:
