ex darksider · Mar 29, 2010

hi ,got a pump rebuild kit on the way from holland of ebay if it ever gets here!,has anyone got any pics or tips on how to get it done,

cheers steve.

Stufer · Mar 29, 2010

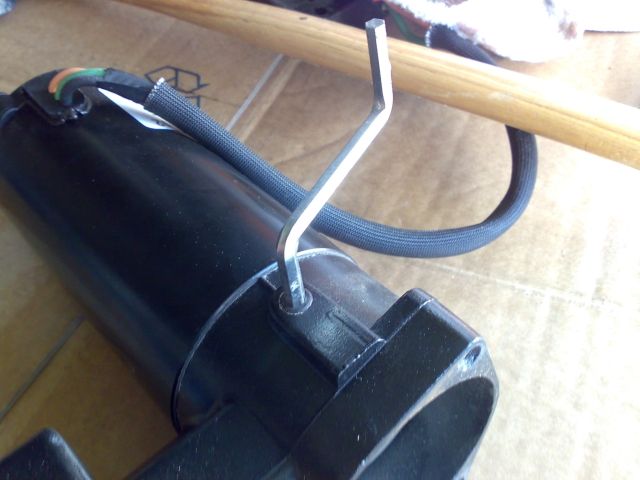

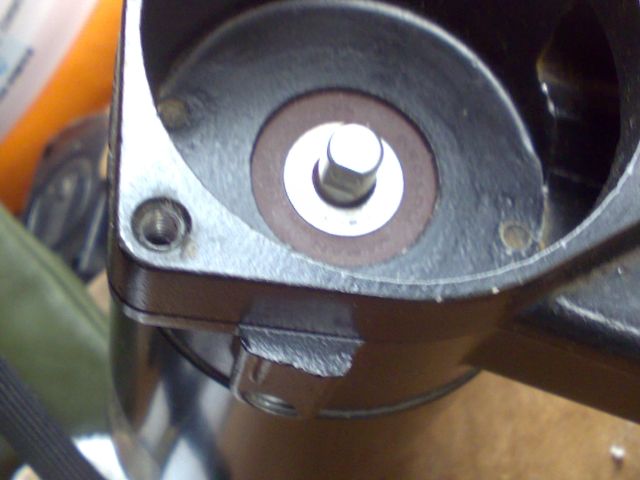

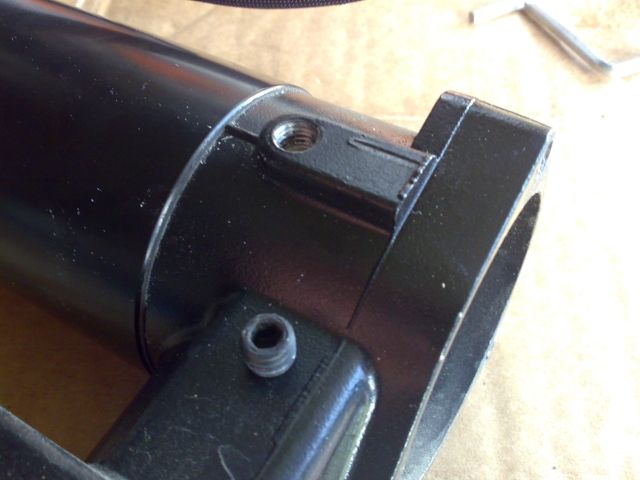

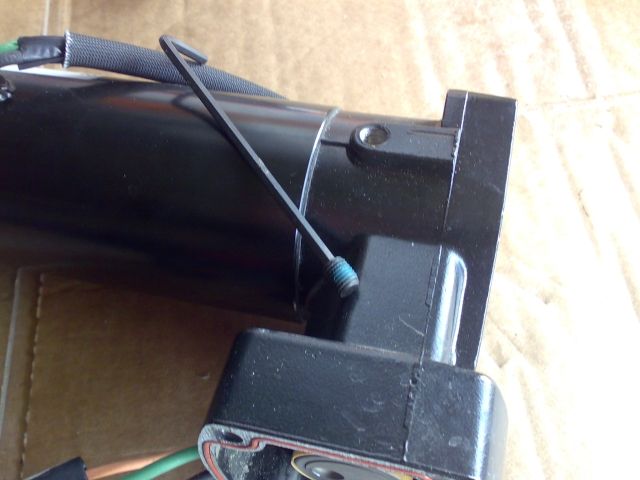

Yes, got loads of pics, send me a pm with your email address and I will send from work tomorrow. You'll need a 3.2mm or preferably a 3.5mm allen key to remove piston. I managed with a 3.0mm but it risks rounding off the grub screw....

zzr1200 · Mar 29, 2010

The answer to all your questions should be here:

Range Rover Air Compressor Rebuild

Stufer · Mar 31, 2010

Hope you got the emailed pics ok. I will post them here as well when I get chance.

lanmjdun · Apr 1, 2010

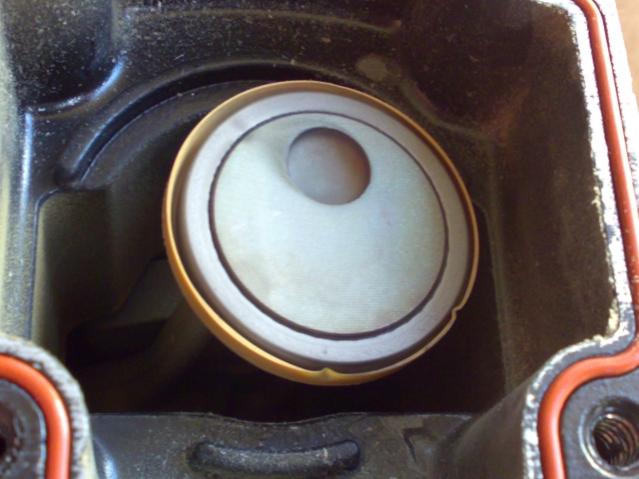

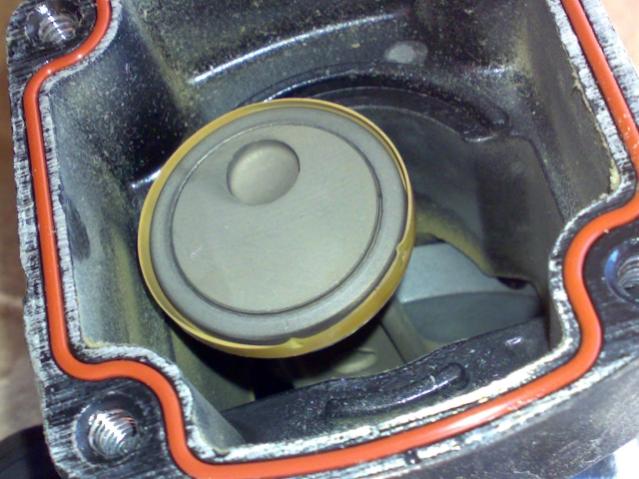

The kit comes with pictures and instructions in Dutch, what they don't tell you is the piston top can be levered off to remove the seal - took me ages to figure that out - that shouldn't affect you though if you bought the piston/cylinder kit.

bobbler · Apr 1, 2010

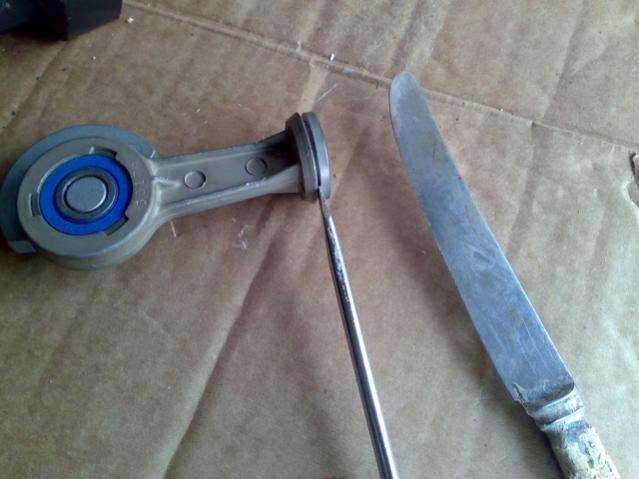

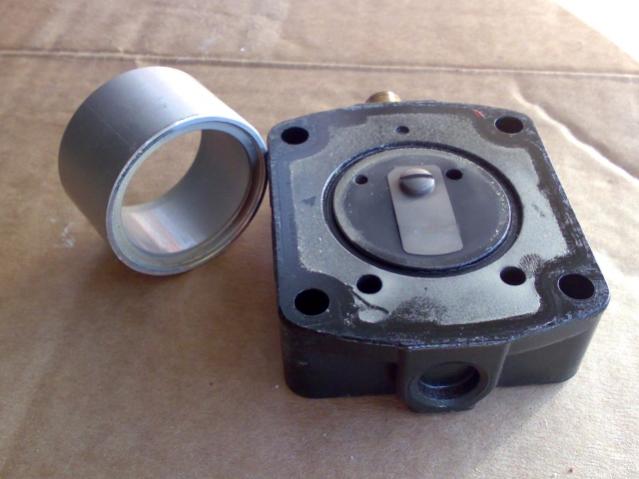

The pictures that come with the kit arent bad and I think mine came in english too. The only problem I had was getting the metal sleeve off that holds the seal in place. iirc they recommend using a blade but I found I needed a flat headed screwdriver and a couple of (careful

) blows with a hammer to free it up.

Once off and new seal on the sleeve went back on with no issues

Stufer · Apr 2, 2010

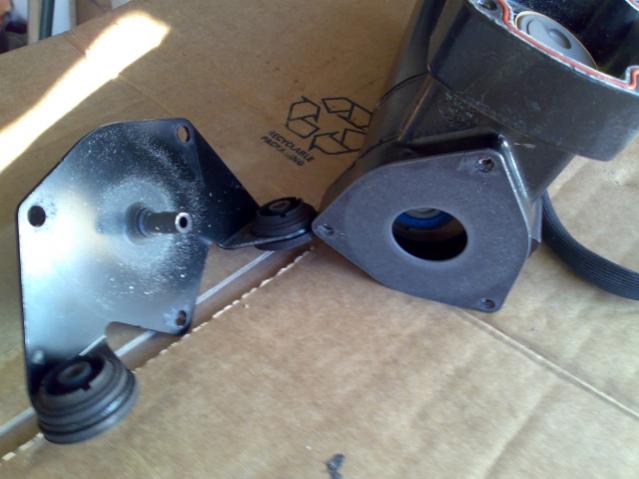

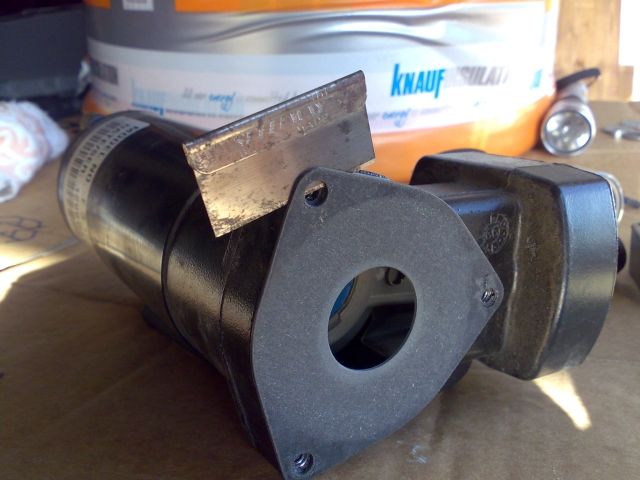

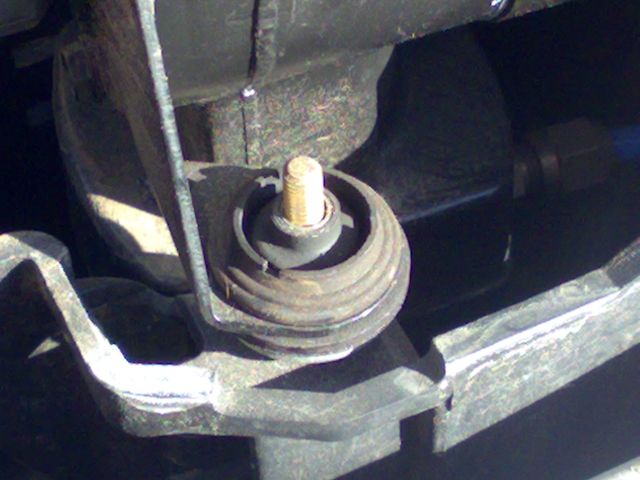

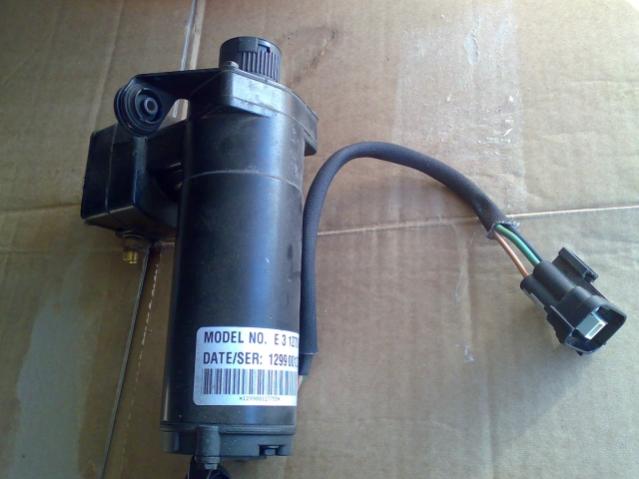

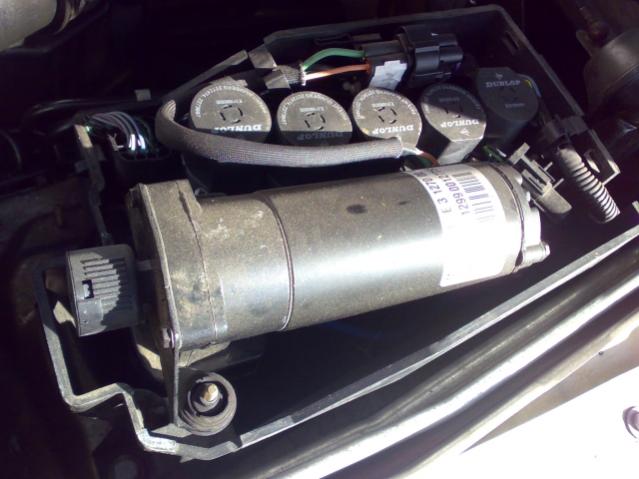

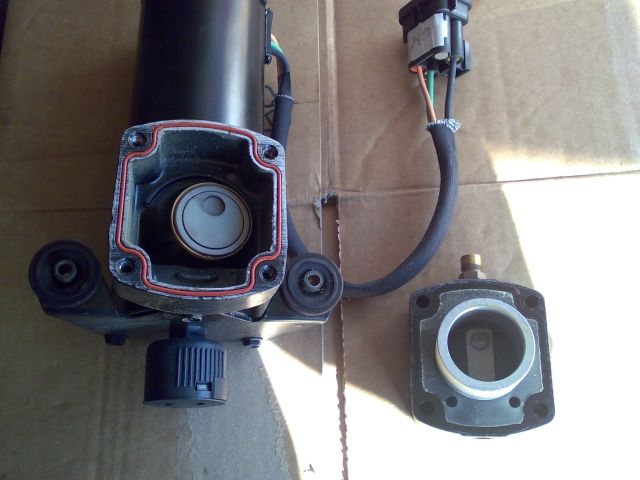

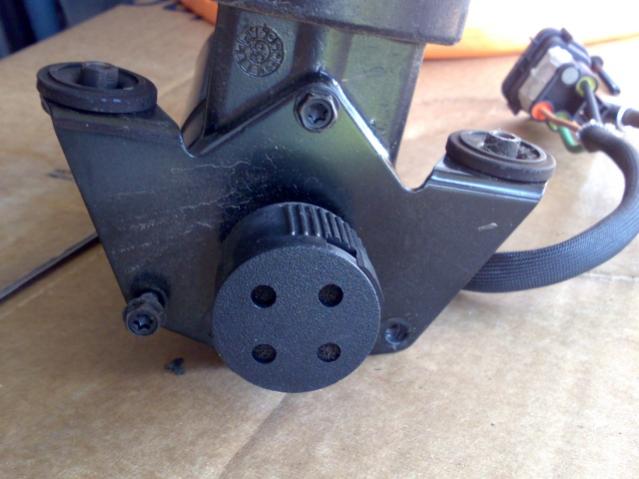

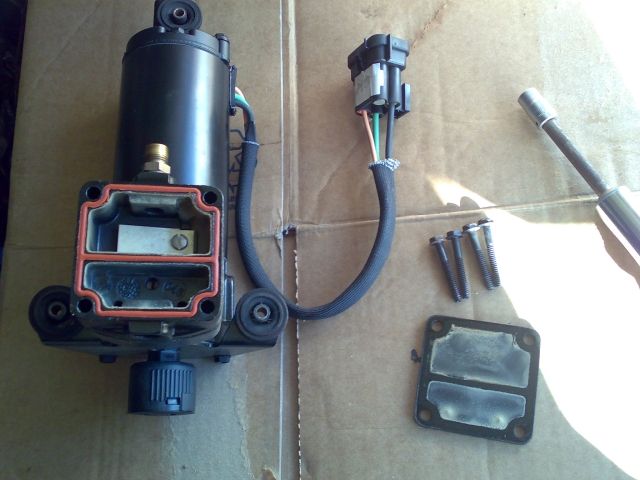

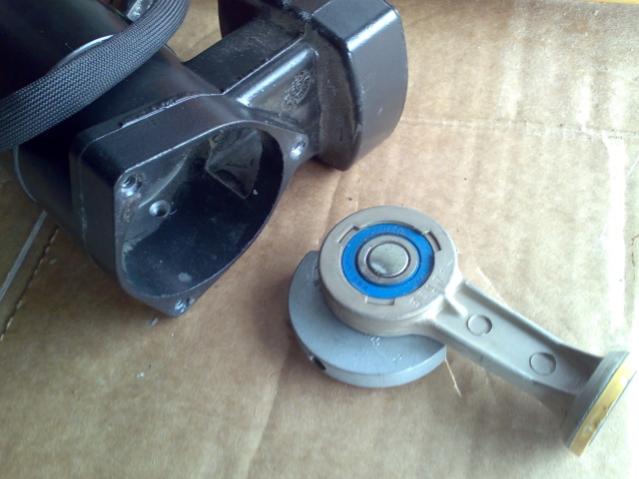

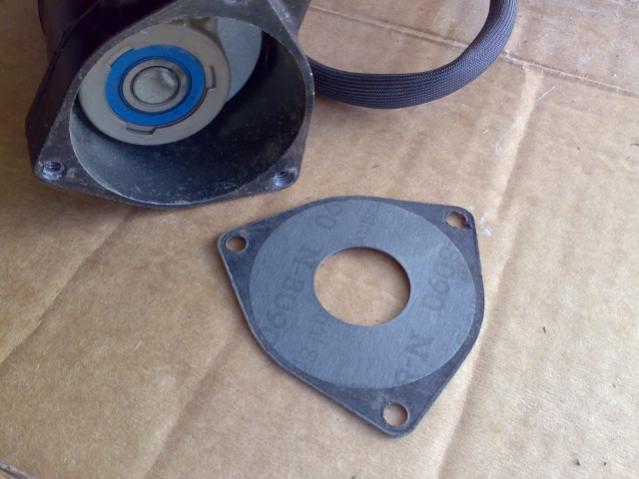

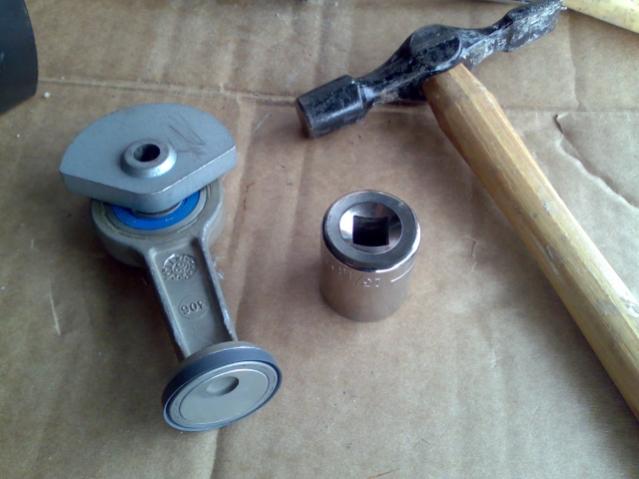

EAS pump seal replacement pics attached

Stufer · Apr 2, 2010

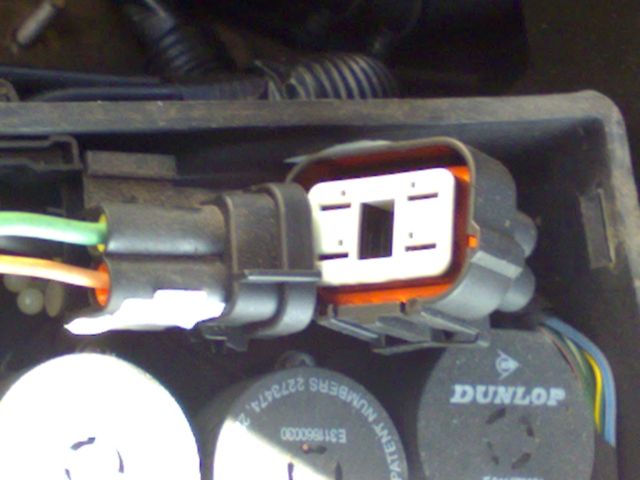

some more
