sierrafery
Well-Known Member
didnt you press accidentaly the mode switch? press it again to see what happens...if no joy move the transfer box lever in low and if the lamp will switch to M it means there's a short in the switch or it's circuit...we'll speak then
sierrafery
Well-Known Member
did you select low on transfer box too?....unplug the switch see what happens
sierrafery
Well-Known Member
then the switch is blocked closed or a short within it, untill you fix it, as long as you dont want to select sport or manual you can leave it so otherwise you'll drive in S mode all the time
srtgray
New Member
Makes a big difference in hilly country, as it doesn't change up quite so readily.
sierrafery
Well-Known Member
there;s some throuble with that switch's circuit cos it must go to M automatically when you switch to low if the mode is selected, as long as it stays off with switch unplugged the problem is above the plug... also if your hi.low switch doesnt work well(and that's very common) selecting hi or low will not affect it much cos there's no signal, and the hi/low switch has no warning, you can check if it works only with tester
sierrafery
Well-Known Member

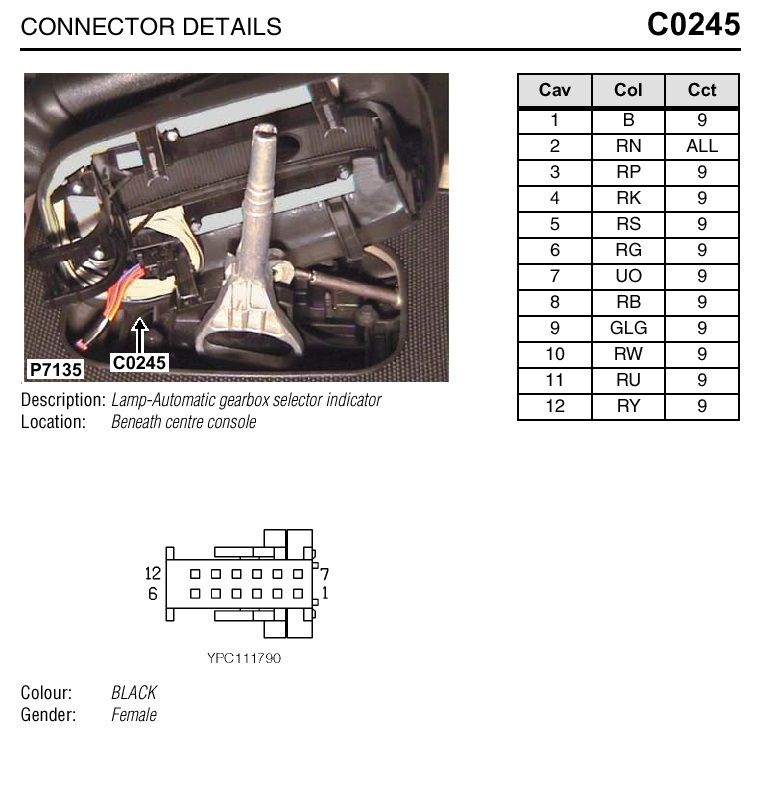

IMO there must be something as long as unplugged it doesnt happen, see the attachment, get a multimeter and check if you have earth on the pin of the selector module corresponding to pin 7 of the plug(blue/orange wire) ... concentrate to not mix pins...if you have earth there that's the problem, it means it's a short to earth within that circuit and the ECU goers automatically to sport and the hi/low switch doesnt work to make it go to M in low...if there's no earth on that pin but you get the S light anyway then IMO start to source another transmission ECU
RAVE - DESCRIPTION AND OPERATION 44-5 said:
