mad85

Active Member

• Wednesday at 23:38

• #1

so i retrofitted the cruise control on my 03 disco. all looked fine and i can see on nanocom that the switch works. however the Set + button doesnt seem to be doing anything? what am i misisng? how can i check if the switch is maybe faulty?



Badger688

Well-Known Member

Full Member

• Yesterday at 01:30

• #2

Silly question! But have you turned on the switch at the dash???

Kev



mad85

Active Member

• Yesterday at 05:32

• #3

Badger688 said:

Silly question! But have you turned on the switch at the dash???

Kev

Click to expand...

Yes, so i turned on the switch which lights up and then i got up to speed and pressed the set + and i let go of the accelerator but nothing happened. Was expecting it to maintain that speed or at least feel some kind of trottle response ?



L

lynall

Well-Known Member

Full Member

• Yesterday at 06:12

• #4

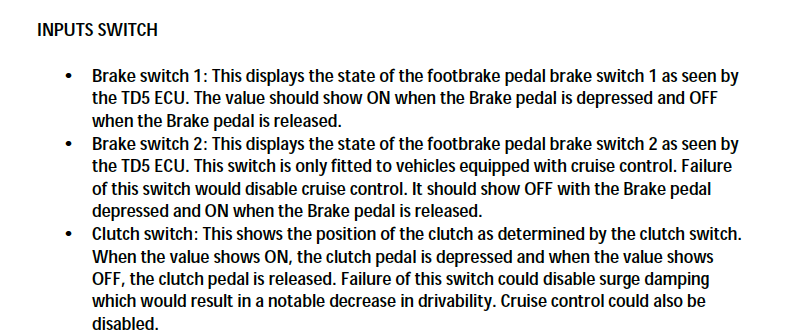

if I remember correctly the brake pedalswitch has two circuits one for the brake light and second circuit to switch off the cruise.



Badger688

Well-Known Member

Full Member

• Yesterday at 07:22

• #5

As above! Check the pedal assembly, to check that the actuator is engaging when working the pedals?


Kev



discool

Well-Known Member

• Yesterday at 11:32

• #6

Badger688 said:

As above! Check the pedal assembly, to check that the actuator is engaging when working the pedals?


Kev

Click to expand...

Your D3 must be different if set, the cruise control will disengage if the brake or clutch pedal is pressed.



Badger688

Well-Known Member

Full Member

• Yesterday at 12:21

• #7

discool said:

Your D3 must be different if set, the cruise control will disengage if the brake or clutch pedal is pressed.

Click to expand...

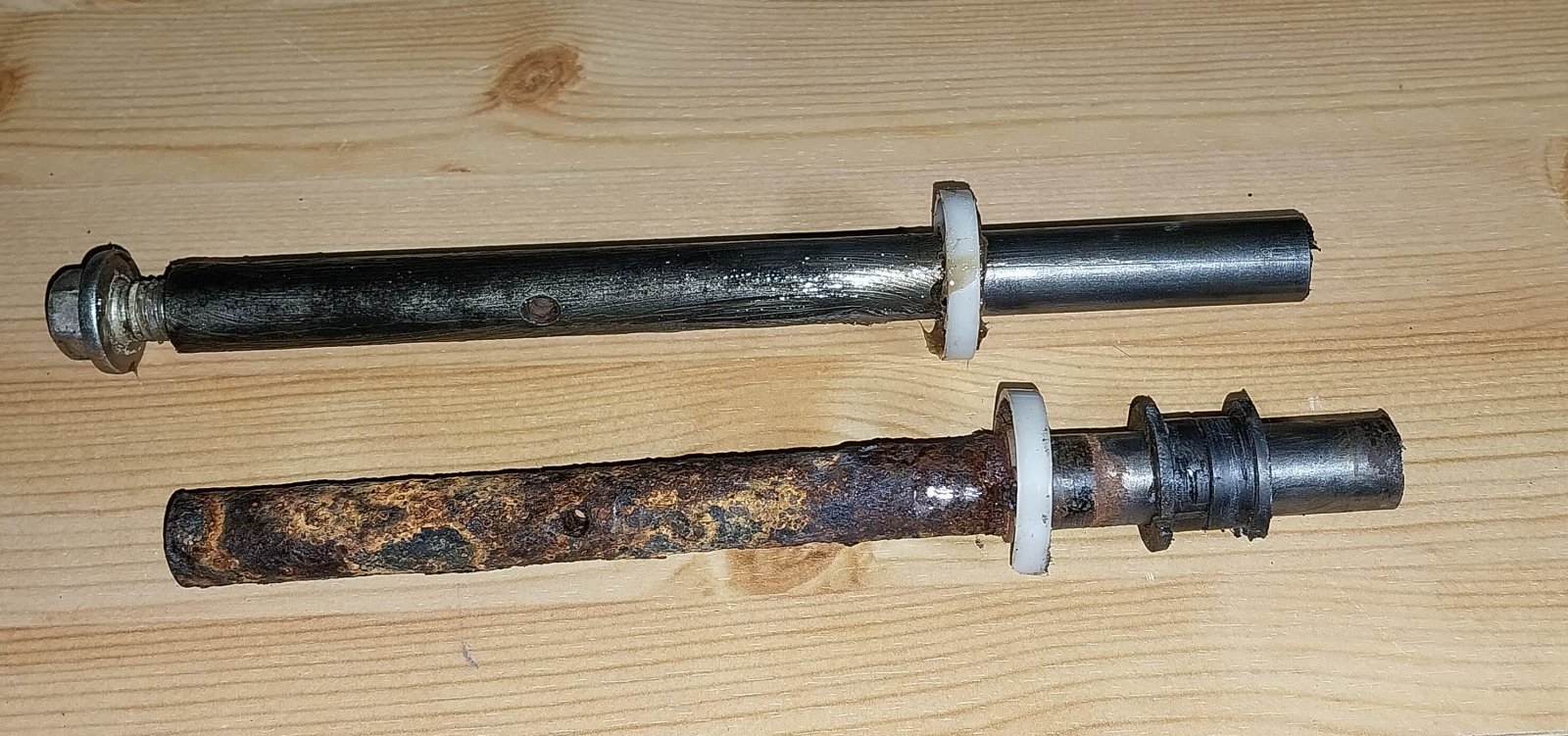

I had a problem with my pedals! Water had come in and screwed the main pedal shaft! So the actuator was not engaging with the cruise control or the brake light! Because of the rust around the shaft (see pic )

After changing! No more problems !

That's why I asked if he had checked the part!

My car is a 99 Td5!

Kev



Attachments

•

  303.1 KB · Views: 7

sierrafery

Well-Known Member

• Yesterday at 13:54

• #8

mad85 said:

so i retrofitted the cruise control on my 03 disco. all looked fine and i can see on nanocom that the switch works. however the Set + button doesnt seem to be doing anything? what am i misisng? how can i check if the switch is maybe faulty?

Click to expand...

Go with nanocom In BCU - Settings - Alarm/others - 4'th page and make sure that Cruise control appears as "Enabled"



mad85

Active Member

• Yesterday at 21:39

• #9

sierrafery said:

Go with nanocom In BCU - Settings - Alarm/others - 4'th page and make sure that Cruise control appears as "Enabled"

Click to expand...

i hope this is a bingo, the setting was not enabled. will have a go tomorrow and report. thanks for now
