F

faulksy

Member

• Aug 7, 2014

• #1

hi guys sorry to keep asking for help when i havnt helped anyone myself yet. but i found out last night that i had no brake lights. investigated today and i think its the brake switch. i have done a continuity test on the switch and there is no continuity on any pin, so to confirm its the switch which wires on the plug do i need to link out just to test the lights, theres 3 on there. thank you guys

mike



sierrafery

Well-Known Member

• Aug 7, 2014

• #2

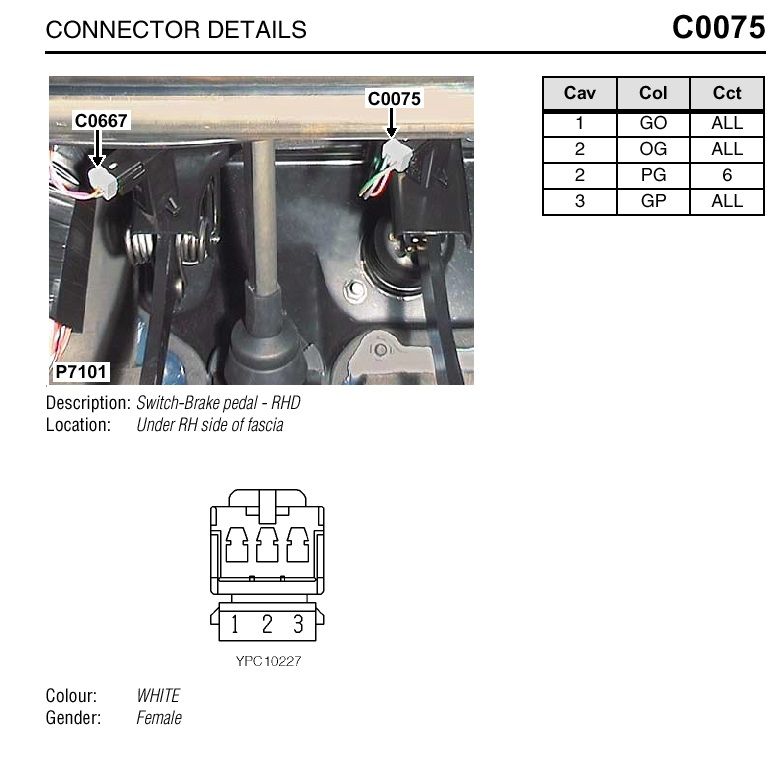

Hi again, pins 1 -3 are NO contact for the lamps, 1 - 2 NC for engine management, if you bridge 1 - 3 in the plug the brake lamps must work if the circuit/bulbs are good, the other NC contact is important too so if it's not normally closed it disturbes the fueling ... here's some info http://www.landyzone.co.uk/lz/1949274-post7.html , see attachment... this will fix only the lights issue not the warnings too...those are a different story



Attachments

•
  brake switch plug.jpg

  60.9 KB · Views: 155

F

faulksy

Member

• Aug 7, 2014

• #3

fixed it yipee, striped the switch apart and found 1 of the pins had snapped on the contact face, re soldered as tempory fix and all is well. need to order a new one now though any ideas of the best place. thank you though sierrafery



sierrafery

Well-Known Member

• Aug 7, 2014

• #4

google out XKB100170 then choose from the multiple options of online stores...dont buy it from main dealer



F

faulksy

Member

• Aug 7, 2014

• #5

Ok, that's great, seen one on ebay £8 not bad
