does anyone have a wiring diagram for a 19j its ex mod so it has loads of unnecessary wires and it is probably easiest to rewire the whole vehicle or at the wires that run to the fuse panel and along the dash
The 200TDi loom will be very similar if you can get one of those. I guess it's the MoD light switch that will cause the most head scratching.

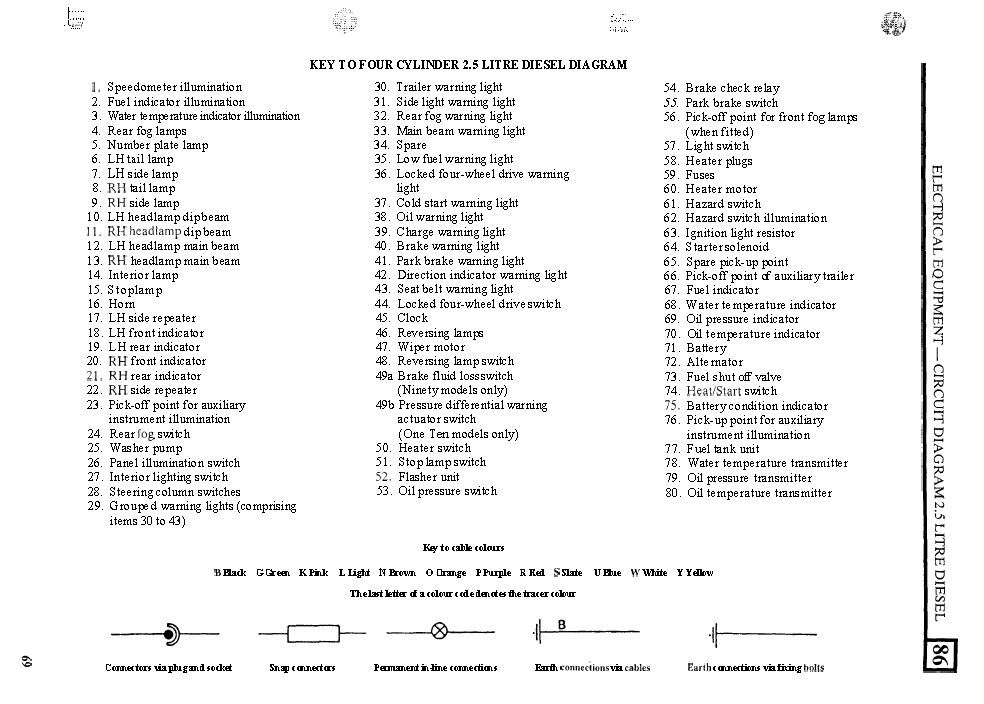

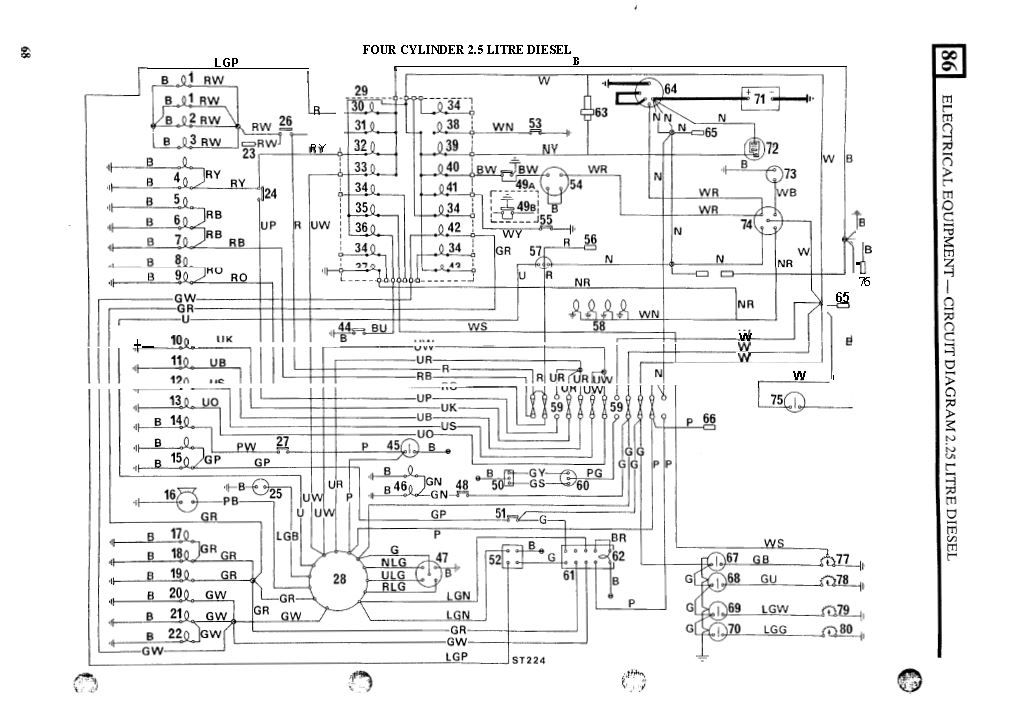

I've attached the diagram and key for the N/A - yours should be very similar.
