meego

Well-Known Member

• Yesterday at 19:23

• #1

Can someone remind me where the horn goes on my 90 and what colour the cable is ?? I’m buggered if I can remember it’s been out that long. The main thing is I can’t find the cable. So if I know where it goes the cable should be close by….i hope



H

Hicap phill

Well-Known Member

• Yesterday at 19:37

• #2

Looking at the front..
Right hand side,attached to bonnet release slam panel,behind black grill. Held up by 6mm bolts. Feed is in the same loom as the lights/side light/indicator.

You need a photo?



meego

Well-Known Member

• Yesterday at 19:57

• #3

Hicap phill said:

Looking at the front..
Right hand side,attached to bonnet release slam panel,behind black grill. Held up by 6mm bolts. Feed is in the same loom as the lights/side light/indicator.

You need a photo?

Click to expand...

Photo would be great mate, thanks



H

Hicap phill

Well-Known Member

• Yesterday at 20:18

• #4

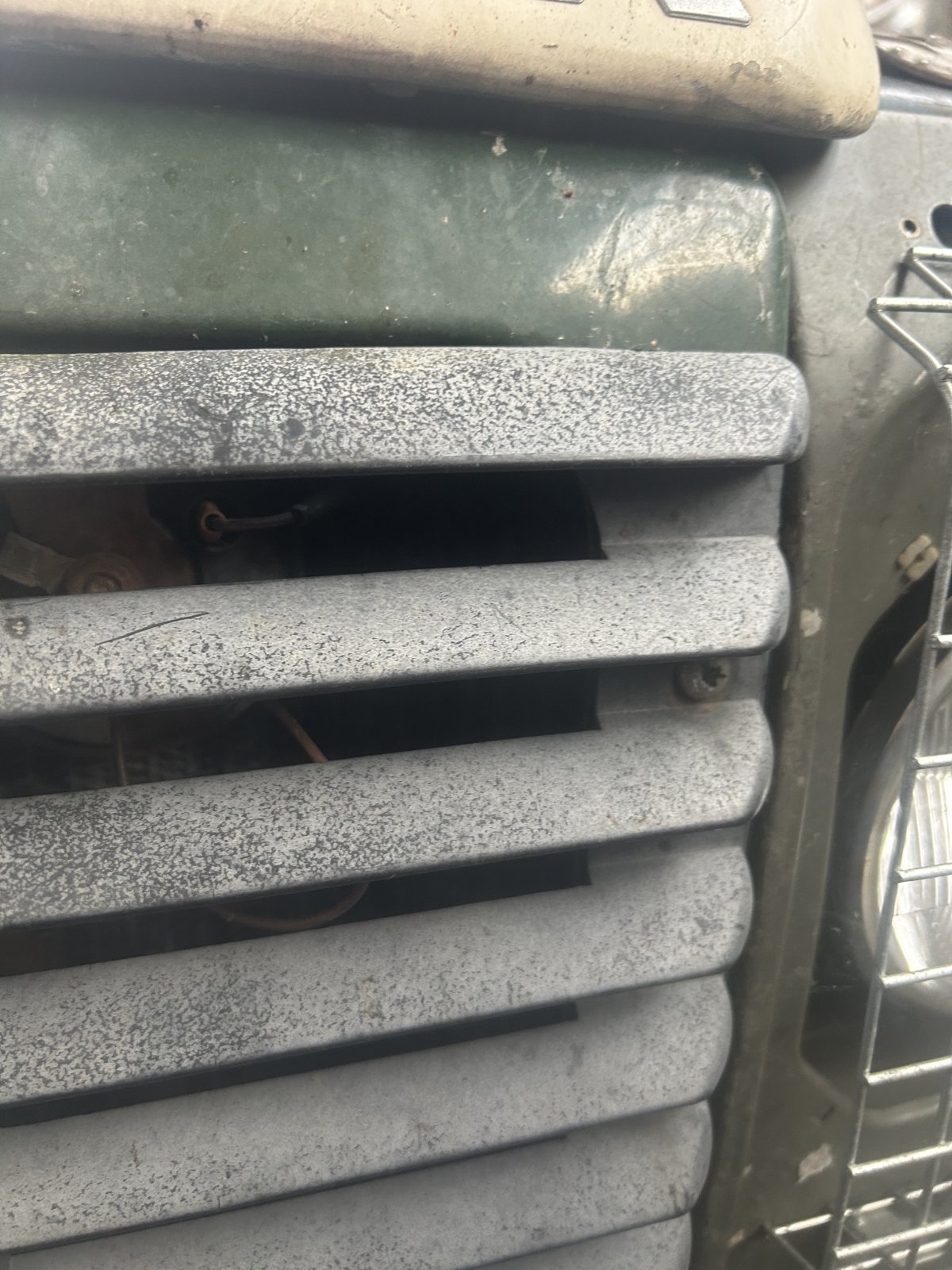

Horn in location

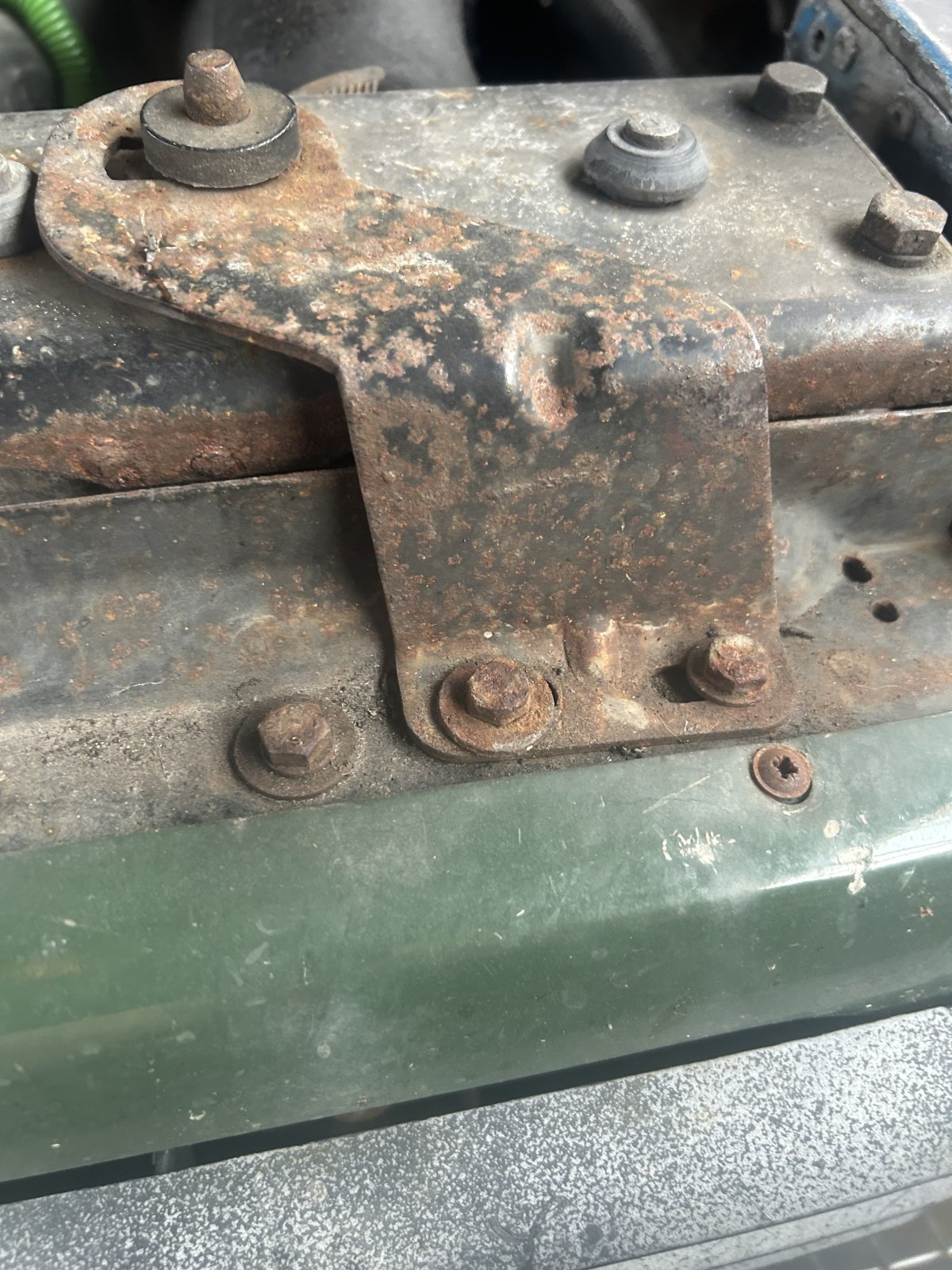

Uses these bolts to fix in place

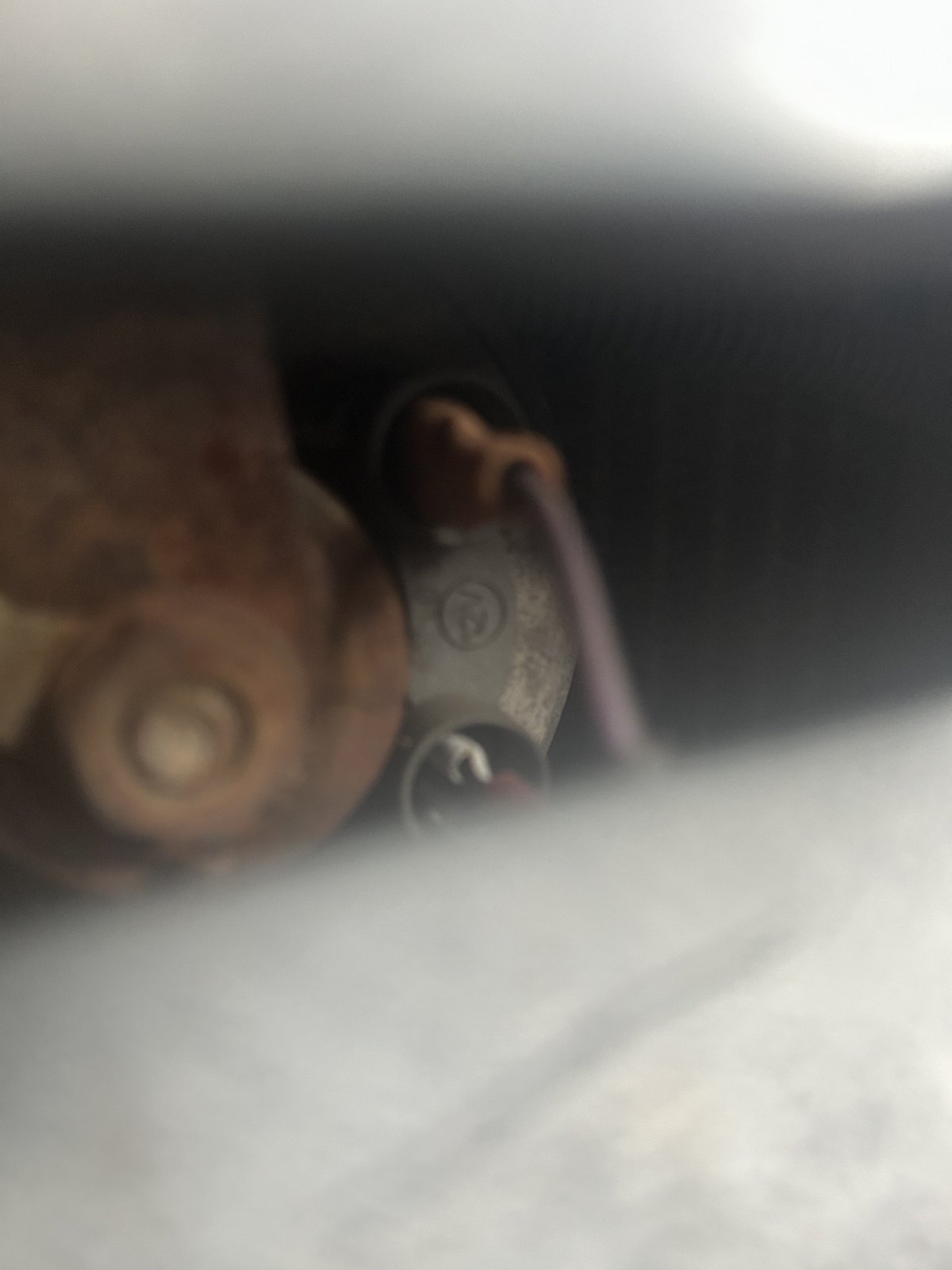

Looks like purple/black for the horn feed. Earth off the nut that hold the horn.



meego

Well-Known Member

• Yesterday at 20:39

• #5

Hicap phill said:

Horn in location
View attachment 343662
Uses these bolts to fix in place
View attachment 343663
Looks like purple/black for the horn feed. Earth off the nut that hold the horn.
View attachment 343664

Click to expand...

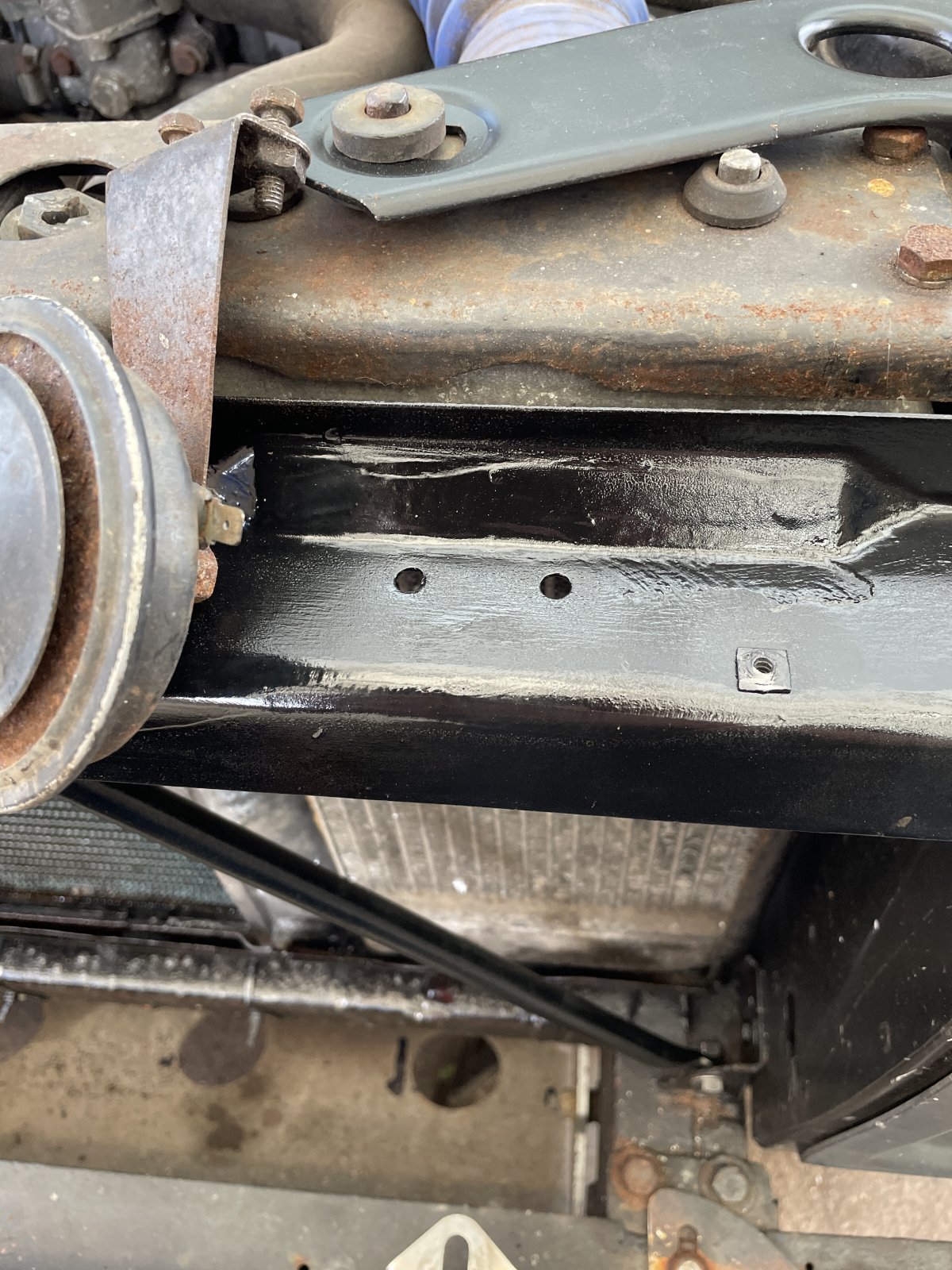

Mines different, but the holes are there for the horn. That’s ideal thanks.



Attachments

•

  376.6 KB · Views: 5

meego

Well-Known Member

• Yesterday at 20:44

• #6

@Hicap phill That’s it in and working



H

Hicap phill

Well-Known Member

• Yesterday at 20:46

• #7

meego said:

@Hicap phill That’s it in and working

Click to expand...

Now worries. Happy to help.

Happy building



meego

Well-Known Member

• Yesterday at 20:53

• #8

Hicap phill said:

Now worries. Happy to help.

Happy building

Click to expand...

Your on speed dial



H

Hicap phill

Well-Known Member

• Yesterday at 20:57

• #9

meego said:

Your on speed dial

Click to expand...

Only Saturday/Sunday for photos…the rest of the time I have to wake a braincell up
