Turbotubbs

New Member

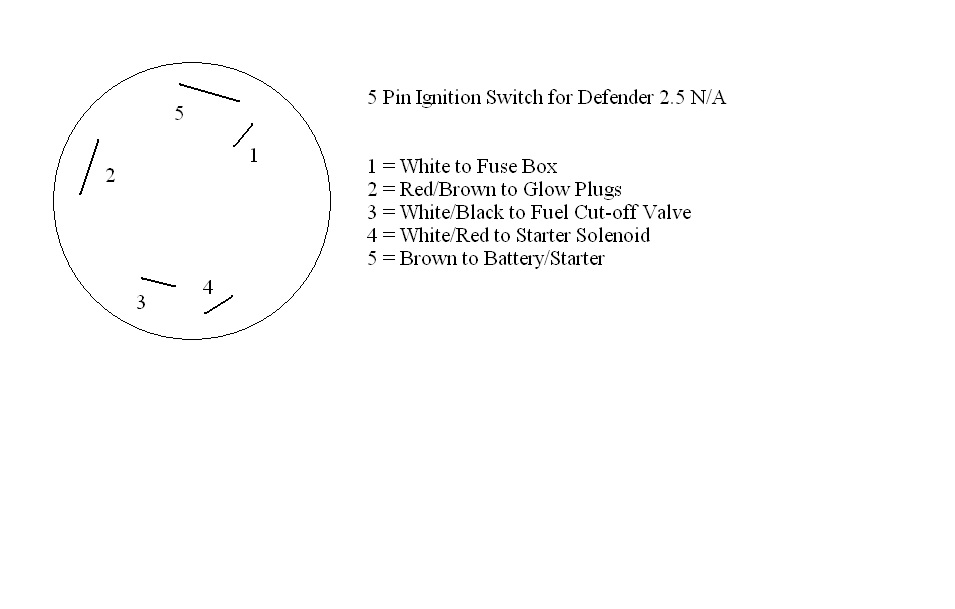

Hi, after pulling the wires off the ignition switch on my 1986 2.5NA diesel (and not making notes as to where they go), I Couldn't find a post to tell me how to connect the new one back up... So after a whole lotta swearing and guess work, thought I'd do my best on MS Paint and stick it up here in case anyone else made the same mistake:


Attachments

  • 2.5NA Switch Wiring.jpg
    2.5NA Switch Wiring.jpg
    47.8 KB · Views: 8,725
