wots missing please

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
C

CHUNKY3

New Member
Posts
14
Location
malton north yorkshire
i have recently bought a 3.9 v8 es discovery
the interior was sold out of it but there seems to be bits and bobs missing here and there
there seems to be a lot of plugs not plugged into out was wondering if any one can help

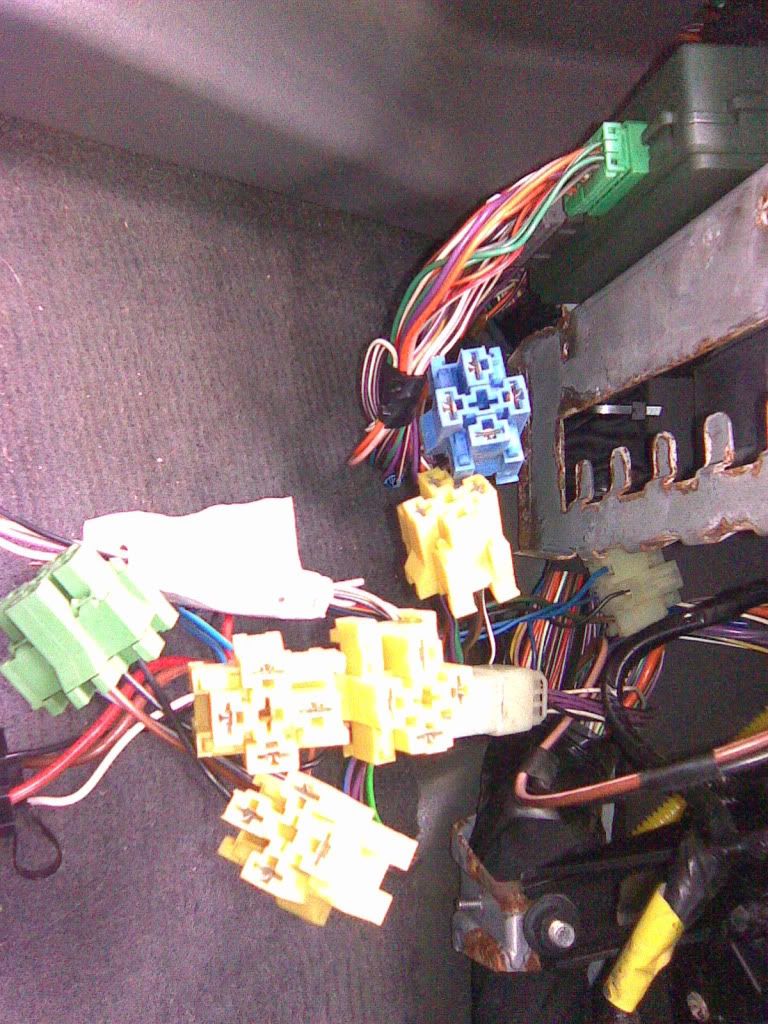

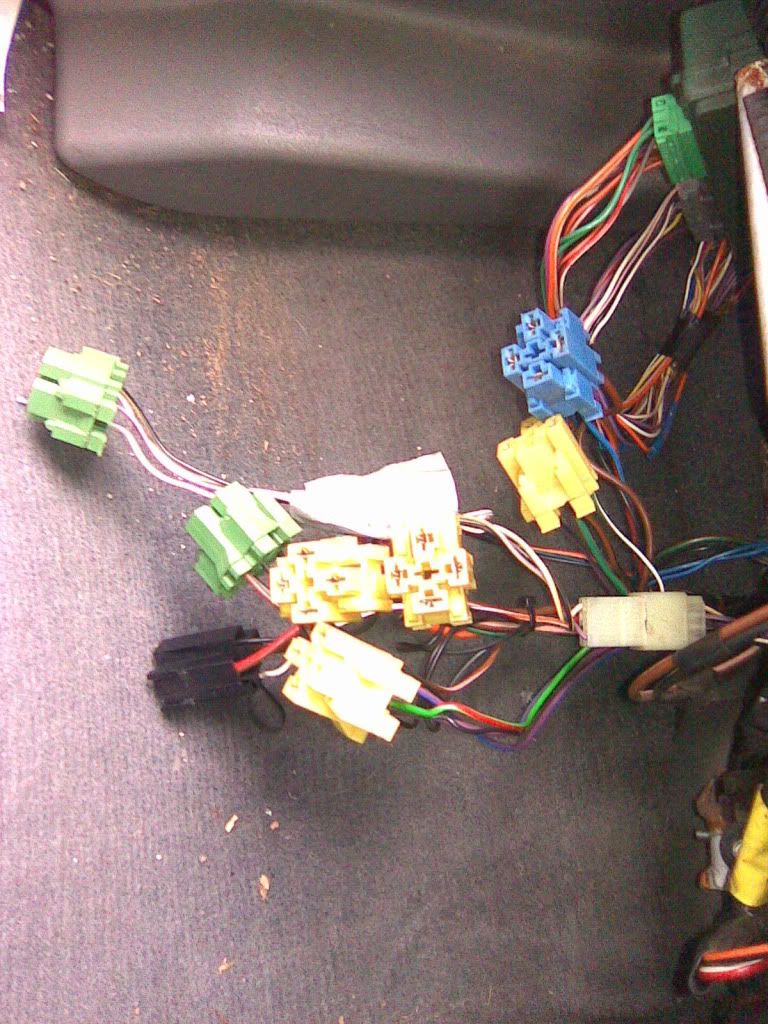

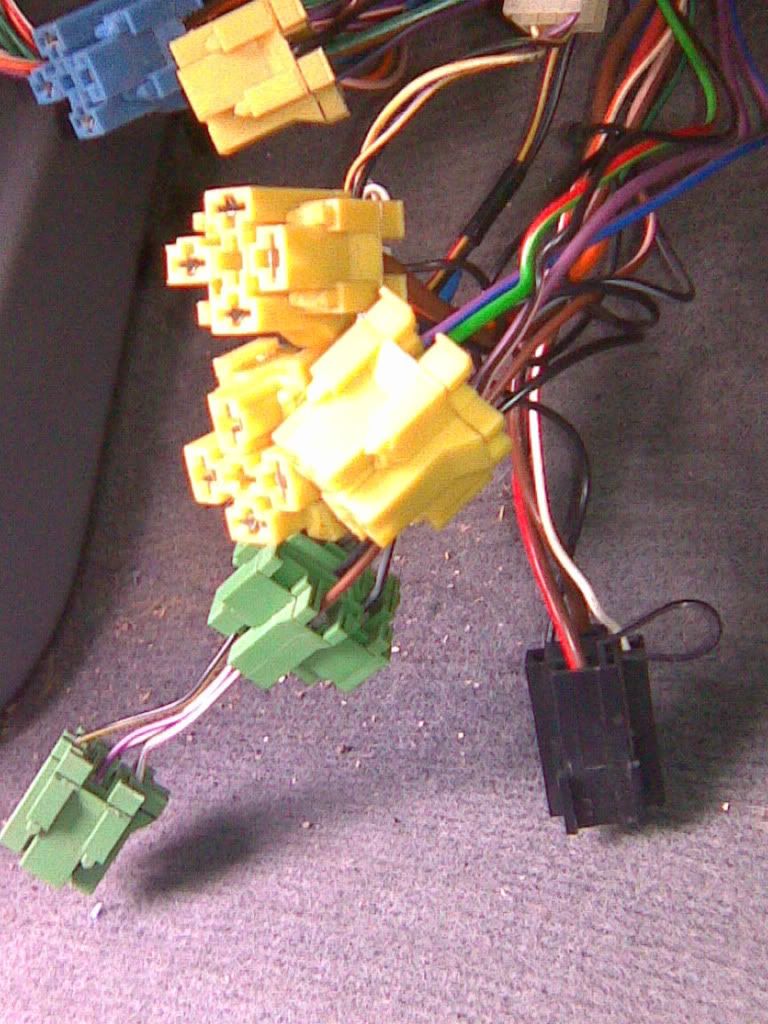

these pictures are passenger footwell

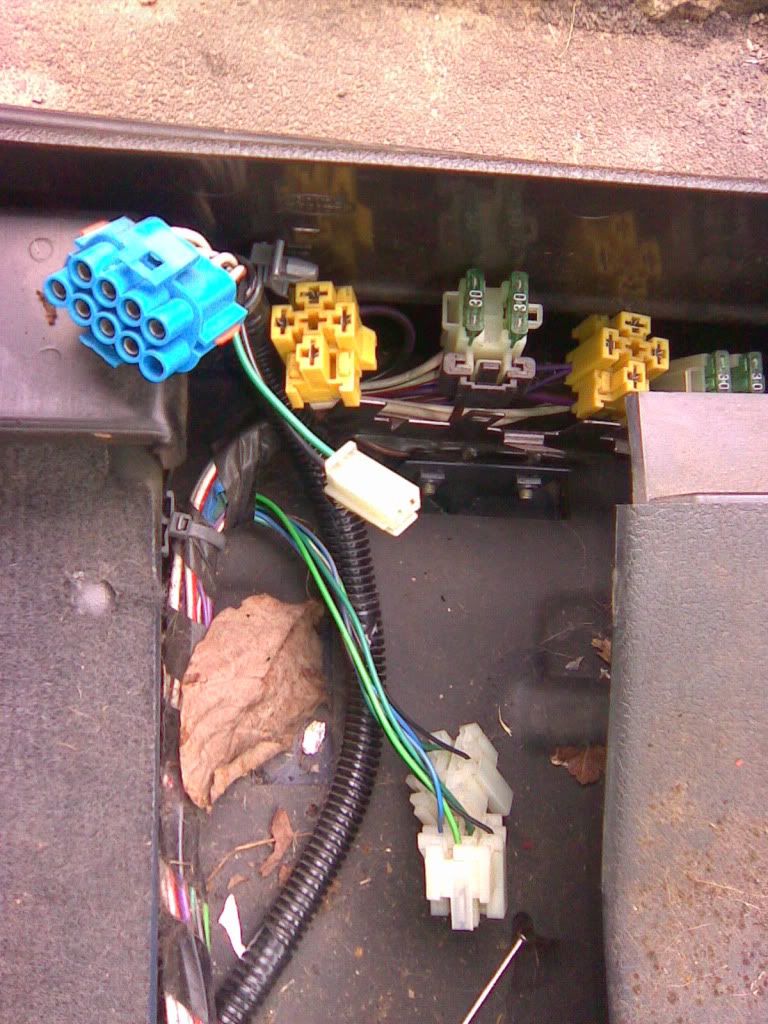

this picture is under passenger seat


:confused::confused::confused:

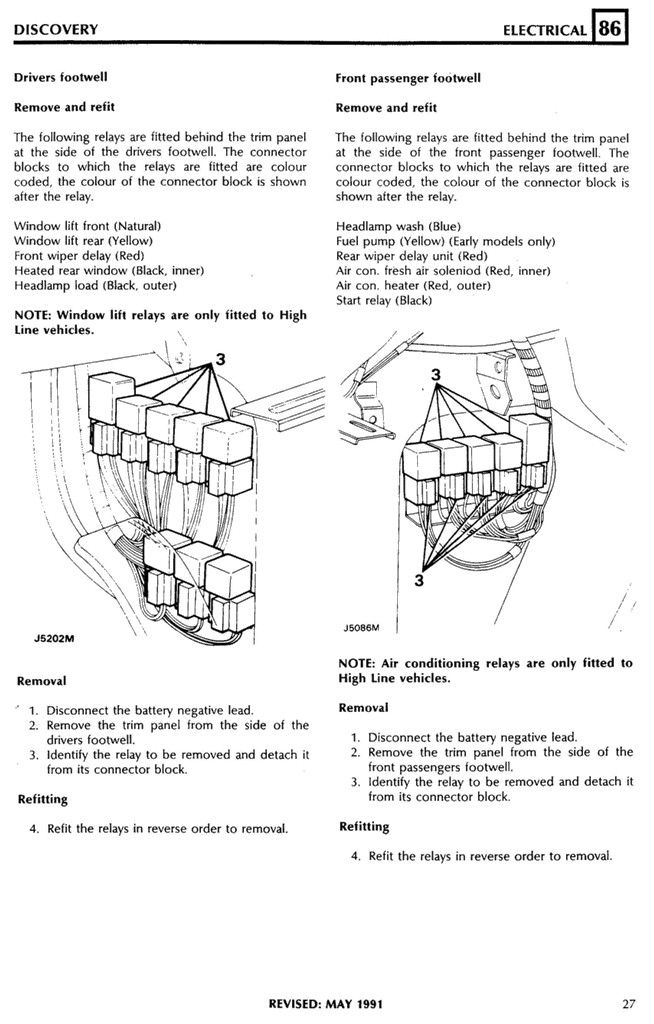

all the yellow plugs are for the land rover yellow relay the blue ones will have alook at my soft dash for you tomorrow and the others maybe injection control relays

Looks to me like somebody removed the ABS ECU. Is it supposed to have ABS,Traction Control and Hill Descent?

The missing relays look like main EFI and Fuel pump (green bases) and electric windows? (yellow bases - could be electric seats if fitted).

Dunno if that helps ya but that's my guess anyways hehe.

yeah it did have electric seats but the bloke i got it off sold them before i bought it. and it does have abs. the fuel pump buzzes when you turn the key and it smells of fuel but its like their is no spark
thanks for any help

buzzing is the ABS Pump, Check the purple and I think yellow trace wire under the rear floor cover see if it is live when you turn your ignition from (Important bit) fully off to ignition on (dash light on) it will pump be live for a short while I think
