Wiring Diagram Needed Please

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

TDIDISCO

New Member
Posts
33
Location
Farnborough,Hampshire
As i've said in a recent post I have a few items on my Disco that aren't working.Such as Interior lights not working on door opening,rear fog lights,rear wiper,intermittent front wipers and heated front & rear windscreens.
I'm trying to sort out and I'm led to believe it could be the MFU or fusebox.
Has anybody got a decent detailed wiring diagram of the fusebox and MFU as the one in the Haynes manual is not that helpful and don't really want to fork out money to a scrappy for something I might not need if it's a power or earth issue.
Thanks in advance.
Andy

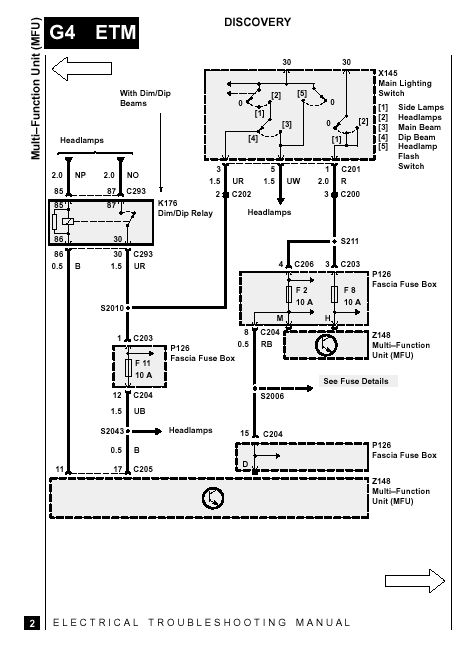

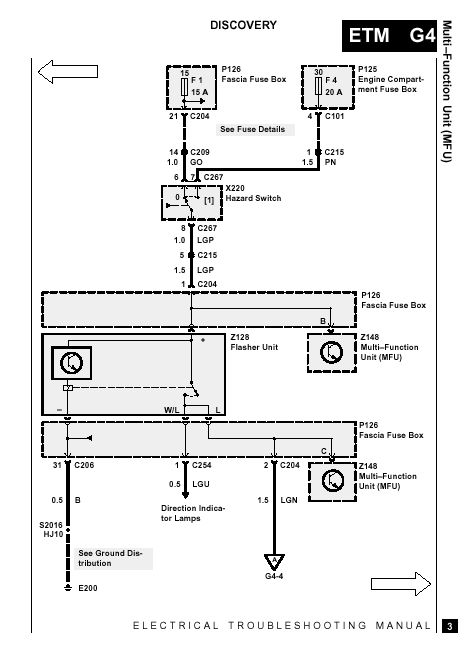

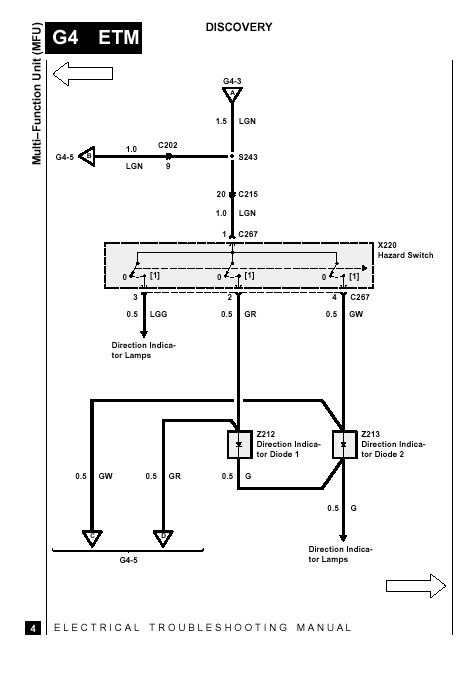

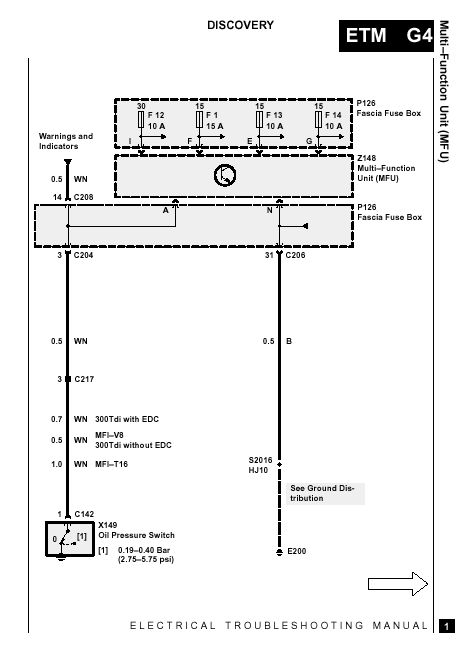

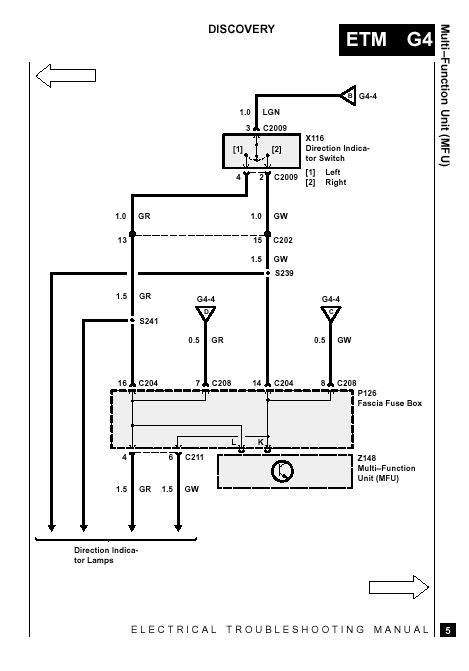

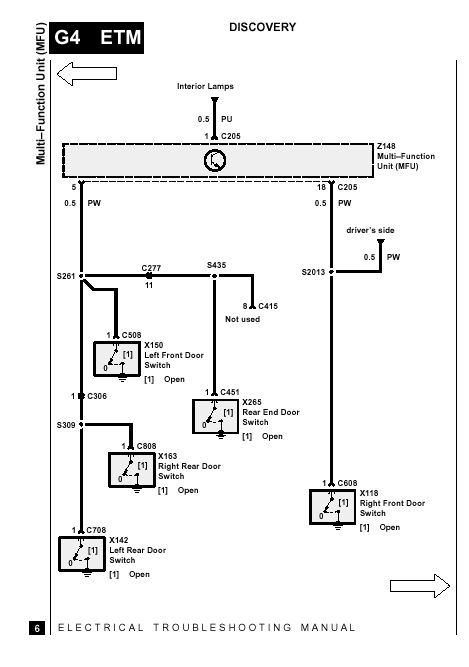

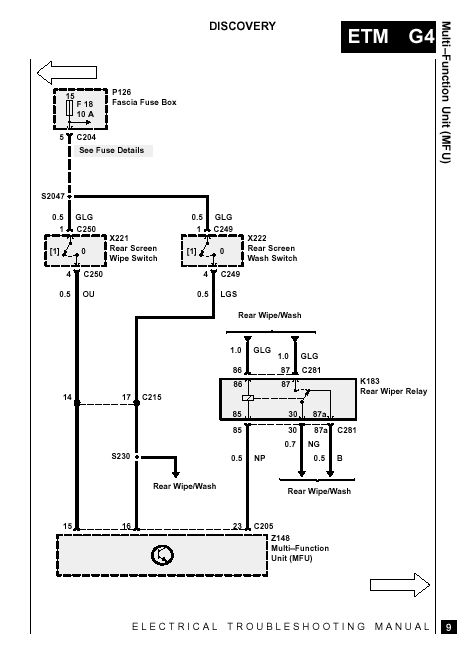

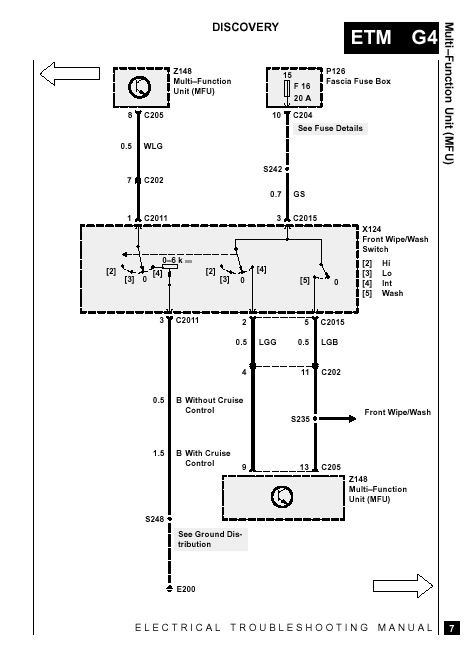

Rave has a wiring diag for the MFU, but it's 12 pages or so long, give us a bit OF TIME AND i'LL SORT PICS OUT ..

Not sure it'll do you any good .. but ..

See next post for next six pics ....


Attachments

  • Clipboard01.jpg
    34.7 KB · Views: 193
  • Clipboard02.jpg
    48.3 KB · Views: 195
  • Clipboard03.jpg
    41.8 KB · Views: 306
  • Clipboard04.jpg
    30.4 KB · Views: 193
  • Clipboard05.jpg
    32.2 KB · Views: 167
  • Clipboard06.jpg
    33.5 KB · Views: 302

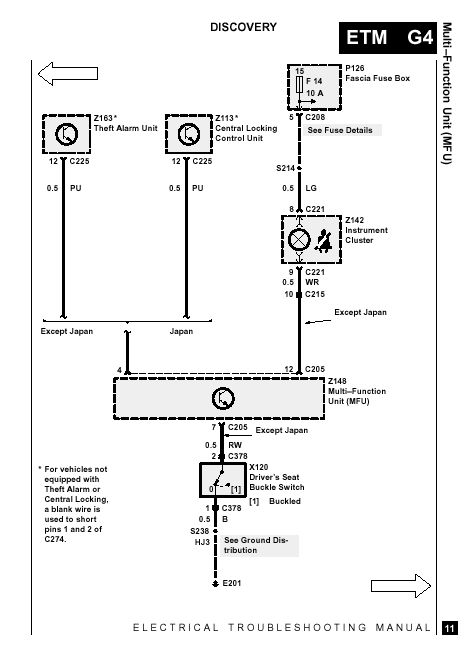

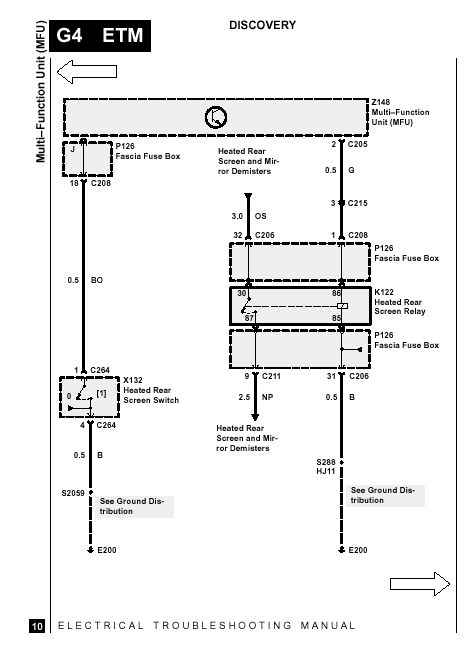

last set
