Wiring an Anderson plug

Buz · May 15, 2014

May well sound a stupid question but which way round does the connectors pouch in to the plastic plug? I don't want to push it in too far (ooh errr) get it wrong and not get them apart again!

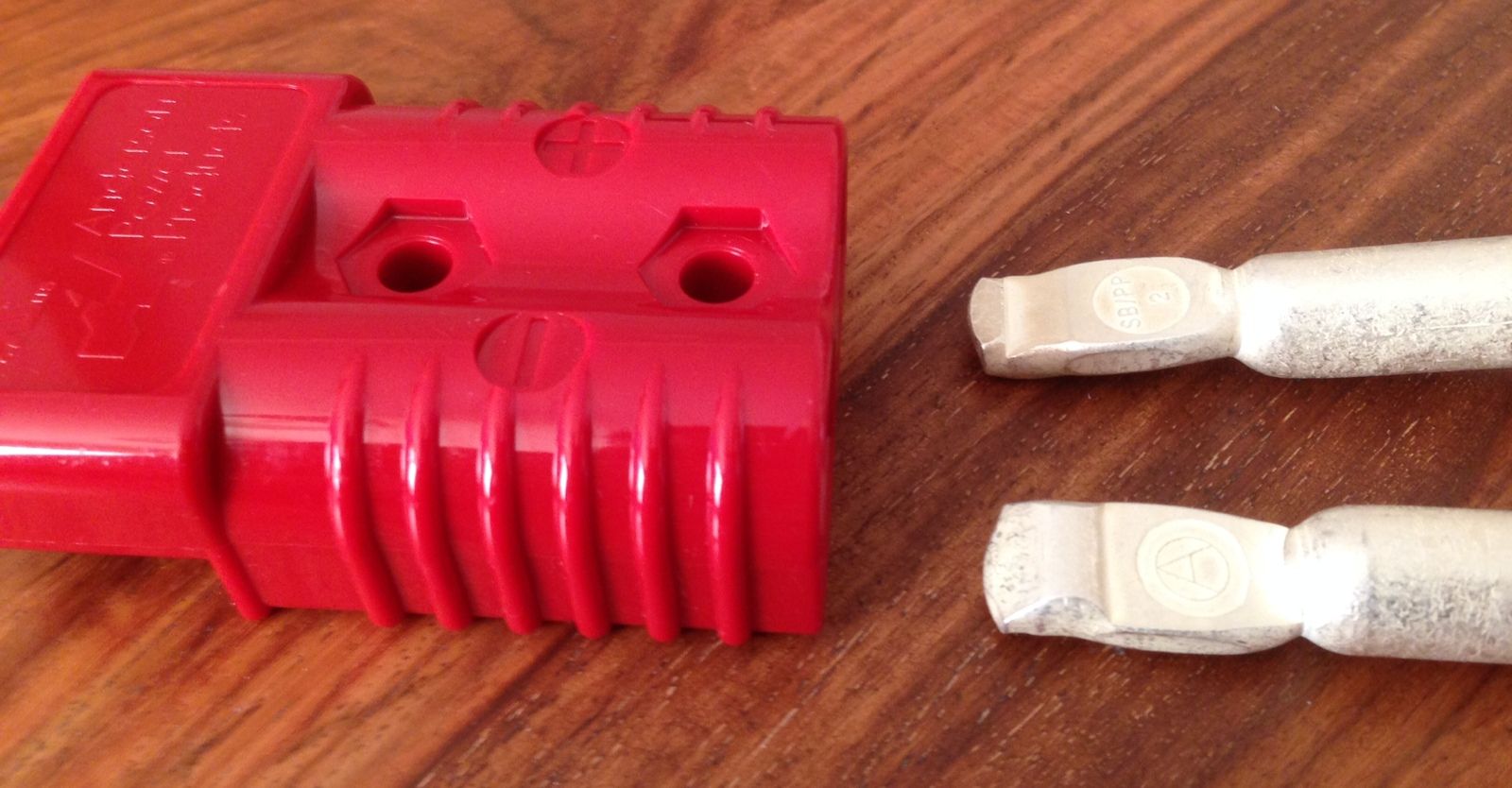

Ive put one each way up in the pic but not sure which is correct?

LeonG · May 15, 2014

Bottom one is the right way. You can remove them using a screwdriver if you need to.

LeonG

Iann · May 15, 2014

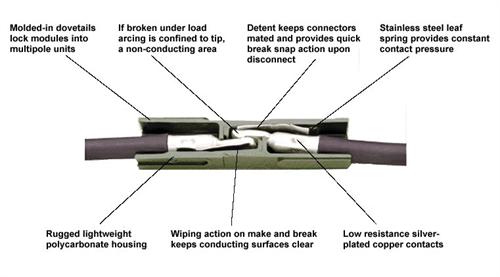

Hard to explain so here is a visual

Buz · May 15, 2014

Thanks Guys, a picture says a thousand words
