Wire identification help please!!!

Chockster

Member

Posts

88

Location

The Lake District

• Aug 23, 2020

• #1

Hello fellow Landy nuts.
Can anyone help me out here please. I’m looking for wiring identification of all of these wires going in to the indicator/lights/horn stem. I have an EX mod (used to be 24v) 12v FFR 109. Any help would be appreciated. I can only identify the indicators at the moment. Thanks in advance!



Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Aug 23, 2020

• #2

The attached should help
Blue headlamp supply , blue white / Blue red dipped and main beam cannot recall which way round
Brown black may be horn
Brown supply



Attachments

• Lucas colour code.pdf

  19.4 KB · Views: 125

wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Aug 23, 2020

• #3

Brown - live
Brown/Black - horn
Blue - Headlight live from toggle switch
Blue/Red - Dip beam
Blue/white - Main beam

This might help, from a Lightweight but most of the wiring is standard

http://www.land-rover-lightweight.co.uk/Images/Electrical/ImageMineNew.jpg



wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Aug 23, 2020

• #4

@Blackburn you beat me to it!



Chockster

Member

Posts

88

Location

The Lake District

• Aug 23, 2020

• #5

@Blackburn @wireman Thats great. Should keep me busy for a little while yet.



D

David Leech

Well-Known Member

Posts

302

Location

Galway, Ireland

• Aug 24, 2020

• #6

And Purple, the one behind Blue/White in your pic is a live feed from your fuses to power the Flash Beams.....

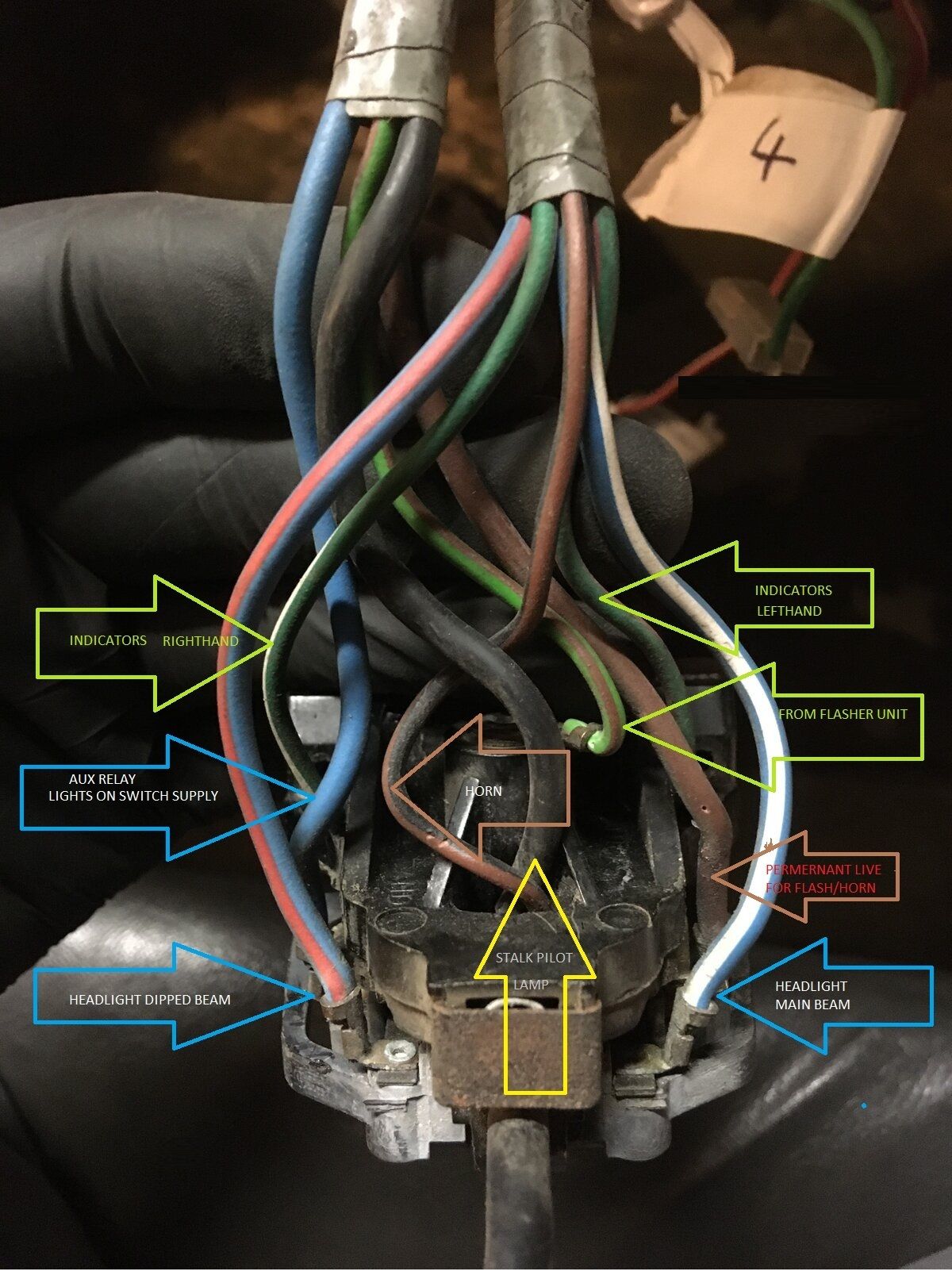

mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Aug 24, 2020

• #7



Chockster

Member

Posts

88

Location

The Lake District

• Aug 24, 2020

• #8

mystery said:

View attachment 217759

Click to expand...

Amazing thank you gents for your time. The 24v system has pickled my brain. Especially with all the chopping and changing that’s happened to the poor girl since she became a civvy.
