Classic Wiper Motor wiring

tom1979 · Oct 1, 2018

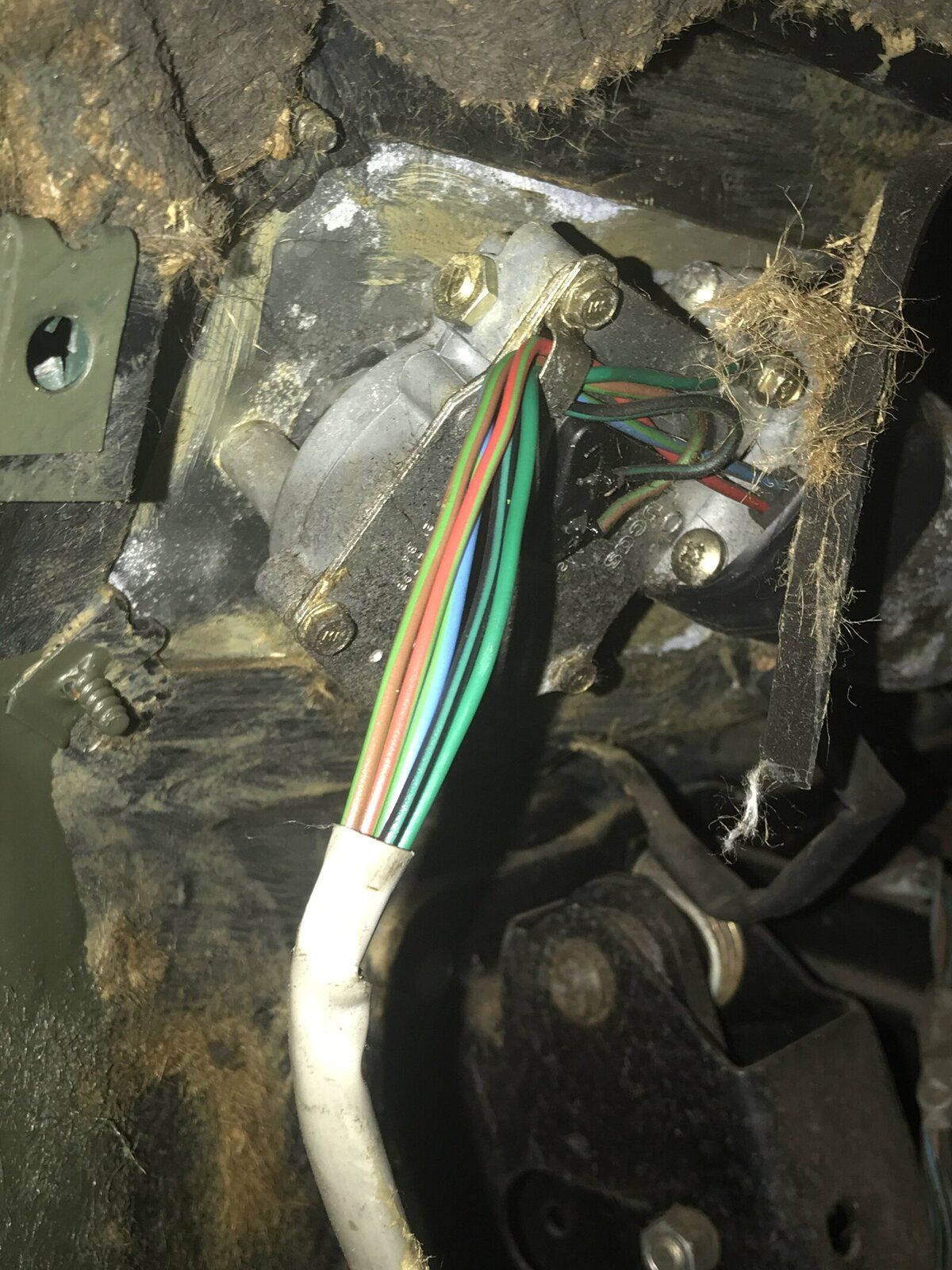

Does anyone know the wires for the wiper motor on a 1984 RR Classic ? I have looked in RAVE but no mention of the wiring.

I've got:

Brown/Green
Orange/Green
Blue/Green
Black/Green
Green

It's an off roader, just want to hook up a switch to get them working, not concerned about intermittent wipe (if it even has it) etc.

Many thanks

Ratae · Oct 2, 2018

Unlikely to find it in RAVE as your vehicle is too early. IIRC 1989 on is covered by RAVE.
Mine's a 1986 & that's a big thick A4 book & covers 1986 to 1989 & the colours appear to be different to yours.
According to mine the wires at the motor are:
White/Light Green from fuse 7 - this wire also goes to the front wiper delay unit
Black earth
Blue/Light green to column switch
Red/Light green to column switch
Brown/Light green to front wiper delay unit.
.On mine the column switch does off/intermittent/normal speed/fast speed & push the end for wash.
If you just want it for offroad & you don't want anything other than normal speed and off then you may be better identifying the earth & just taking a live feed via a fused switch to any wire that makes it work.

tom1979 · Oct 2, 2018

Ratae said:
Unlikely to find it in RAVE as your vehicle is too early. IIRC 1989 on is covered by RAVE.
Mine's a 1986 & that's a big thick A4 book & covers 1986 to 1989 & the colours appear to be different to yours.
According to mine the wires at the motor are:
White/Light Green from fuse 7 - this wire also goes to the front wiper delay unit
Black earth
Blue/Light green to column switch
Red/Light green to column switch
Brown/Light green to front wiper delay unit.
.On mine the column switch does off/intermittent/normal speed/fast speed & push the end for wash.
If you just want it for offroad & you don't want anything other than normal speed and off then you may be better identifying the earth & just taking a live feed via a fused switch to any wire that makes it work.

Cheers yes that's the plan as I don't have the stalk anyway.

Ratae · Oct 2, 2018

If the stalk is PRC4608 they're eyewateringly expensive - if you can find one!
Item 1 in this link:
http://new.lrcat.com/#!/1230/71383/72227/5824/72248

ETA looks like Craddocks list one for £50, the other listings were all over £120.

tom1979 · Oct 2, 2018

That's good I might be able to sell the stalk!!
