Windscreen wiper parking

Discussion in 'Defender 90 / 110 / 130' started by WilburC, Feb 9, 2018.

< Previous Thread | Next Thread >
  1. WilburC

    WilburC Member

    Joined:
    Jun 7, 2015
    Posts:
    16
    Likes Received:
    0
    Location:
    Leics.
    My front wipers do not park, they didn't park when I bought the vehicle years ago. I replaced the motor and column switch 3 years ago. I've just got round to trying to get them to park. The wire feeding the motor terminal 2 brown/light green has no power. If I run a power supply to terminal 2 it will blow 10/20/30amp fuses? Please can someone tell me if I have got it wrong? or is the motor duff?

  2. NiallRussell

    NiallRussell Active Member

    Joined:
    Dec 23, 2013
    Posts:
    367
    Likes Received:
    31
    Location:
    Oman, Middle East
    there is a small switch that gets activated when the motor reaches the 'park' position, it's inside the motor, or at least goes inside. By recollection it's where the wires are attached. this can get stuck if i remember. the grease causes it to stick.

    This would be my guess.

    it's in the photo (from google) as the small black switch that gets moved by the white 'blob' on the underside of the disk / cog.


  3. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,777
    Likes Received:
    317
    Location:
    west wales
    The switch can be removed from the motor without removing the motor or taking it apart.

  4. Scooby22

    Scooby22 Well-Known Member

    Joined:
    Aug 11, 2017
    Posts:
    427
    Likes Received:
    103
    Location:
    County Durham
  5. WilburC

    WilburC Member

    Joined:
    Jun 7, 2015
    Posts:
    16
    Likes Received:
    0
    Location:
    Leics.
    Thanks for your help. Can I run a permanent live to terminal 2? or is the brown/light green wire that feeds T2 powered up when the wiper switch is in the off position? I am struggling to trace wire back, old vehicle wires spliced different colours etc.

  6. NiallRussell

    NiallRussell Active Member

    Joined:
    Dec 23, 2013
    Posts:
    367
    Likes Received:
    31
    Location:
    Oman, Middle East

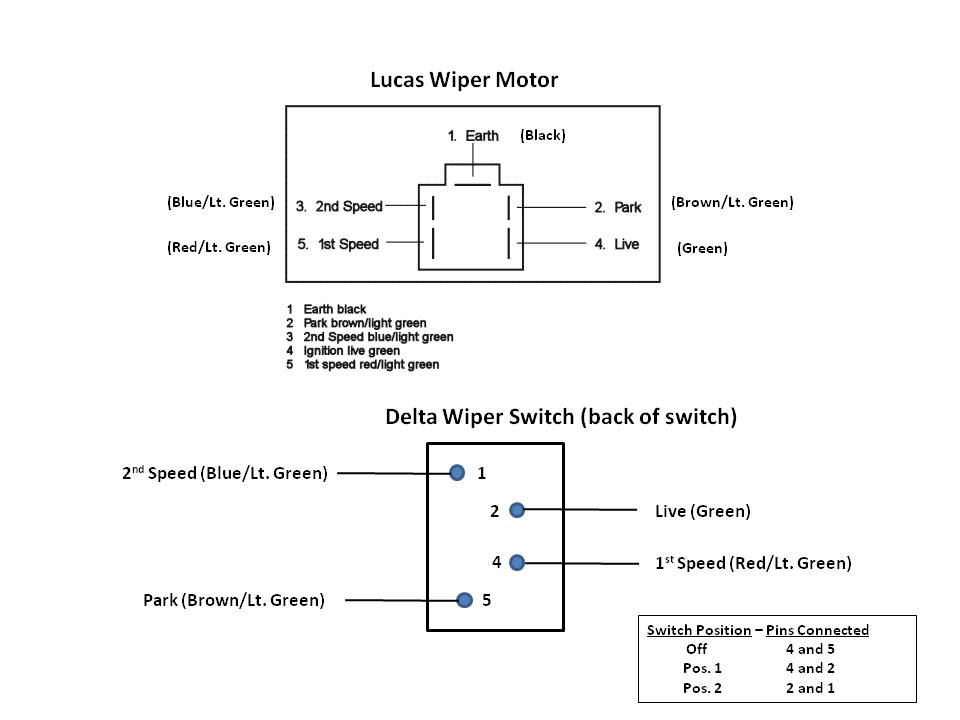

    this might be useful... 3259204578_e2ae6a8ba4_o.jpg

  7. WilburC

    WilburC Member

    Joined:
    Jun 7, 2015
    Posts:
    16
    Likes Received:
    0
    Location:
    Leics.
