Where do I put my piston ring gaps?

LincolnSteve said:

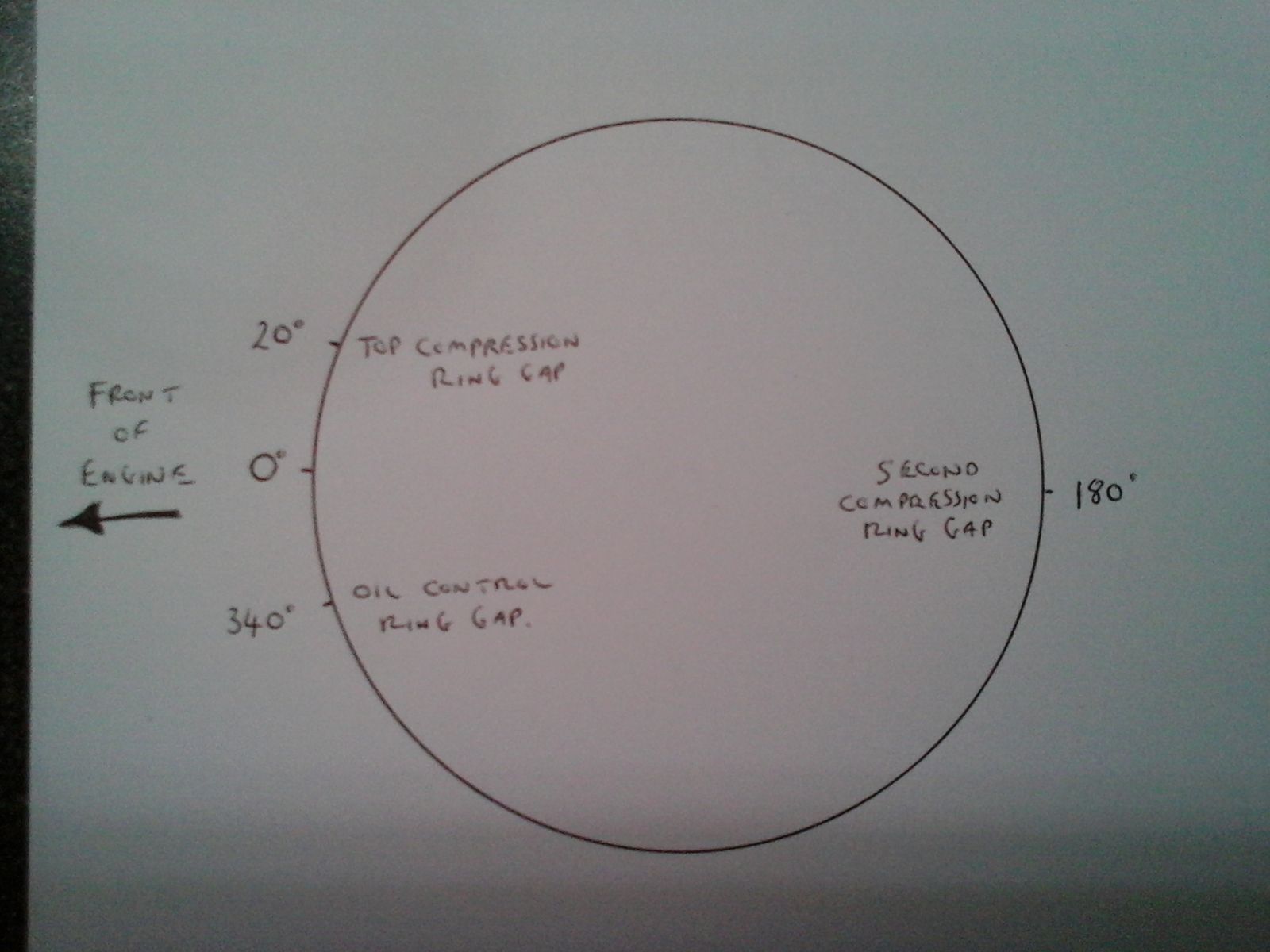

Hi. It's a series 3 2.25 petrol. Bores have been honed. Ready to put the pistons back in with nice new rings. Not sure where to put the gaps. How about as per the drawing? What do you all think?

View attachment 142170

Click to expand...

jamesmartin said:

thats good except move second compression to 160 so not on gudgeon pin line

Click to expand...

freelance said:

2 o’clock
8 o’clock
4 o’clock
10 o’clock
Never in line with gudgeon pin or 90 degrees to it
Hi. Thanks for the info. I've only got 3 rings though. Sorry if i'm being thick.

Click to expand...

LincolnSteve said:

View attachment 142454 View attachment 142456 View attachment 142457 View attachment 142458 I started cleaning and preparing the pistons today and yet again my lack of knowledge has caused things to grind to a halt.

There are some subtle differences in the new rings compared to the old ones. I don't know if they are going to make any difference or not.

I have checked the part number on Craddocks website and I don't think I can go wrong.
Ae Piston Ring Engine Set 2.25/2.5 Petrol
8510072 G

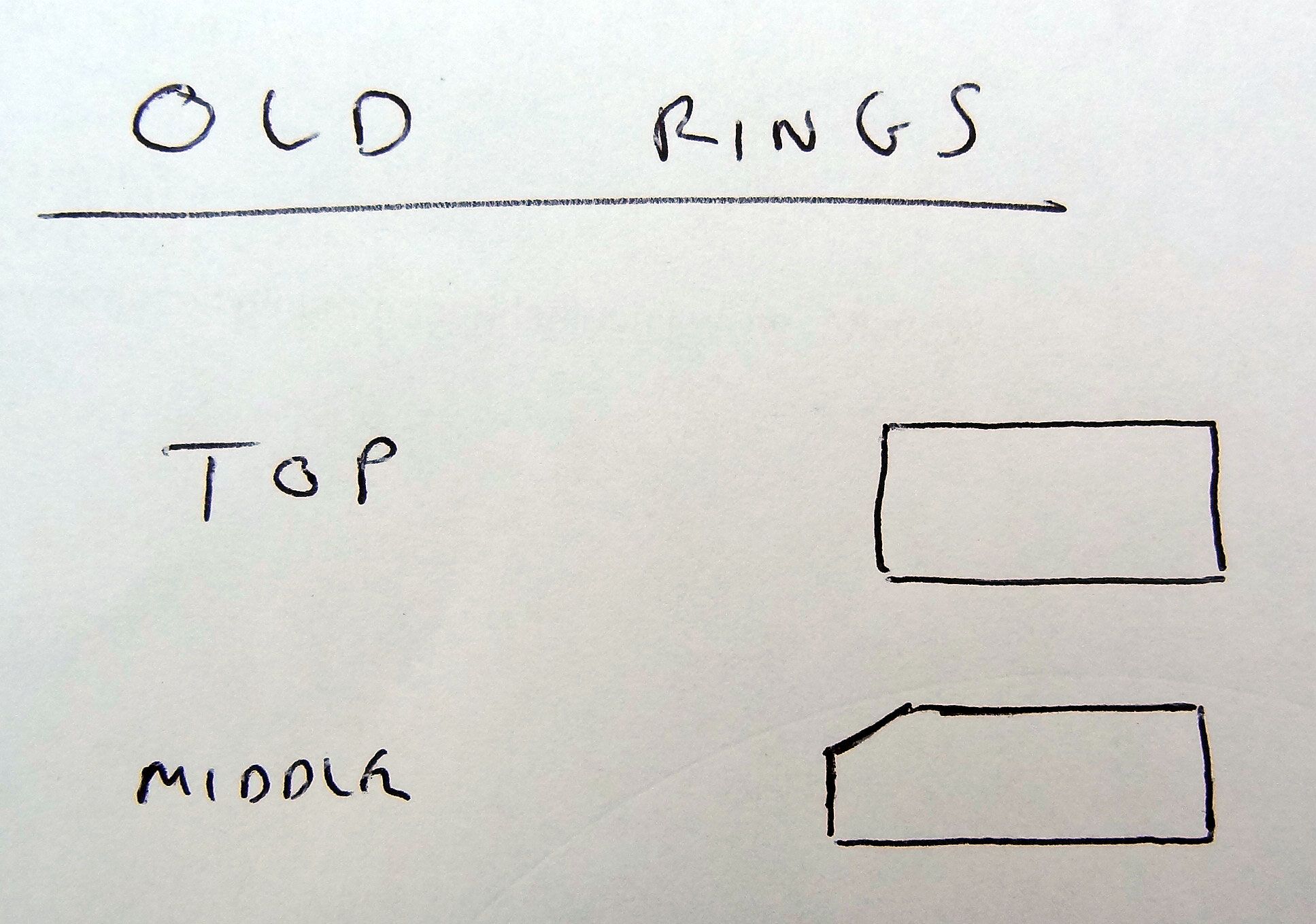

I've done some real classy drawings of the profile of the old compression rings. The top ring is an oblong profile the middle one has a bevel as shown.

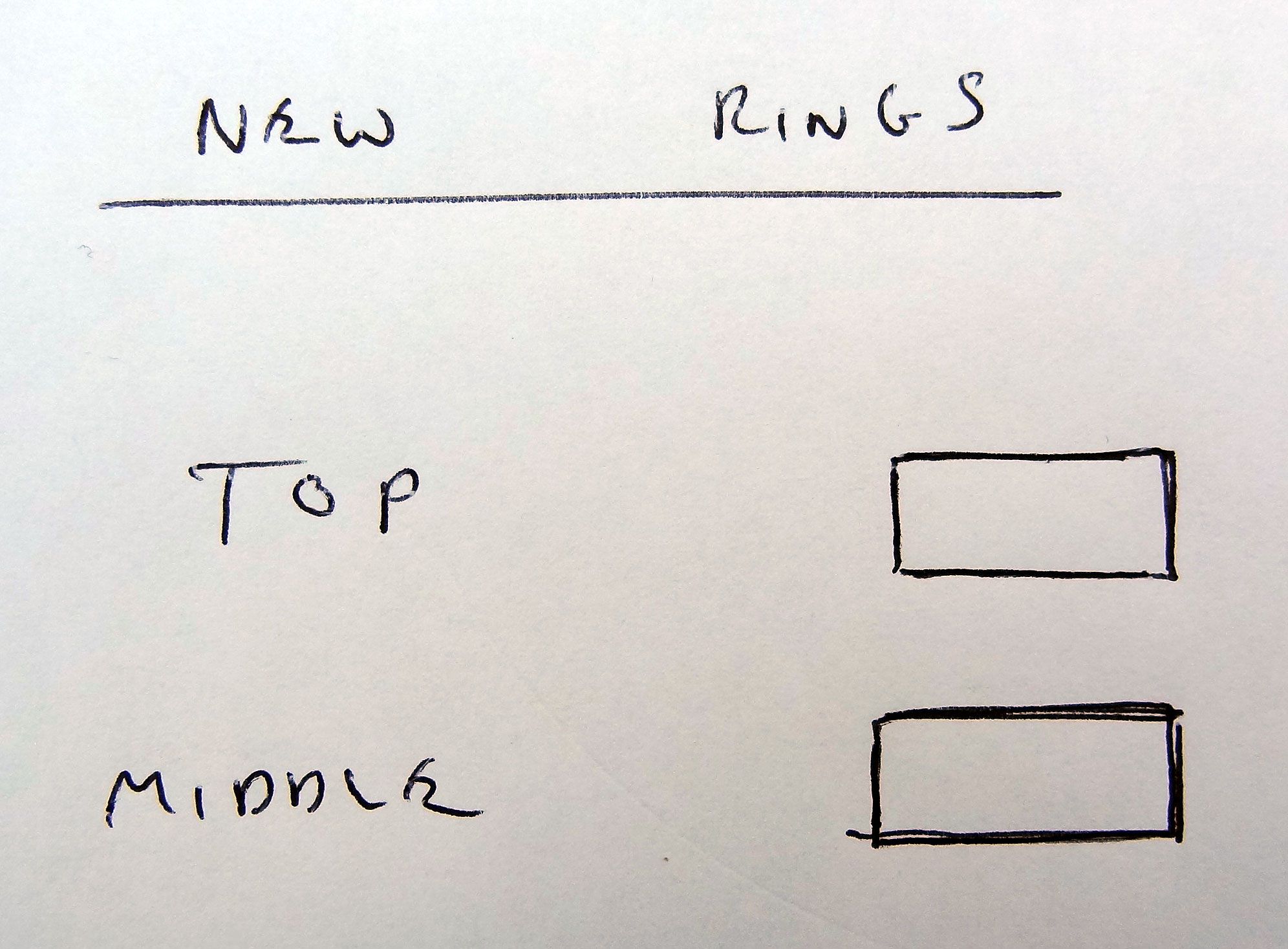

The new rings are both just plain oblong.

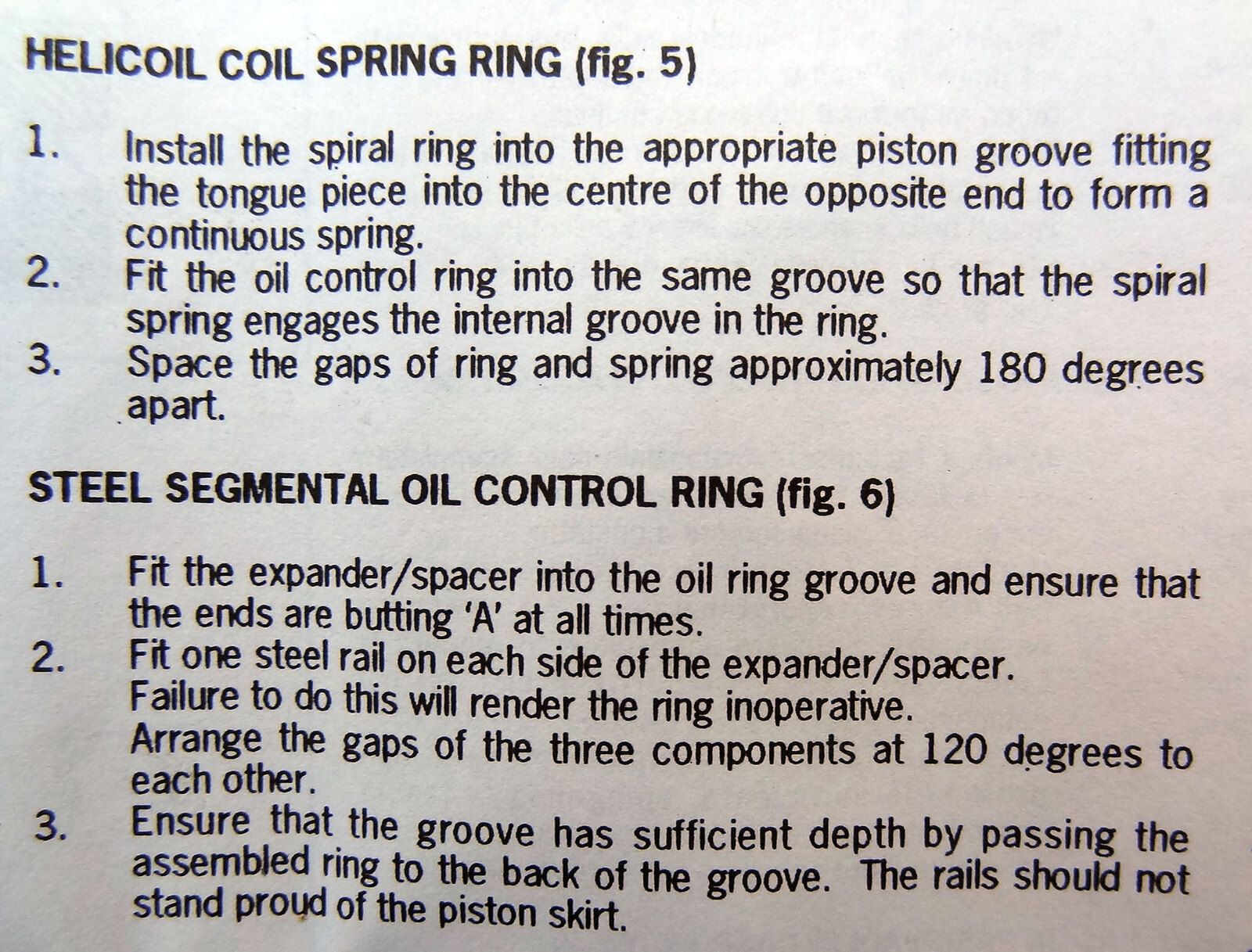

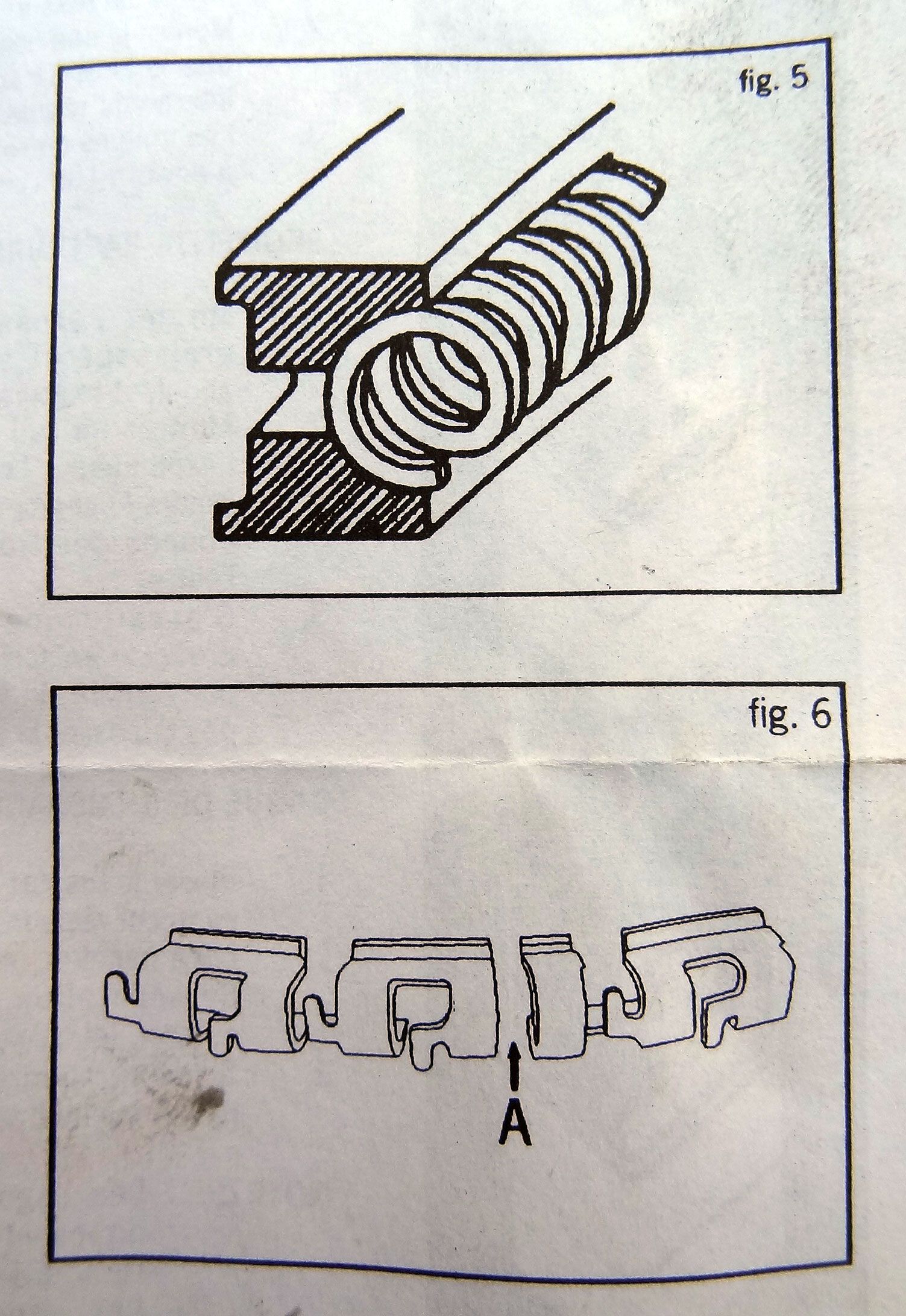

The oil control rings are really different. If you look at the pictures of the instruction sheet that came with the rings the old one is the one in fig.5 (helicoil coil spring) and the new set is the type in fig 6 (steel segmental ring).

So the question is do these differences make any difference?

Click to expand...
