Hi
I have the main arm of a swing away wheel carrier for a 90/110 pick up would anyone have the measurements or a drawing for the brackets to attach it to the rear end? I will then try and get some made. It was made by Scorpion Racing and is part of a long story of wonderful customer care NOT!!
Cheers

pictures would be great. Im also looking to put a rear wheel carrier on the back of my landy 90. I have a metal plate, which looks same size as number plate on back of my door. is this part of an old wheel mount? no bolt whole tho, just rivets

ye that sounds like an old wheel mount leave it alone tho a wheel hanging on ur door ain t ideal get a swing away carrier

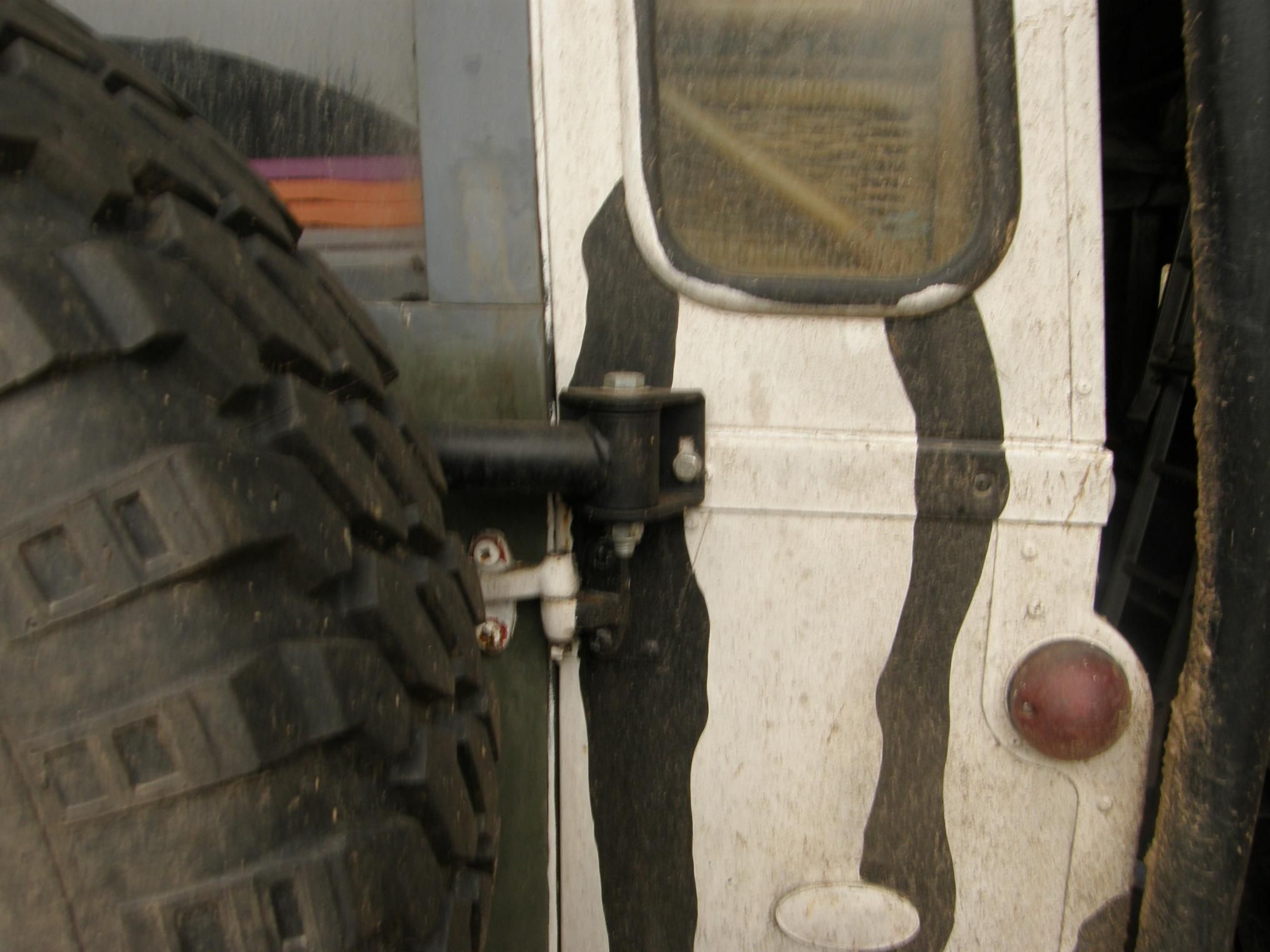

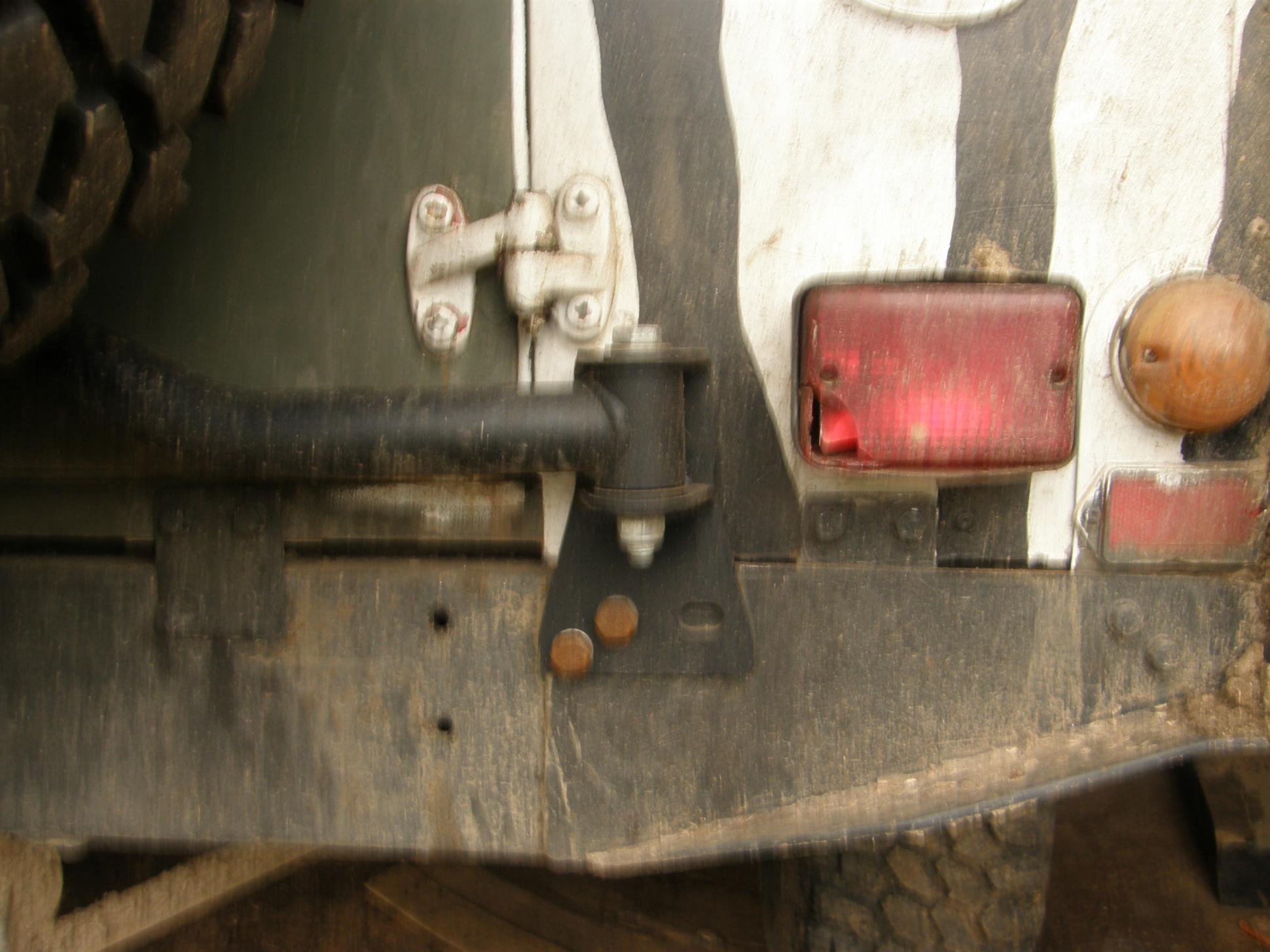

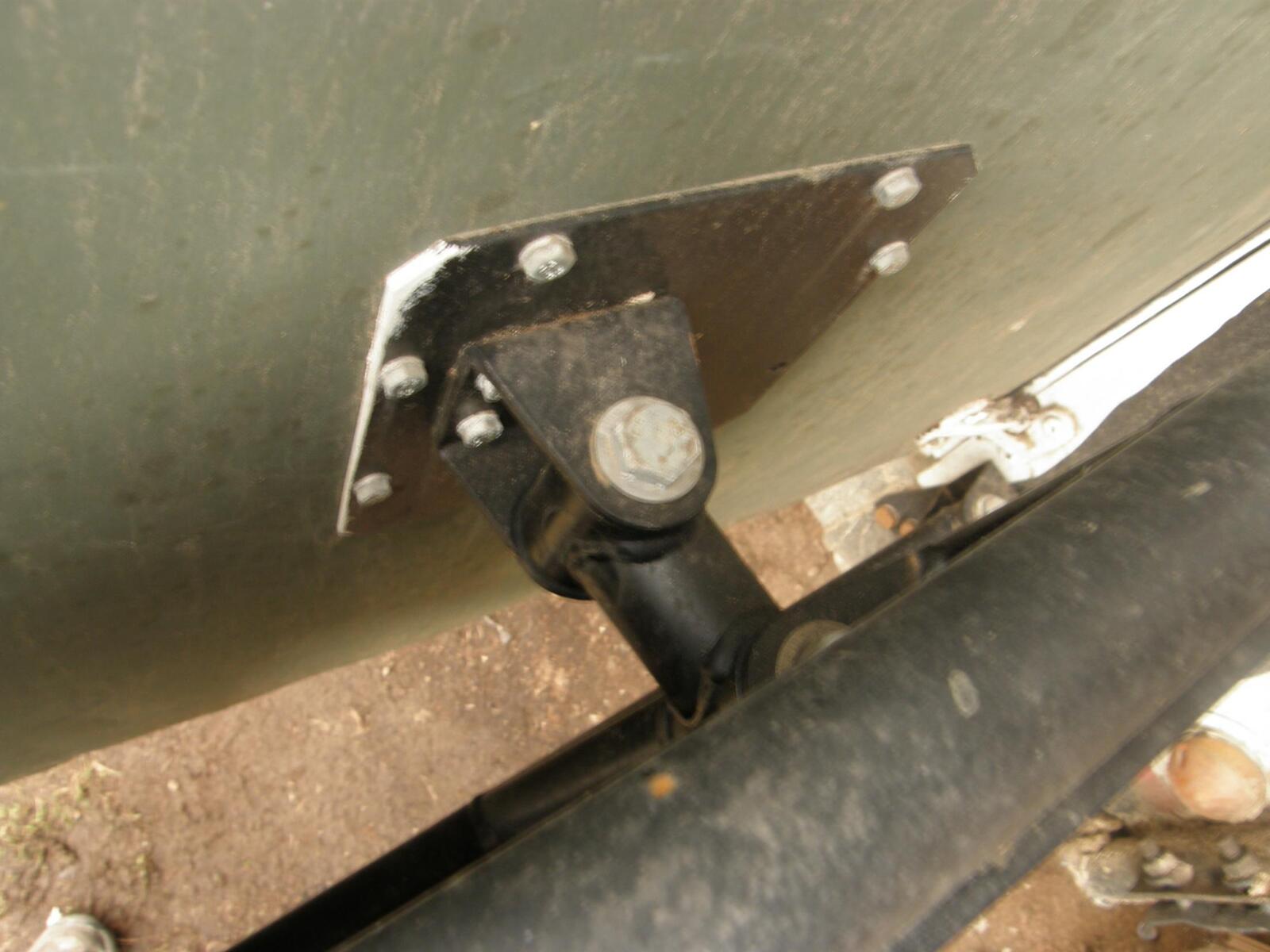

here you go, if you want measurements just ask


Attachments

  • christmas 014.jpg
    christmas 014.jpg
    233.9 KB · Views: 392
  • christmas 015.jpg
    christmas 015.jpg
    229.5 KB · Views: 420
  • christmas 016.jpg
    christmas 016.jpg
    220.8 KB · Views: 378
  • christmas 017.jpg
    christmas 017.jpg
    226.1 KB · Views: 341
  • christmas 018.jpg
    christmas 018.jpg
    233 KB · Views: 372
  • christmas 019.jpg
    christmas 019.jpg
    123.8 KB · Views: 706
cheers folks.
busterbus I can't see your pics crap system at work, but the wheel carrier needs to be for a pick up as this goes from the offside corner to the nearside tailgate latch.

ok, I now what you guys means by swing arm, that looks pretty damn solid! and thats your point right, when you say stick clear of mounting simply on read door. shall investigate this. so many things you can add to a landy!!

RUDDdefender90 said:
ok, I now what you guys means by swing arm, that looks pretty damn solid! and thats your point right, when you say stick clear of mounting simply on read door. shall investigate this. so many things you can add to a landy!!
Click to expand...

got mine from Craddocks, 125 of your english pounds :)

I wont be able to show some pics until next weekend away at work this week, but it can be locked with a padlock through the pin that secures the tailgate and a wire and lock to secure the spare wheel to the carrier.
Cheers

Last year I was stopped at Didcot services on A34 when a smartly prepped 90 pulled in, and I noticed a really neat single post type swingaway mounted on the rear bumper. I've been looking to find one the same ever since so if this is your truck or if you know it, please let me know. It was cover in various logos and looked to be comp prepped, unfortunately I missed the main name down the side.

These any good?

This is of my old (now sadly sold) 90 200Tdi - prefered this wheel carrier as when shut and padlocked its another barrier to stop anyone getting into the back!

Just fitted the same sort to my 110 yesterday - if its the type you're meaning i'll get some more pics and measure if needed?


Attachments

  • HPIM0384.jpg
    225.2 KB · Views: 269
  • HPIM0385.jpg
    208.8 KB · Views: 371
Last edited:
buckshot said:
bloody hell buster that tape needs some tlc when was the last time ya treated it to some wd40 ? :rolleyes:
Click to expand...

Ah've never treated it tae anythin' mate.... besides, ye can still see the numbers;):D

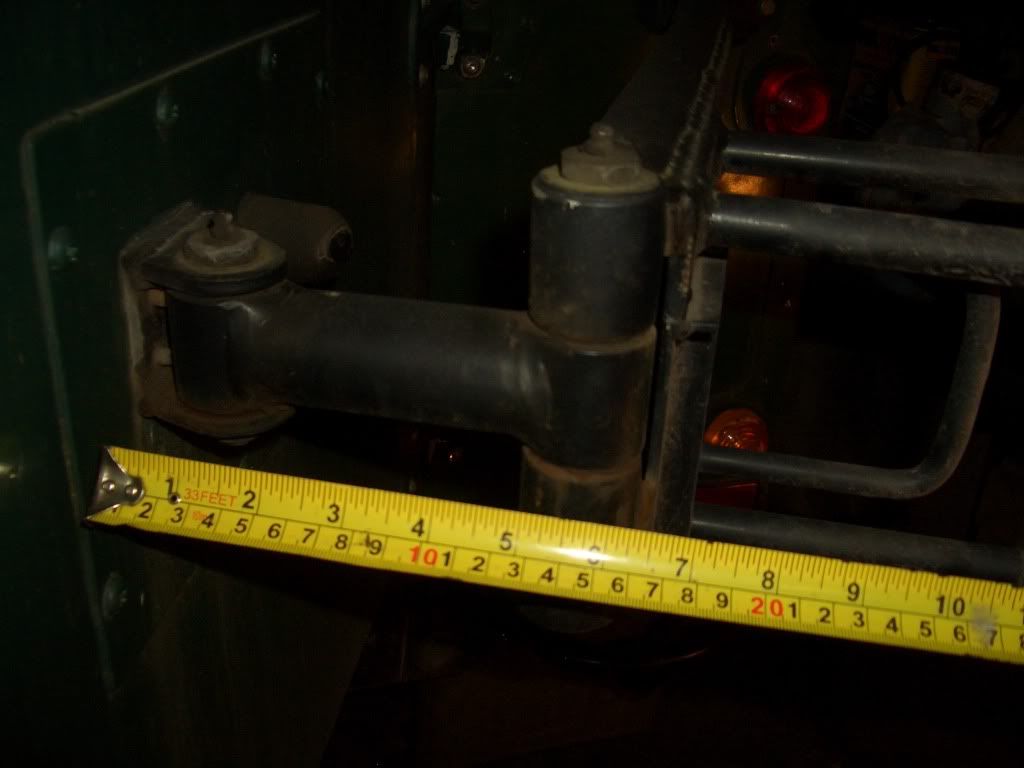

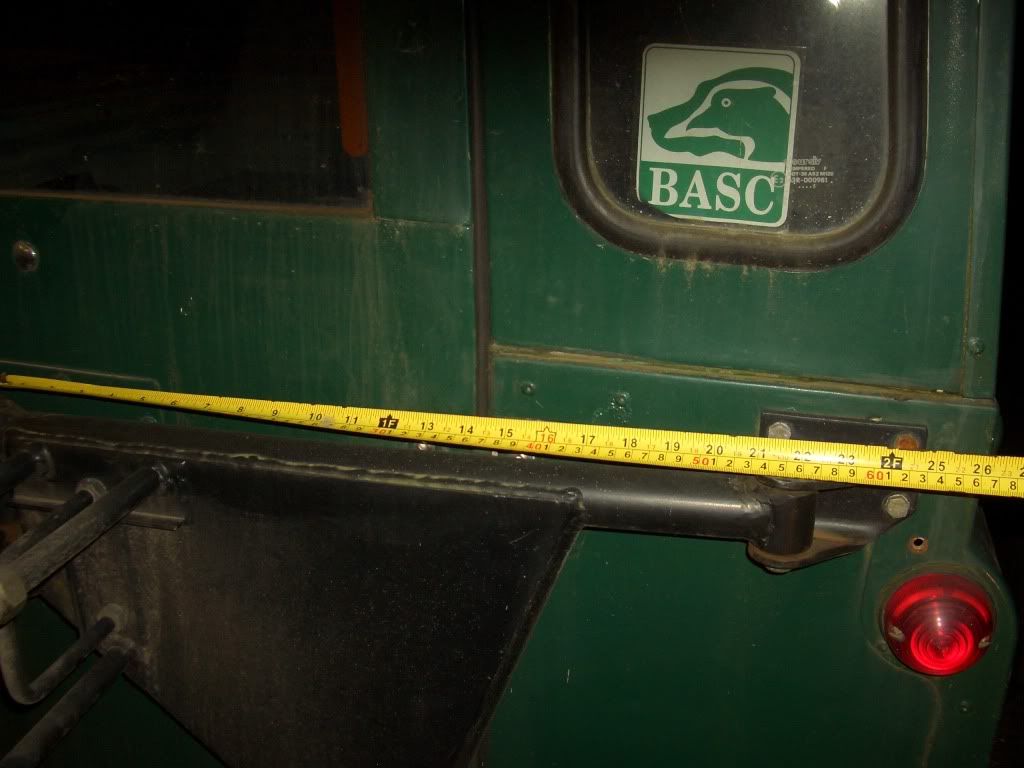

The photie where it's all twisted is because it ain't easy tryin' tae hold the tape and take a photie whilst holdin' a light!:D
