Whats this Wire

border · Jun 14, 2019

Found this wire, Ni Idea what it is.

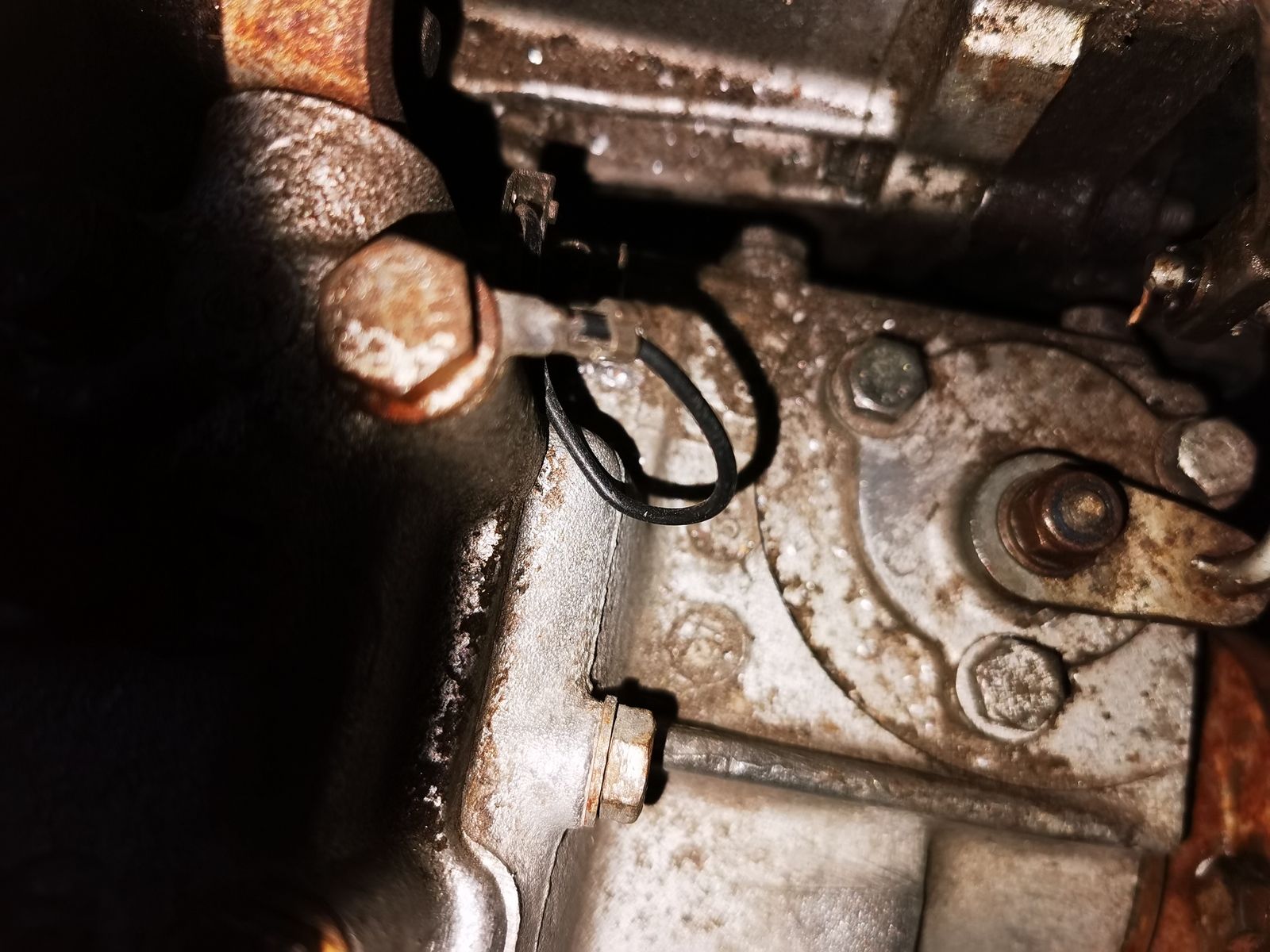

Hoping to get seat box and tunnels in this weekend. Noticed this Wire, it looks like
a short earth which plugs on to terminal, there is a spare terminal right next to it.

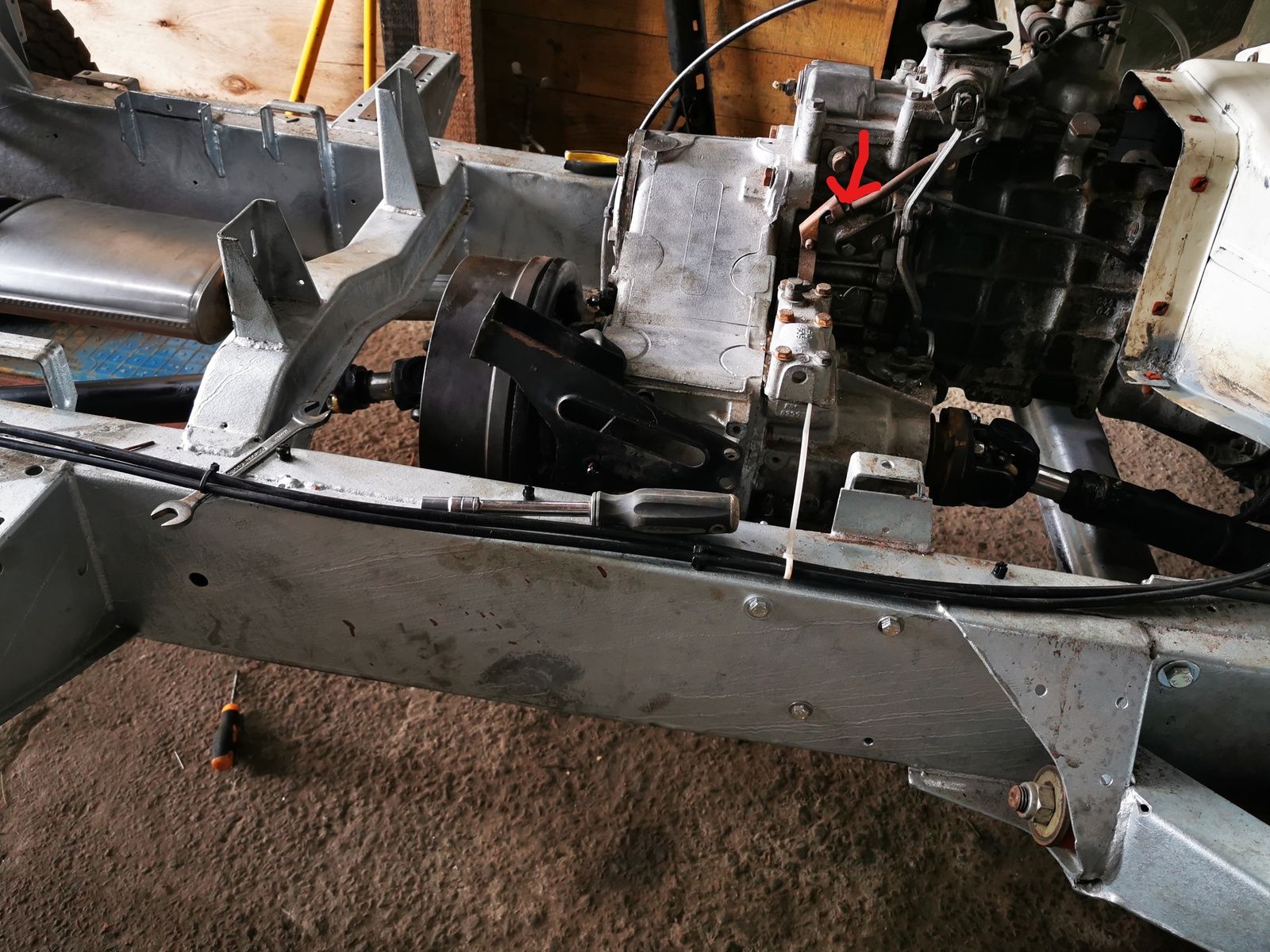

Asking now as it will be right under tunnel on photo arrowed, once it is fitted, and wont be able to get back to it without taking tunnel out again.
Is it OK as it is ? or does there need to be another wire connected to the other terminal ??

jamesmartin · Jun 14, 2019

its diff lock switch earth there will be a wire from the box loom that fits the other terminal

border · Jun 14, 2019

jamesmartin said:
its diff lock switch earth there will be a wire from the box loom that fits the other terminal

Thanks, would it be best to find and fit the other wire before fitting tunnels and seat box ??

jamesmartin · Jun 14, 2019

border said:
Thanks, would it be best to find and fit the other wire before fitting tunnels and seat box ??

just the tunnel , on earlier models the other wire hangs down from bulkhead and runs down drivers chassis rail

border · Jun 14, 2019

jamesmartin said:
just the tunnel , on earlier models the other wire hangs down from bulkhead and runs down drivers chassis rail

Cheers If I can find it I will try and connect it now, don't suppose you know which colour wire it is ?

jamesmartin · Jun 14, 2019

border said:
Cheers If I can find it I will try and connect it now, don't suppose you know which colour wire it is ?

not exactly but grey/black possibly

border · Jun 14, 2019

jamesmartin said:
not exactly but grey/black possibly

Thanks Again, will try and find it, if not, suppose I could leave it until I start connecting all wiring up, something Im Dreading by the way

jamesmartin · Jun 14, 2019

border said:
Thanks Again, will try and find it, if not, suppose I could leave it until I start connecting all wiring up, something Im Dreading by the way

its quite simple

border · Jun 15, 2019

jamesmartin said:
its quite simple

Thanks. Will be asking loads of advice when I get to that stage.
