whats this please?

clemo2k1 · May 1, 2017

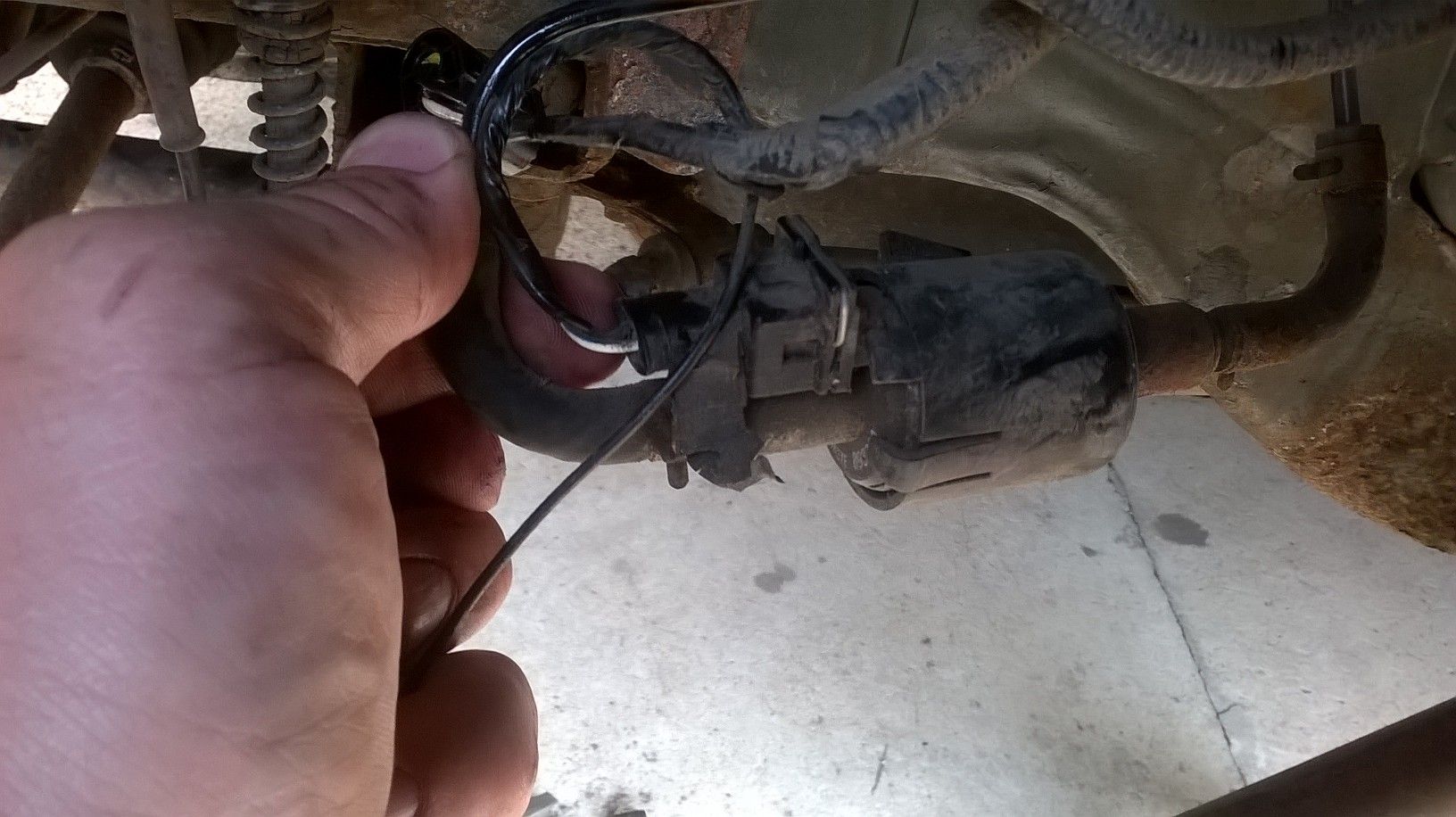

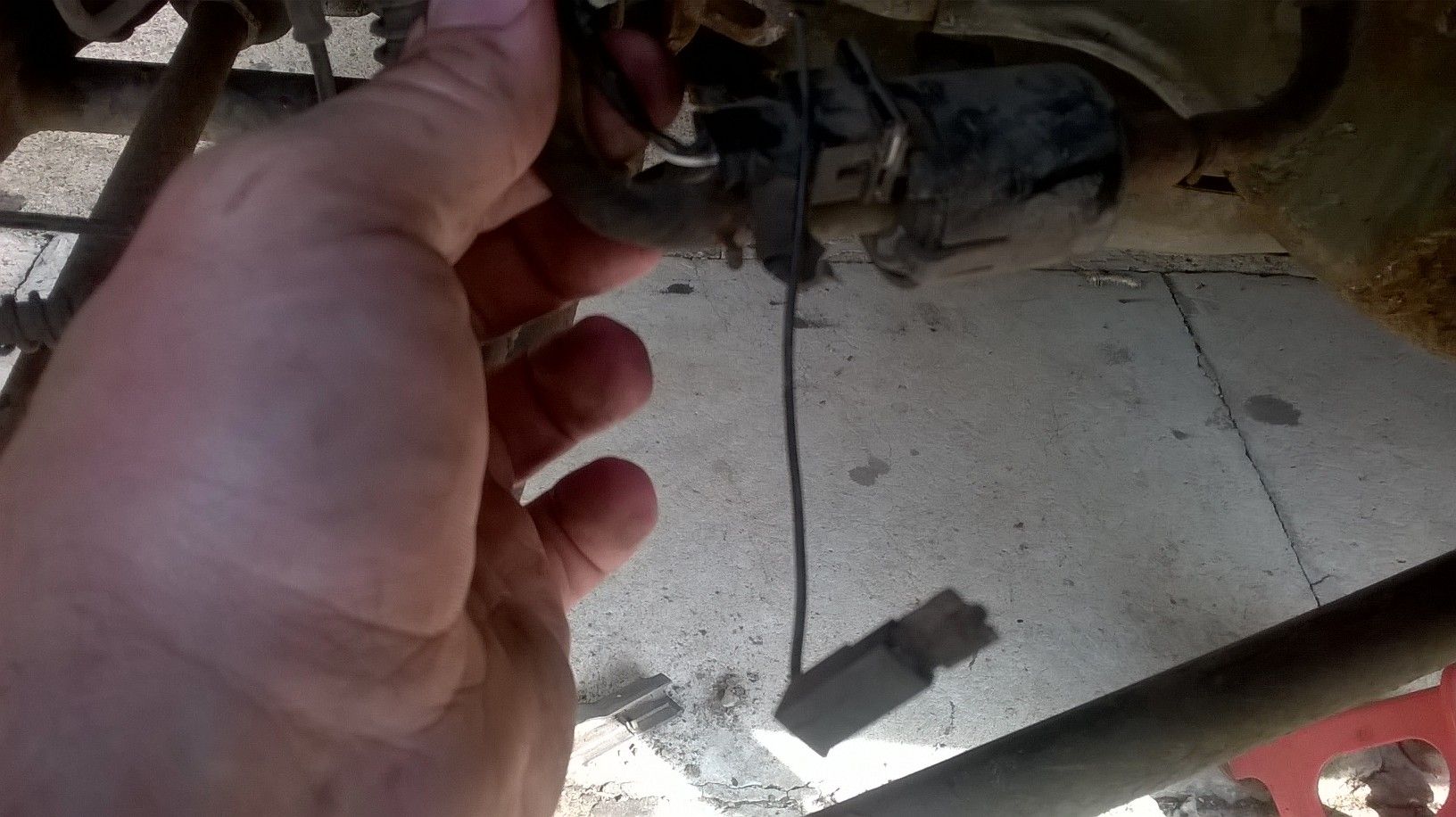

morning all just in the process of doing my LP fuel pump and filter on my Freelander1 and have come across an issue that i need help identifying. there is a loose wire thats come off and i dont know where from also whats the item in the picture with "12v thomas magnete" written on?

Thanks

Arctic2 · May 1, 2017

clemo2k1 said:
morning all just in the process of doing my LP fuel pump and filter on my Freelander1 and have come across an issue that i need help identifying. there is a loose wire thats come off and i dont know where from also whats the item in the picture with "12v thomas magnete" written on?

Thanks

Hi Clemo.

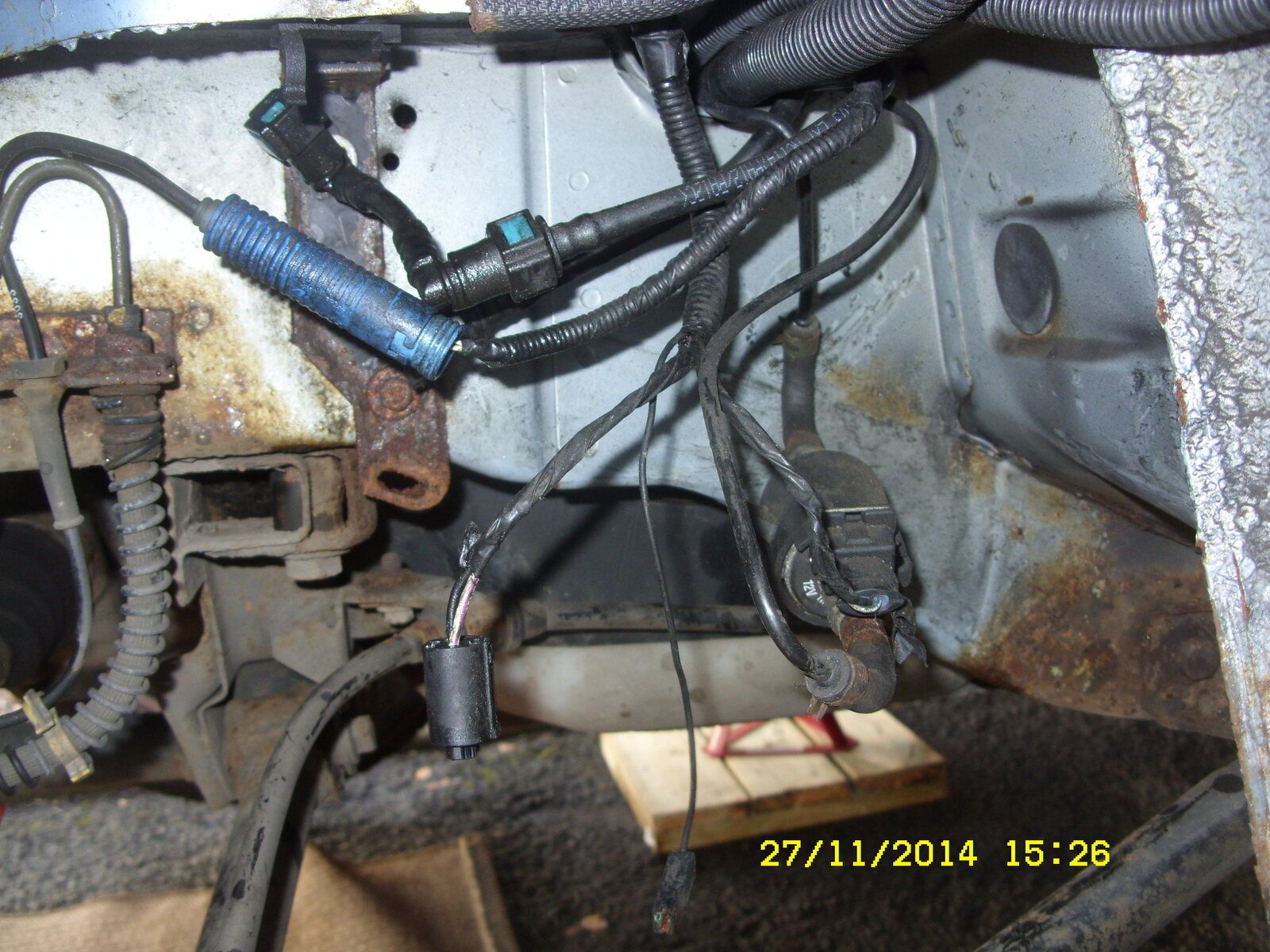

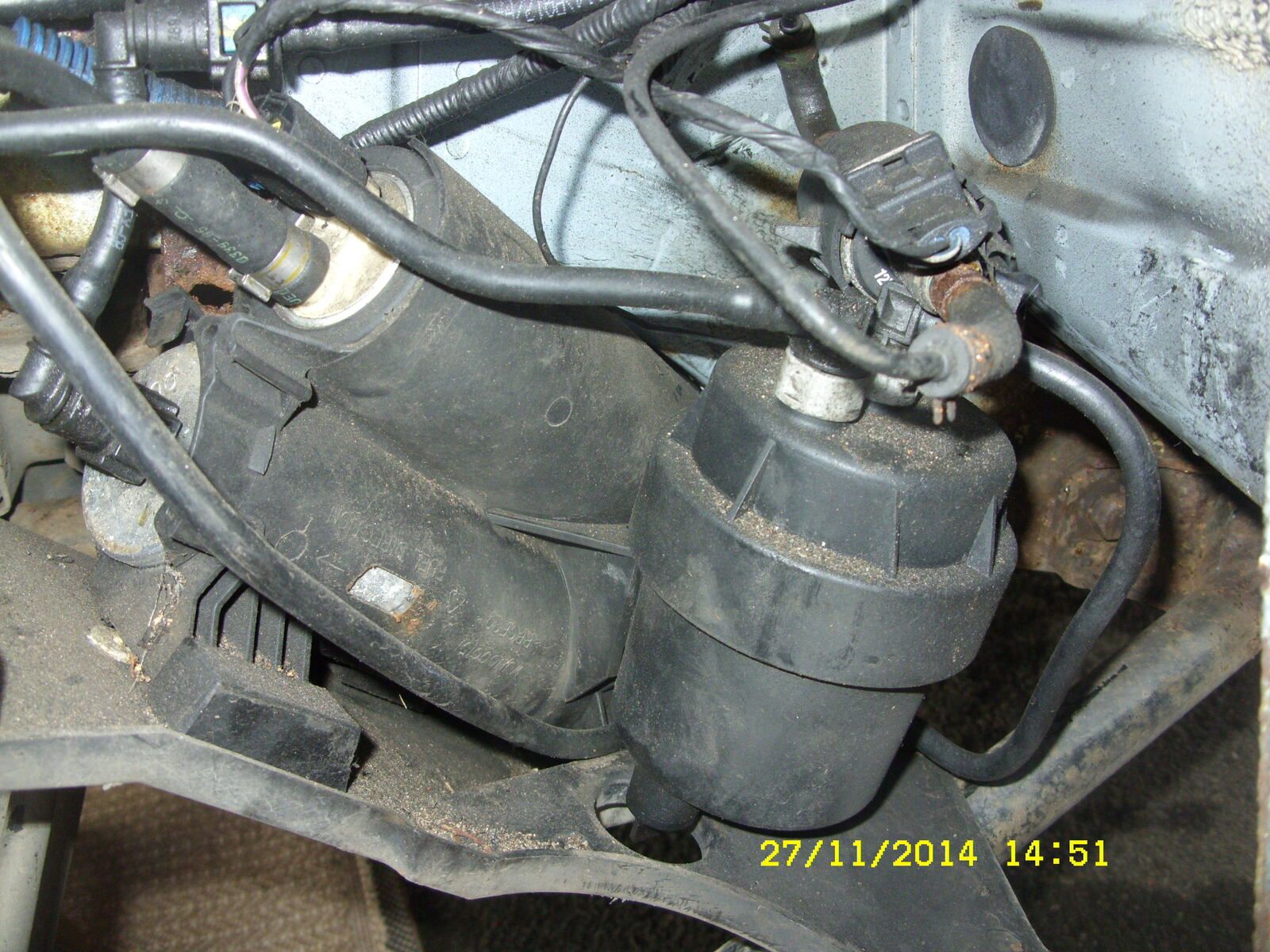

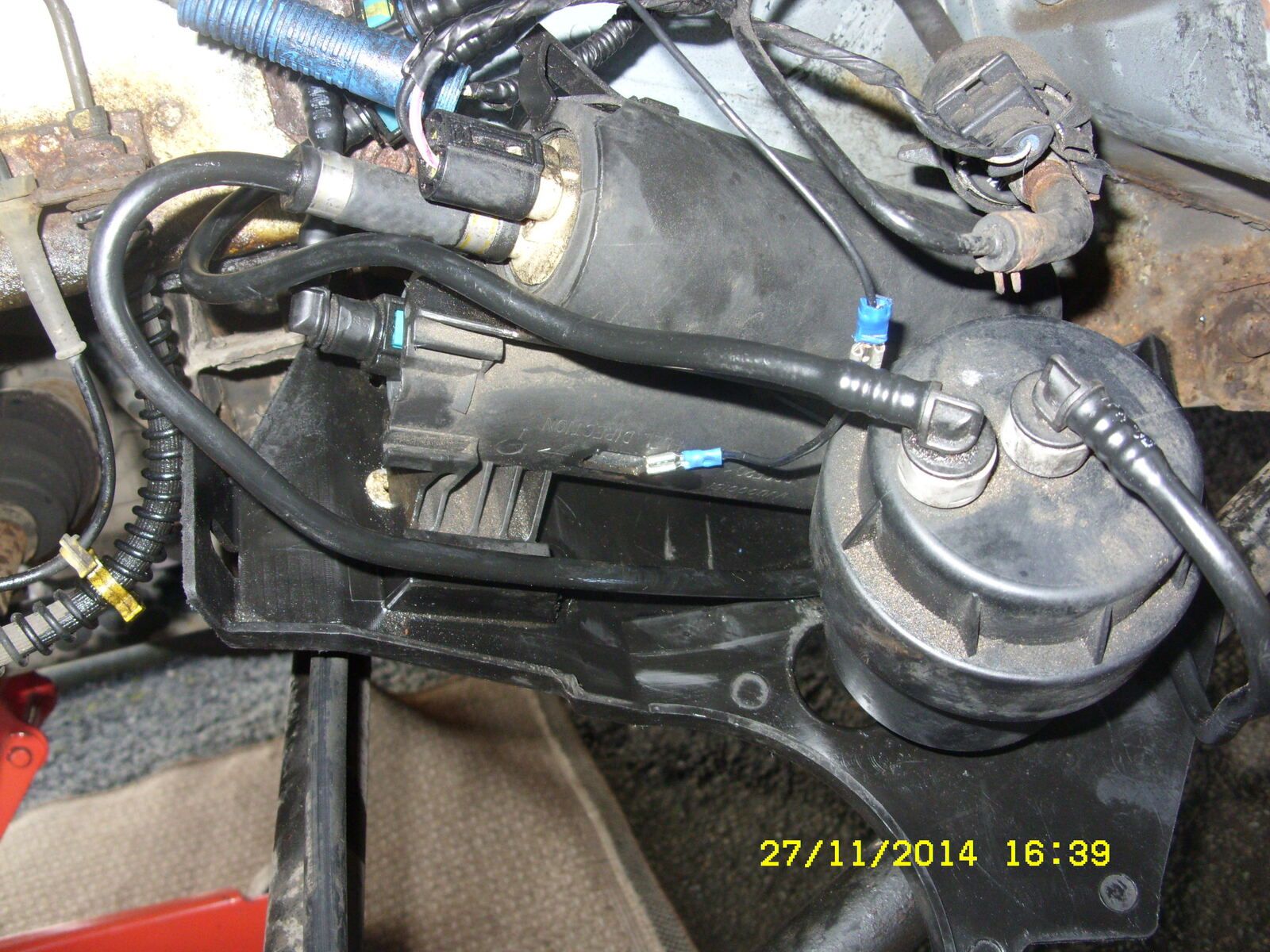

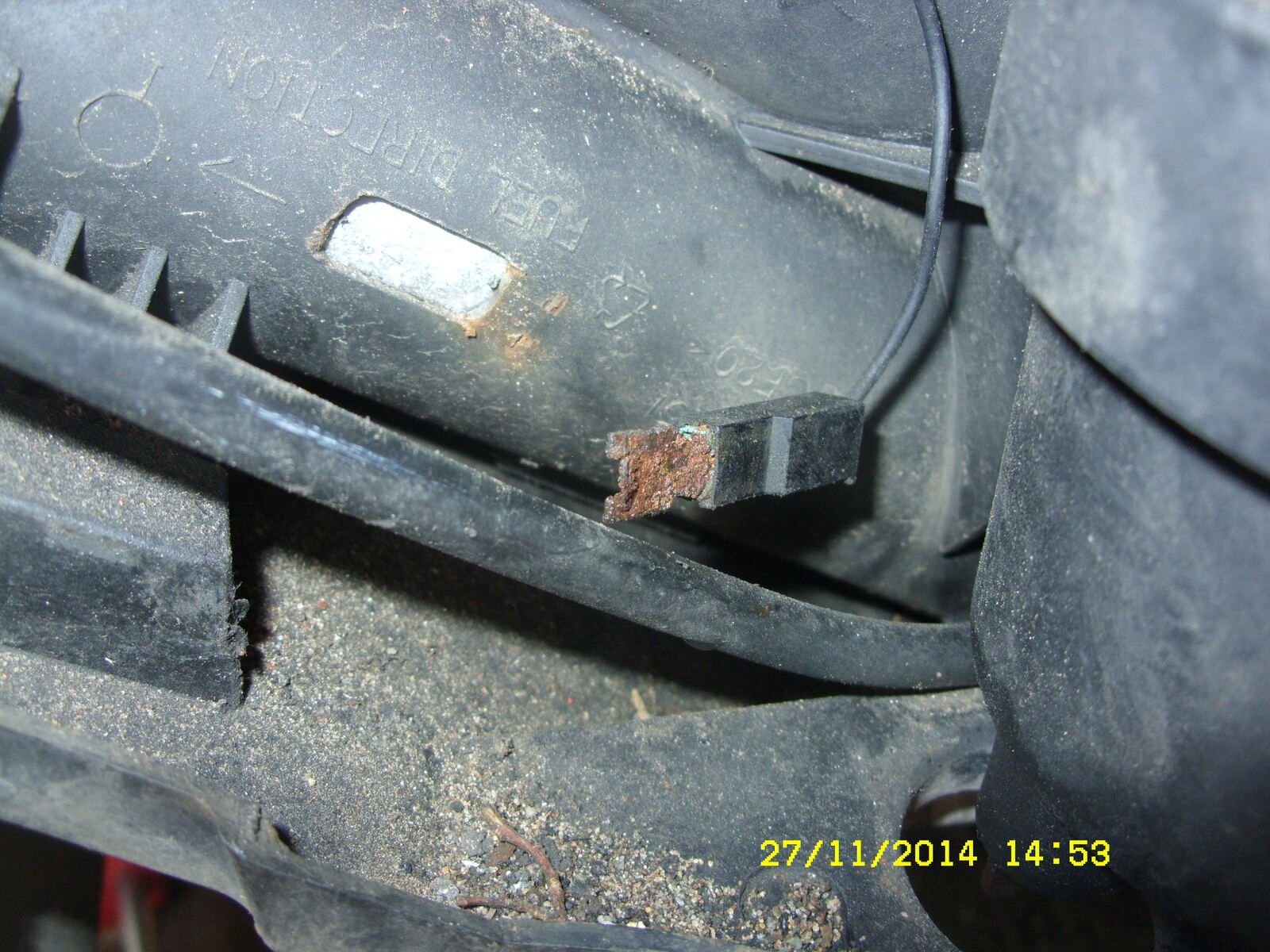

The 12v Thomas magnete is the fuel pump for your ( FBH ) fuel burning heater, the single wire is an earth and should fit as below in these pictures

clemo2k1 · May 1, 2017

Hi Arctic2 thanks for the reply i see yours has done the same as mine and you have repaired the connection but i cant seen to work out where you have earthed it to. any help greatly appreciated.

Scott

Arctic2 · May 1, 2017

Hi Scott

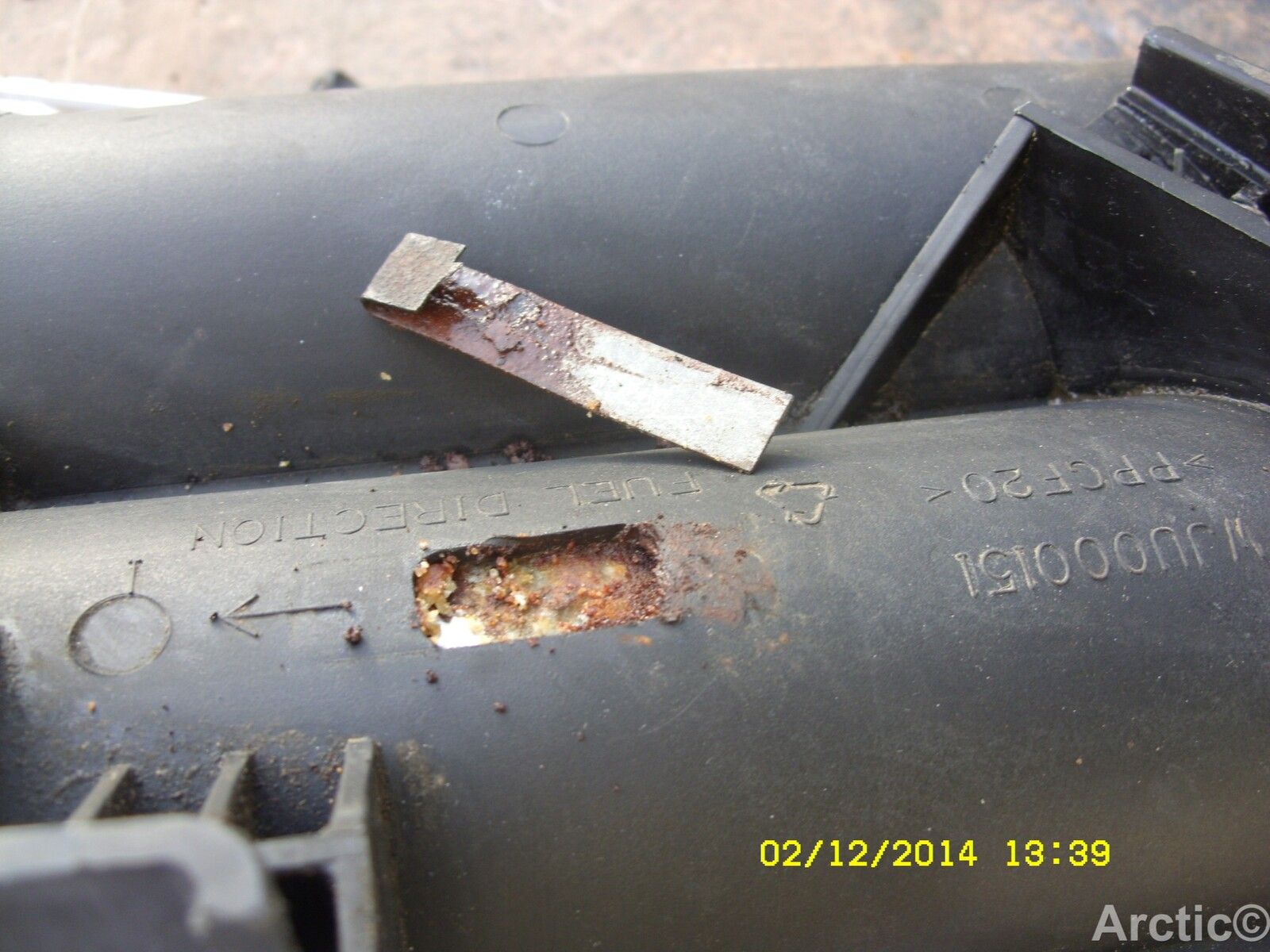

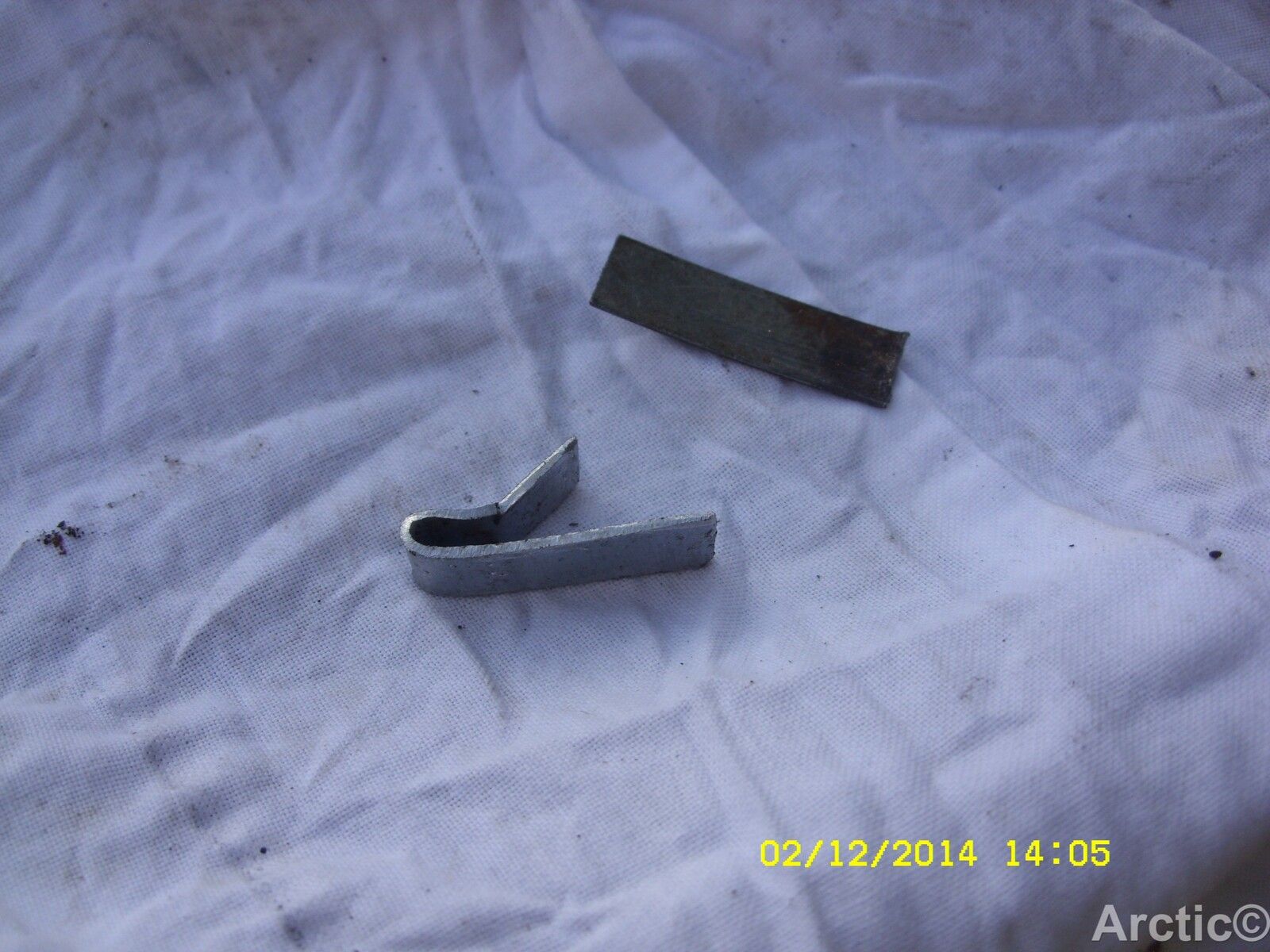

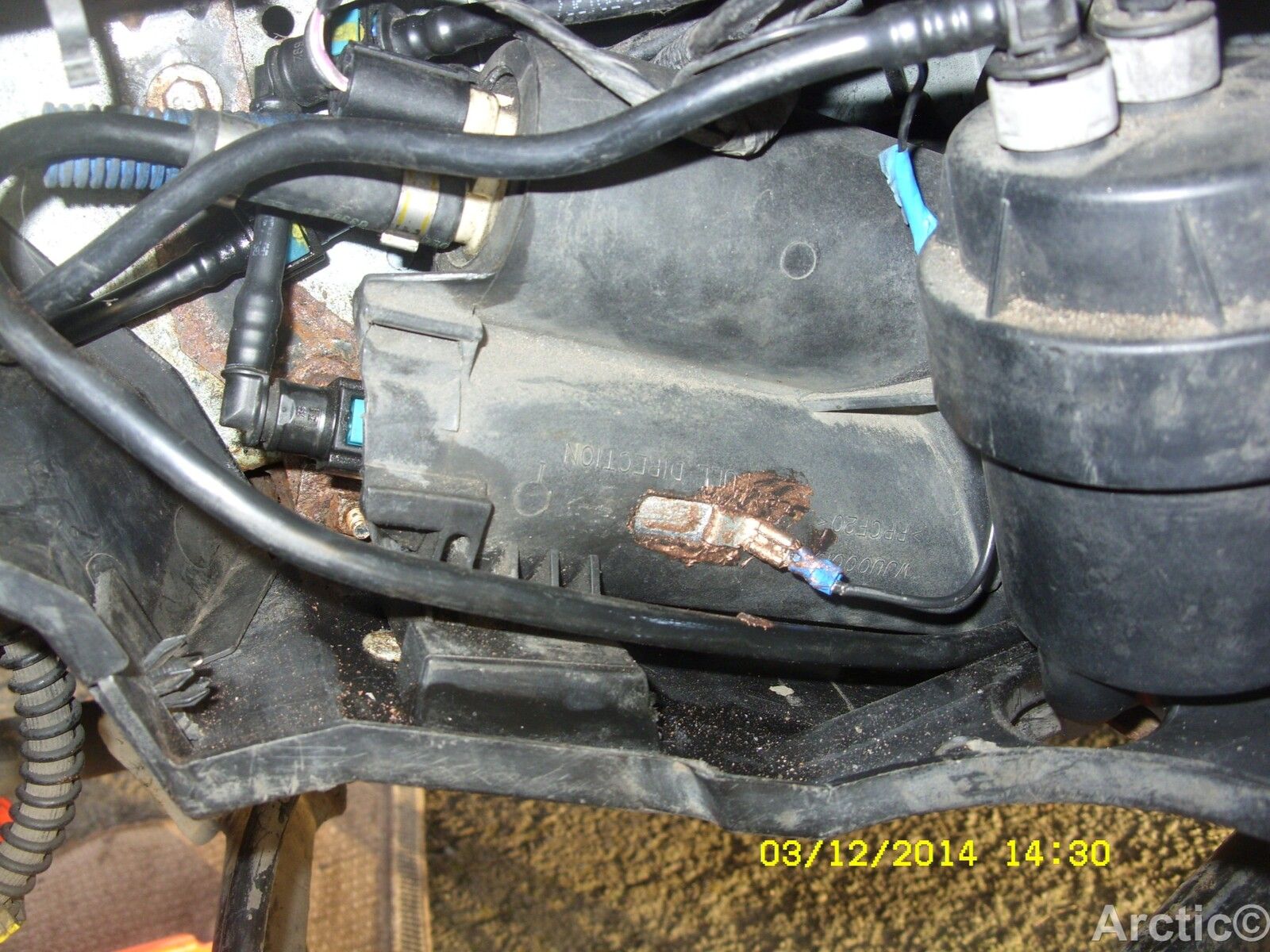

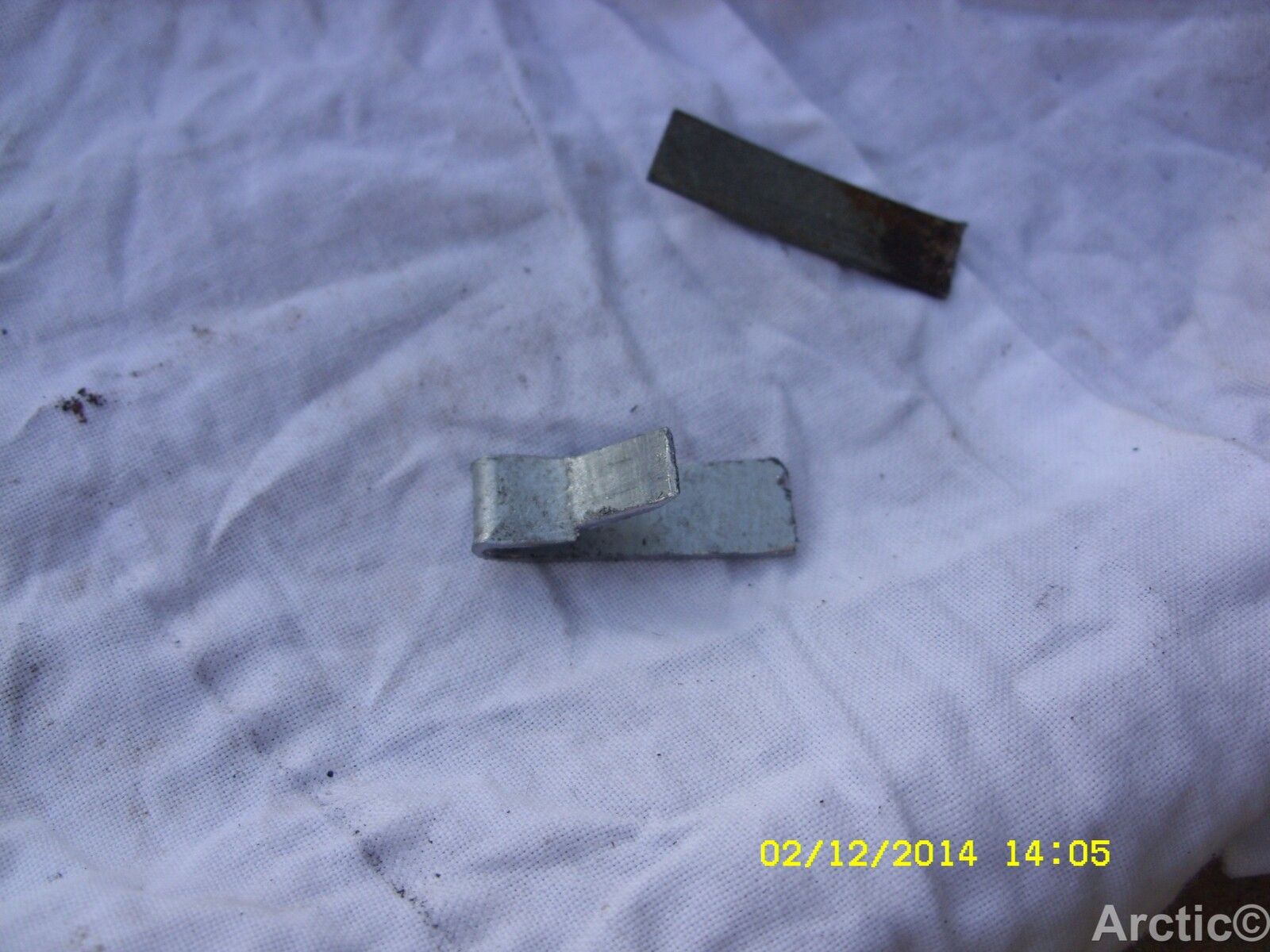

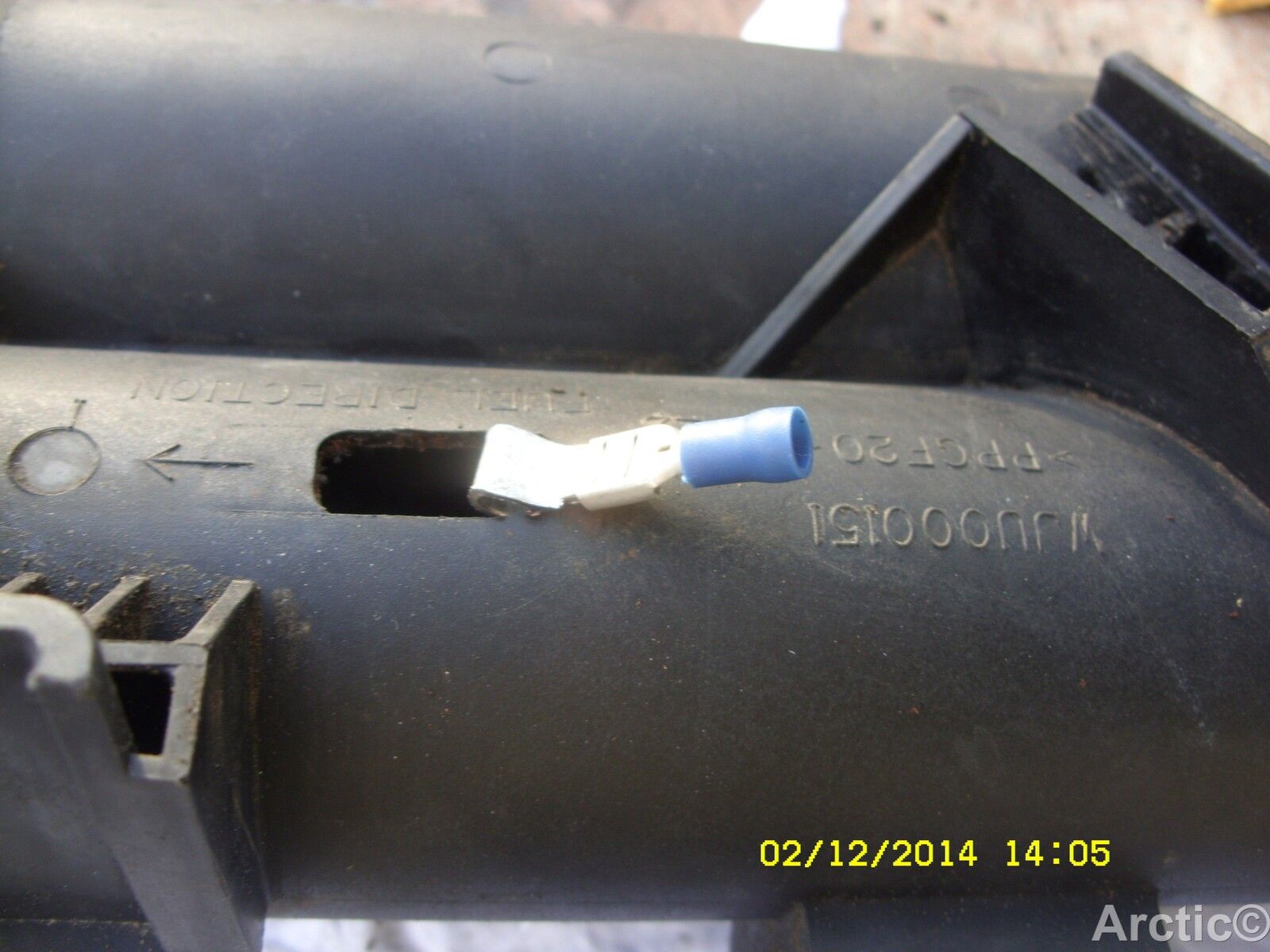

It is a piece of metal that slides down the side or the filter and the casing I made one up from a piece of sheet metal photo's below

clemo2k1 · May 1, 2017

ahh i see now. ive just finnished mine and earthed it to the bolt in the top left of your last picture. Thanks for the help.

Arctic2 · May 1, 2017

Hi Scott
No worries my pleasure that I could help cheers Arctic
