What have you done to your Landie today.

Discussion in 'General Land Rover Forum' started by madfrank, Aug 26, 2008.

< Previous Thread | Next Thread >
  1. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    I'll need an MOT test sometime soon so I've started looking at all the things that might make an MOT tester say something. I put new windscreen wiper blades on it, checked that the lights and the horn worked, jacked it up and attempted to wobble the wheel bearings, steering and suspension linkages and checked nuts and bolts for tightness. The only thing that seemed to be awry was the top end of the front nearside shock absorber, which I could rattle. Right, I'll just take the nut off and add another washer to squeeze the bush down a little more. Not so simple of course. The nut undid a couple of turns and then seized onto the shaft. The shock absorber itself still has some life left so I didn't want to butcher it, so I ended up cutting the nut off carefully to minimise collateral damage. It turned out to be some sort of weird metric fine thread so I don't have a replacement. However, the rubbers were fine - they just needed squashing down a little more. I've ordered some 12mm by 1.5mm and 1.25mm nuts in the hope of finding something to fit.

    Anyway, everything else looks OK. Tyres have some tread on, and what's more, it's wearing evenly. Brake pipes don't look corroded or chafed, there's some meat on the brake pads, and the discs seem to be wearing evenly too. I have a new driver's side seat belt to put on because I keep slamming the existing one in the door. I won't swap them over 'til the day of the test because the likelihood is I'll slam the new one in the door too. Also on the day of the test I shall discharge a whole can of brake cleaner over the underside of the engine and gearbox and wipe it with paper towels so it doesn't look too oil-leaky. Oh, and I've tightened the handbrake too.

  2. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    More MOT preparations. I've discovered that the thread on the end of the shock absorber is not M12 x 1.5 or M12 x 1.25. Surely it can't be UNF? I ran a 1/2" UNF tap down one of the nuts and it screwed straight on. So I've got some 1/2" UNF nuts ordered from Ebay, because my improvised nut probably isn't a very strong fix, having been tapped out to two different thread patterns. I took the wheels off and did a bit more pressure washing underneath. It's not mission critical, but I think it creates a better impression if it's not too filthy. I'll pop some injector cleaner in the tank and take it for a bit of a drive tomorrow so as to get it through the injectors. Snake oil perhaps, but I don't want it getting too smoky because fixing that on a TD5 could end up being expensive.

    Hicap phill and Al2O3 like this.
  3. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    10,511
    Likes Received:
    4,588
    Location:
    North of the Wall
    Good luck, Brown. Have you got it booked in yet? Mine's due on the 12th December, so I'll have to take your lead and do some prep.

  4. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    Yup, it's going to the garage on Monday. I thought I'd better do it now, because all the bits they check seem to be working and I want to get it out of the way before anything else breaks.

    Hicap phill and Al2O3 like this.
  5. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    10,511
    Likes Received:
    4,588
    Location:
    North of the Wall
    Fingers crossed then mate, I'm sure it will be fine :)

  6. td4helllllllllppppppppp

    td4helllllllllppppppppp New Member

    Joined:
    Aug 17, 2006
    Posts:
    6
    Likes Received:
    1
    Location:
    York

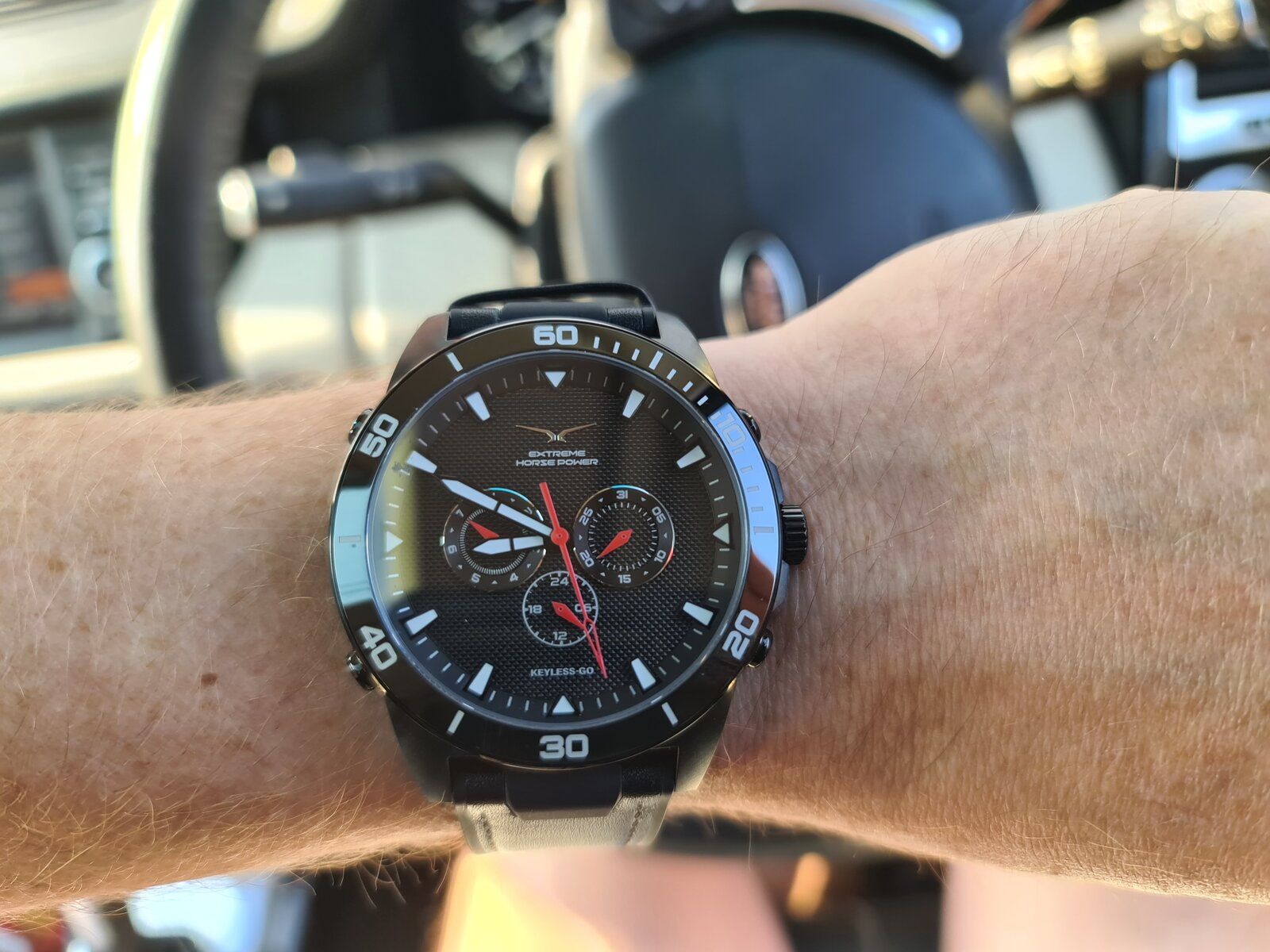

    Managed to Program A watch to fully open lock start My 5.0 V8 new toy


    Attached Files:

  7. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    MOT passed this morning. So that's all OK for another year. I like to look at the smoke test report because that's one thing that could be a problem but I can't do very much about. There's not much you can adjust on a TD5 and new injectors would be expensive. However, there's no smoke test report in the paperwork. It must have been OK because they would have said something.

    Hicap phill, Al2O3, Knappster and 3 others like this.
  8. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    Goodness me - all those 'likes' for an MOT pass! Feels like some sort of celebration is in order.

  9. My Old Landy

    My Old Landy 90+38 = :D Full Member

    Joined:
    Aug 24, 2018
    Posts:
    6,522
    Likes Received:
    31,212
    Location:
    North Lincs
    I always celebrate an MOT pass, it is another milestone achieved :)

    cappers likes this.
  10. miktdish

    miktdish Guns n Chainsaws Full Member

    Joined:
    Jan 23, 2012
    Posts:
    1,976
    Likes Received:
    779
    Location:
    Near Lanark, South of Glasgow. Scotland

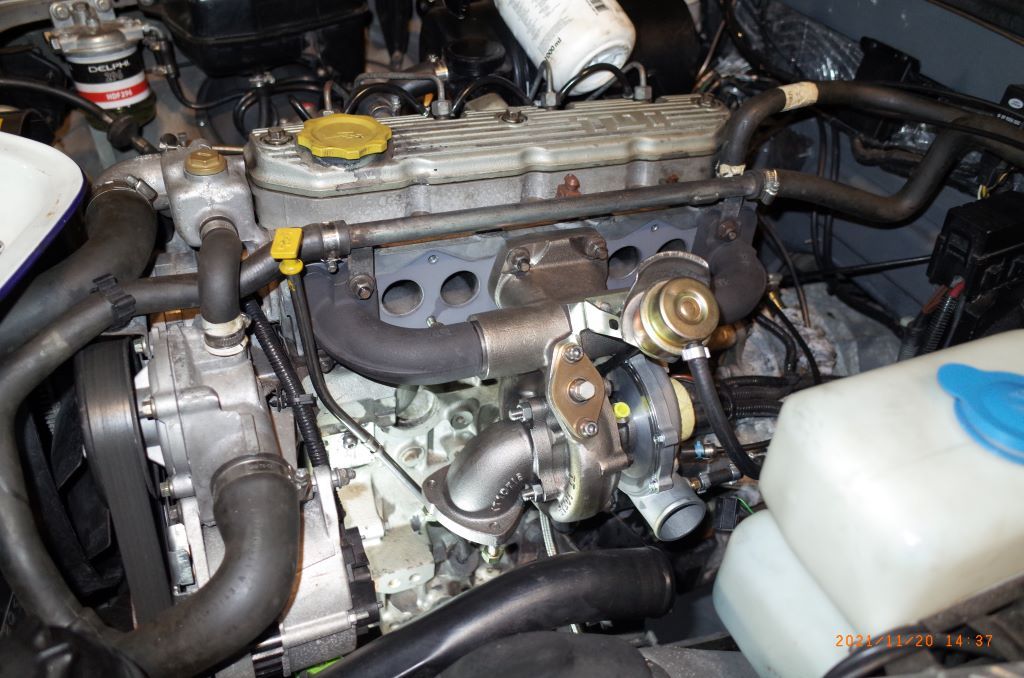

    Popped the M8 threads out of the head for the inlet manifold .... DoH!!
    Moment of carelessness, rushing to get the new turbo in, all excited read the torque setting as 35NM (not the 25NM it should have been), got upto the 30 mark and thought "this seems tight" - BANG - bowl arks unt buggeration (I exclaimed)...


  11. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    Well, if it's simply overstretched (rather than being forced against the bottom of the hole), the remaining stump may come out OK. Maybe it'll even come out with a stud extractor without it snapping.

  12. adrian hogg

    adrian hogg Well-Known Member

    Joined:
    Jul 20, 2017
    Posts:
    401
    Likes Received:
    336
    Location:
    WEST MIDLANDS
    Fitted a CSI electronic distributor, new coil and ht leads. Dialled in a super advance curve and my 109 has never gone so well dizzy.jpg

    JUKE179r, My Old Landy and cappers like this.
  13. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    Looks like mine needs a little more investigation. Despite the MOT pass yesterday it seems to be developing some electrical problems. I came back from visiting a friend in the Market Harborough area in the dark just now and the headlights were flickering. So I'll have to do a bit of fiddling about before I next attempt a long journey in the dark. Maybe it's the switch on the steering column deteriorating. This happened on a friend's TD5 and I've seen it written about on Landyzone too. The switch gets hot and the plastic distorts. I have a spare switch so I might put that on and see if it's any different.

    Hicap phill likes this.
  14. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    I may have solved the flickering light problem. I put a new switch in, and the beam seems much steadier. I went to Wales on Saturday and had the lights on through the various squalls of rain and sleet along the way, and came back this evening in the dark and they seemed OK. The headlights are looking quite bright at the moment - almost the same colour as my LED sidelights.

    Al2O3 and Hicap phill like this.
  15. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    10,511
    Likes Received:
    4,588
    Location:
    North of the Wall
    Well done, mate. :cool:
    Mine is in for the MOT tomorrow (fingers crossed emoji)

    Hicap phill likes this.
  16. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    Hope it all goes well. It doesn't seem that long since you rebuilt it so a lot of the bits and pieces are virtually new. At least it's unlikely to fail on chassis rust!

  17. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    10,511
    Likes Received:
    4,588
    Location:
    North of the Wall
    Seven years, but chassis is as new :D

  18. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,752
    Likes Received:
    4,334
    Location:
    East Midlands
    Time's going a lot faster now that I'm getting older. Christmases are flicking past like Sundays.

    Al2O3 likes this.
  19. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    10,511
    Likes Received:
    4,588
    Location:
    North of the Wall
    Me too. I struggle to look back and say how long ago something happened. The Mrs is still spot on though, it's really annoying :rolleyes:

  20. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    10,511
    Likes Received:
    4,588
    Location:
    North of the Wall
    Passed the MOT. No advisories :)

    JUKE179r, cappers, Knappster and 2 others like this.
