Series 3 Water pump, snapped stud

codfather79 · Aug 28, 2023

Afternoon landyzoners!
Shirley here, again

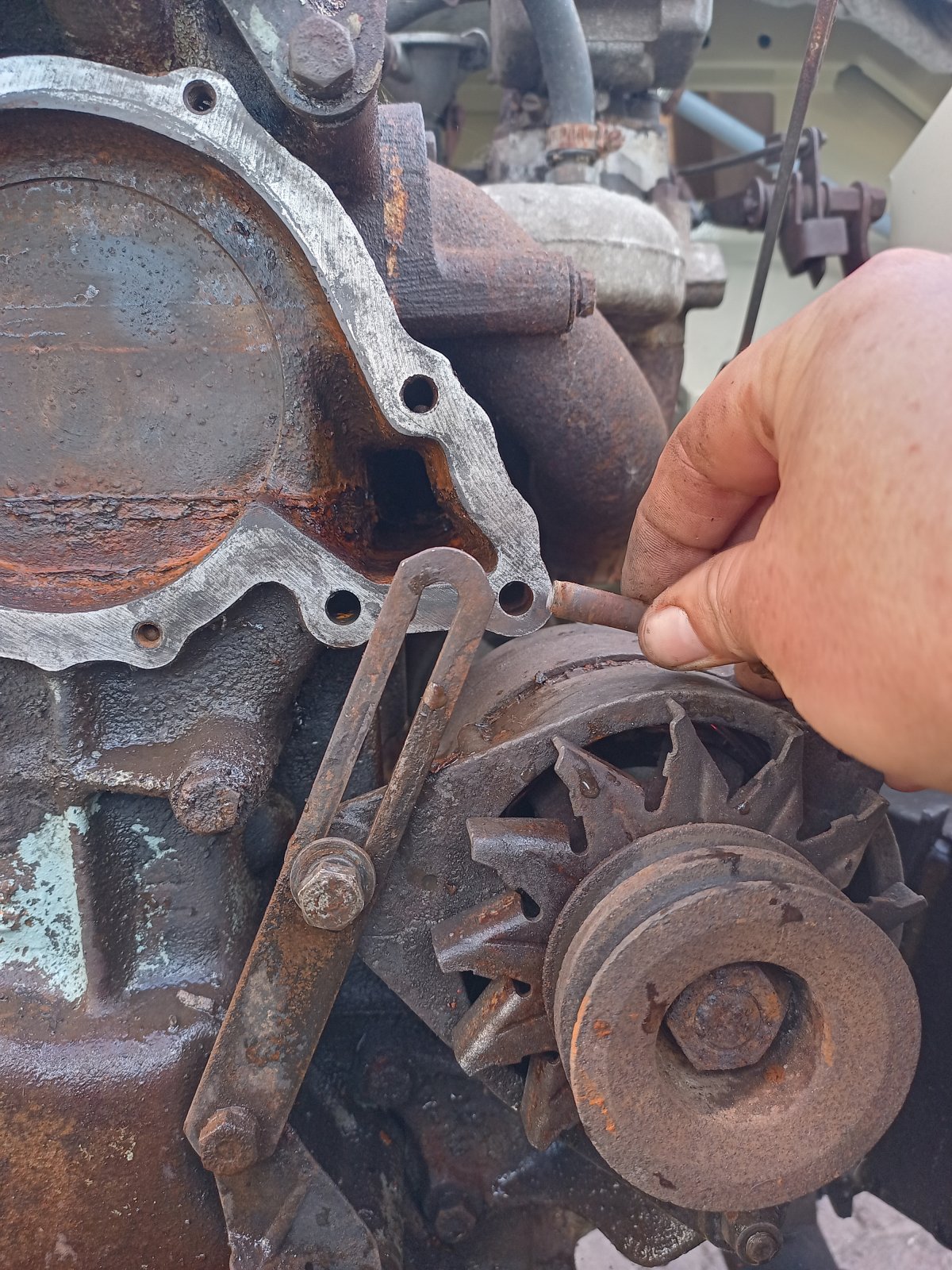

Just removed the water pump and have managed to snap a stud

Any ideas on how to extract said stud?
Or am I better off taping out the hole to take a slightly shorter stud?

Thanks in advance for any help

codfather79 · Aug 28, 2023

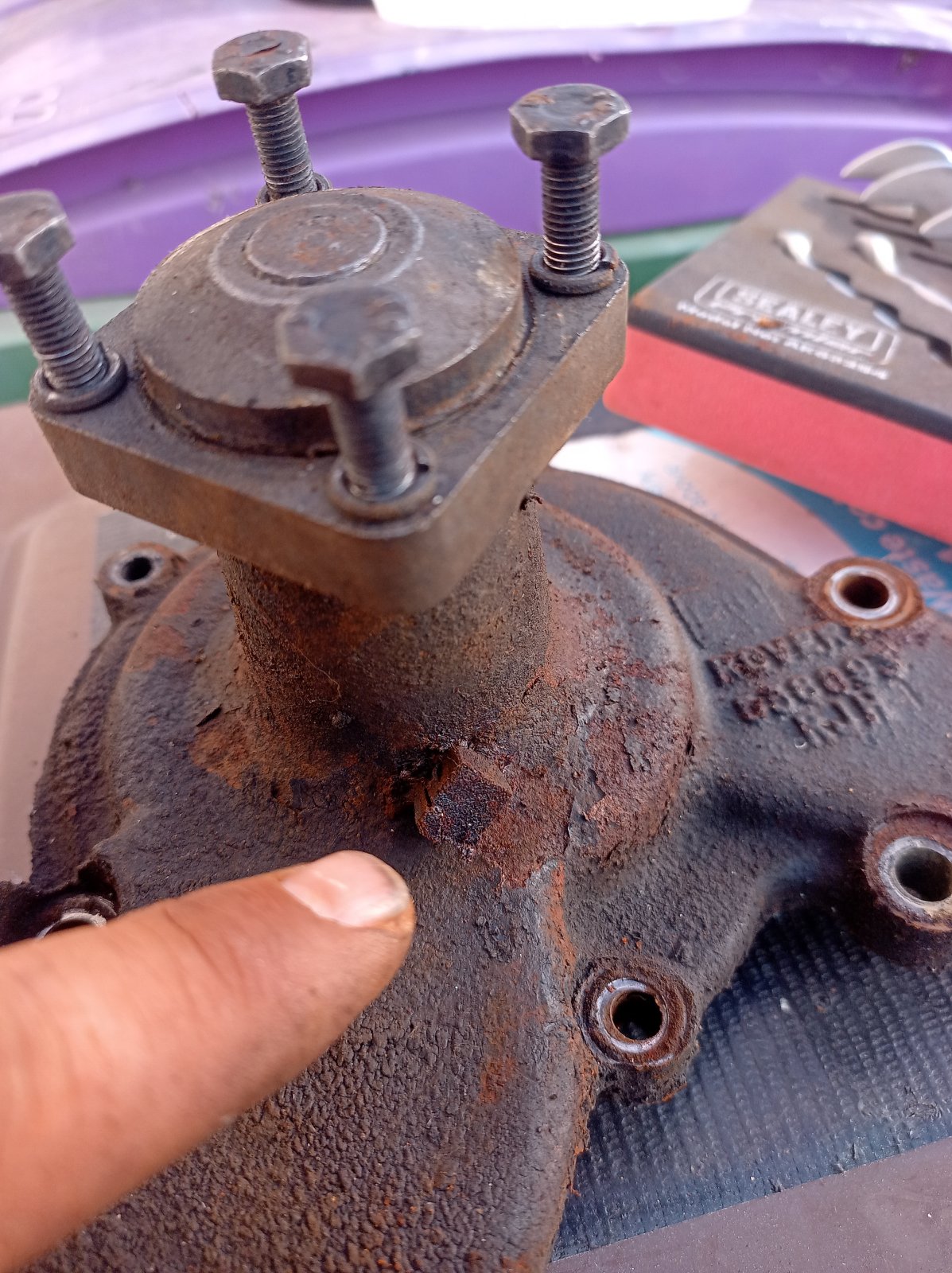

Also, what do we think about this repair!!

A timber plug

Shippers · Aug 28, 2023

Got to do same job soon...going to remove timing cover then weld large washer to broken stud then large nut to washer and broken stud already got crank pully off.

Hicap phill · Aug 28, 2023

codfather79 said:
Also, what do we think about this repair!!
View attachment 296475
A timber plug

Thats a drain hole. They block them off so you don’t know if the pump fails.

mystery · Aug 29, 2023

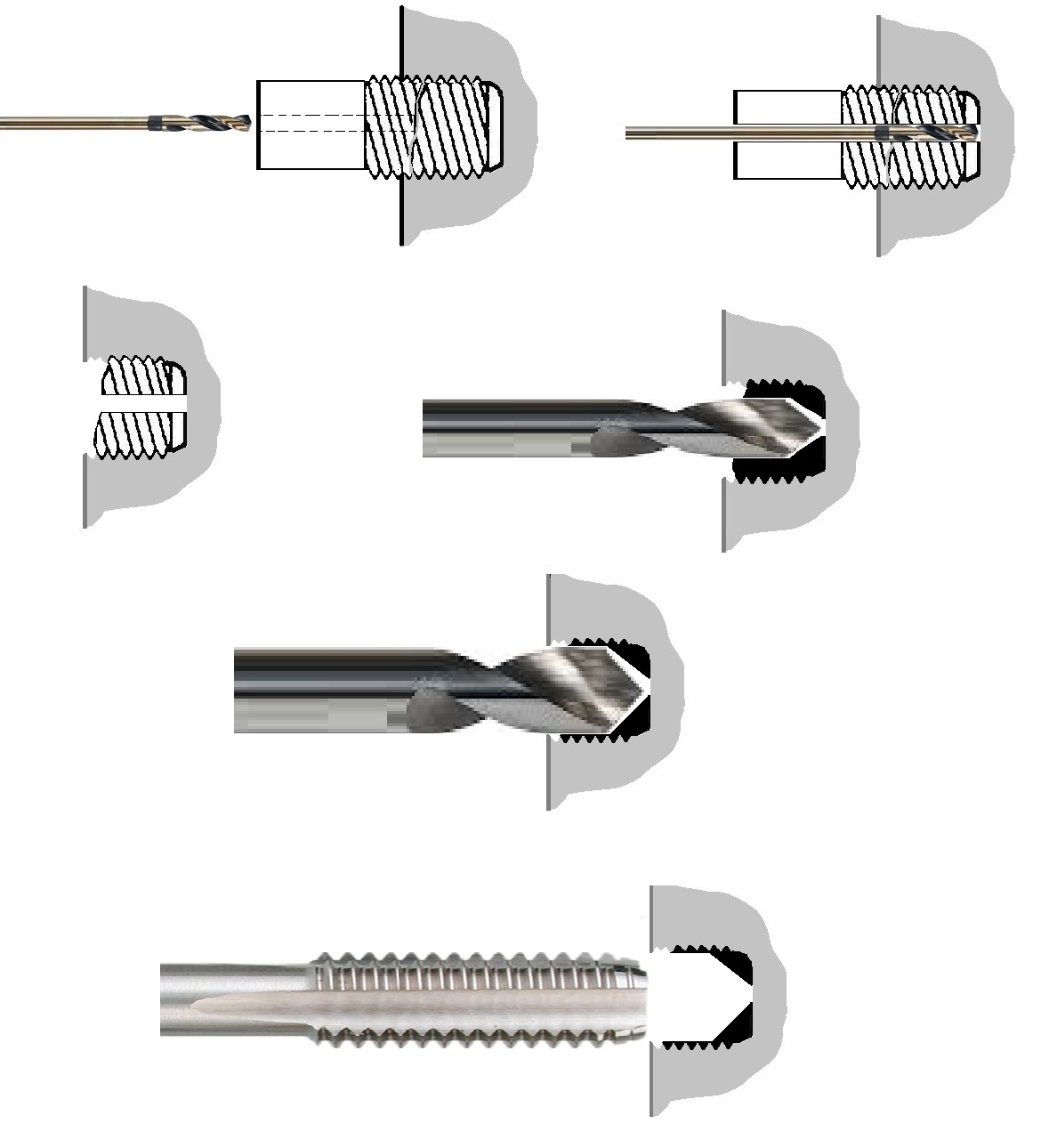

If you have access to a lathe you could cut the broken end of the removed part of the stud drills pilot hole through the centre and thread it back in the hole and use it as a pilot to centre the drill when you drill the broken off stud.
think the thread is BSF unsure of the size so I would drill just under size of the thread and then tap to the correct size this should break the damaged thread from the wall of the stud hole
