Unidentified Electrical Objects!

dringo · Apr 25, 2009

I have some small electrical components attached to my battery - located with the battery under the passenger seat. They are connected direct to the battery via a 15amp fuse. Out of the other end the wires go out through the bodywork under the car. I can't see where they go from there?!! Any idea what they might be for?

At the moment everything seems to be work on the vehicle, even though the in line 15 amp fuse has blown/ dropped out of the little plastic connector!! I have looked in the manuals etc and can't even find a 15 amp fuse on any diagrams, or any of those components at all

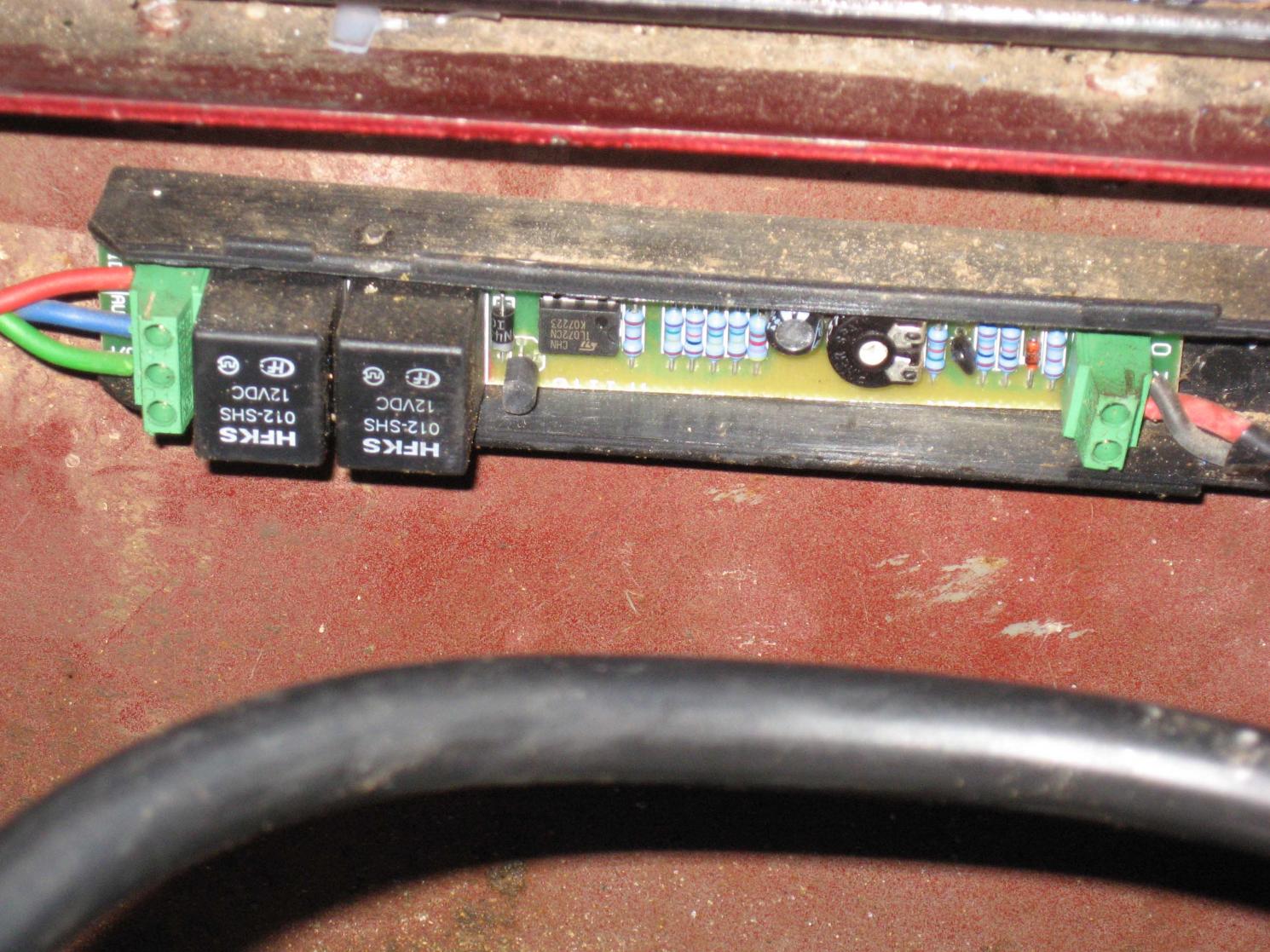

Hopefully the picture attached may help with ID.

I presume they're not vital. But then again...

slim jim · Apr 25, 2009

Have you got work lights on the back of the landrover because it looks like a neater set up than Iv done on mine. If not you havent said what engine or how old your bus is.

Pikey · Apr 25, 2009

Looks like some sort of voltage regulator. Possibly from a split charge system???

dringo · Apr 25, 2009

Its a 300tdi defender csw (1996)

it does have an extra set of headlights lights on the front that come on with full beam. I'll just go out and see if they still work!!

iannotts · Apr 25, 2009

tis for ya secondary lectric for a caravan or split charge

Sirus · Apr 25, 2009

Nipples

Sean · Apr 25, 2009

split charge is a good guess - that TL072 chip is an op amp, there being a variable resister (to alter the swop over voltage) a couple of relays points to it being one - but the relays are fairly small so it'll just be a low current or top up type

dringo · Apr 25, 2009

Just been out to check and all lights come on as should do.

I was wondering if it is from a set that someone else may have put on the vehicle (and removed) before I got it. Originally, the vehicle was owned by AMEC - some big construction type company I think.

I just always presumed it was doing something, but when it broke, nothing seems to have gone.

Maybe I'll have to spend some time under the vehicle trying to work out where it goes

dringo · Apr 25, 2009

just noticed other posts - I do have 2 sets of electrics for tow bar (I only use one though)

dringo · Apr 25, 2009

I'll plug my trailer board into both sockets tomorrow and see what happens - thanks for help, what you say makes sense

slim jim · Apr 25, 2009

iannotts said:
tis for ya secondary lectric for a caravan or split charge

We have a winner. I think

dringo · Apr 25, 2009

I'll let you know when I find out

Pikey · Apr 25, 2009

dringo said:
I'll plug my trailer board into both sockets tomorrow and see what happens - thanks for help, what you say makes sense

Yu might have trouble pluggin it in both. If one's for a caravan it has a different connector layout.

dringo · Apr 25, 2009

anyone got a caravan I can borrow!!!!!!!!

- That will be why I always use the same one!!! - The bloke I got it from said 'plug trailer in here and caravan here'. Now makes a sense. (sorry for being a bit thick:confused2:

Pikey · Apr 25, 2009

dringo said:
anyone got a caravan I can borrow!!!!!!!! - That will be why I always use the same one!!! - The bloke I got it from said 'plug trailer in here and caravan here'. Now makes a sense. (sorry for being a bit thick:confused2:

You can always use a multimeter to test em. the pinouts are on here. http://www.landyzone.co.uk/lz/f38/redhands-font-all-knowledge-49188.html

dringo · Apr 25, 2009

cool - thanks for this, i now have a chance of sorting it out

boydy1989 · Apr 26, 2009

splt charge system, or possibly an alarm control module.

Does't look to be enough wires going out for that though.

CharlesY · Apr 26, 2009

I think it may have been a power supply for a two-way radio system

If you fit a CB radio, try wiring it to the output end of this device.

I reckon what it does is to stop the radio from flattening the main battery, by shutting the radio off at some pre-set voltage.

But I am only guessing ...

CharlesY

90truckcab · Apr 26, 2009

CharlesY said:
I think it may have been a power supply for a two-way radio system

If you fit a CB radio, try wiring it to the output end of this device.

I reckon what it does is to stop the radio from flattening the main battery, by shutting the radio off at some pre-set voltage.

But I am only guessing ...

CharlesY

aye the same as the old 109 ffr's except they used bout fourty cables and were a right mess ! :doh: seemed to work tho,

if it has an acr alternator will not need a voltage regulator ! unless like said , id part of a sptil load/ charge system. winch / spot (or work ) lights

secondly the 7 pin trailer socket will only fit one plug , the secondary ( usualy a white cap) will have 12 pin fer new type caravans,
with a constant feed / perm live for fridges atc.

but likes yer say if everything works and yer dont tow a shed round of a bank holiday , dont worry bout it !

iannotts · Apr 26, 2009

See post 10, I had one on my rangie, it never worked
