Hi People, hope you are all ok.

I am going to be fitting a lift kit to my freelander soon and would like to get an idea of what different sized wheels and tyres look like compared to the arches.

Would any of you out there that have got modded hippos be so kind and post a couple of pics of your wheels and tyres please? (also, could you mention what the tyre and wheel sizes are)

It would help me, and I'm sure some other people about to mod, to understand what can be fitted without modification to the wings and what can be fitted with slight mods.

Thank you.

Neil

Last edited:
40mm Lift kit by SES88 fitted:

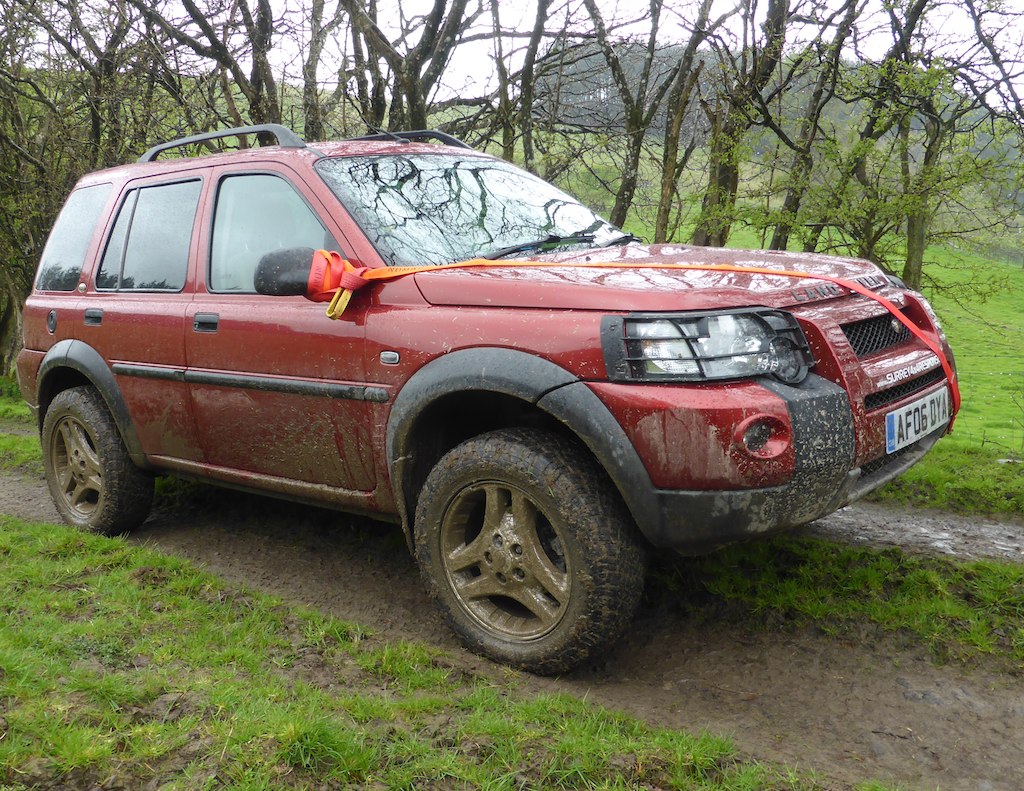

Here it is with 225/65R17 General Grabber AT



With 215/60R16 Continental WinterContact TS tyres

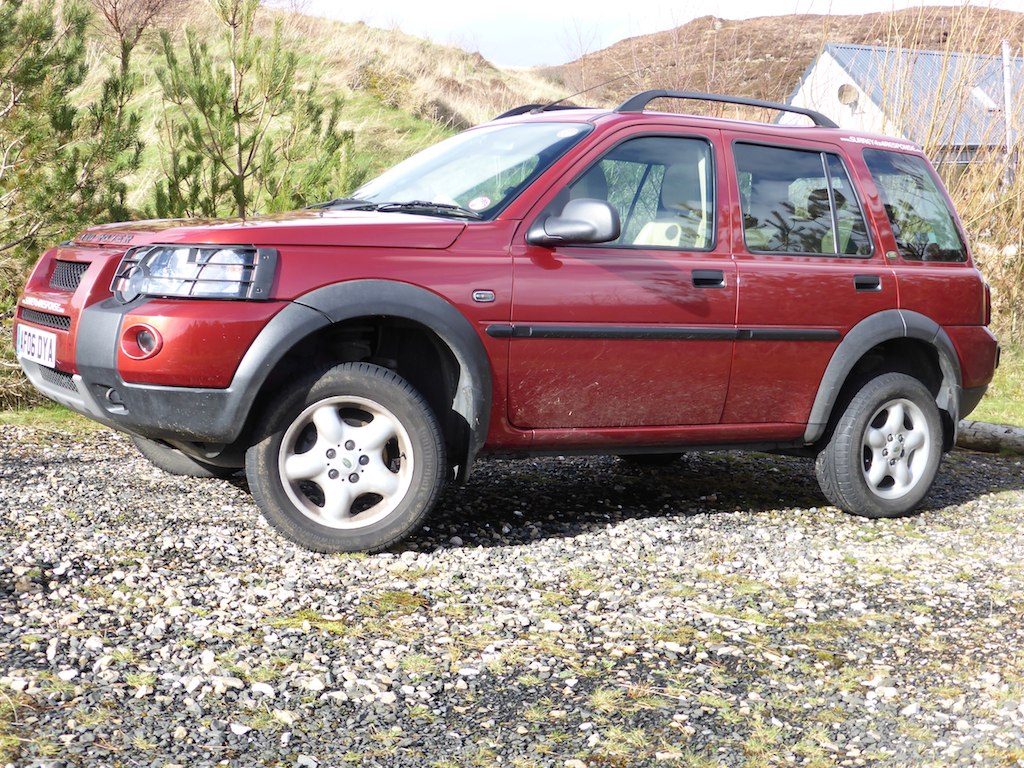

With 225/55R17 General Grabber UHP


Last edited:
And for comparison,

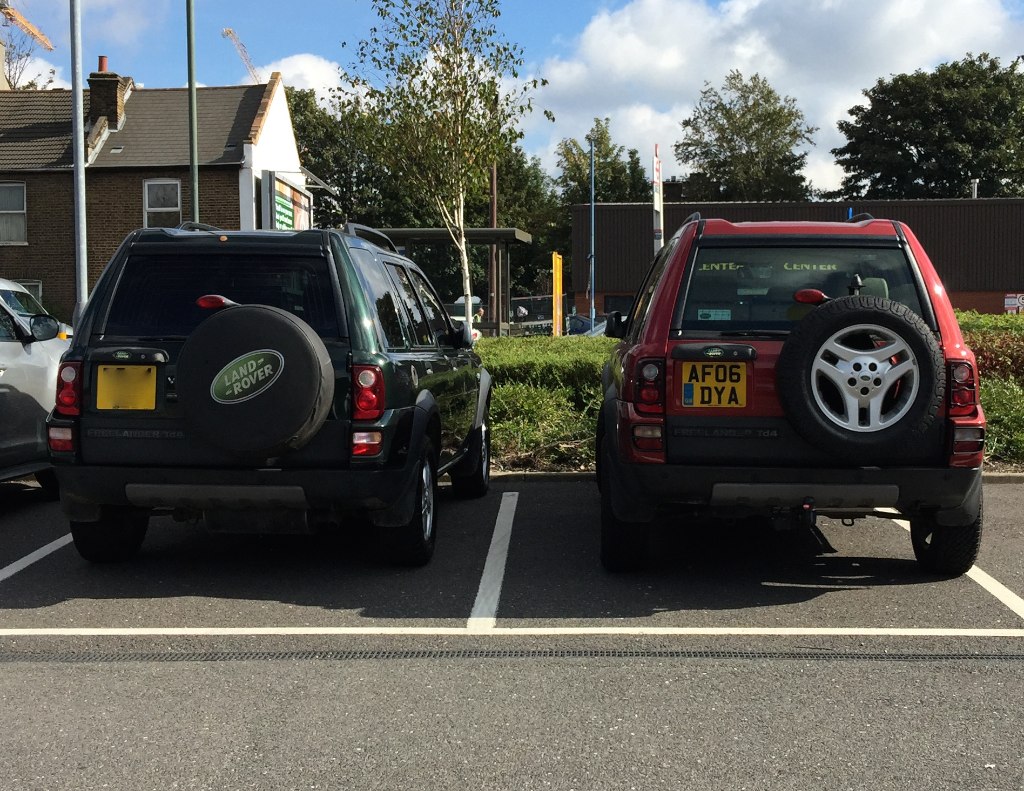

Here is my 40mm lifted Freelander with 225/65R17 General Grabbers beside a stock facelift Freelander on standard rubber.

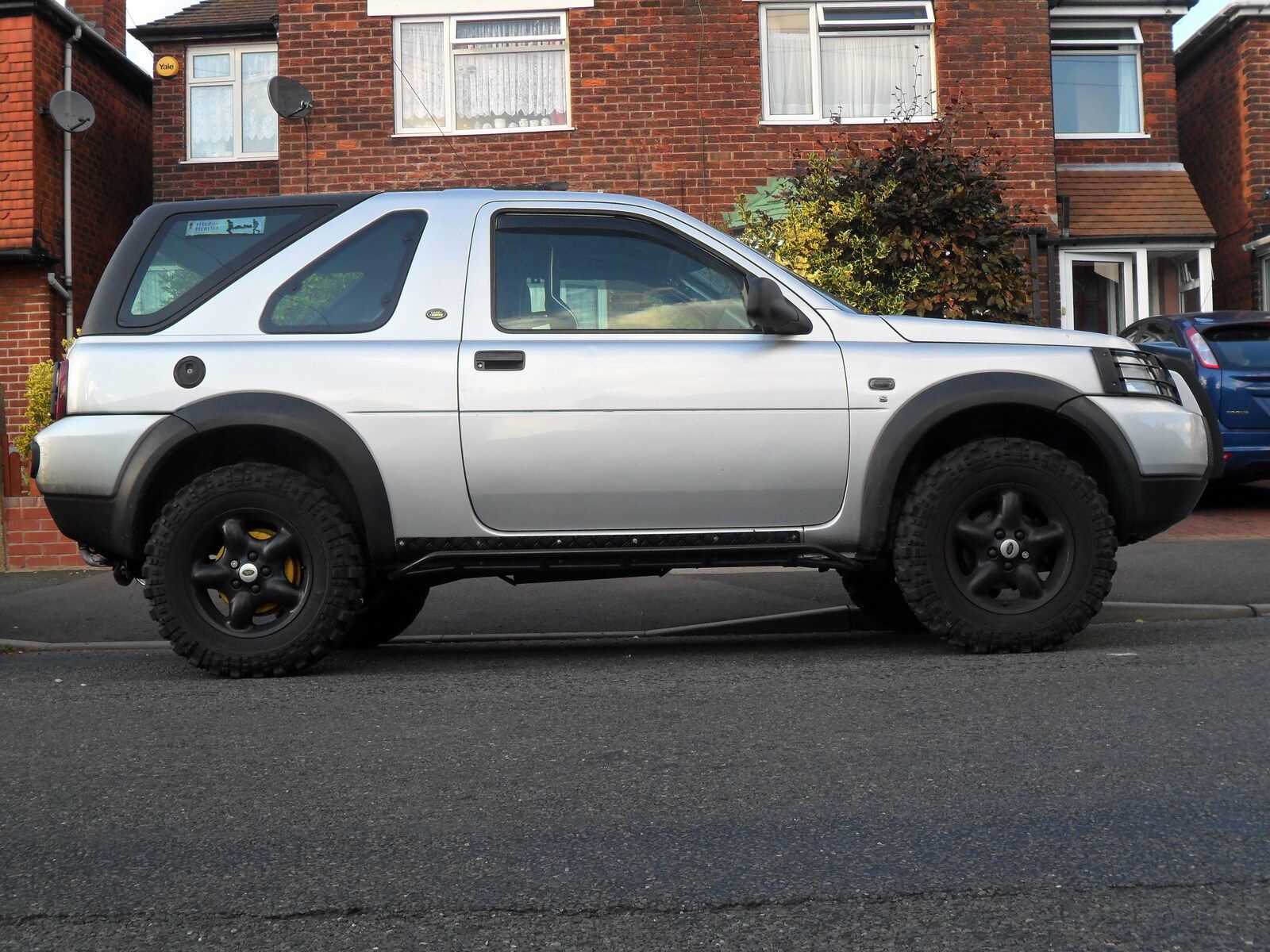

205/80/16 Marix Lion tyres on standard 16" rims just painted black.
225/70/15 General Grabber AT on standard 16" rims.


Attachments

  • Picture 1255.jpg
    Picture 1255.jpg
    417.6 KB · Views: 2,822

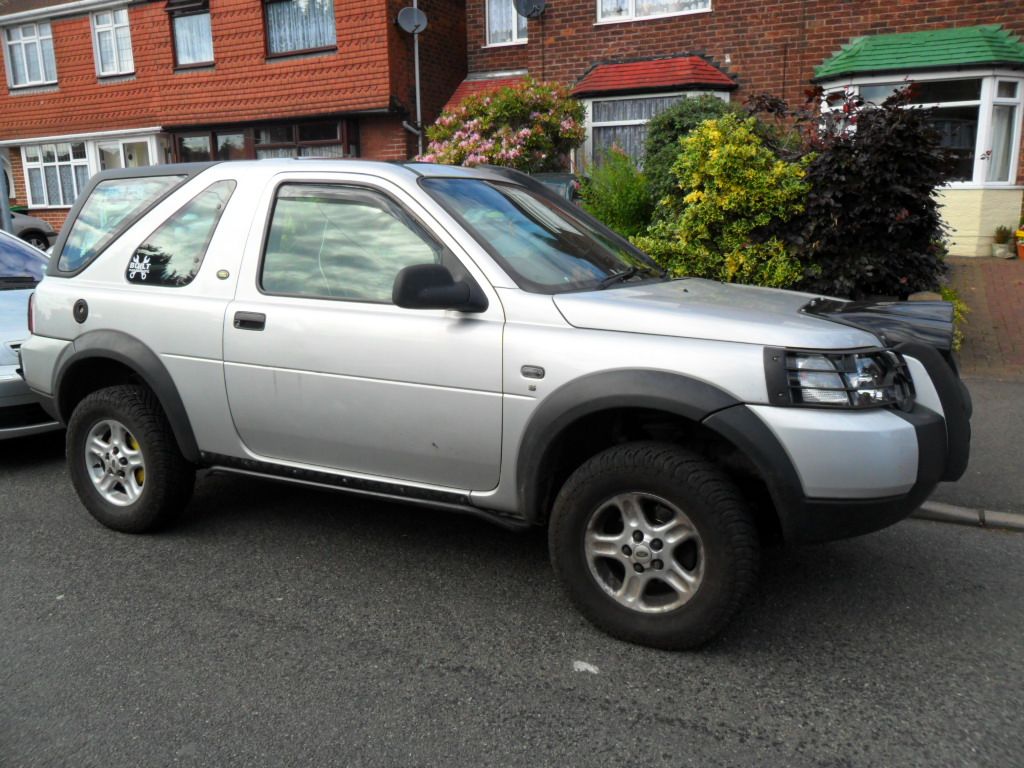

  • SAM_3125.JPG
    136.5 KB · Views: 1,085
