Torque Value - A Frame Ball Joint to Axle Casing

listerdiesel · May 17, 2016

Just putting a new top ball joint in, but struggling to find a torque value for the four M12 bolts that hold the ball joint bracket to the axle.

Can anyone help, please? Got the RAVE manual at home on my PC but not here at work.

Thanks,

Peter

MeatCleaverX86 · May 17, 2016

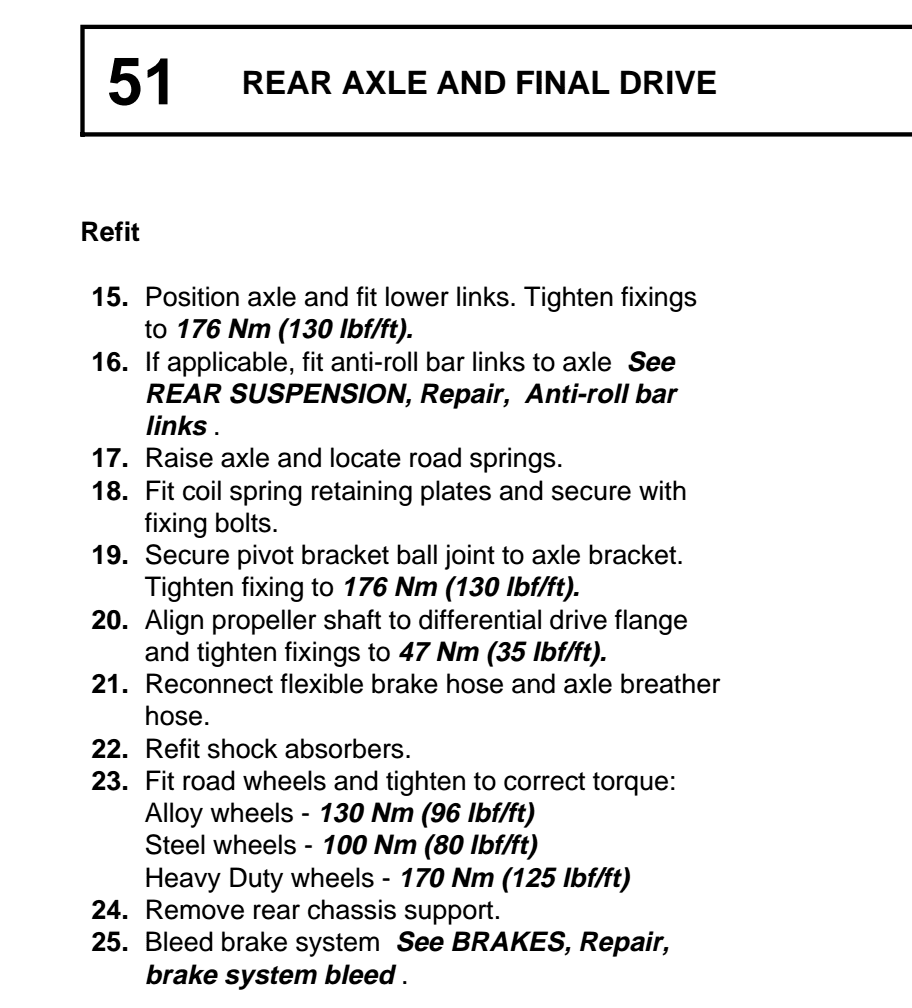

this is taken from my 300 tdi workshop guide

listerdiesel · May 17, 2016

Cheers, Richard, no mention of the four bolts torque is there?

Seems odd.

Peter

MeatCleaverX86 · May 17, 2016

nothing obvious I'm afraid in pages I've blasted through so far

listerdiesel · May 17, 2016

Seems odd, something fairly stressed like that not having a torque figure.

Thanks for looking.

Peter

listerdiesel · May 17, 2016

133nm

http://www.internet-tools.co.uk/landrover/Defender Workshop Manual (1993).pdf

Page 31 overall or Page 4 Section 6

Peter
