Tighten crank nut without locking tool?

Preparing for TB change and have crank bolt loose. After changing the belt and tensioner etc can the crank bolt be tightened without having to buy the special crank holding tool? Any help would be appreciated. Cheers

Why didn't you buy the toolkit. Well worth it.

Have someone stand on the brakes while in gear, torque it up, paint a dot to set positions
And the use tool number one on spanner to tighten 90 degrees further iirc. ( double check the torque and degrees)

Or you can buy a tool for 70 notes, or make one have a search on here to see photos of how to do it.

Cheers

aussieandy said:

Preparing for TB change and have crank bolt loose. After changing the belt and tensioner etc can the crank bolt be tightened without having to buy the special crank holding tool? Any help would be appreciated. Cheers

Click to expand...

A standard sized male airline connector, will screw into the timing hole -

run a M8 tap through the middle of it, then grind a rounded end on a bolt, screw the bolt into the air fitting and the whole thing into the timing slot ...

this locks the flywheel on both autos and manuals for doing the belt, and for tightening the pulley

Dippypud said:

A standard sized male airline connector, will screw into the timing hole -

run a M8 tap through the middle of it, then grind a rounded end on a bolt, screw the bolt into the air fitting and the whole thing into the timing slot ...

this locks the flywheel on both autos and manuals for doing the belt, and for tightening the pulley

Click to expand...

thats a cracking tip, cheers

1st Gear, Low Range and a mate standing on the brake pedal

Thanks for the reply guys.

So if if I have the flywheel locking pin in place I am ok to torque up. Will this break under the pressure?
Will the put in gear with brakes on work for my auto ( sorry should have said it was auto on initial post).
Thanks in advance Cheers

aussieandy said:

Thanks for the reply guys.

So if if I have the flywheel locking pin in place I am ok to torque up. Will this break under the pressure?
Will the put in gear with brakes on work for my auto ( sorry should have said it was auto on initial post).
Thanks in advance Cheers

Click to expand...

I think the pin will break. Putting an auto in gear will not help at all.

Hi Nielly

Looks like I have no choice but to source to tool. I dont weld so cant make one.
Can you point me to where I can buy the crank locking tool online. I can get the locking pins pretty cheap on fleabay but the crank locking tool gets pricey in Australian $

Cheers

Datatek said:

I think the pin will break. Putting an auto in gear will not help at all.

Click to expand...

I'll give the pin a miss to solve my problem, thanks for the advice

They are pricy in the uk too mate

Where in oz are you ? Would be very easy to a blacksmith to knock one up for you if you got the measuremnts. They are kicking about on the defender forum.

top drive said:

They are pricy in the uk too mate

Where in oz are you ? Would be very easy to a blacksmith to knock one up for you if you got the measuremnts. They are kicking about on the defender forum.

Click to expand...

Near Bunbury Western Australia. I'll take your advice and try taking a look at the Defender forum and also to get the measurements, see if someone local can make one up for me.

Whip the starter motor out and wedge a chisel in the starter ring.

The TDC alignment slot in the flywheel is not normally used for undoing/doing up the crankshaft bolt as it is about 5mm.

However if you keep turning the flywheel around about a quarter of a turn past TDC or the first timing groove,there is another slot that is about 6.5mm -7mm (from memory) that is said can be used to lock the flywheel for tightening up the bolt - which is 80nm + 90 degrees.

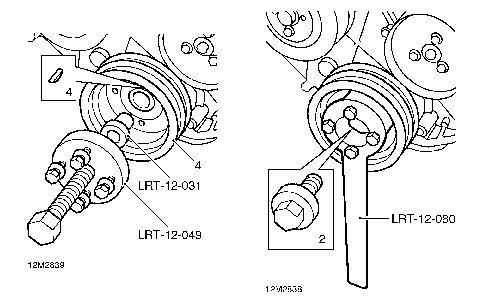

Make one of these..... Powerbar




Tool needs to be 450mm long, 5mm thick, with 4*8mm bolts mounted on a 75mmPCD at 90 degrees to each other. Centre hole is a minimum of 35mm Dia. Normally about 60mm dia. OD nominally 90mm


Crank bolt needs 27mm socket. Pulley dished section is 118mm x 50mm deep.

Ah i was in perth working last week.

Plenty engineering shops round perth that should be able to knock one of them out quickly for you.

Iirc it was saintv8 . Ill go search.

top drive said:

Ah i was in perth working last week.

Plenty engineering shops round perth that should be able to knock one of them out quickly for you.

Iirc it was saintv8 . Ill go search.

Click to expand...

It was daveK

http://www.landyzone.co.uk/lz/f8/300tdi-crank-locking-tool-120072.html

good spy - the one i was thinking of was for a 200tdi.

Removed post. Sorry i offended so many people.

Peter Parkinson said:

I got a tool off ebay for a fraction of the price of the Land Rover Tool, Really well made and made the job soooooo much easier and safer.
4384

Click to expand...

@Peter Parkinson

BTW I think this is called SPAM.

So did I and it was much cheaper than the one you listed.

Cheers

Peter Parkinson said:

I got a tool off ebay for a fraction of the price of the Land Rover Tool, Really well made and made the job soooooo much easier and safer.
https://www.ebay.co.uk/itm/

Click to expand...

think he might have done the job now, or made his own as per the link
