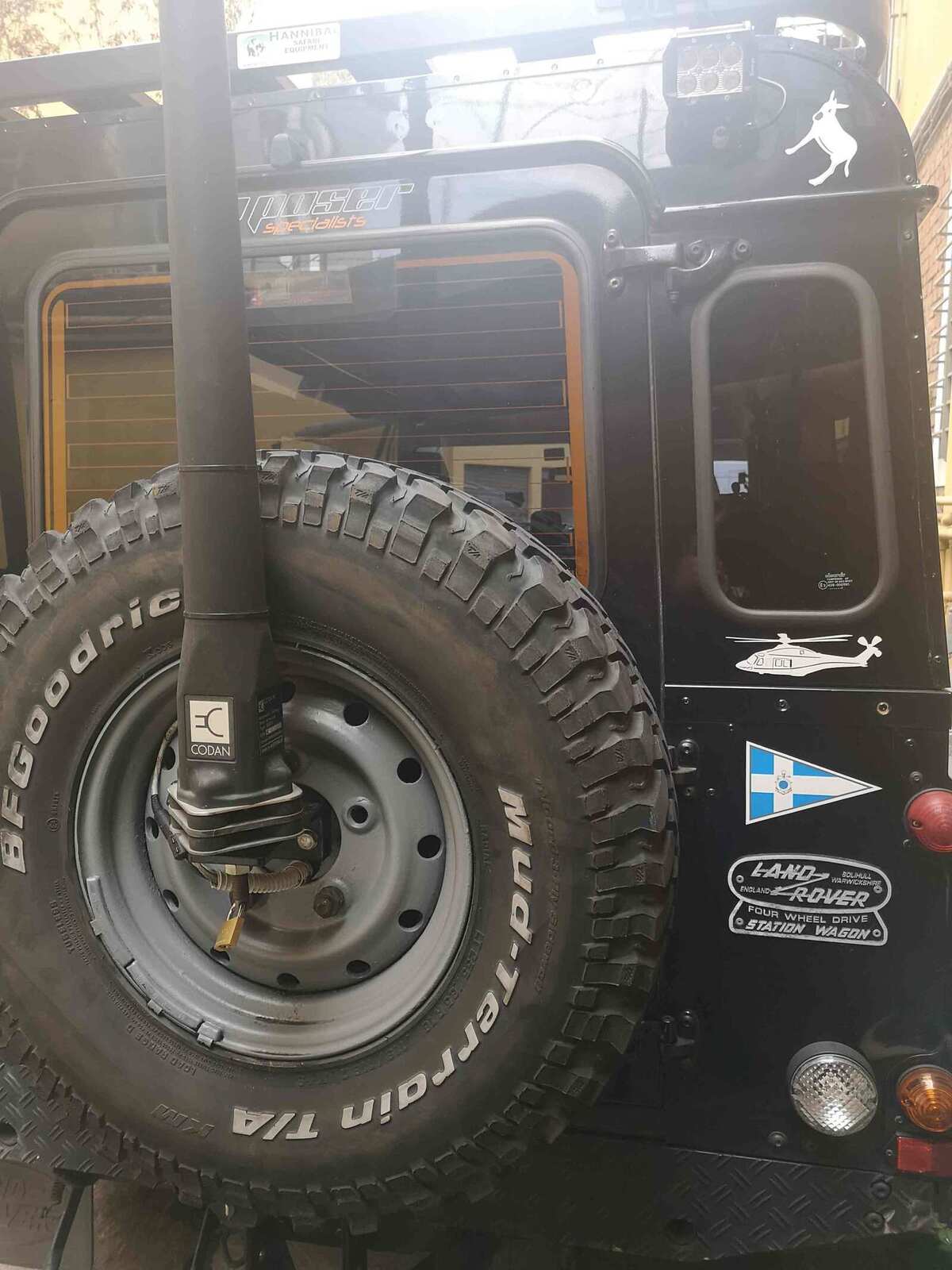

Hello everyone, I would like to build an anti-noise filter that blocks the electromagnetic interference generated by the solenoids of the td5 engine injectors on my defender where I installed a Codan 9360 hf radio.

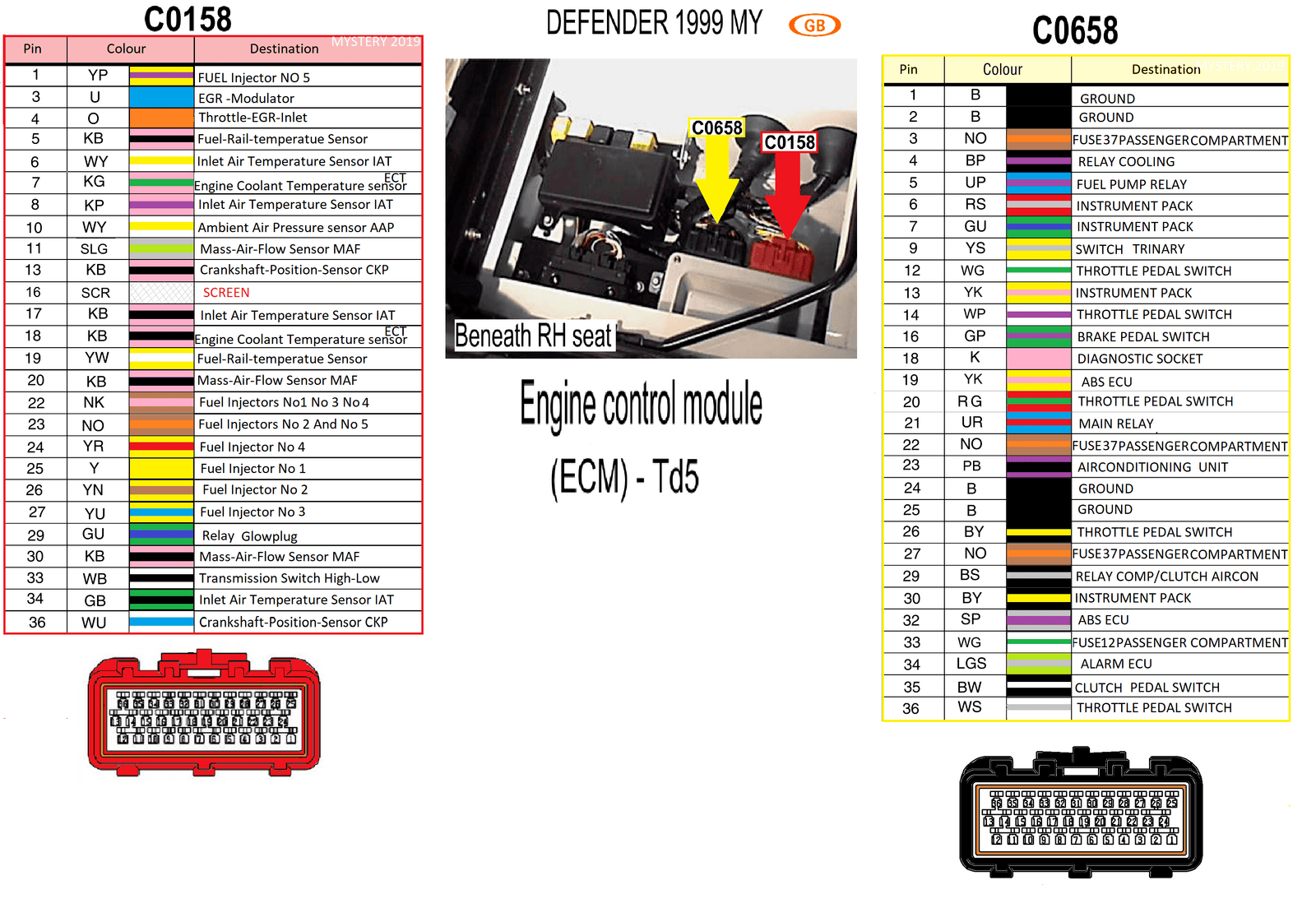

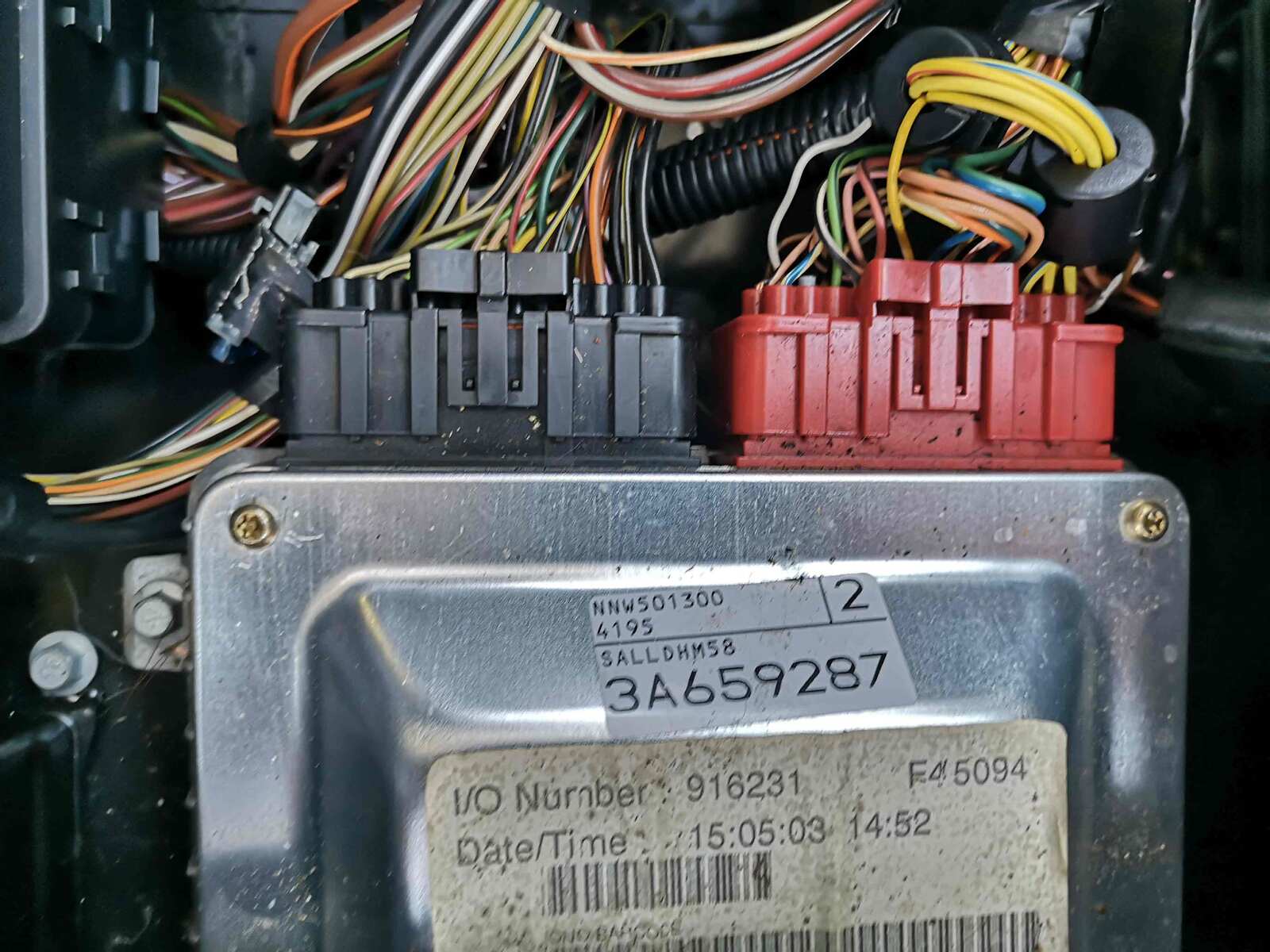

I therefore ask you if anyone has the wiring diagram of the TD5 engine electronic control unit.
I have placed metal stocking and ferrite toroid along the cables of the 5 injectors, positioned at each ground socket ... in this way the noise has decreased but it is still present and therefore to completely zero it I must know how the ECU is made.
Once the filter is built and tested it will share the project with you
Thank you in advance.
Michele
IU2GHV
