Disco 2 Td5 clutch

Matt2e0fgx · Aug 25, 2020

Hello all , my clutch is feeling it's getting on in life . Pedal getting high and juddering when pulling away but no slipping . But also the DMF is clunking a bit more as letting clutch off .

So time to change the clutch soon, I have ordered a powerspec kit from LOF . I replaced the slave 9 months ago also .

I hear its a bit of a pig to do on hard standing as can not get up high like on a lift .

Any tips be appreciated. Yes I could remove the transfer case but been told it's a pig to get lined up . I do have a hydraulic lifting trolley that folds down to 20cm at lowest height and make a frame from there to pull off in one go . Or am I thinking doing a hard way ?

Cheers

MikeDISCO · Aug 26, 2020

Hi Matt,

try this, it helped me when I did mine a few years back

Matt2e0fgx · Aug 26, 2020

MikeDISCO said:
Hi Matt,

try this, it helped me when I did mine a few years back

I have watched it and all well if on a lift above your head . Different kettle of fish on the ground .

Done clutches both on a lift and on the driveway.

berg450 · Aug 26, 2020

Matt2e0fgx said:
I have watched it and all well if on a lift above your head . Different kettle of fish on the ground .

Done clutches both on a lift and on the driveway.

I did it on mine about 2 years ago following the above video. I did it in my garage, lifted the car about 20cm and laying on my back. Not nice but doable

2nd time when I removed only the tbox (for renewal) I used special transmission jack which made the removal and refitting of box much easier.

Stanleysteamer · Aug 26, 2020

berg450 said:
I did it on mine about 2 years ago following the above video. I did it in my garage, lifted the car about 20cm and laying on my back. Not nice but doable
2nd time when I removed only the tbox (for renewal) I used special transmission jack which made the removal and refitting of box much easier.

" in my garage", wish I could do that. Cannot get Discos in, too high, even without a 2" lift (one of them) so have to do everything on a gravel drive which even when swept makes using jacks etc tricky to say the least. Have to boards down everywhere which then limits even further the space underneath.

meego · Aug 26, 2020

I done mine on the drive. It is concrete though. Why don’t you slide a sheet of 18mm ply under it for your jacks to run on.??
I used two trolly jacks. One on the gearbox and other on the transfer box. Remember and disconnect the Crank Sensor wiring !!!

NPG · Aug 26, 2020

It's either engine out or gearbox out but an engine crane will make things much easier. The gearbox + T-box weigh around 100kg and unless you have help, it's no fun at all doing it without a vehicle lift. A few resources for you that might help -

https://www.landyzone.co.uk/land-rover/hoisting-gearbox-via-centre-console-question.342700/
https://www.aulro.com/afvb/projects-and-tutorials/133385-changing-clutch-td5-easy-way.html
https://www.aulro.com/afvb/technical-chatter/107616-how-hard-remove-r380-gearbox.html

berg450 · Aug 26, 2020

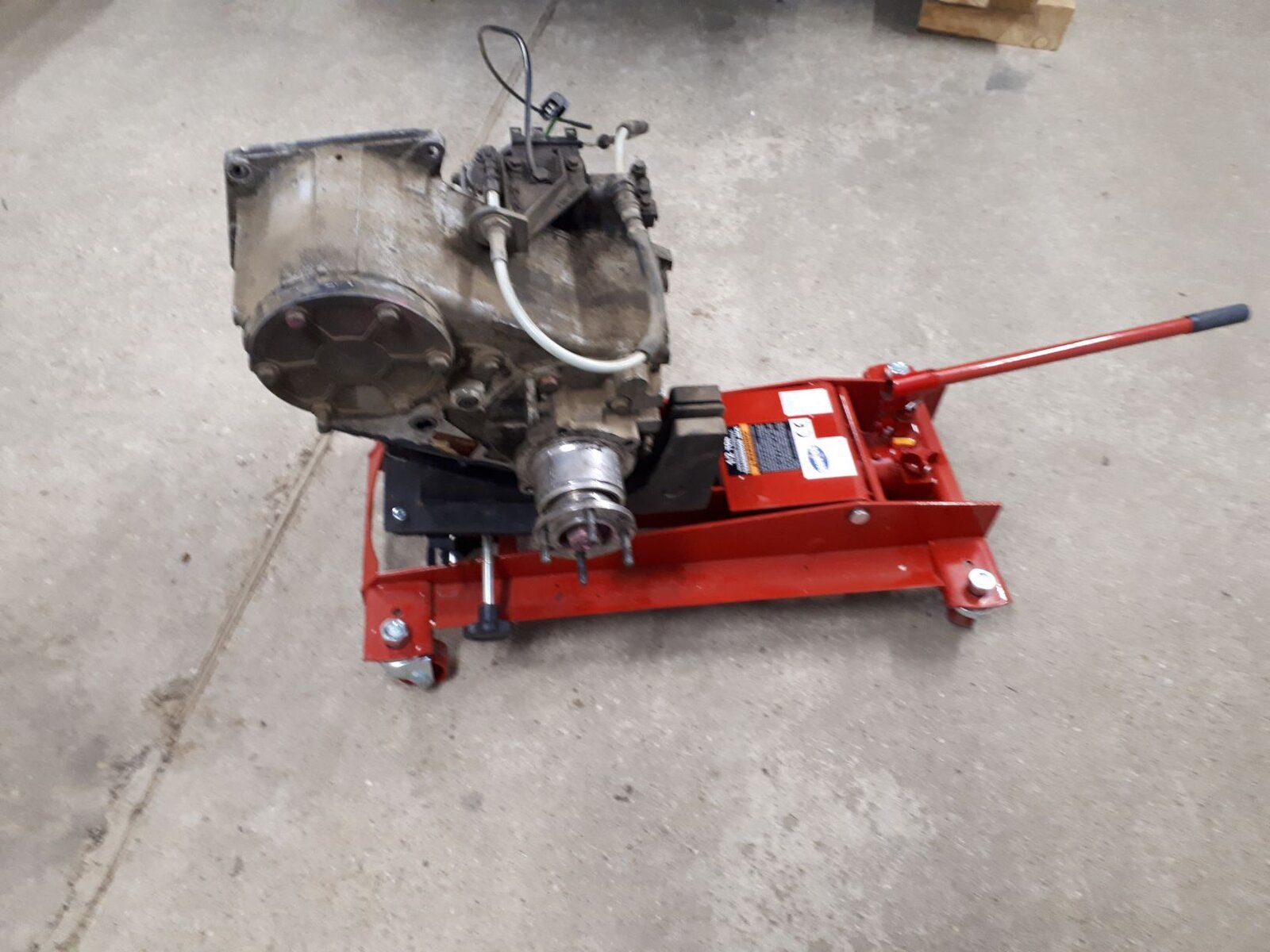

I have used such devices which makes easier the removal of boxes, but still not an easy job to do it laying on your back:-(
If it is not too expensive have it done by a mechanic. (the other tool next to the tbox adapter is the spigot bush removal tool

)
