Hi everyone, I am getting 320 mg/injection at 782 rpm and then 370 mg/injection on 2.5k rpm.
Can somebody please advise if this is near correct?
Brand new genuine bosch MAF.

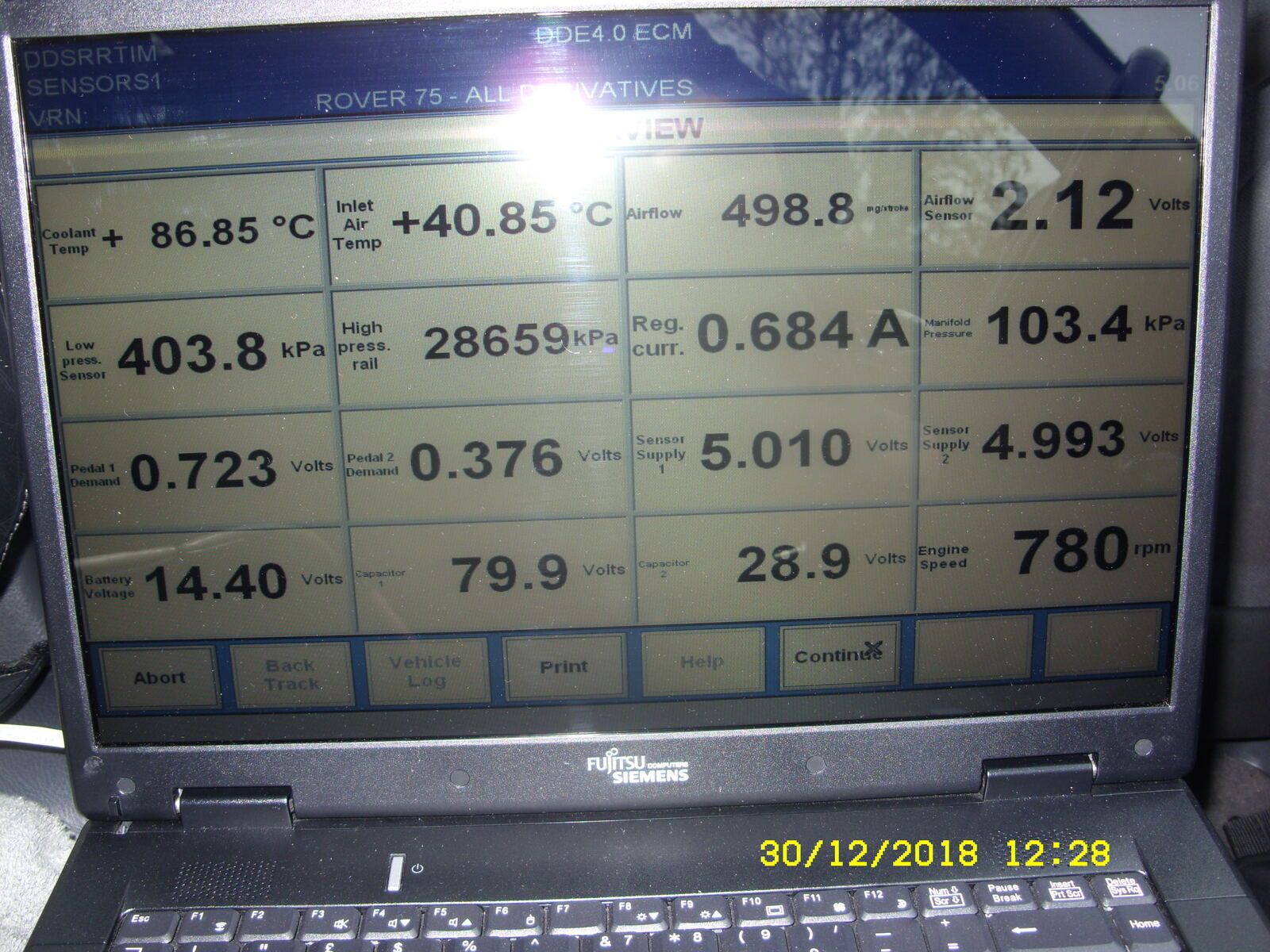

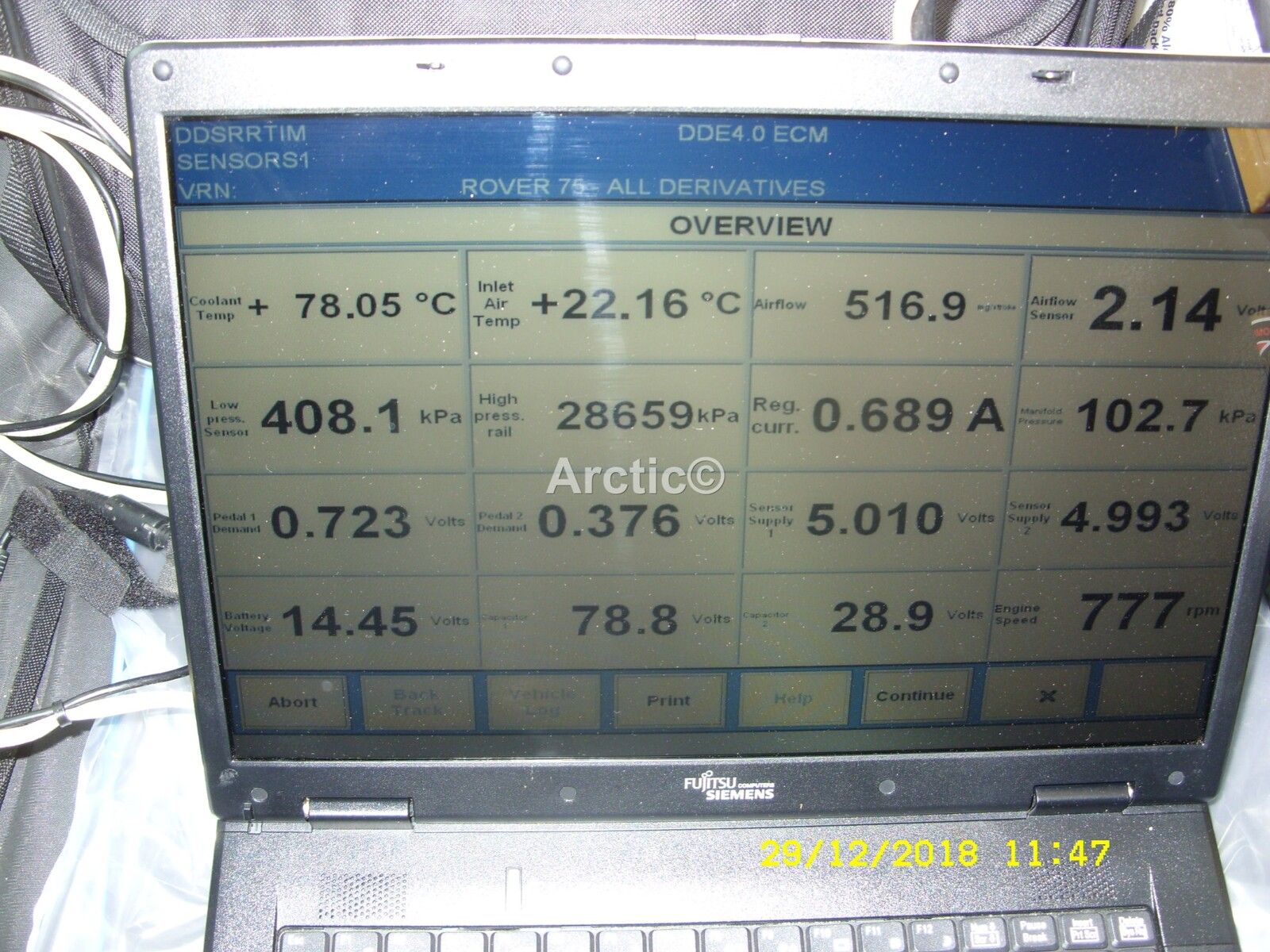

Couple of readings for you make of them what you will


Attachments

  • SDC19085.JPG
    291 KB · Views: 92
  • T4 Reading.JPG
    T4 Reading.JPG
    328.1 KB · Views: 78
Thanks Artic2, does seem muchos dineros expensive.
I am now struggling to find out what mg/injection means in mg/stroke, could be the same thing.

PRO said:
Thanks Artic2, does seem muchos dineros expensive.
I am now struggling to find out what mg/injection means in mg/stroke, could be the same thing.
Click to expand...
MAF figures are reported as milligrams of air per cylinder stroke. The EDC will use the mg per stroke figure, to calculate how much fuel to add.

Thank you. Therefore, mg/injection should be the same? It's all I have as diag, not sure I can change the units etc.
