Tbox front output shaft query

bustersbus · Jul 22, 2009

Ah need to change the front bearing in the transferbox and was given some advice on how to do this. Ah was told that once ah get the flange, washers, seals etc off ah should see a circlip in front of the bearin'. Ah need to remove this and then use a slide hammer attached to the shaft.. drift the shaft out along with the bearing... is this right??
Ah've had a look in the manuals and can only find the oil seal removal/ renewal how to's and nothin' on the bearing!
Just needin' tae know if this is sound advice or not (given to me by somebody that has done quite a few before) before ah go ahead and knacker me Tbox.

Cheers

The Mad Hat Man · Jul 22, 2009

according to my manwell the case has to come orf to remove bearing - hang on will post page.....

Dent · Jul 22, 2009

It' right, the shaft will come out with the bearing.

The Mad Hat Man · Jul 22, 2009

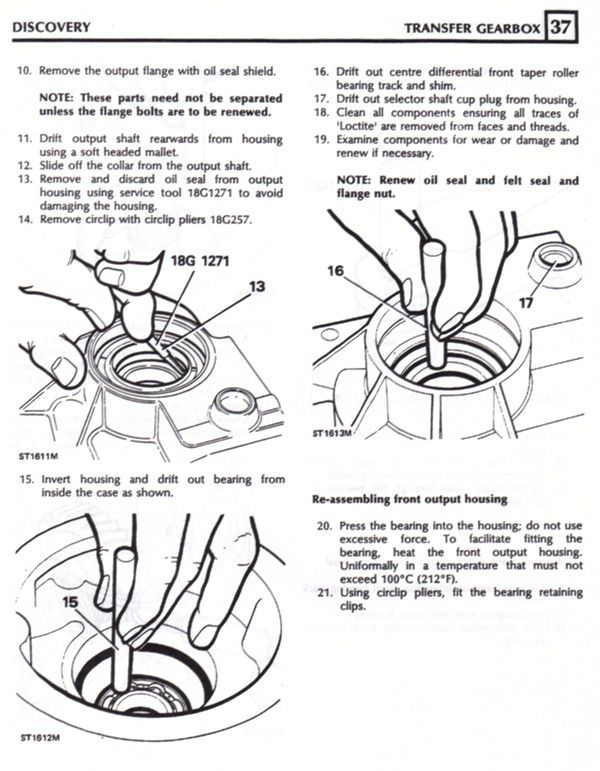

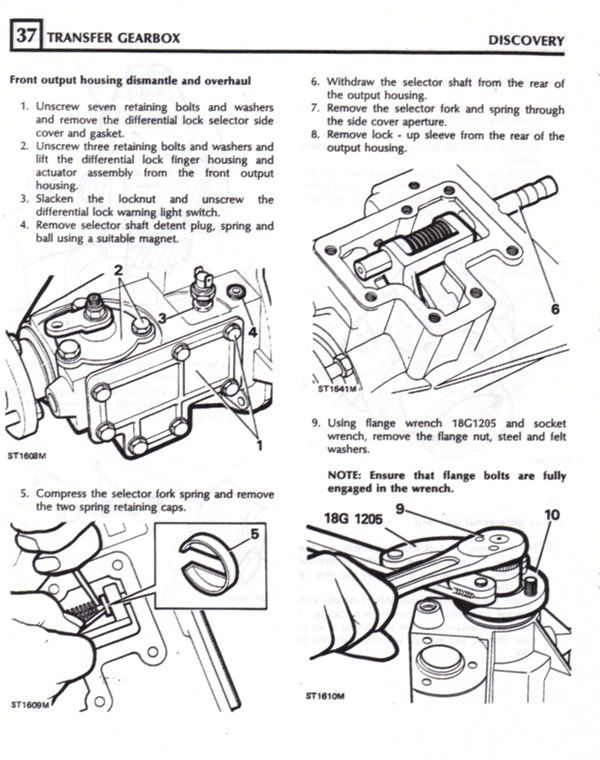

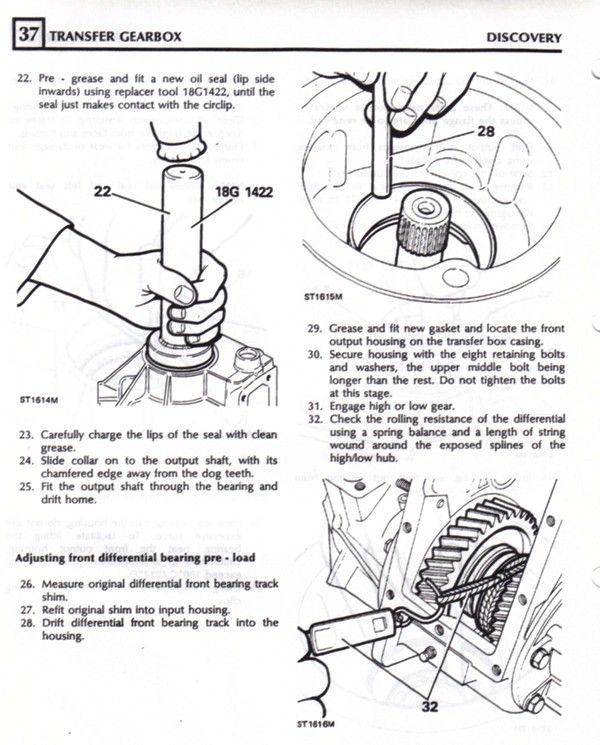

ere ya go - not sure how much help they are.

I also found pics of "make yoself tools - which i will post in a minute...

bustersbus · Jul 22, 2009

Dent said:
It' right, the shaft will come out with the bearing.

And ah won't knacker anything inside?
Just a bit curious as when ye look at the parts catalogue and workshop manuals, there seems to be another bearin', seal, shims, etc... these won't drop out will they?... or are the held in a housin' of some kind?
He did say that when puttin' it back in ah might have a problem gettin' the 'teeth' to line back up again.
Cheers Dent

bustersbus · Jul 22, 2009

The Mad Hat Man said:
ere ya go - not sure how much help they are.

I also found pics of "make yoself tools - which i will post in a minute...

Cheers for those Daft

Ah've got those ones in me workshop manuals, just couldn't see the way ah was told to do it.
The tool manual sounds good tho'

Dent · Jul 22, 2009

It'll be fine, when u put it back just turn the shaft as u tap it ,don't forget the circlip before the seal :doh:.

bustersbus · Jul 22, 2009

Dent said:
It'll be fine, when u put it back just turn the shaft as u tap it ,don't forget the circlip before the seal :doh:.

Aye

Ah'll be takin' some photies of it when ah'll be doin' it to make sure everything goes back in the way it came out

Just had a thought... ah don't need to put the box into nuetral do ah?
Cheers again

The Mad Hat Man · Jul 22, 2009

of course - silly me thinking yu dint have a manwell

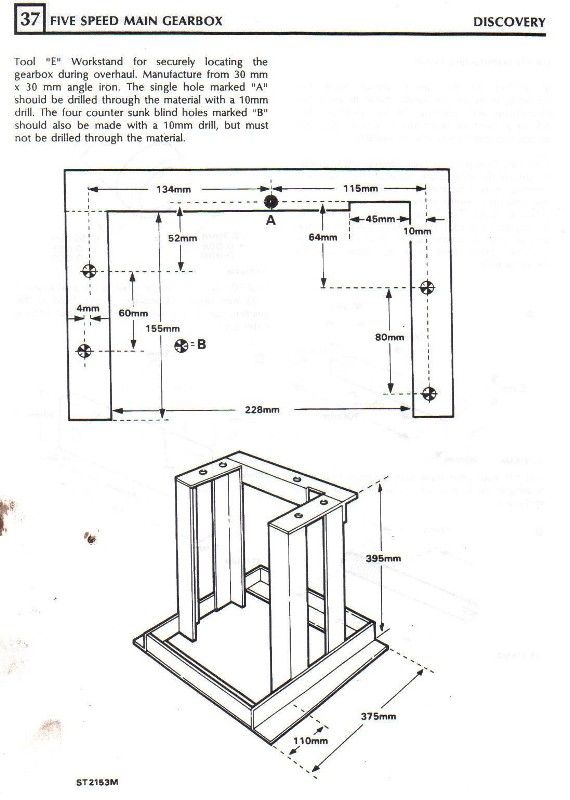

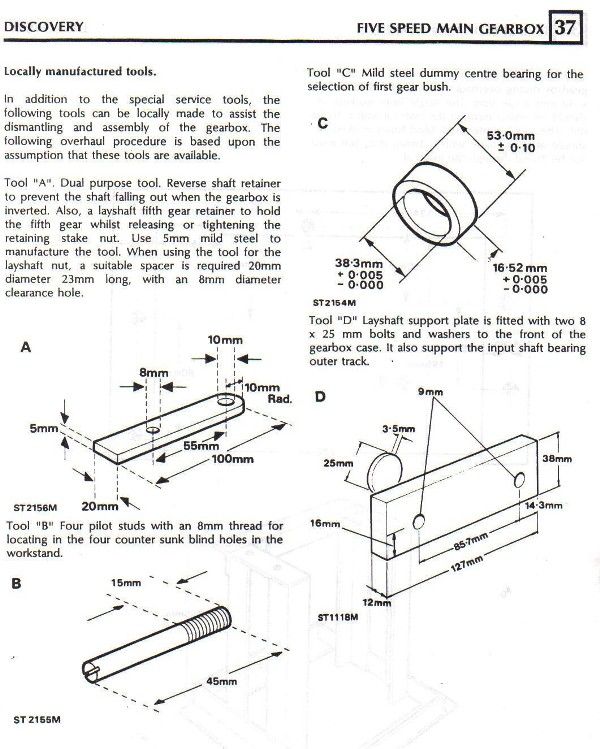

here's the tool drawings tho - not sure they of any help to ya for this tho - and yu mite already have them :doh:...

Dent · Jul 22, 2009

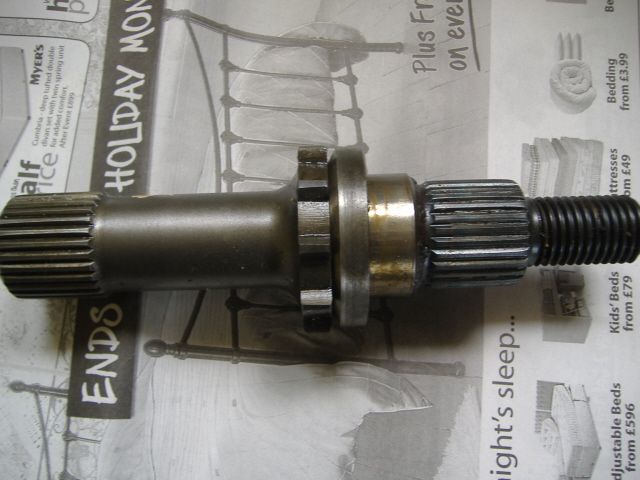

pic, if it works

The Mad Hat Man · Jul 22, 2009

can i have the £49 mattress?

Dent · Jul 22, 2009

Bet it's a bit lumpy

.

bustersbus · Jul 22, 2009

The Mad Hat Man said:
of course - silly me thinking yu dint have a manwell

here's the tool drawings tho - not sure they of any help to ya for this tho - and yu mite already have them :doh:...

Cheers fur them Daft... ah'll stick 'em in me landy files

bustersbus · Jul 22, 2009

Dent said:

pic, if it works

Nice one Dent

bustersbus · Jul 22, 2009

Ah did it

http://www.landyzone.co.uk/lz/f41/t...earing-oil-seal-renewal-81771.html#post816997

Cheers fur the input

The Mad Hat Man · Jul 22, 2009

glad it went well - we had every confidence

.

The Mad Hat Man · Jul 22, 2009

tell yu what, Buster - it looks a hell of a lot easier than the Landrover manual implies.

bustersbus · Jul 22, 2009

Cheers Daft

Aye, 'twas a piece o' ****.. ah couldnae believe how easy it was
