Tailgate wiring (again....)

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

mr_s

Member
Posts
62
Location
Derbyshire
I've had a look through a load of posts, and just want to check that my reasoning is sound...

Pressing the tailgate button does nothing, it has to be opened with a handy piece of wire that the PO left for me.

My diagnostic procedure thus far:

Check that all doors lock and unlock from fob and key: Yep, all working fine
Check for continuity across the tailgate switch: Works fine, pressing the switch makes connection
Check for power at the switch wire: Yep, voltage as expected
Check operation of 'moving parts': Removed from tailgate and checked with separate power souce, all working
Check for ground: No ground

I figure my problem has to be the lack of ground. Is this picked up from the CDL switch in the drivers door? Obviously I could just permanently ground it, but that would mean the tailgate would never be locked and would permanently open, correct? Which connector/wire from the BECM provides ground for the tailgate, as I guess I could (temporarily) splice into that and run a wire to the tailgate to test it?

Cheers, Martin

according to rave on a 1995 model the white wire coming from tailgate switch goes to the connector on the right tailgate lights, so i would check if the tailgate lights work, if they do then check for continuity, otherwise the wires go into r/h side rear luggage compartment into a 10 way connector

Last edited:
This should help you with following the gnd from the door actuator. If your CDL works from the drivers door key switch, you've just got to trace continuity from Splice 753 to the tailgate unlock switch

@Ratae - I always forget the one important detail! 1997 P38 2.5DT

@al-one-arm - They are all bl**dy white, not sure why LR decided on that one.... All the tailgate lights work though

@Orangebean - Thanks for the wiring diagram and the details, I'll give that a bash next time the weather isn't too sh*te :D

Bit of an update on this - it turns out that the drivers door key *doesn't* operate all of the locks (must have had a brain fart and thought I had tested it....), just the drivers door itself. Pressing the 'pin' on the inside of the door operates the central locking correctly.

Would this signify a problem with the CDL switch, or not given that the door pin operates the central locking correctly?

If the car is in an alarmed state (I assume it is, it had been locked with the fob), would all of the doors not unlock off the key? Appreciate the help, thanks!

If the car is locked with the fob and unlocked with the key it will go into an alarmed state and demand EKA code entry or fob press. In that condition only the drivers door will unlock

Interesting, thanks for the info! I'll try unlocking with the fob, then locking and then unlocking with the key next time I head out - see if everything works that way!

Ok, I tested and I'm back to the original post - it does lock and unlock off the key (when not set by the fob!)

Hopefully after work tomorrow I'll do some wiring tracing/testing using the info above to see what's what. I shall report back!

Ok, I tested and I'm back to the original post - it does lock and unlock off the key (when not set by the fob!)

Hopefully after work tomorrow I'll do some wiring tracing/testing using the info above to see what's what. I shall report back!

Look at the arm and push/pull wire connecting key lock part to the latch. It may need adjustment. Or may have come adrift.

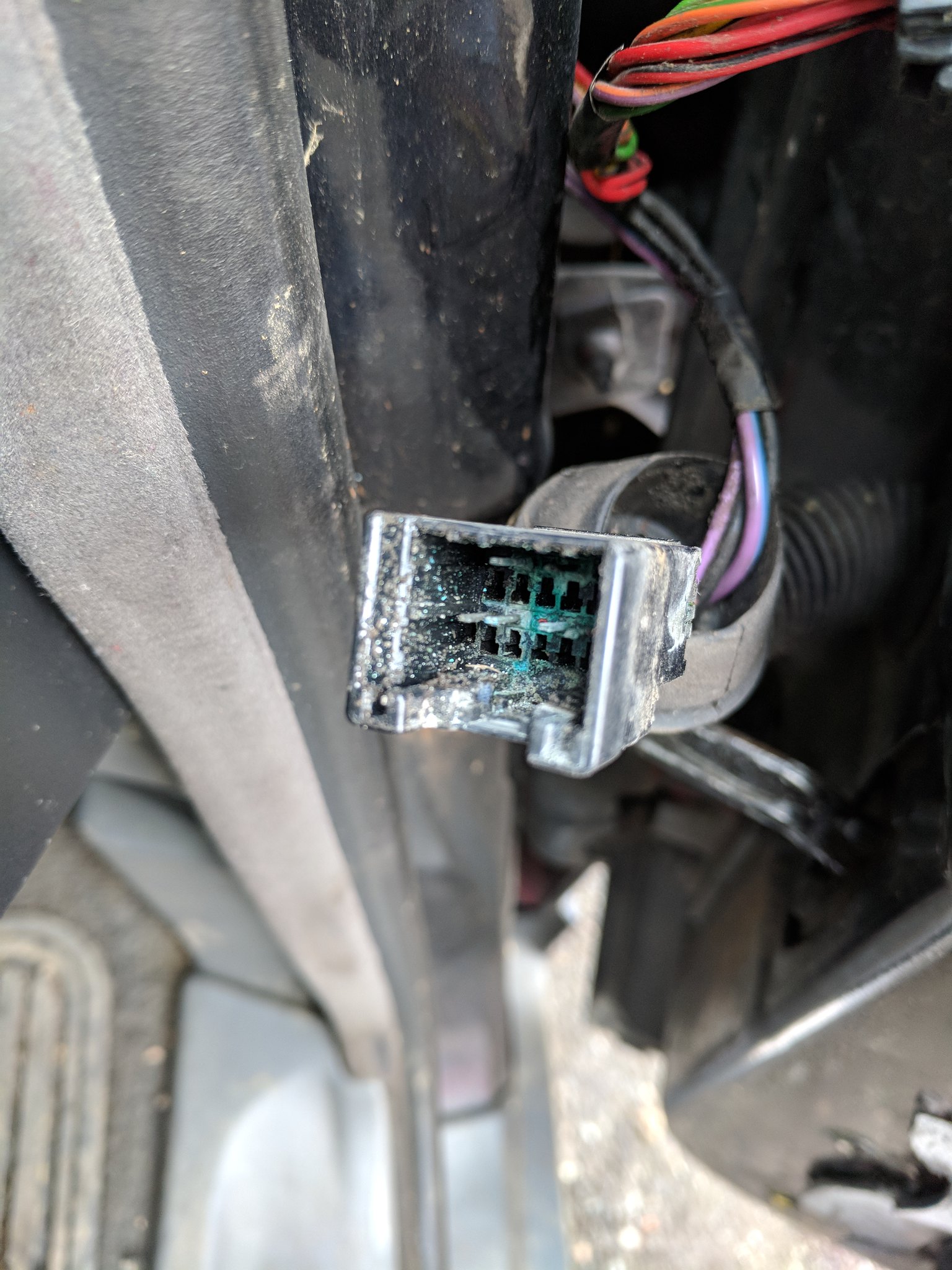

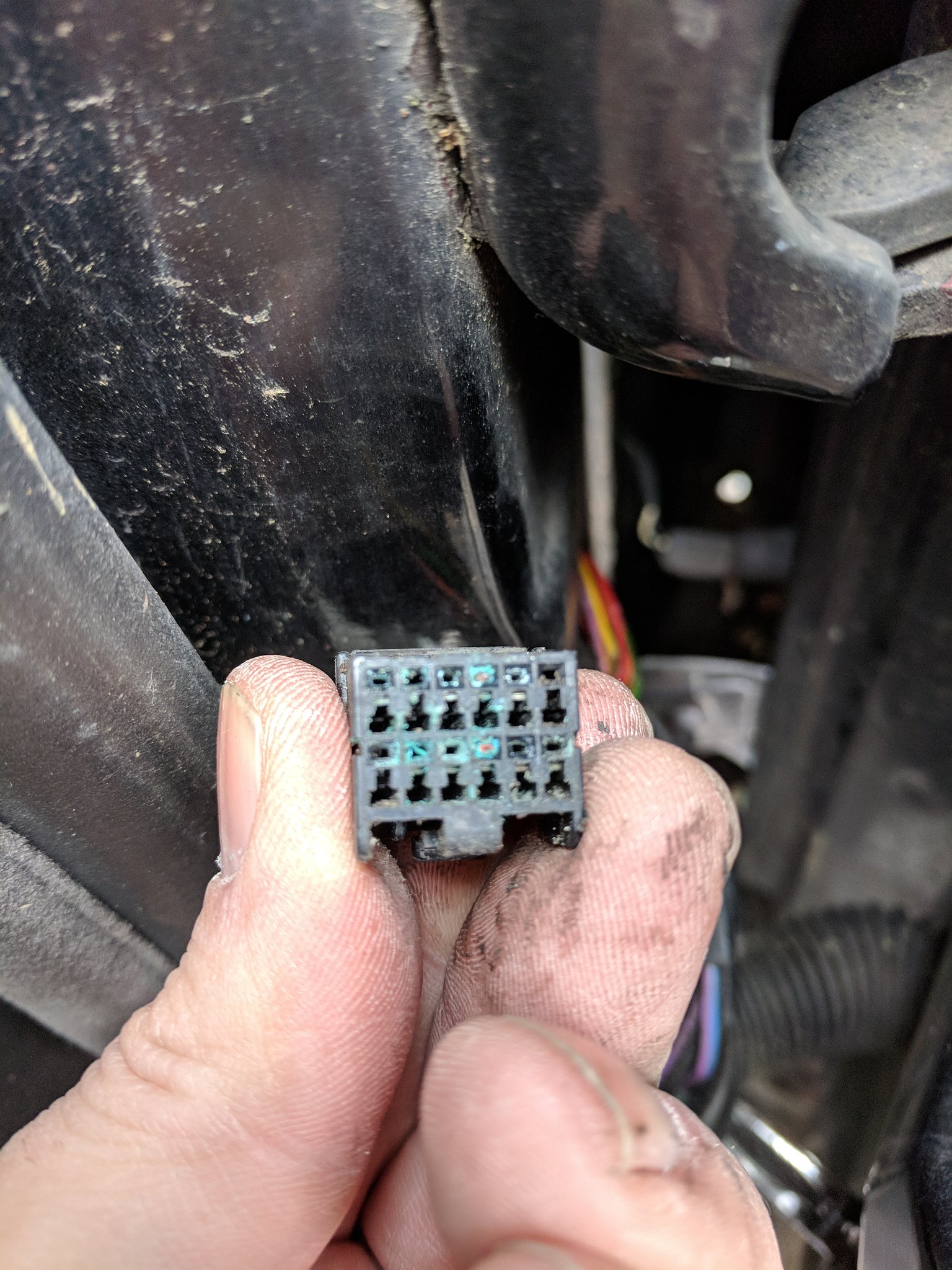

Found the problem - traced the wiring and connectors, as shown in Rave (and as per the diagram above, cheers again!). Turned out to be a severely corroded connector block in the front d/s door jamb - just where it enters the main body from the door.

Got lucky with it, 3 other connections crumbled as I removed it - all wired back up correctly and the tailgate works perfectly.





Thanks again for the help chaps and/or chapesses

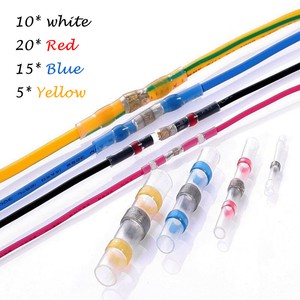

Yep, connector gone and hard-wired in. Used very similar things to those you've shown there (similar crimp connectors with heatshrink tubing - some I had left over from fitting o2 sensors to the Chevy a couple of years ago!)

Now everything electrical works, except the rear wiper and I can live without that....!
