Starter Motor Removal (2001) TD4 Freelander

Discussion in 'Technical Archive' started by wriggs, Aug 18, 2011.

< Previous Thread | Next Thread >
  1. wriggs

    wriggs New Member

    Joined:
    Aug 21, 2010
    Posts:
    3
    Likes Received:
    2

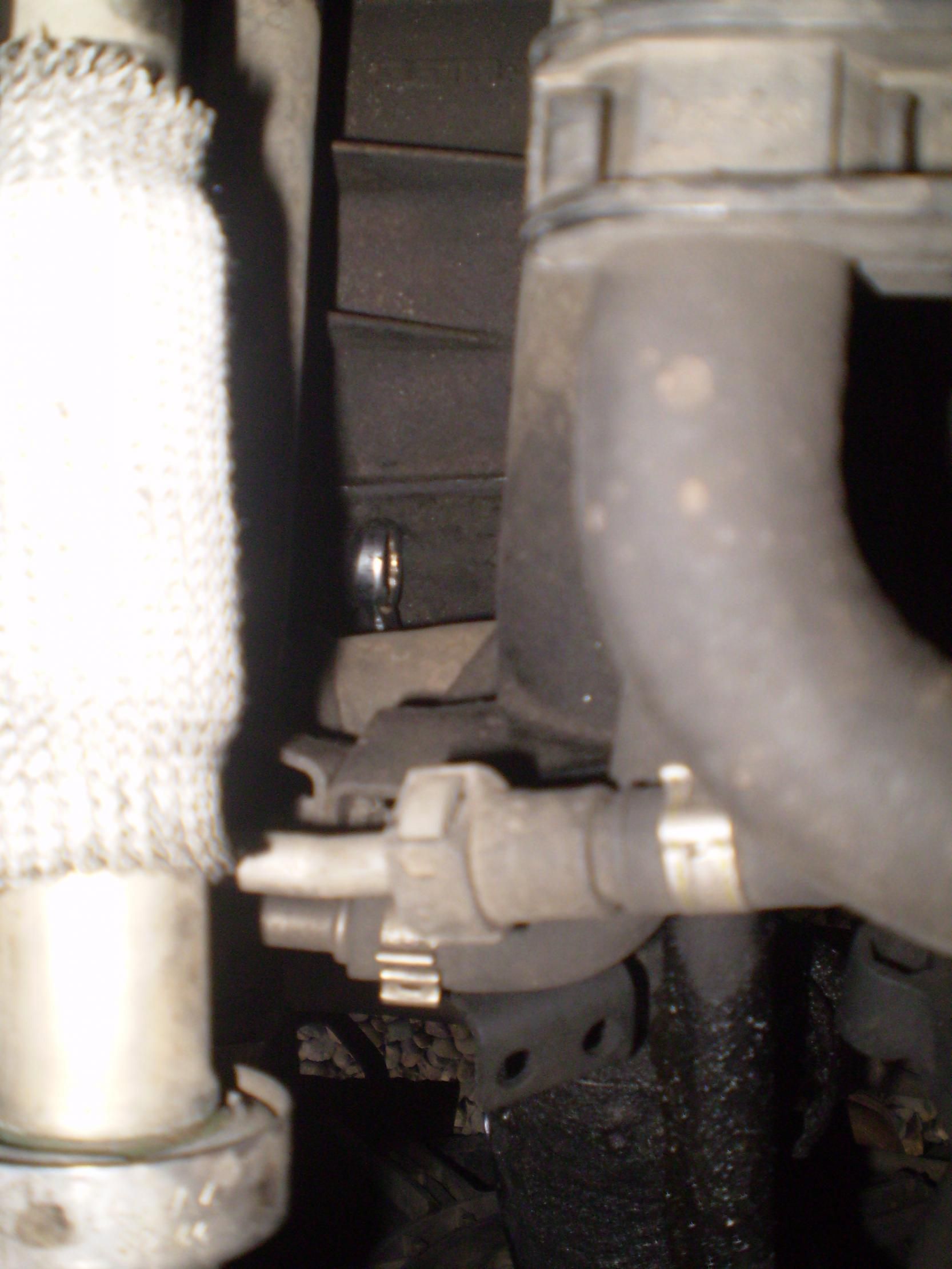

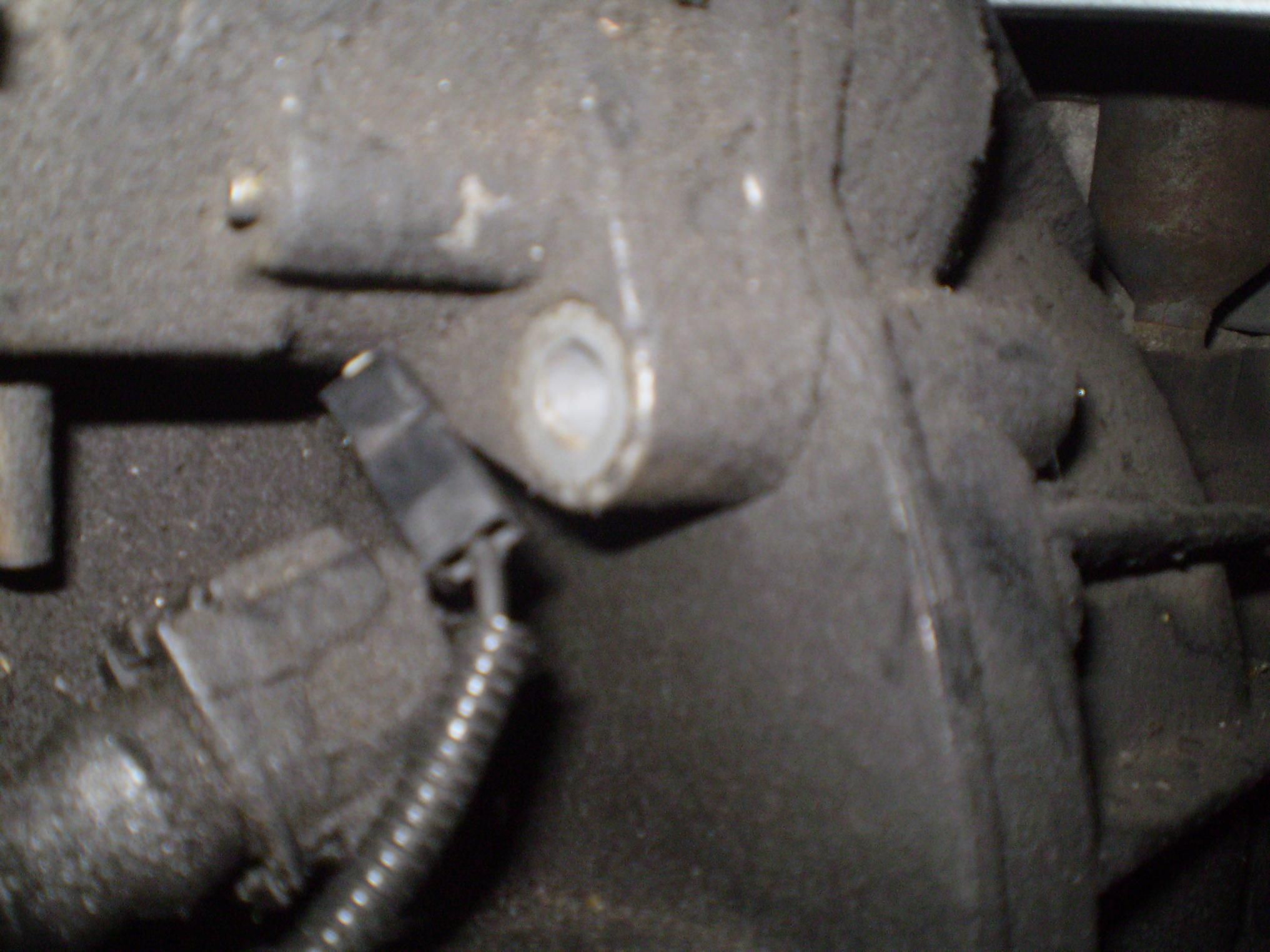

    P8170088.jpg P8170087.jpg P8170082.jpg P8170081.jpg P8170083.jpg P8170084.jpg P8170089.jpg P8170095.jpg Here are just a few pics to clarify the positions of the Bolts that require removal to disengage the Starter Motor (Denso as fitted to the 2 Litre BMW Engine).
    If you are carrying out the usual solenoid service kit replacement of parts ,then this procedure is fairly straightforward.
    The Haynes Manual is pretty vague on this part of the strip down and eludes most who endevoir to try and figure out the removal given from the manual pics and illustrations.;)

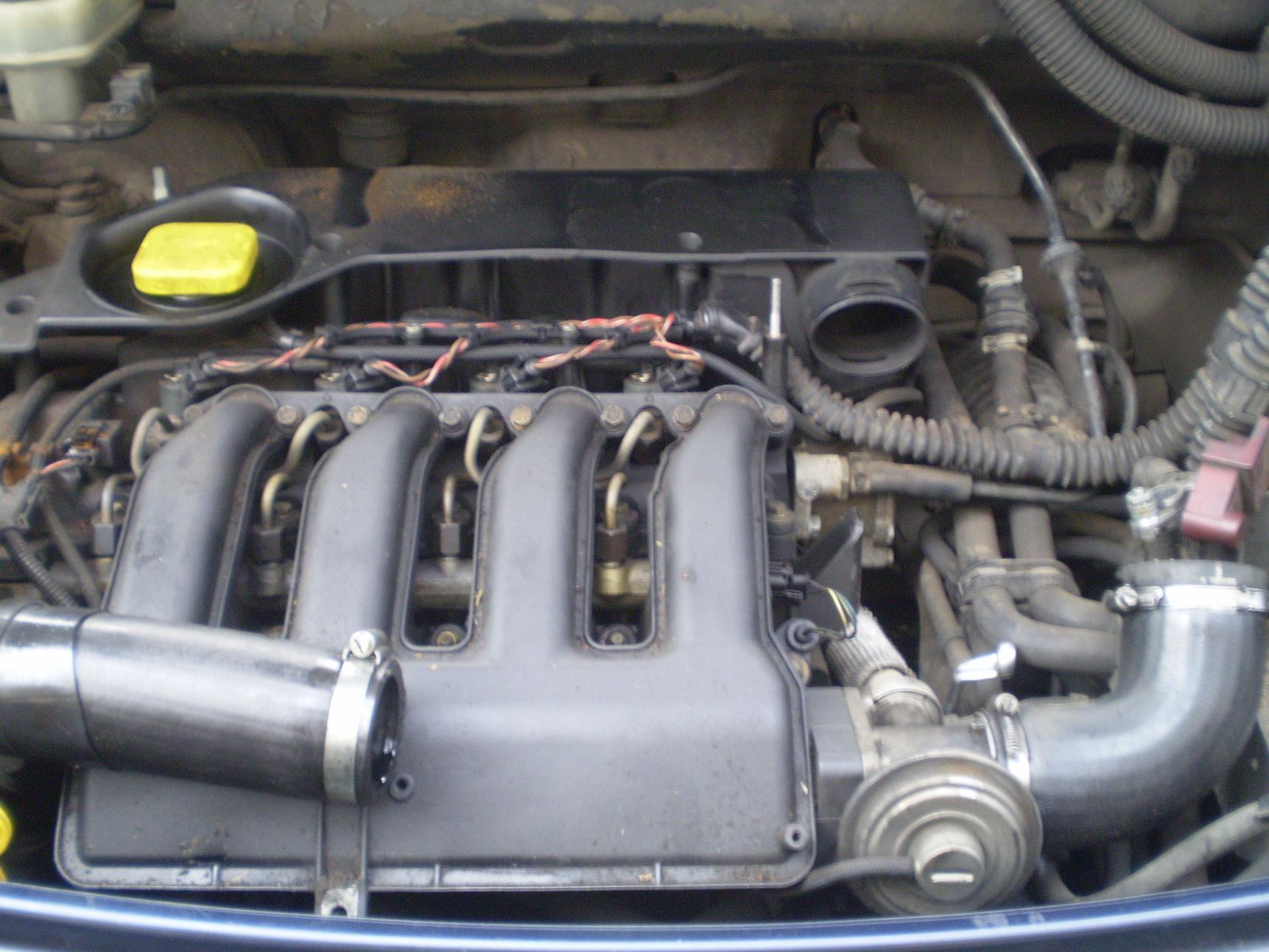

    1/The pics start at the top view of the engine and this is how it looks before you commence removal of the starter.

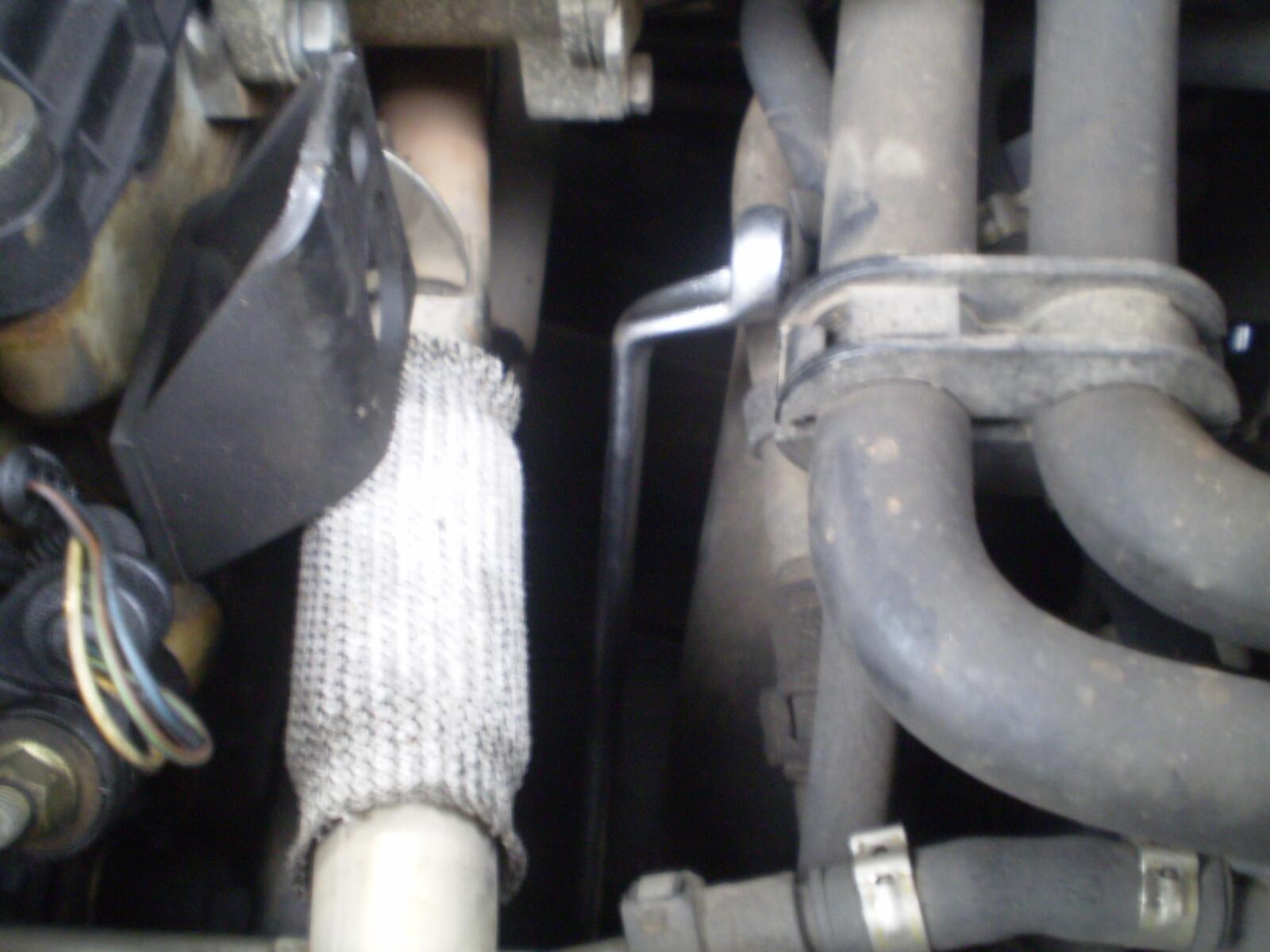

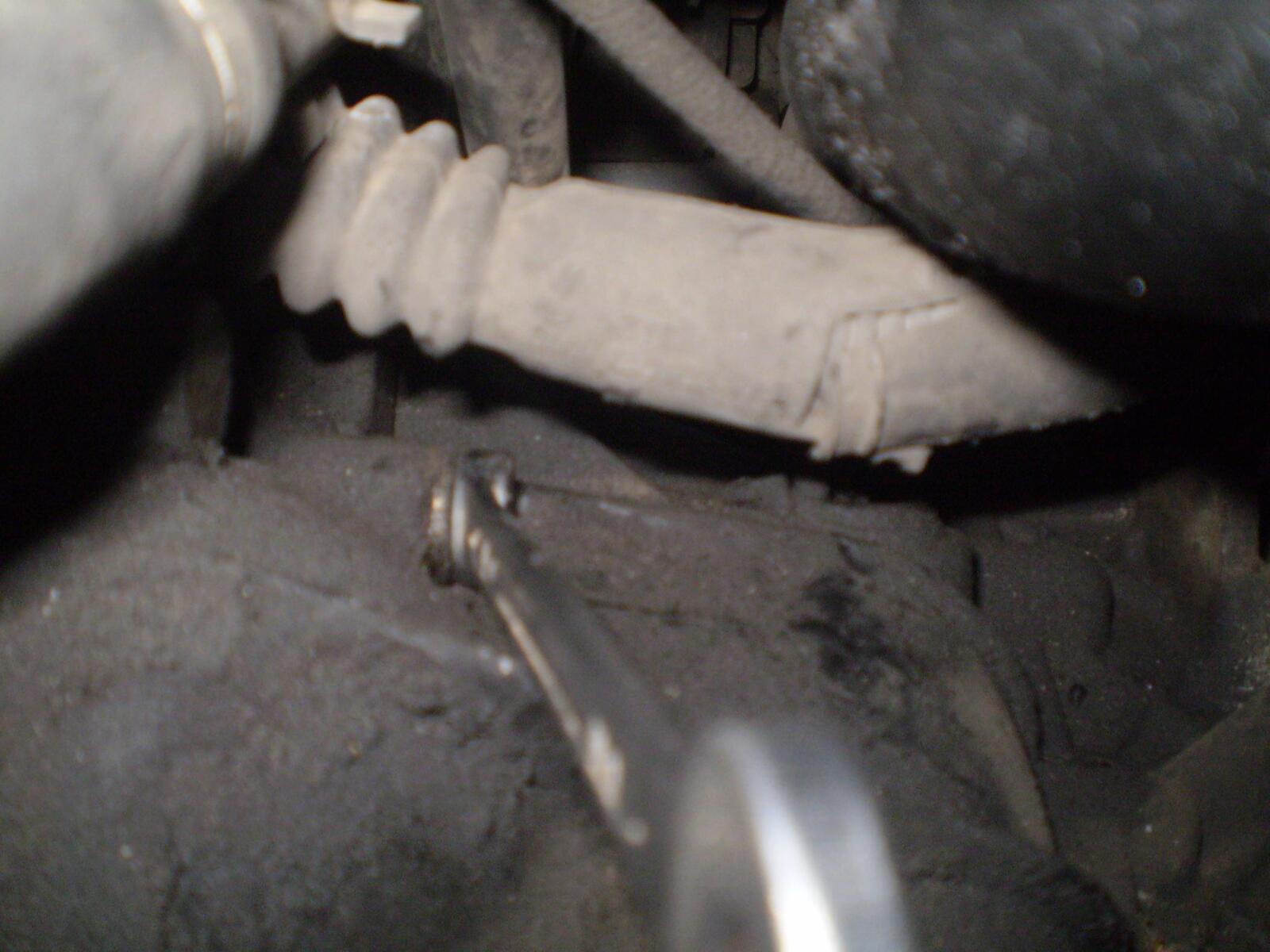

    2/A few illustrations showing the rear/top bolt including the spanners to clarify its position.

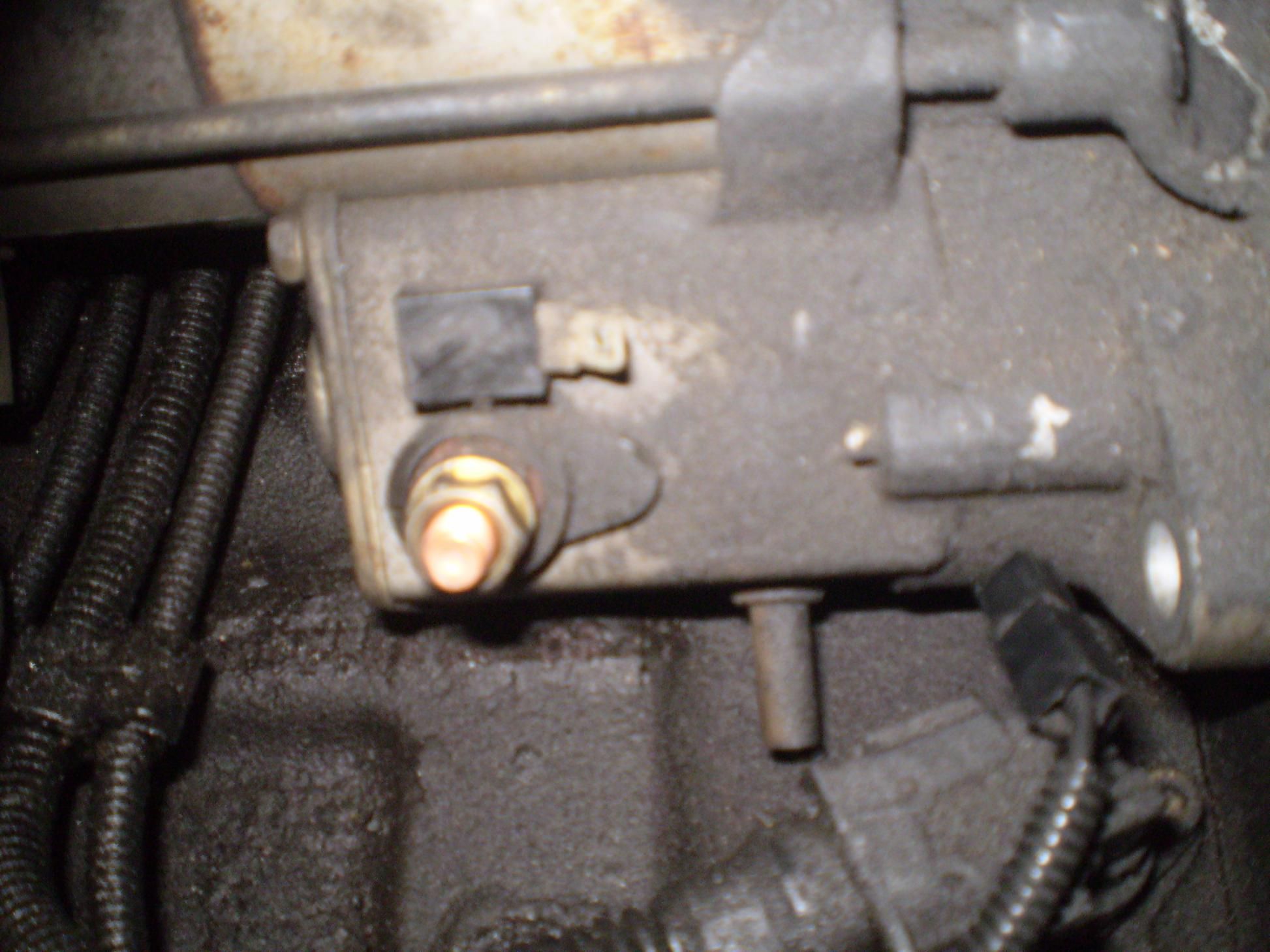

    3/The motor is shown with electrics removed and the front bracket bolt hole visible after front bolt/nut removed.

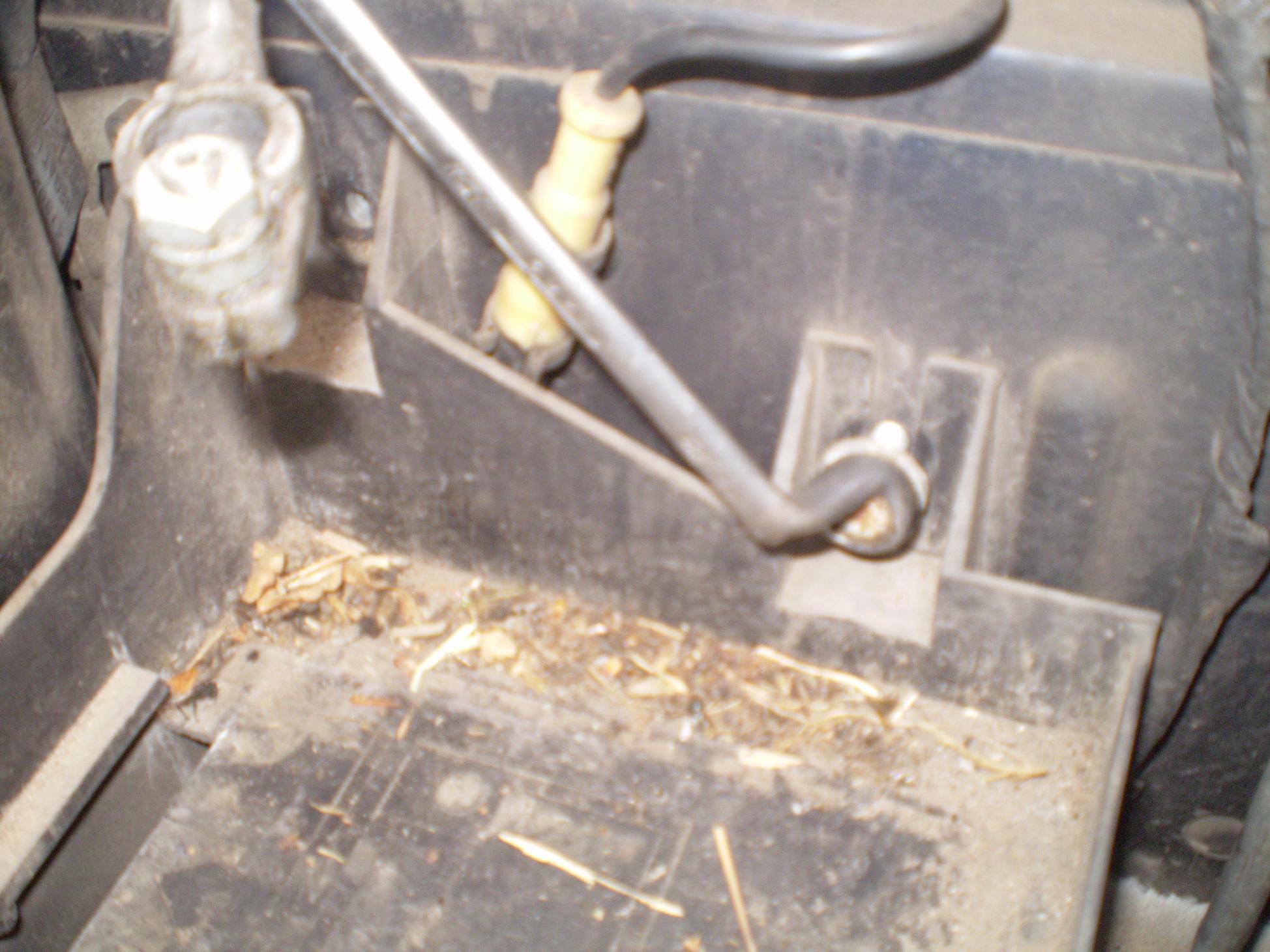

    4/If the battery box is removed, this can make easier access to the top/rear bolt using a 13mm socket and swivel knuckle on the wrench.

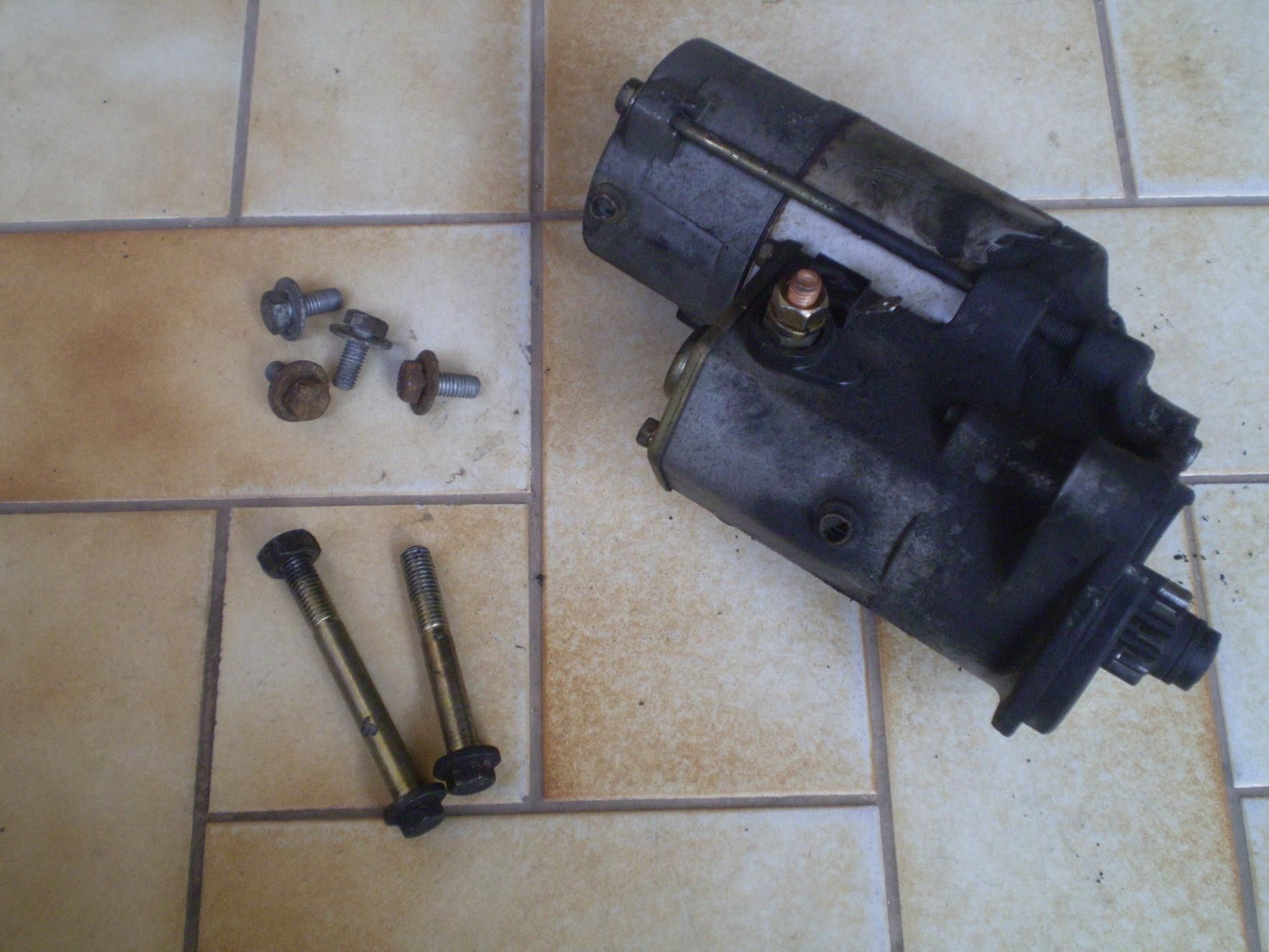

    5/Last Pic shows the starter bolts / batt box bolts and removed Motor.

    Hope you find this information useful and good luck with the easy part (replacing the plunger and contacts).

    Last edited by a moderator: Sep 21, 2015
    Hippo and Patoche like this.
  2. Slayer

    Slayer Active Member

    Joined:
    Jan 14, 2009
    Posts:
    157
    Likes Received:
    1
    Location:
    Portugal
    Thanks for the pics :)

    How long did it take until the motor was out?

  3. Zyderboy

    Zyderboy New Member

    Joined:
    Oct 21, 2011
    Posts:
    5
    Likes Received:
    0
    Location:
    Swindon: Just off J15 of the M4, East of Swindon;
    This was a real quick solution for me too, Many Thanks Buddy!

  4. REMELAD

    REMELAD New Member

    Joined:
    May 26, 2012
    Posts:
    1
    Likes Received:
    0
    Hi all, my first time on this site, really useful. Thanks for the post on the startermotor, just pulled mine out and fitted kit from ebay, and it worked first time.
    Wife broke down last week and a well known recovery company attended and told her it would be £250 to fit new starter, as they are sealed units. Ha to them. off for a well earn shandy

  5. Barry6690

    Barry6690 Active Member

    Joined:
    Apr 6, 2011
    Posts:
    183
    Likes Received:
    0
    Location:
    Tow Law, County Durham
    I'm having to do mine, when I turn the key to start nothing happens, I release the key and turn it again. It sometimes starts straight away and sometimes takes 4-10 goes to get it started. Will the whole motor need replacing or just a repair kit fitted.

  6. Barry6690

    Barry6690 Active Member

    Joined:
    Apr 6, 2011
    Posts:
    183
    Likes Received:
    0
    Location:
    Tow Law, County Durham
    I've ordered a repair kit, hope to do this W/E.

  7. Zappos

    Zappos New Member

    Joined:
    Nov 14, 2012
    Posts:
    3
    Likes Received:
    0
    Excellent! I was struggling to find the rear bolt, Haynes manual was no use ;) Starter now out and waiting for the kit from eBay so thanks for the help. Bit of a squeeze to get it out past the pipework. Hope I can get it back in :D

  8. digby

    digby Active Member

    Joined:
    Aug 2, 2012
    Posts:
    502
    Likes Received:
    17
    Location:
    France
    No problem to refit
    Just remember to put it in ass upwards and then guide the head into the hole !

    wolflore likes this.
  9. Zappos

    Zappos New Member

    Joined:
    Nov 14, 2012
    Posts:
    3
    Likes Received:
    0
    Yep, went in easy enough. All sorted and starts perfectly now. That saved a few hundred quid!

    The contacts were seriously worn. The larger one was a good mil lower than the smaller one so obviously was having trouble connecting. I took a photo showing the wear but can't work out how to upload a photo :eek:

    Also fixed Donald thanks to a thread on here which started when I fitted the EGR bypass so a good day all round. Thanks for an excellent forum. {Quack...}

  10. NavyReg1970

    NavyReg1970 New Member

    Joined:
    Dec 4, 2011
    Posts:
    52
    Likes Received:
    0
    Location:
    Berden, Essex / Herts border
    I have the starter unbolted but there is just too much stuff in the way to get it out, there seems to be some sort of heat exchanger at the non drive end that it fouls against

  11. Bennehboy

    Bennehboy Well-Known Member

    Joined:
    Aug 23, 2011
    Posts:
    2,138
    Likes Received:
    331
    Location:
    Huddersfield
    Sorry to resurrect but I just used this guide to do the starter motor on the wife's car, never would've found the back bolt without it, cheers.

    Start to finish about 45 minutes work, sweet.

    wolflore likes this.
  12. BenjaminHorsten

    BenjaminHorsten New Member

    Joined:
    Sep 21, 2015
    Posts:
    1
    Likes Received:
    0
    Location:
    Germany
    Hello together.
    Im Sorry but i can't see any pics here. Im new here and just about to replace the starter to my TD4 Freelander. maybe someone can repost the pics?
    I planned to replace the starter from the top but i wonder if i have to remove the engine oil cooler for this. Can i change it from under the car easier?
    Greetings,
    Benjamin

  13. Peter Bennett

    Peter Bennett New Member

    Joined:
    Sep 21, 2015
    Posts:
    2
    Likes Received:
    0
    Location:
    Salisbury
    Hi all,

    Funnily enough I've signed up to ask for these photos as well. If they are still available can they be uploaded or messaged. I'd very extremely grateful. intermittent issue with starting and Im 99% sure its the starter.
    Regards,
    Pete

  14. blue beasty

    blue beasty Leaks an prone to bits dropping off

    Joined:
    Jun 10, 2007
    Posts:
    55,745
    Likes Received:
    22,125
    Location:
    Gloucestercotshirewolds
    It looks like the pics were dislodged with the recent forum upgrade.

    I've reinserted them though not where they originally were but they should be in order.

    I hope that helps

  15. Peter Bennett

    Peter Bennett New Member

    Joined:
    Sep 21, 2015
    Posts:
    2
    Likes Received:
    0
    Location:
    Salisbury
    Wow thanks for the quick reply. They are back. Really appreciate this. Thanks very much.

  16. blue beasty

    blue beasty Leaks an prone to bits dropping off

    Joined:
    Jun 10, 2007
    Posts:
    55,745
    Likes Received:
    22,125
    Location:
    Gloucestercotshirewolds
    If you find any others missing elsewhere a message to me will save hoping I see a post by chance ;)

    BenjaminHorsten likes this.
  17. REDNAL3

    REDNAL3 Active Member

    Joined:
    Apr 8, 2016
    Posts:
    106
    Likes Received:
    3
    Location:
    scotland
    Very helpful post ! ;) Are there definitely only two bolts (the long ones in picture)securing the starter motor ?
    I have removed two but the starter wont budge at all. Is there a knack to getting it out ?

  18. Nigel Diamond

    Nigel Diamond New Member

    Joined:
    Jan 9, 2017
    Posts:
    3
    Likes Received:
    0
    Location:
    Essex
    I'm about to take on this task. Quick question. Should I buy a brand new starter motor or go for one from a breakers yard? What's the view on this?

  19. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,110
    Likes Received:
    6,574
    Location:
    Near Newquay
    The starter is a wearable item. There's little point in getting one second hand. Either buy new or refurbish your own ;)

    wolflore likes this.
  20. ajfarrell

    ajfarrell Member

    Joined:
    Aug 27, 2012
    Posts:
    78
    Likes Received:
    7
    Thanks for great photo guide N,

    I’ve removed everything except the second bolt - it’s hard to locate. Is the third photo taken from under the car looking up? Does this bolt go into the starter housing unlike the second bolt which has a nut?

    Rave manual makes it look like two bolts on same side.

    Cheers,

    Anthony
    i

< Previous Thread | Next Thread >
