spigot bush

Discussion in 'Land Rover Discovery' started by distd5co, Feb 13, 2009.

  1. distd5co

    distd5co New Member

    Joined:
    Jul 26, 2008
    Posts:
    311
    Likes Received:
    0
    Location:
    Peterborough
    What is the spigot bush ive here alot about these where does it go and what does it do? Dan

  2. andrew j

    andrew j New Member

    Joined:
    Oct 12, 2008
    Posts:
    600
    Likes Received:
    0
    Location:
    heads of the VALLEY , south wales
    quick search . clutch area

  3. distd5co

    distd5co New Member

    Joined:
    Jul 26, 2008
    Posts:
    311
    Likes Received:
    0
    Location:
    Peterborough
    Ok so ive searched and i cannot find it so if anyone wants to tell me what the spigot bush is then i would appreciate it thanks Dan

  4. andyb66

    andyb66 Well-Known Member

    Joined:
    Jan 19, 2009
    Posts:
    1,795
    Likes Received:
    1
    Location:
    Middle of Salisbury Plain, Wiltshire
    Fits into the centre of the flywheel and supports the end of the gearbox input shaft.

  5. distd5co

    distd5co New Member

    Joined:
    Jul 26, 2008
    Posts:
    311
    Likes Received:
    0
    Location:
    Peterborough
    does a td5 have on i cannot see how you would fit one to the centre of a td5 flywheel? Dan

  6. andyb66

    andyb66 Well-Known Member

    Joined:
    Jan 19, 2009
    Posts:
    1,795
    Likes Received:
    1
    Location:
    Middle of Salisbury Plain, Wiltshire
    Yes they do have one. I've not had to change one, but I suspect that it is a press fit.

  7. distd5co

    distd5co New Member

    Joined:
    Jul 26, 2008
    Posts:
    311
    Likes Received:
    0
    Location:
    Peterborough
    well could this cause me to not be able to bleed my clutch because i dont think i have one of those in my flywheel.

  8. Tig9619

    Tig9619 New Member

    Joined:
    Oct 25, 2006
    Posts:
    642
    Likes Received:
    0
    Location:
    Royal Forest of Dean
    no. nothing to do with the clutch at all. simply stops the input shaft of the gearbox from whackering about and destroying its bearings. it will either be in the middle of the flywheel or inside the end of the crank. either a phosphor bronze bush or a bearing.

  9. distd5co

    distd5co New Member

    Joined:
    Jul 26, 2008
    Posts:
    311
    Likes Received:
    0
    Location:
    Peterborough
    ill hve to check rave dont remember using one of those when converting from auto to manual is it rearly rearly important? Dan

  10. Tig9619

    Tig9619 New Member

    Joined:
    Oct 25, 2006
    Posts:
    642
    Likes Received:
    0
    Location:
    Royal Forest of Dean
    thats the problem, auto dont have one cos the input shaft is in the torque convertor.
    every manual in the world should have one in some shape or form. If you dont have one your input shaft will not be supported and under heavy load could put stress on the bearings in the gearbox and 4th gear.
    At idle with your foot off the clutch it will usually clatter like mad without one, like the release bearing is knackered. i put an isuzu in a 300 disco and our adapter fir the spigot bush was too short and didnt reach, it drove ok but made a hell of a racket and would have probably killed the box soon.
    Is it a dual mass flywheel?

  11. battenberg

    battenberg Well-Known Member

    Joined:
    Sep 11, 2006
    Posts:
    2,061
    Likes Received:
    2
    Location:
    Birmingham UK

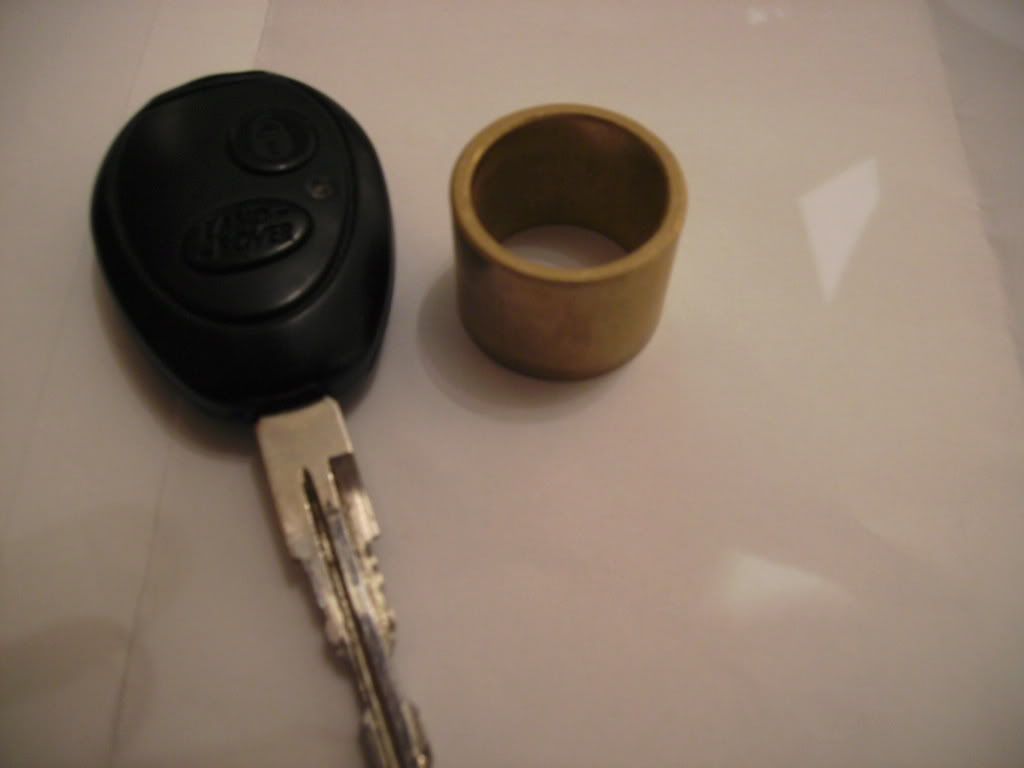

    I just have one sitting on my table...

    This is for a 300TDi


    [​IMG]

  12. gotoneatlast

    gotoneatlast New Member

    Joined:
    Aug 3, 2008
    Posts:
    3,431
    Likes Received:
    0
    Location:
    berkshire,uk
    iss like a hulo hoop

  13. battenberg

    battenberg Well-Known Member

    Joined:
    Sep 11, 2006
    Posts:
    2,061
    Likes Received:
    2
    Location:
    Birmingham UK
    dont taste like one..!

  14. CharlesY

    CharlesY Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    7,083
    Likes Received:
    3
    Location:
    BANNED
    Hey, that looks Helluva like the shape of MY Disco key!
    CharlesY

  15. discomania

    discomania Well-Known Member

    Joined:
    May 30, 2005
    Posts:
    5,998
    Likes Received:
    35
    Charles, he stole it I think...

  16. battenberg

    battenberg Well-Known Member

    Joined:
    Sep 11, 2006
    Posts:
    2,061
    Likes Received:
    2
    Location:
    Birmingham UK
    keep your eye on your motor tonight Charles... I need some spare parts..!

  17. dooroy

    dooroy New Member

    Joined:
    Apr 17, 2006
    Posts:
    267
    Likes Received:
    0
    Location:
    Co. Galway , Ireland
    I changed my clutch in 2001 Td5 last year and changed the spigot bush also - it's an interference fit in the end of the crankshaft .
    My old one was breaking up .
    I found the new one was a loose fit so I fitted it using Stud and Bearing fit .
    The bush is easily damaged so take it easy when fitting .

  18. CharlesY

    CharlesY Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    7,083
    Likes Received:
    3
    Location:
    BANNED
    You CAN NOT SAY that engines for Automatic gearboxes don't have pilot shaft (spigot bush) bearings fitted.

    I reckon that the chances are high that all TD5 crankshafts are fitted with a pilot shaft bush at the time the crankshaft is being made. The thing costs 10 pence, takes 5 seconds to fit, so why not? It would save them worrying which crankshafts are fit to be used for automatics only, and which are fit for both types of transmission.

    I will bet you £1.00 there IS a spigot bearing in the crank!

    CharlesY

  19. ivorantony

    ivorantony New Member

    Joined:
    Feb 3, 2009
    Posts:
    9
    Likes Received:
    0
    If you havent a spigot bush fitted it will make short work of destroying the clutch centre plate, The primary motion shaft will float and cause the clutch centre plate to crack up,
    thats without the massive side load on the inner Primary motion shaft bearing,
    Will bugger up the box sooner than later,
