Series 3 Snail heater blower

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
codfather79

codfather79

Well-Known Member
Posts
649
Location
Kent
Evening all.
Just taking apart the heater blower (guessing the motor is dead ☹️) ready for a clean up and found this inside





Any idea what it is and what it does?

Thank you 👍

Hopefully reassembly commencing today.
Just a thought, how does one test the resistor without a volt meter?
J rig a bulb and see if one wire makes it shine brighter than the other?
TIA👍

Wildefalcon said:
Run the fan straight from a 12v supply. Then use the resistor. Should be half speed...
Click to expand...
Thank you.
I'm trying to test the resistor before I reassemble the casing.
I've still got to buy a new motor as the old one is kaput 😕
Well, I've tried it on a 12v supply and it doesn't move!

codfather79 said:
Evening all.
Just taking apart the heater blower (guessing the motor is dead ☹️) ready for a clean up and found this inside

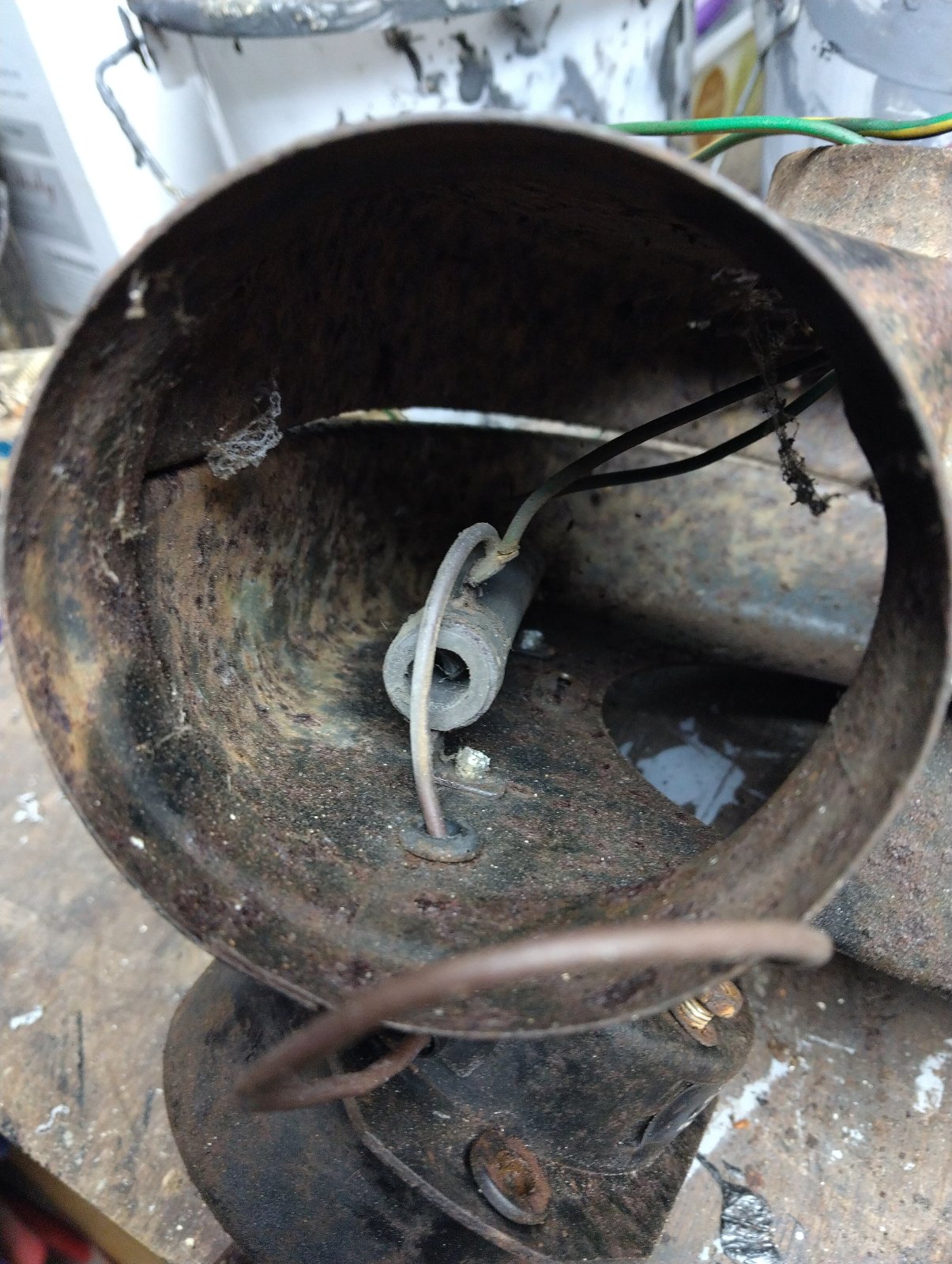

View attachment 323444

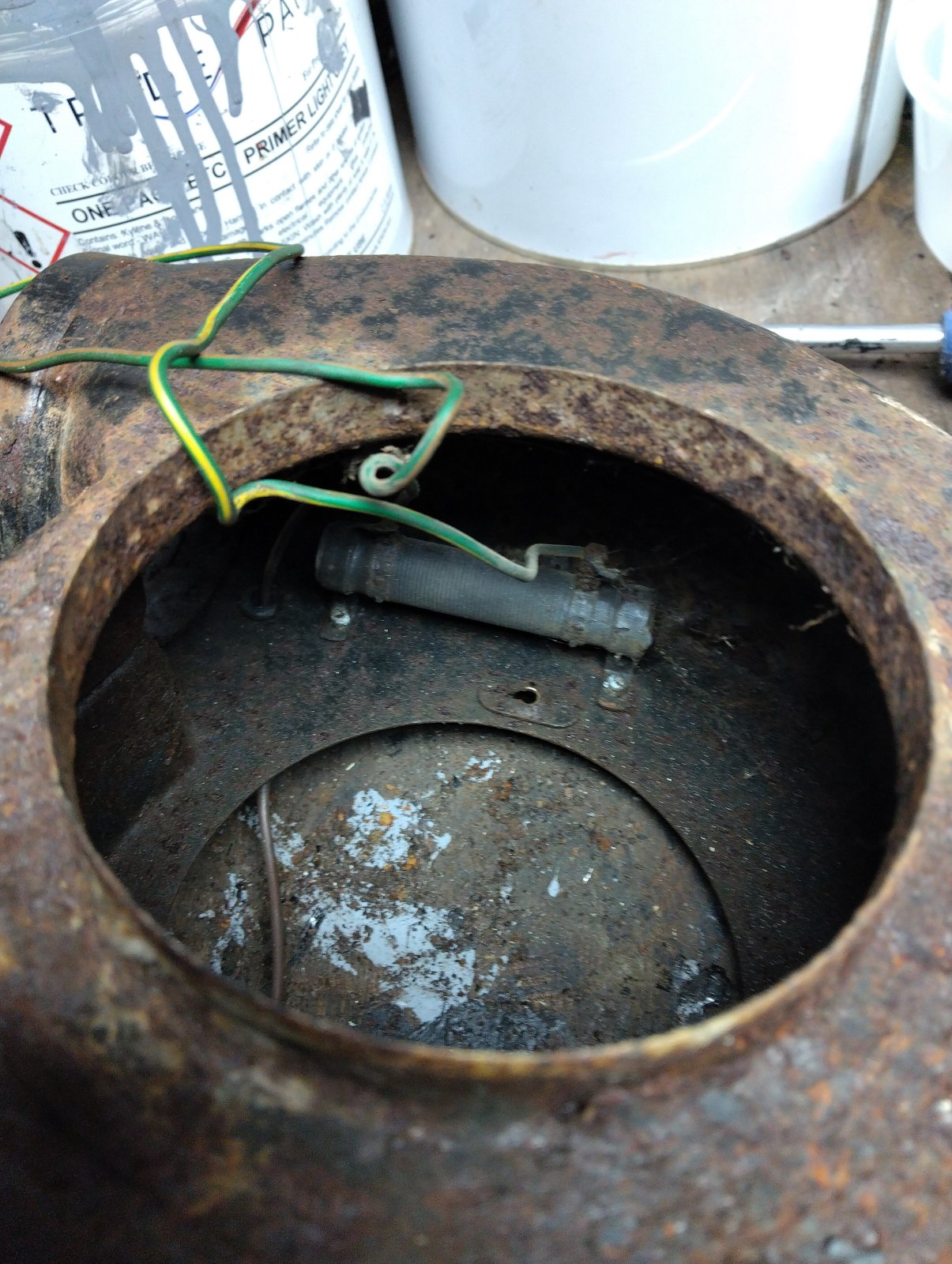

View attachment 323445

Any idea what it is and what it does?

Thank you 👍
Click to expand...

It's a 10 OHm, wire wound, ceramic resistor.
It halves the power getting to the blower motor so it runs slower.
It's in the airflow so it keeps cool.

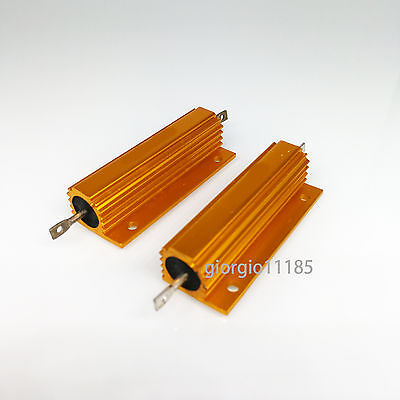

I fitted two 10 OHm, 100W metal cased wirewound resistors in parrallel to mine and slow speed is now slightly faster than original and still slower than fast.

www.ebay.co.uk

2pcs 10 ohm 10 100W Watt Aluminum Housed Metal Case Wirewound Resistors | eBay

Resistance Value 10 ohm. Mounting Hole Dia 0.02cm/0.007". Plate Size 6 x 2.1 x 0.02cm/2.36" x 0.83" x 0.007" (L W H). External Material Aluminum. Color Gold Tone. Thread Size 0.02cm/0.007".
www.ebay.co.uk

I seem to remember taking my fan motor apart to give it a clean and fettle, you could probably revive it and it will certainly be better than a new one.

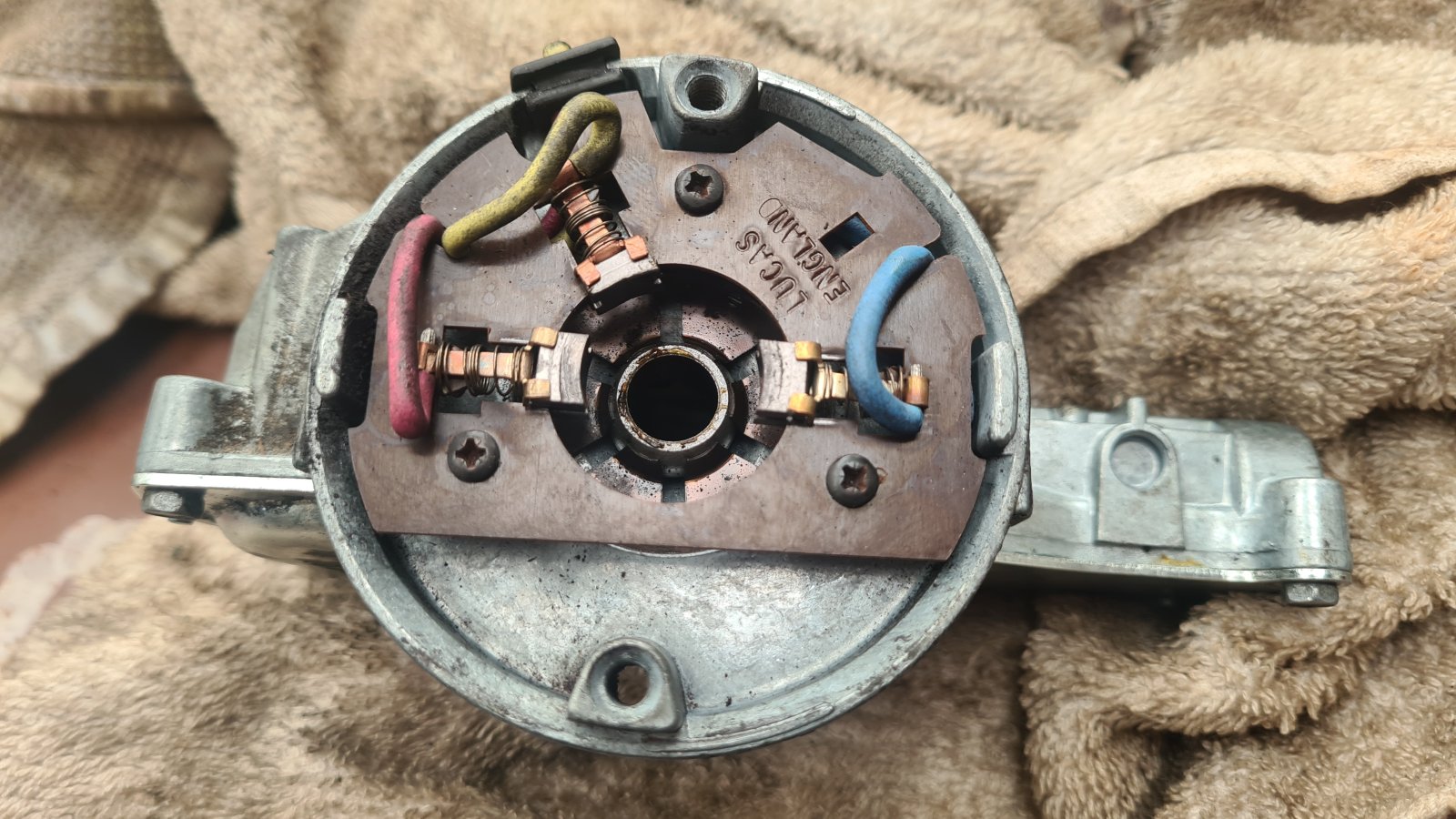

So, I've taken the motor apart.

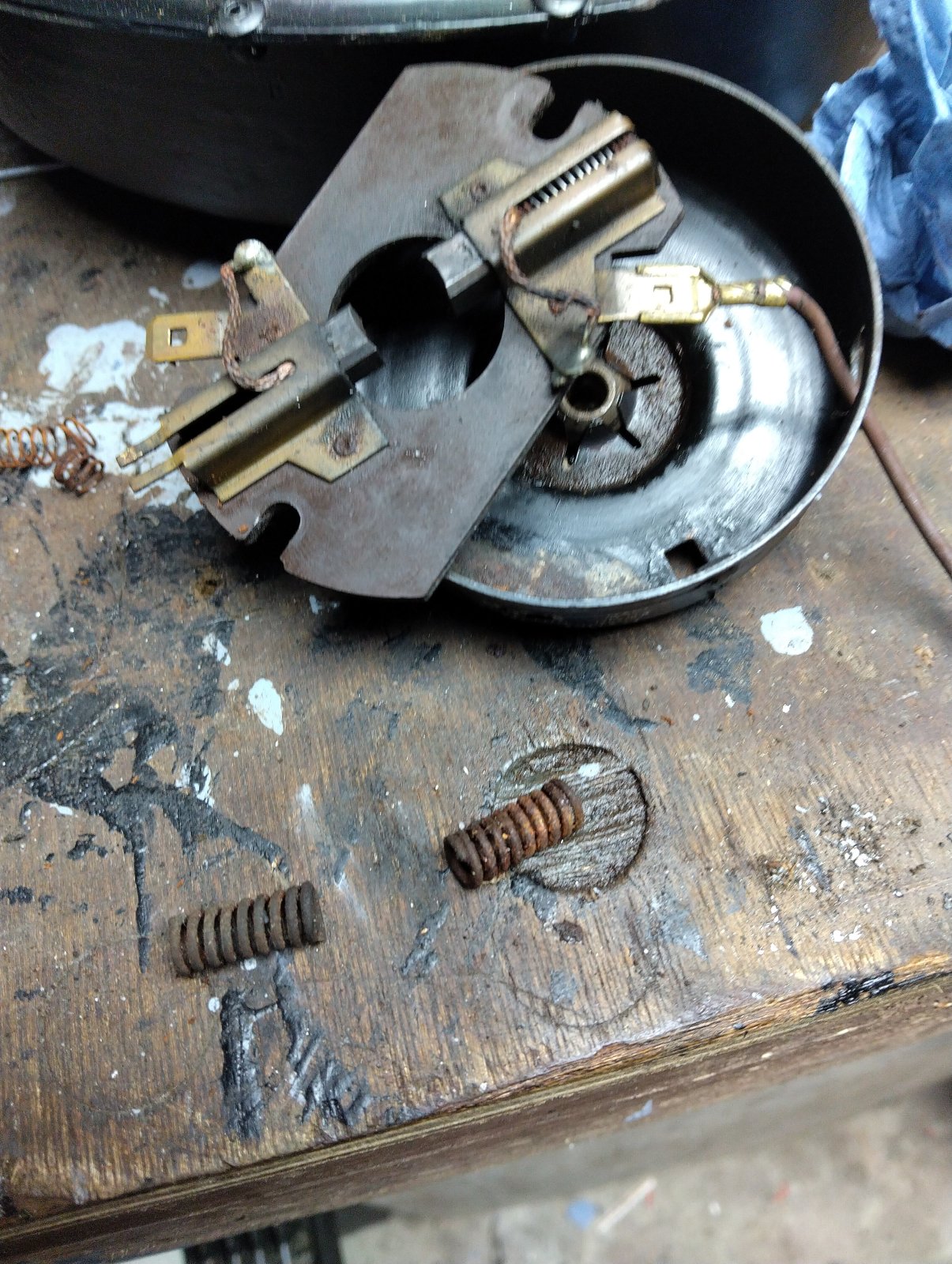

I don't suppose anyone knows where the two big springs go?🙄



I can see that I need to replace a brush spring 👍

I've got a new "Smiths" heater motor here that I think I bought from Paddocks at some point.
Interestingly it seems to be made in China !
You're probably better off reviving your old motor if you can, it's probably better quality

grewth said:
I've got a new "Smiths" heater motor here that I think I bought from Paddocks at some point.
Interestingly it seems to be made in China !
You're probably better off reviving your old motor if you can, it's probably better quality
Click to expand...
I've managed to get a new old stock from P A Blanchard.
So hopefully it's of good quality 😃
