Slight split in the "flexible air intake duct"...

T

TaDa

Active Member

Posts

432

Location

Barnstaple or thereabouts

• Mar 18, 2010

• #1

Now I'm spending more and more time under the bonnet I notice more and more...

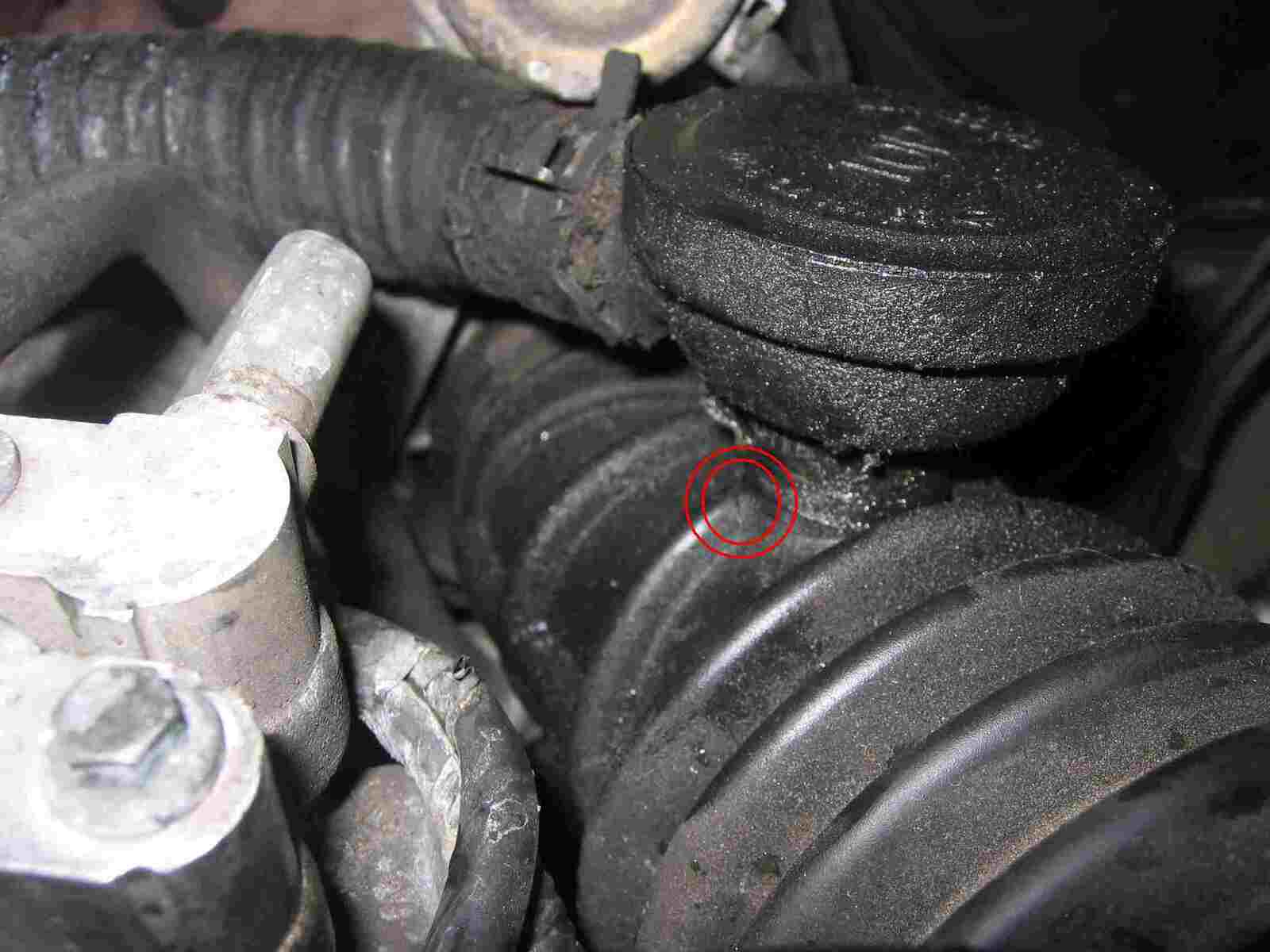

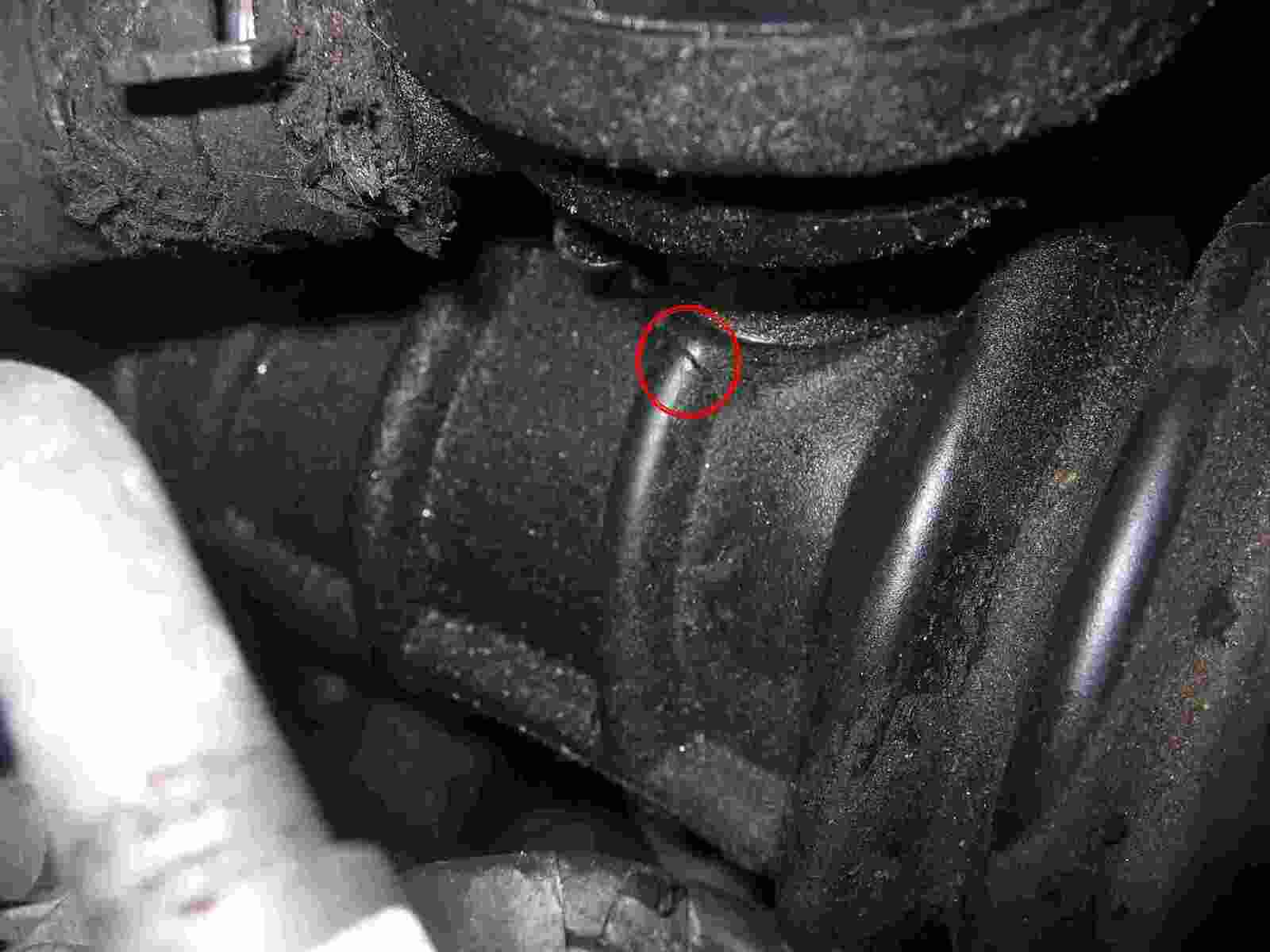

Today I saw a very slight split in the "flexible air intake duct" under the "breather valve" (aka "depression limiting valve" or simply "TOP") - phew! The pictures should help.

The split is about 1cm long and looks like its been there a while.

Can I forget about it, can I patch it or is it a replacement job?

Lastly, should I be concerned about the oiliness around that pipe?

Thanks



Attachments

•

  59.8 KB · Views: 433
•

  38.1 KB · Views: 382

trax99

Well-Known Member

Posts

1,149

Location

Montgomeryshire

• Mar 18, 2010

• #2

What engine?



T

TaDa

Active Member

Posts

432

Location

Barnstaple or thereabouts

• Mar 19, 2010

• #3

Will I never learn :doh: - Its a TD5 disco



biggeeeee

Retired - Living the dream

Posts

11,090

Location

Lanarkshire or Argyll

• Mar 19, 2010

• #4

No No Yes Yes £35ish



T

TaDa

Active Member

Posts

432

Location

Barnstaple or thereabouts

• Mar 19, 2010

• #5

Better get the wallet out then!

Any idea what the cause of the oil might be?
(its mostly air and coolant pipes around there isn't it?)

Cheers



Paul D

Old, nackered 'n broke, but the Landy is fine . :)

Events Planner

Posts

14,902

Location

Doncaster

• Mar 19, 2010

• #6

TaDa said:

Now I'm spending more and more time under the bonnet I notice more and more...

Today I saw a very slight split in the "flexible air intake duct" under the "breather valve" (aka "depression limiting valve" or simply "TOP") - phew! The pictures should help.

The split is about 1cm long and looks like its been there a while.

Can I forget about it, NO
can I patch it Possibly, but unlikely to be a permanent fix
or is it a replacement job? YES

Lastly, should I be concerned about the oiliness around that pipe? YES

Thanks

Click to expand...

pleasure ..



T

TaDa

Active Member

Posts

432

Location

Barnstaple or thereabouts

• Mar 19, 2010

• #7

I've been told that the oil is probablyy due to the 'TOP' (depression valve) oozing oil.
I have identified that as part number LLN100140L.

Can anyone tell me the part number for the hose with the split?

Cheers



T

TaDa

Active Member

Posts

432

Location

Barnstaple or thereabouts

• Mar 19, 2010

• #8

Ok, the hose is part ESR4234 - £43.02 inc vat
I'm getting the valve too £18.31

Thanks everyone
