Single side step position

moremuckmush · Sep 9, 2021

Heyup ,

Anyone got a measurement or reference point where the single front side step should be positioned please ( flip down single step type)

cheers

Glasgie · Sep 9, 2021

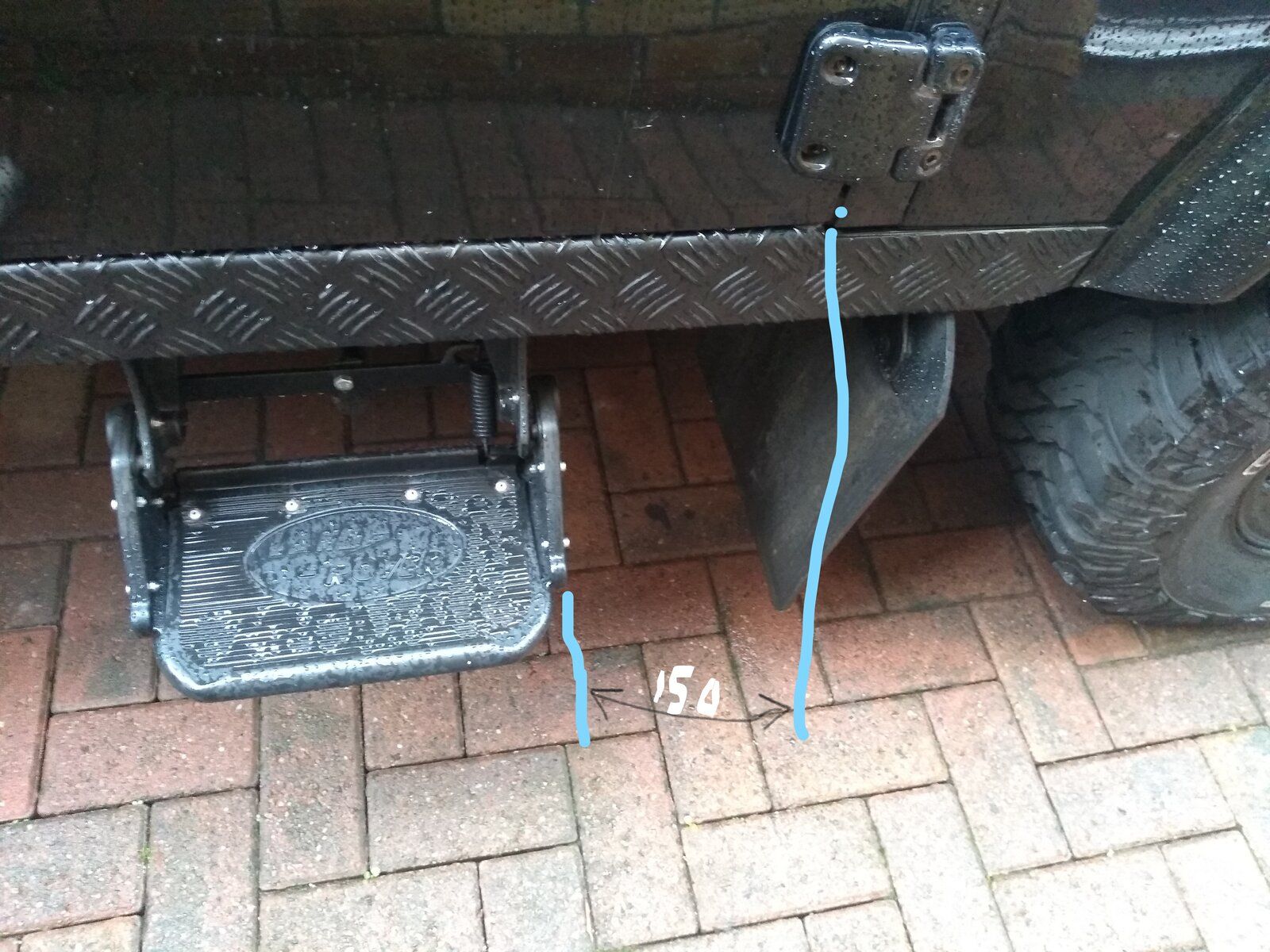

Its 150mm from the leading edge of the door to the front of the step as attached pic

moremuckmush · Sep 9, 2021

Thanks Pal

marjon · Sep 9, 2021

Ours is a bit more.
200mm from leading edge of door to mounting bolt (on sill U)

So probably 180mm ish as per above.

Have you actually looked under to see any predrilled holes?

J

Interceptorxj · Sep 9, 2021

IIRC when i fitted some to my 200tdi 90 the chassis already had factory hex holes for the nutcerts to be fitted

moremuckmush · Sep 9, 2021

marjon said:
Ours is a bit more.
200mm from leading edge of door to mounting bolt (on sill U)

So probably 180mm ish as per above.

Have you actually looked under to see any predrilled holes?

J

Ah OK , no not yet but will check , thanks for this

moremuckmush · Sep 11, 2021

Yep , you were right there were already some predrilled holes although I had to drill one bolt hole up to the side of the battery box , nice easy job and quite like the look of them in addition to the ease of jumping in is now

mick the builder · Sep 13, 2021

moremuckmush said:
Yep , you were right there were already some predrilled holes although I had to drill one bolt hole up to the side of the battery box , nice easy job and quite like the look of them in addition to the ease of jumping in is now

Do you leave them down all the time?

moremuckmush · Sep 13, 2021

I do yes ?
