side exit exhaust using the old cat how to with pics

Discussion in 'Land Rover Discovery' started by andyfox2005, Aug 24, 2012.

< Previous Thread | Next Thread >
  1. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0

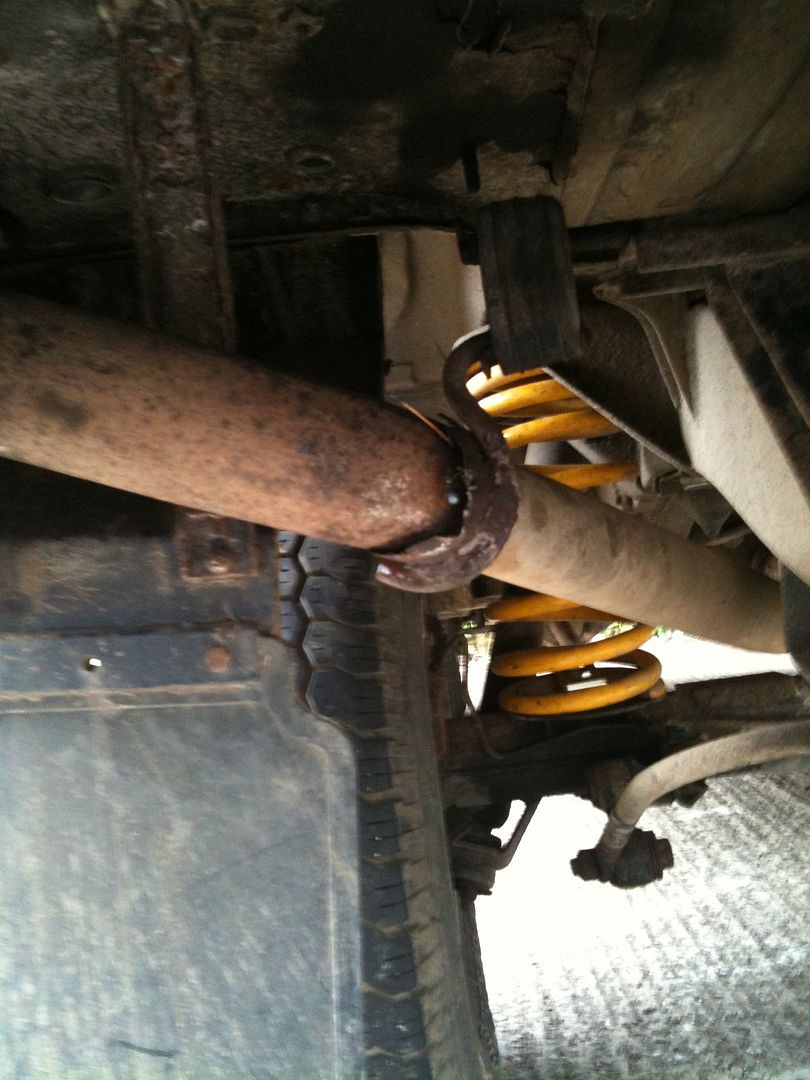

    i put a de cat on my disco last week and then the back box fell of and i was stood there thinking "that cat would make an awsome side exit " so i got the angle gringer and welder out and had a go, the only thing i bought was a new grinding disc it cost me nothing to make and about 1 1/2 hours to do, only problem i encountered was i cut the hole and finished the exhaust but it was hitting the body so i had to cut a bigger hole

    [​IMG]

  2. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0
    [​IMG]

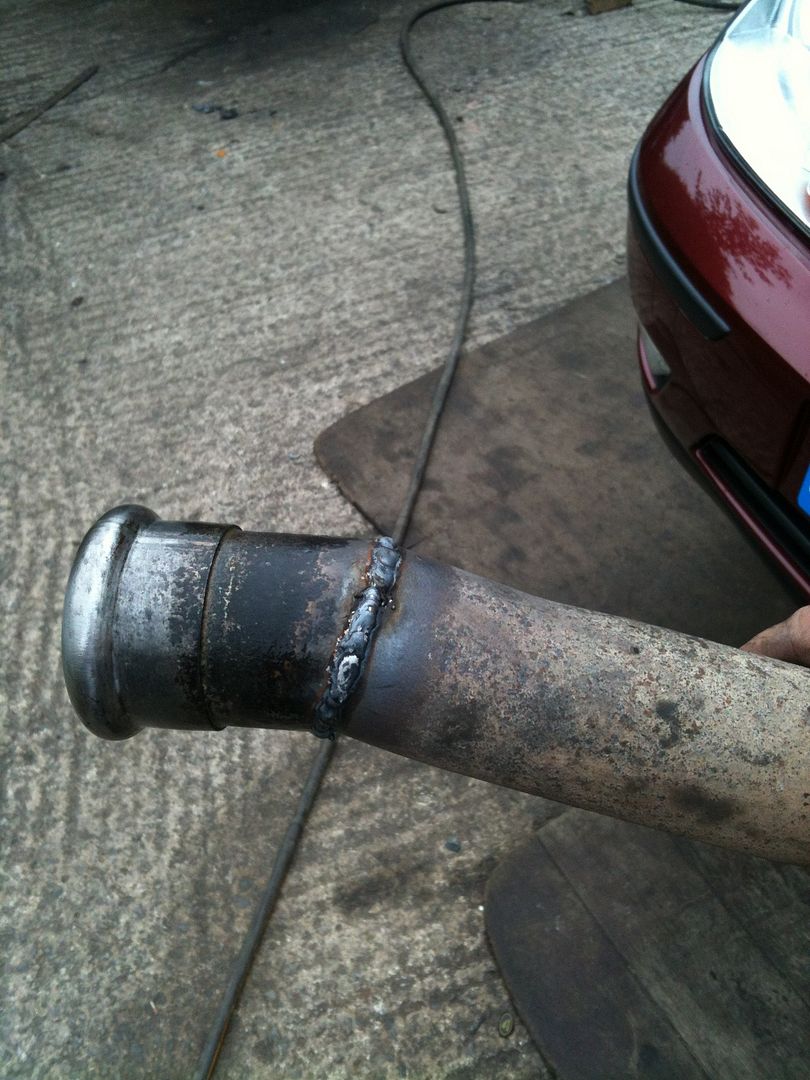

    the old cat had a nice finishing piece so i used that and the bend at the back of the cat

    [​IMG]

  3. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0
    [​IMG]

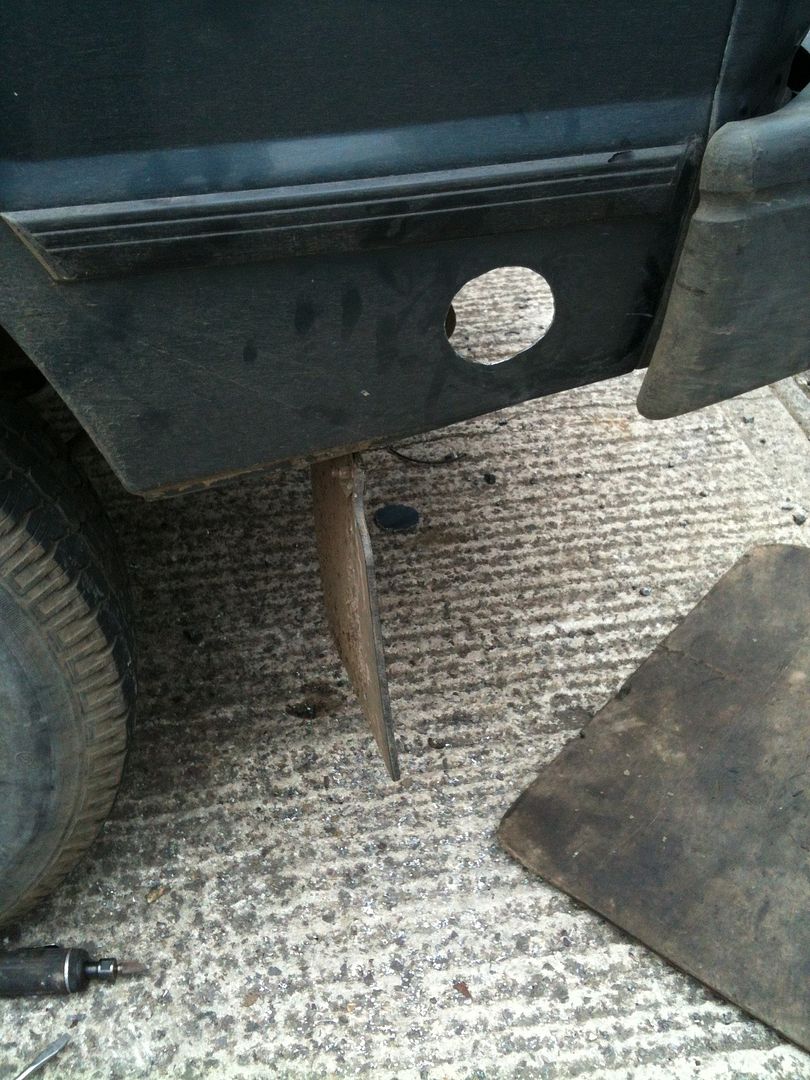

    this was the first hole i cut that was to small

    [​IMG]

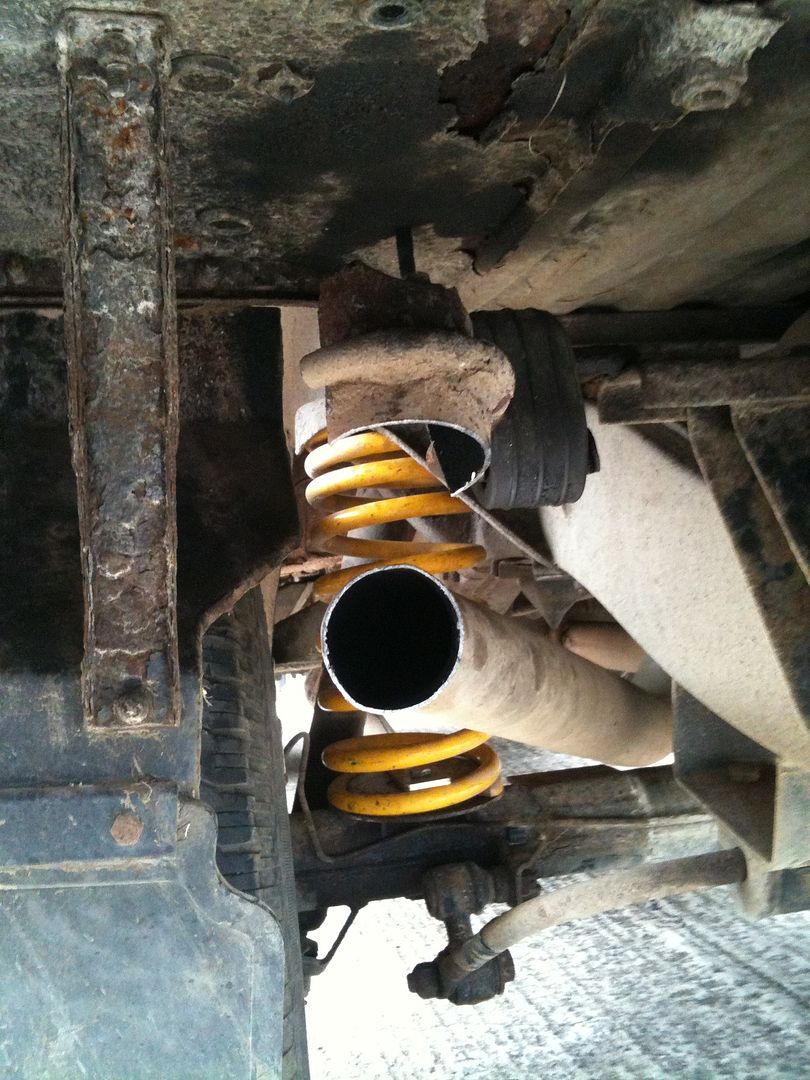

    cleaned the old pipe up and kept the old hanger to weld on at the end

    [​IMG]

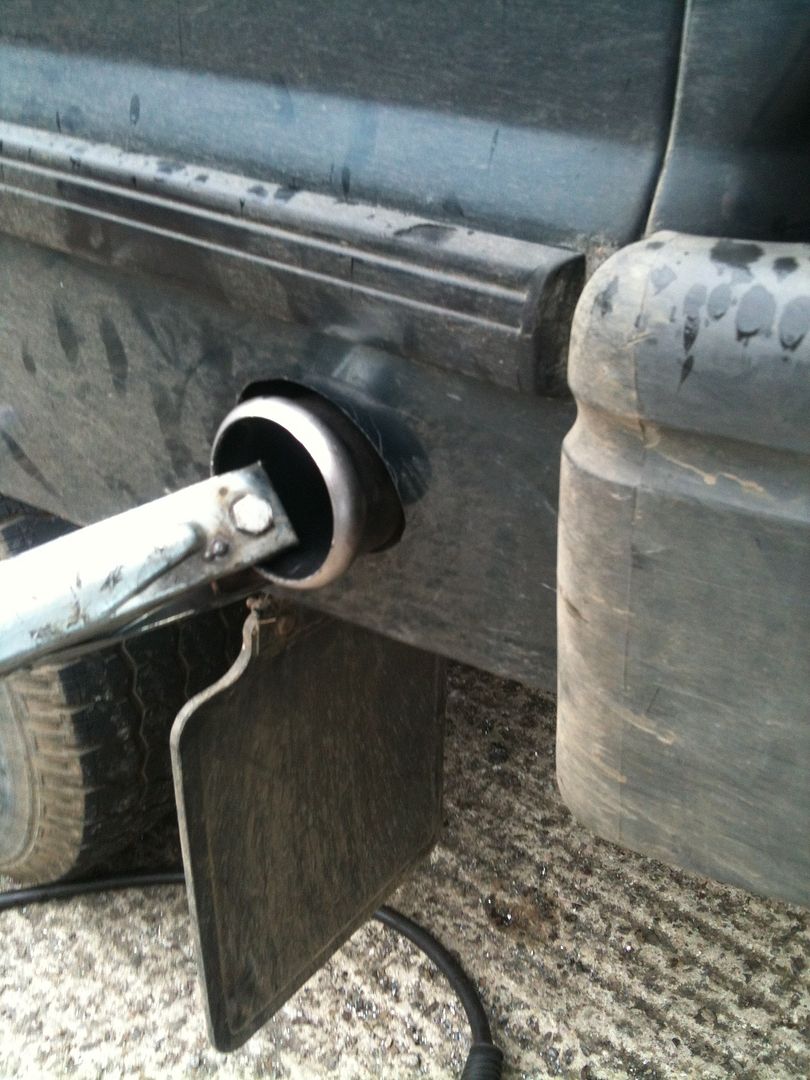

    welded the old hanger on to support it

    [​IMG]

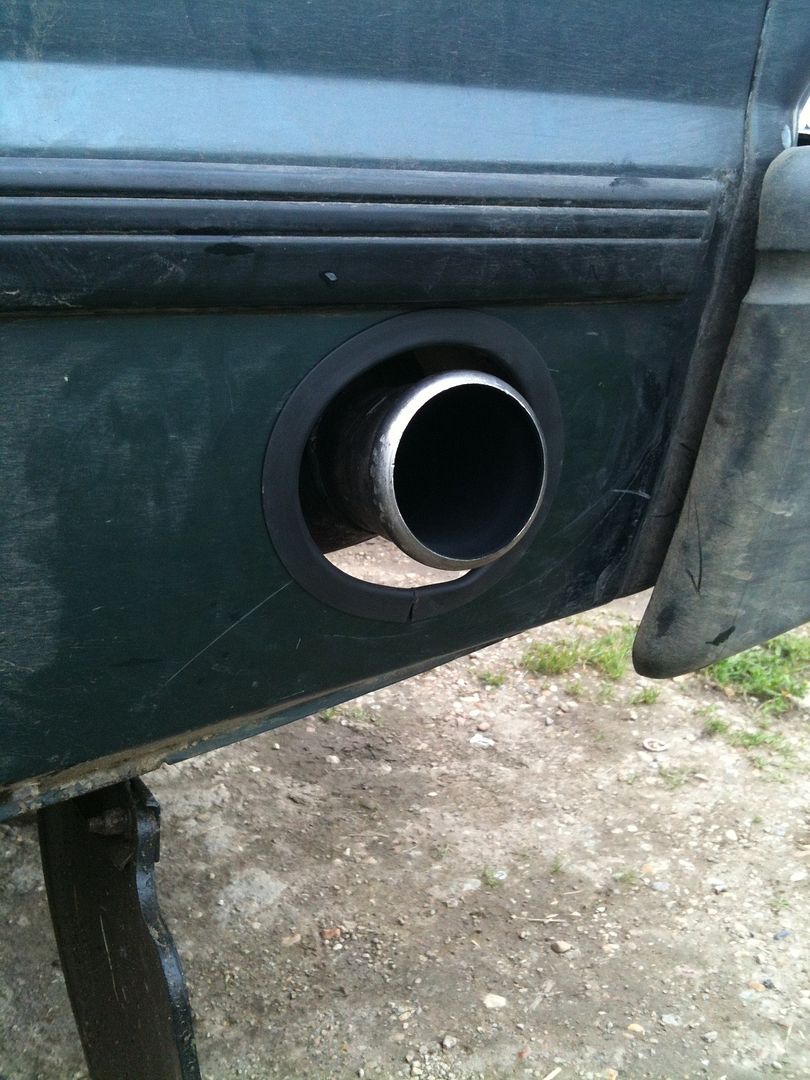

    this was it finished but hole was to small so had to cut this one and finished it off with a rubber strip i actually had left over from my snorkel kit

    [​IMG]

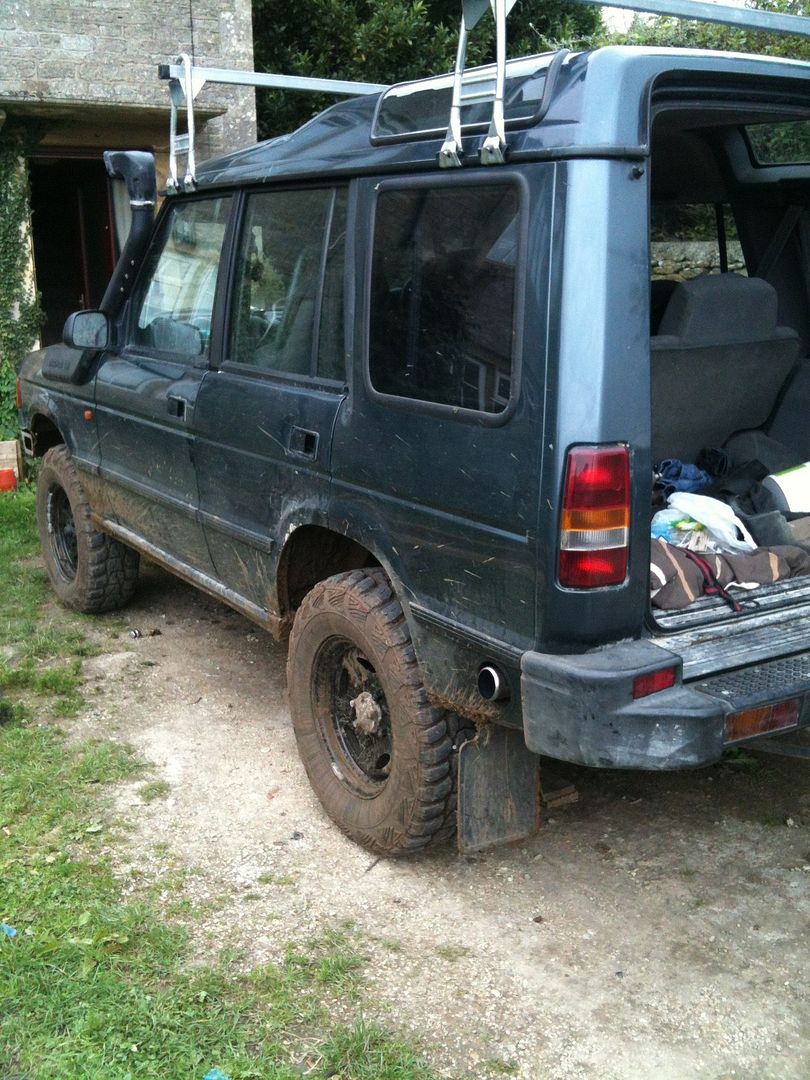

    then an overall picture after putting the new tyres on aswell with the new 2" lift

    [​IMG]

  4. MPfive

    MPfive Active Member

    Joined:
    Feb 11, 2012
    Posts:
    922
    Likes Received:
    1
    Location:
    Dorset
    Have you kept the front silencer or is it now a straight through system?

  5. auf_wiedersehen_pet

    auf_wiedersehen_pet Well-Known Member

    Joined:
    May 14, 2009
    Posts:
    2,456
    Likes Received:
    40
    Location:
    The Solent
    Brilliant - well done. :D:D

    Looks like a boot floor is on the cards soon. :eek:

    Watch the heat generated near to the rubber trim. :confused:

  6. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0
    no ive still got the center box was a bit worried it would be to loud

  7. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0
    boot floor is good only did it 3 months ago but the rot is underneith it, in my defense i only sae it today so yet more welding to do lol i bought a welder when i bought the landrover :fencing:

  8. tdfive

    tdfive New Member

    Joined:
    Jan 20, 2011
    Posts:
    297
    Likes Received:
    0
    Location:
    Lancashire
    Nice job, good to see these types of threads.

  9. Bam

    Bam New Member

    Joined:
    Apr 10, 2012
    Posts:
    106
    Likes Received:
    0
    Location:
    North Cheshire
    Looks well, nice to see old parts being turned into useful parts... How does it sound with just the center box?

  10. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0
    sounds just right little rumble and not nearly at asbo level like most of my mates and you can hear the turbo boosting much better wich is cool

  11. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0
    ive got plenty more um my sleeve yet more to follow this is my project on a budget i might have a set of free mog axels for next year

  12. disco dude

    disco dude Active Member

    Joined:
    Oct 25, 2008
    Posts:
    287
    Likes Received:
    1
    Location:
    Northants
    That's cool

  13. Mark L

    Mark L Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,693
    Likes Received:
    2
    Location:
    Tamworth - Staffs
    Just make sure you get the cat weighed in and DON'T throw it away!! :D

  14. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,210
    Likes Received:
    7,961
    Location:
    Embasinga stocæ
    why? :rolleyes:

  15. Mark L

    Mark L Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,693
    Likes Received:
    2
    Location:
    Tamworth - Staffs
    'Cos I had 2 of 'em and walked away with £124. :D

  16. andyfox2005

    andyfox2005 Active Member

    Joined:
    Sep 11, 2011
    Posts:
    464
    Likes Received:
    0
    £22.50 thank you very much mr scrap man that paid for my de cat so in essance i got a de cat and side exit completley free all i paid for was the wire for my welder. and the welder has paid for its self 100 times over so the rule of the universe everything for the next ten years if absolutley free :eek: at least thats what i have explained to the mrs as to why ive bought so much **** haha

  17. Mark L

    Mark L Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,693
    Likes Received:
    2
    Location:
    Tamworth - Staffs
    If it was a factory fitted cat - you were spanked.

  18. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,210
    Likes Received:
    7,961
    Location:
    Embasinga stocæ
    but doozils dont have cats :confused:

  19. Mark L

    Mark L Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,693
    Likes Received:
    2
    Location:
    Tamworth - Staffs
    My last 2 have (1994 M) - both factory fitted.

  20. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,210
    Likes Received:
    7,961
    Location:
    Embasinga stocæ
    i think yu will find they are particulate filters.
