P38A Serpentine belt alignment issue

Discussion in 'Range Rover' started by Joss155, Oct 12, 2018.

< Previous Thread | Next Thread >
  1. Joss155

    Joss155 Well-Known Member

    Joined:
    Mar 24, 2017
    Posts:
    533
    Likes Received:
    159
    Location:
    Poole
    I was changing the belts as it had started to squeak. Rebuilt and back together but I notice the main tensioner seems bent over. Its pulling the new belt off and into the tensioner bracket slightly. Could have been like this for a while. Checked the idler and the bolt. Both seem fine. Installed it back to front just to see if it made any difference but it still runs off to the back. So assuming whole new part. You can see the belt has run to the back of the idler in the picture.


  2. Joss155

    Joss155 Well-Known Member

    Joined:
    Mar 24, 2017
    Posts:
    533
    Likes Received:
    159
    Location:
    Poole
    So had a browse of parts.

    STC2126
    STC2127
    STC4608
    This makes up the tensioner and guide. I see the main body has been superseeded so I guess it’s a common issue. Going to have a look at RAVE and find the tool to remove it.

  3. Joss155

    Joss155 Well-Known Member

    Joined:
    Mar 24, 2017
    Posts:
    533
    Likes Received:
    159
    Location:
    Poole

    Answered my own question. Anyone got an arm kicking about before I order a new one?

    Grrrrrr and ukadamwest like this.
  4. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,245
    Likes Received:
    397
    Location:
    Surrey
    i would suggest that a crack in the arm might lead to the belt being pulled backwards :p:D

  5. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,383
    Likes Received:
    1,460
    Location:
    Buckinghamshire, UK. ('95 DT)
    Yes, common fail. @Rick-the-Pick went through about 3 in quick succession and ended up modding it.

  6. Joss155

    Joss155 Well-Known Member

    Joined:
    Mar 24, 2017
    Posts:
    533
    Likes Received:
    159
    Location:
    Poole
    I'm wondering if I can make up a special lever to take the tension off. It seems you are either leaning on the spring tensioner (my old one was smashed at both ends by previous removals from other people) of you lever the side other the bracket which puts a side load on it.

  7. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,687
    Likes Received:
    6,461
    Location:
    Preston Lancs.
    Done properly releasing belt tension is easy and puts no strain on the tensioner arm at all. Let alone any sideways pressure. Hamfistedness can break it though i suppose.

  8. Joss155

    Joss155 Well-Known Member

    Joined:
    Mar 24, 2017
    Posts:
    533
    Likes Received:
    159
    Location:
    Poole

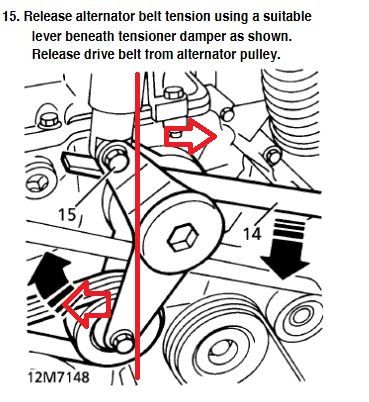

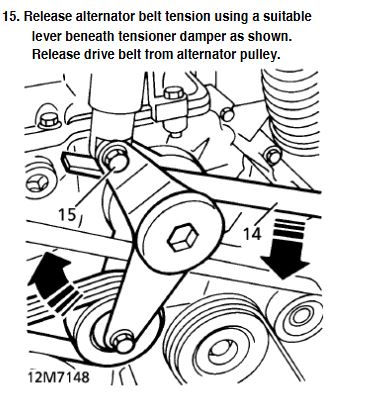

    Well that's just it. The way described looked like it damaged the spring tensioner. I replaced mine because from what I could tell 1 of the previous owners had used this method and smashed it to pieces. There was only half the bottom bolt hole left. I had been using this other method which seemed fine to try and avoid this. Anyway the point is it had already failed from what I could see causing the squeak.

    Capture.JPG Capture1.JPG

    Last edited: Oct 15, 2018
  9. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,687
    Likes Received:
    6,461
    Location:
    Preston Lancs.
    Not using that method he didn't as long as the tensioner arm was not seized onto the shaft.

  10. Joss155

    Joss155 Well-Known Member

    Joined:
    Mar 24, 2017
    Posts:
    533
    Likes Received:
    159
    Location:
    Poole
    Hadn't thought of that. Well either way it's getting fixed
