Series 3 Series 3 1972 Restore

Discussion in 'Series Land Rovers' started by RyanDay1, Jun 29, 2016.

  1. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire
    Hi all,
    Thought i'd finally get round to starting the thread to help motivate me and ensure I take pictures and to guide me through rather than making loads of other threads for the many problems I face. My landy is a 1972 88" 2.25d, which was rescued from the neighbouring farm after sitting for many years. It has taught me everything so far in the 2 years ive had and faffed with it, and i learn it all as i go, with the goal to get it on the road in great shape. As I write this it's not in great shape, but has come a long way. Alot of odds and bobs have already been done to it since having it, but it is currently only chassis, bulkhead, engine etc. and drives. I have recently motivated myself (this summer) to take the scary bulkhead off, engine out, and all other necessary major parts to get it done properly, but its these jobs that i'll face the most struggle with soon. Hope this thread is even slightly interesting to those more with it than me! ;)
    Pics to follow, and thanks for all help in advance!
    Im not as formal as i write either :D

    Ryan

  2. John S

    John S Well-Known Member

    Joined:
    Oct 30, 2008
    Posts:
    2,156
    Likes Received:
    302
    Location:
    Kinross
    Any pictures?

  3. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire

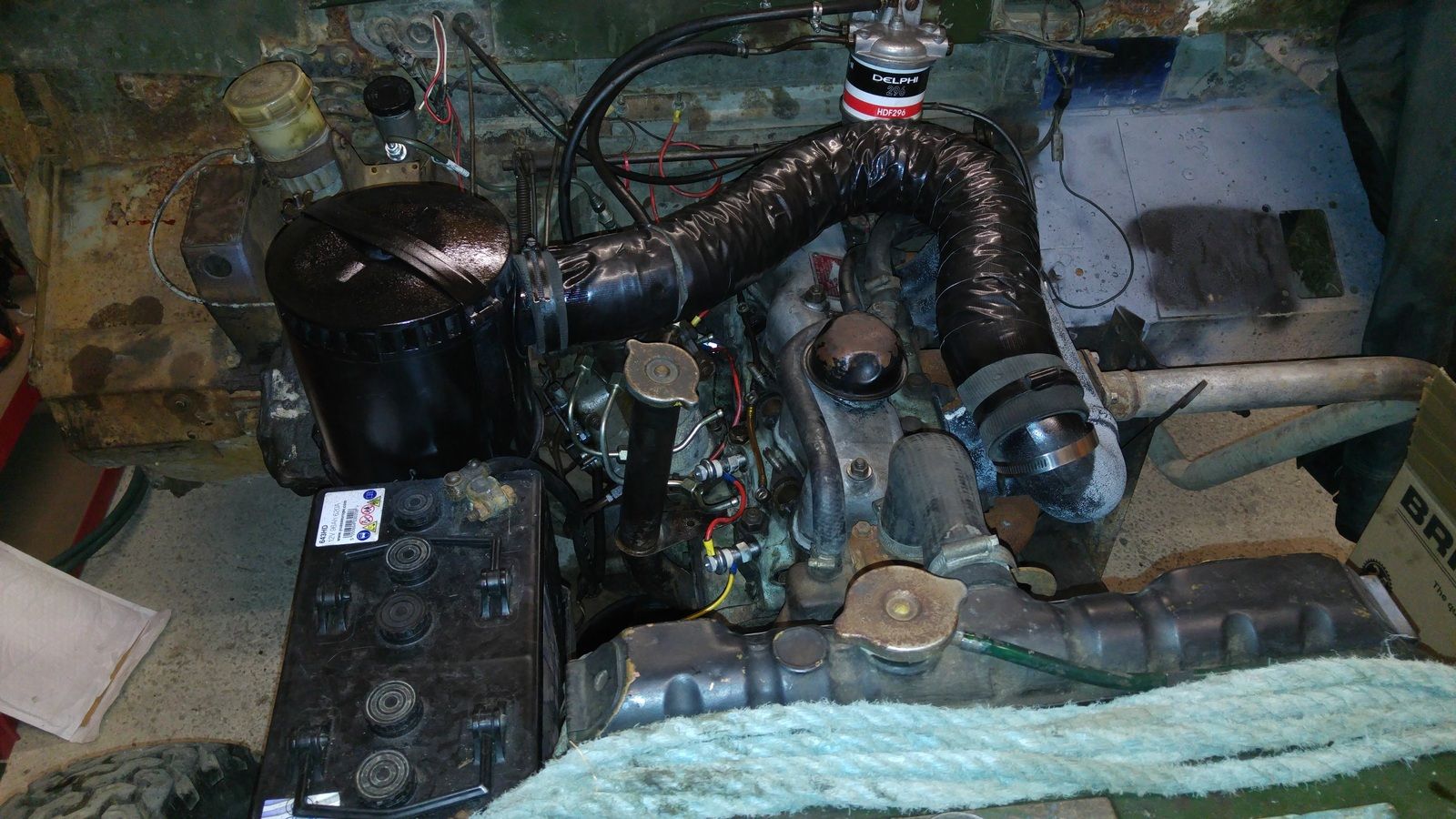

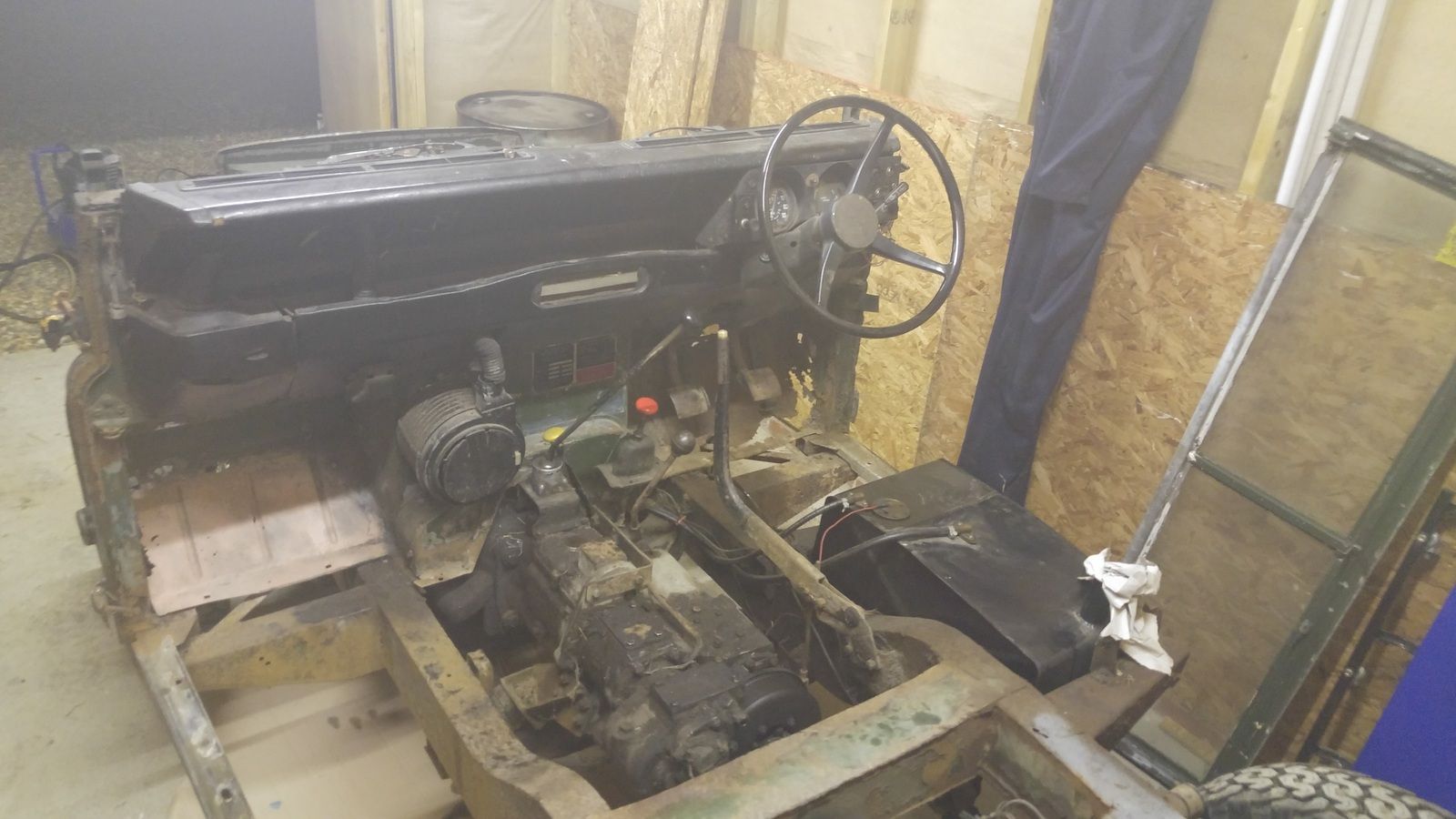

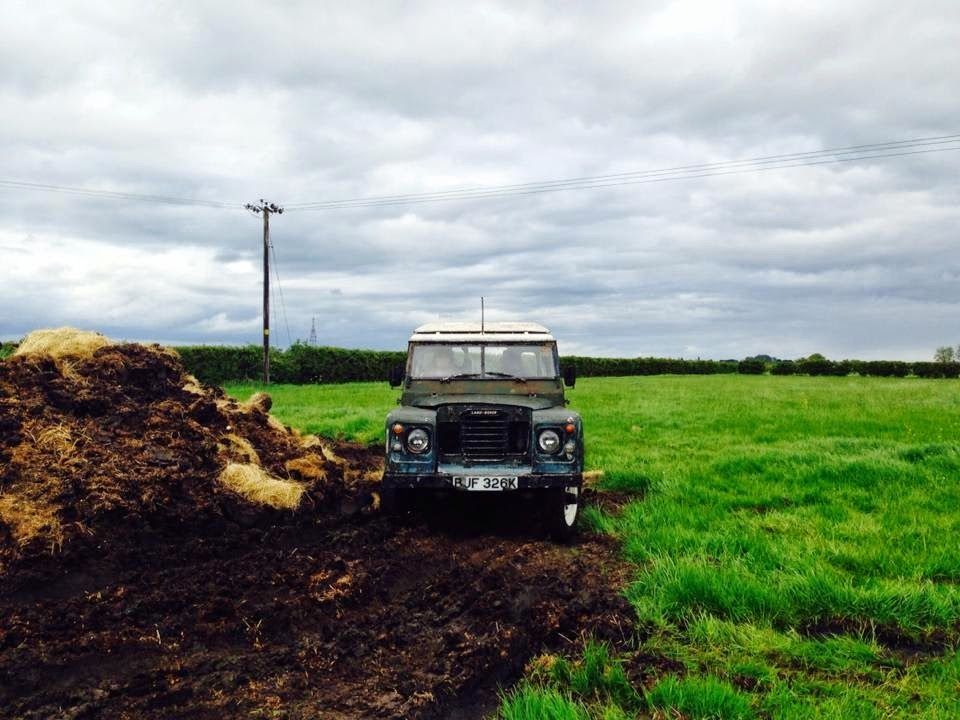

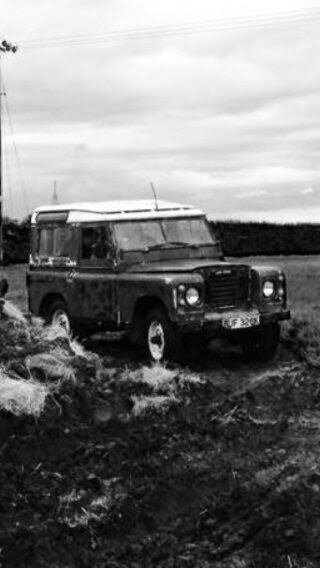

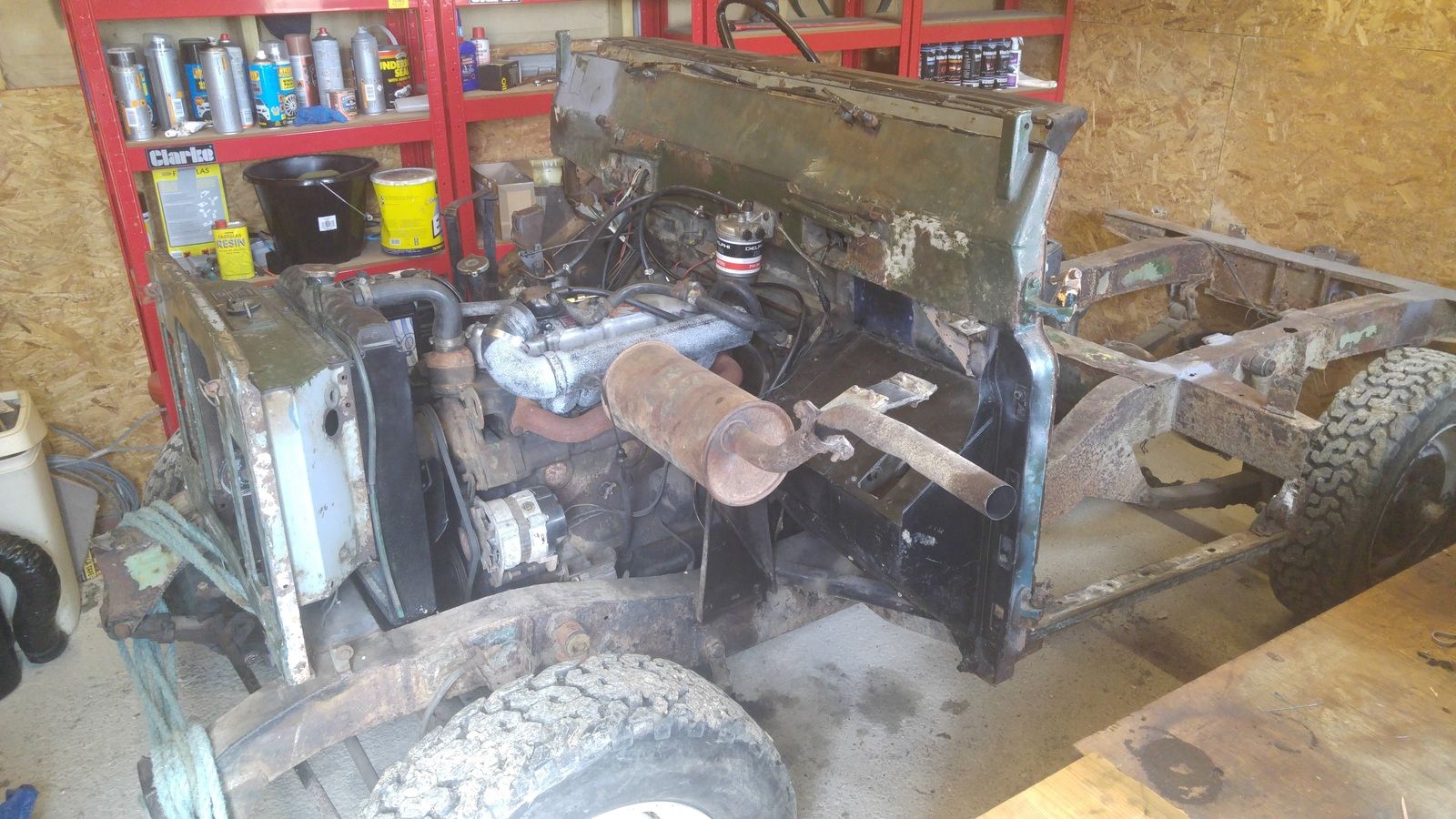

    1410054401384.jpg 20160511_145347.jpg 20160219_194352.jpg 20150926_211103.jpg 20150926_211103.jpg 20160511_145347.jpg 20160219_194352.jpg 20150926_211103.jpg IMG_1398.JPG 103051[/ATTACH]

    Theres more to come when I sort out my technical difficulties, apologies for the mish mash of pictures at start, assume any pics in my workshop are more recent and any out of it are from long ago. And excuse any temporary things like a side exit exhaust (and duct taped air hose...) :D

    andy_v likes this.
  4. honolulujoe

    honolulujoe Well-Known Member

    Joined:
    Apr 22, 2009
    Posts:
    6,045
    Likes Received:
    990
    Location:
    richmond surrey
    is that how the exhaust was or have you done that to reduce noise while you tinker with it?

    chassis and bh don't look too bad

  5. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire
    It's been keeping it quiet while tinkering spot on, chassis only dodgy at the rear, has had some messy patching done at some point in life, bulkhead though is here and there, quite inconsistent, the bottom support passenger side is rotted on about half the pillar, and both footwells were rotted out but I've been practising some fibreglass on passenger one which worked really well actually so that one looks alright, the upper part of the bulkhead is covered in a near inch thick layer of filler, and the very top where windshield sits seems to be rusty down into the dash kinda region, but some parts look alright, only taking everything off it will reveal its true colours!

  6. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire

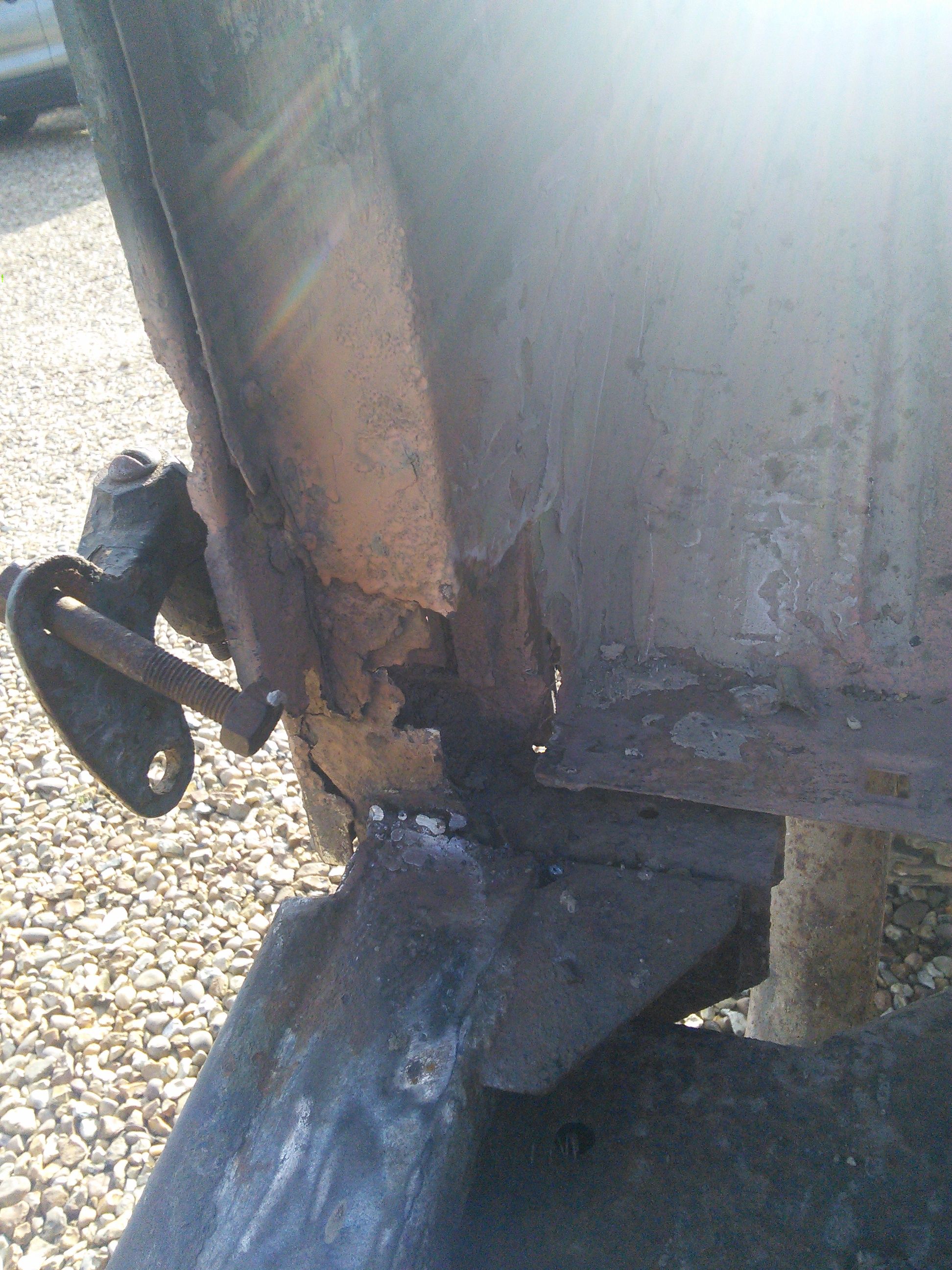

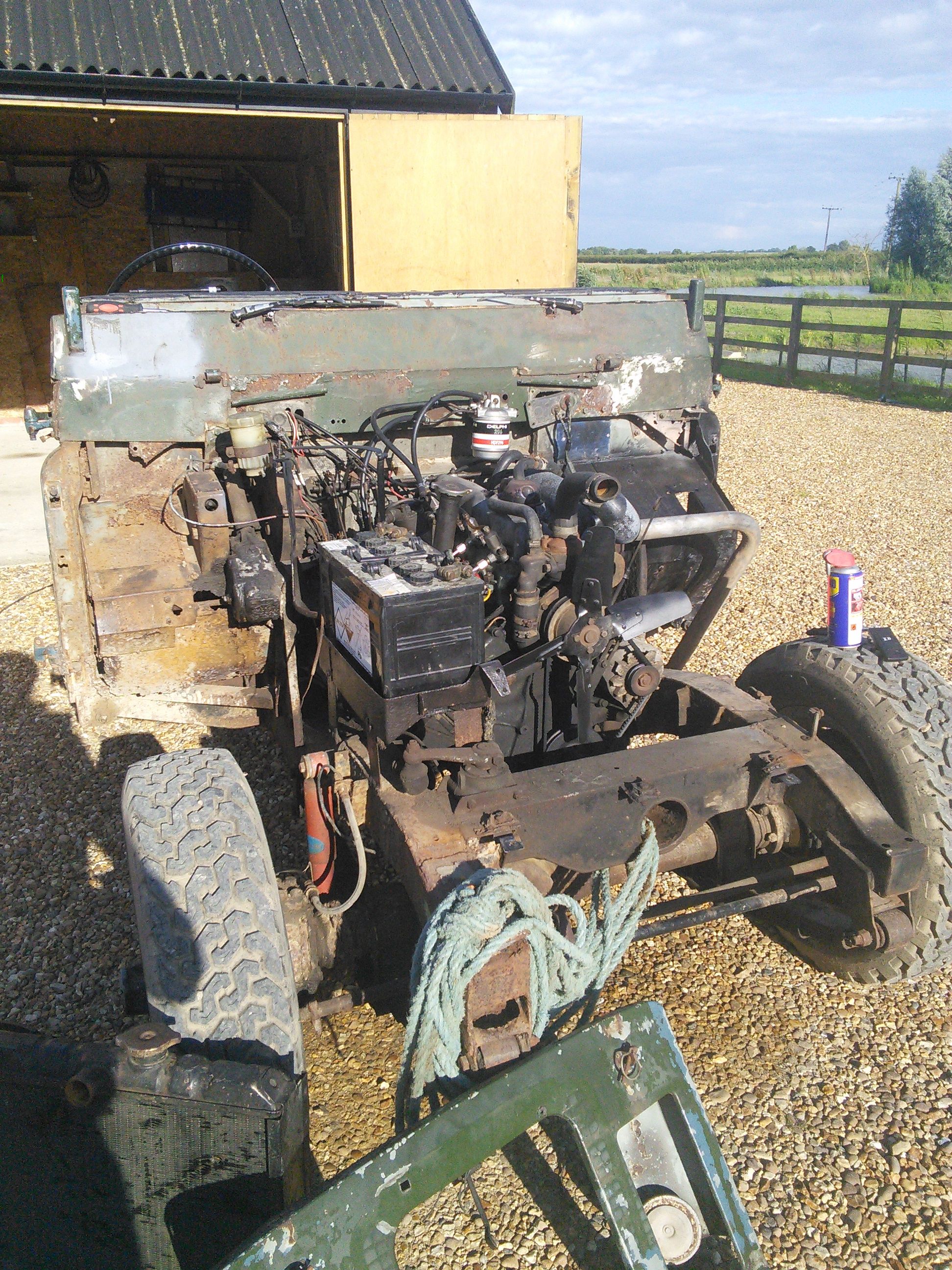

    Rad and front end out today and starting on de cluttering the bulkhead, getting some pics of the bad bits of it. Got the news today of getting in the fire service and won't be training for a while so should give me a year of free time to get the project done!! 1467394501984-11970587.jpg

    andy_v likes this.
  7. boguing

    boguing Well-Known Member

    Joined:
    Mar 18, 2008
    Posts:
    2,147
    Likes Received:
    469
    Location:
    Dorking
    Get all the 'extras' off the bulkhead and put a load of pictures up. I think that we may be advising you to swallow your pride and scrap that bulkhead and buy a better one to work on. Fibreglass will almost certainly be an MOT fail - in it's place it is a great material, but even using epoxy resin you'll not get a good diy bond to steel. If you're using polyesters there is no chance of a good bond.

  8. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire
    I reckon the more advise i get to drop it the happier i'll be getting rid of it as its pretty inevitable, theres so many naff areas and what isnt rusted through is bent and busted. Its something id wanna invest in and would save alot of time, thats 10 years in a field on those footwells!

  9. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire

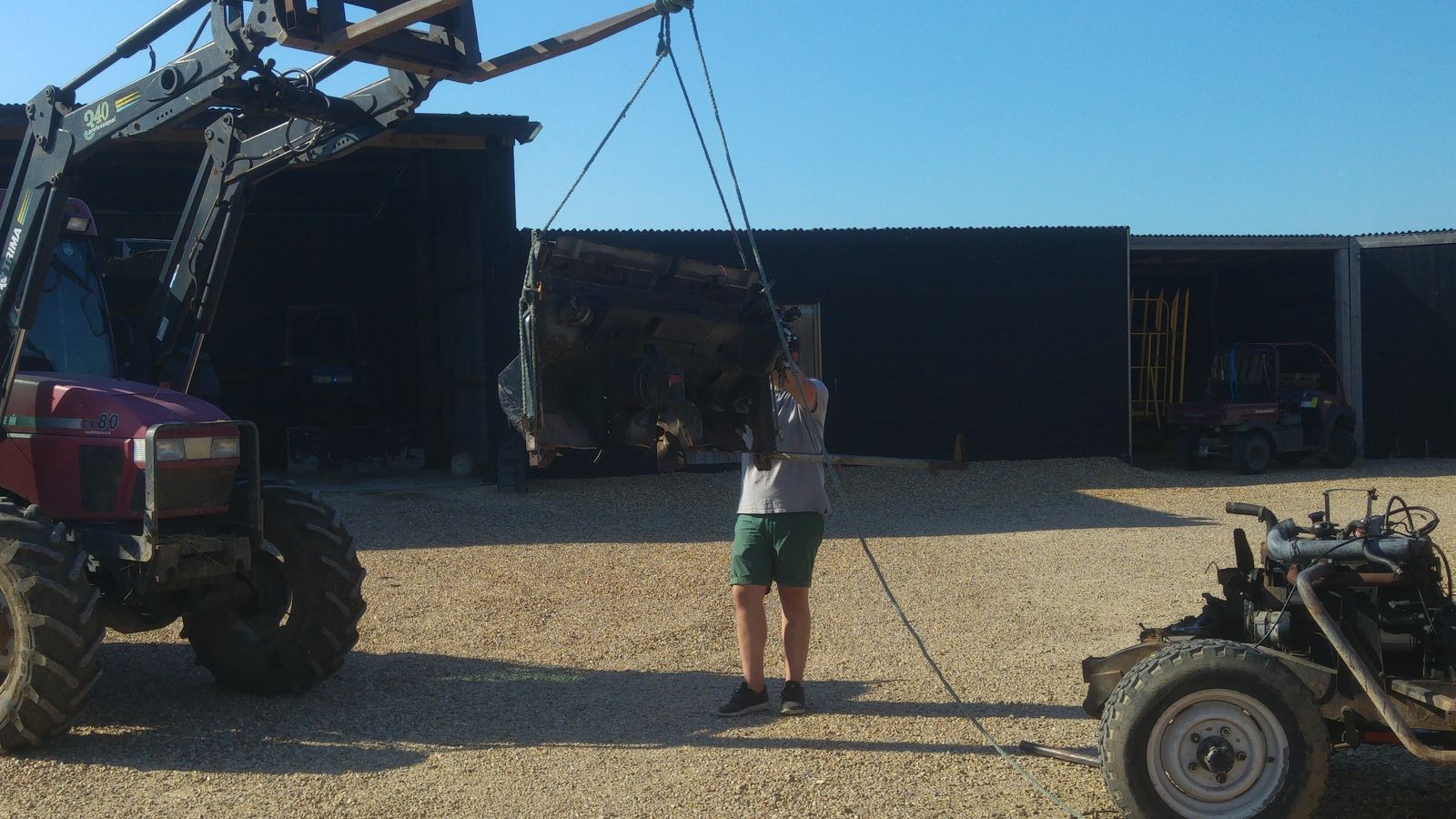

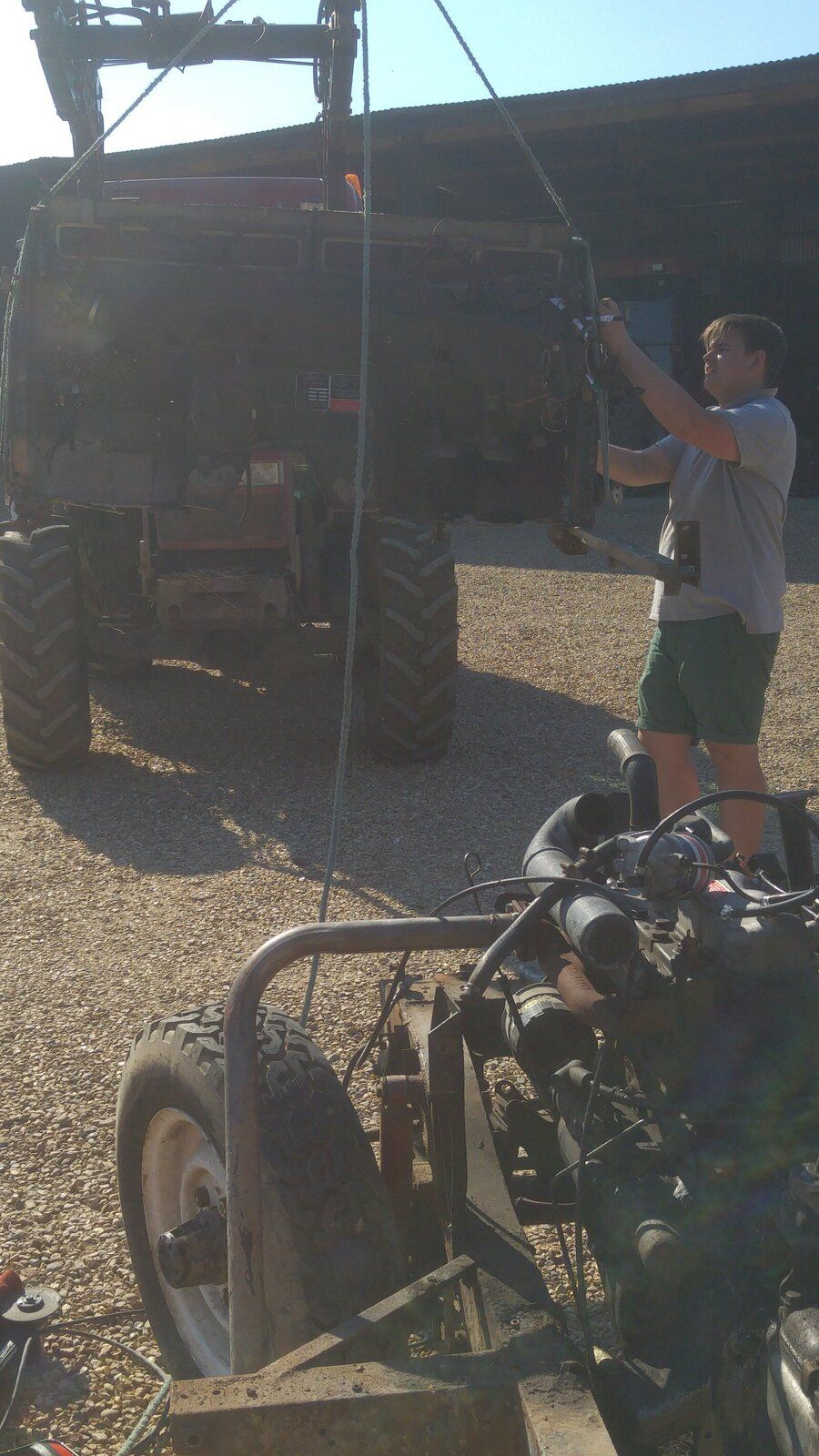

    Update after a while, spent a tough time in the heatwave and have got the bulkhead off, and my back burnt, i still need to take lots off of it like wiring, steering components, pedals etc. and some more dash, but at least its off in a day. Hoping to get a new (refurbed) one from somewhere such as classic bulkheads after doing research, as mine is stuffed beyond my developing skill set, or anyones. So only engine and tranny left on the rolling chassis! :)
    20160719_172015.jpg 20160719_145033.jpg

    andy_v, CakeBandit and Turboman like this.
  10. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire

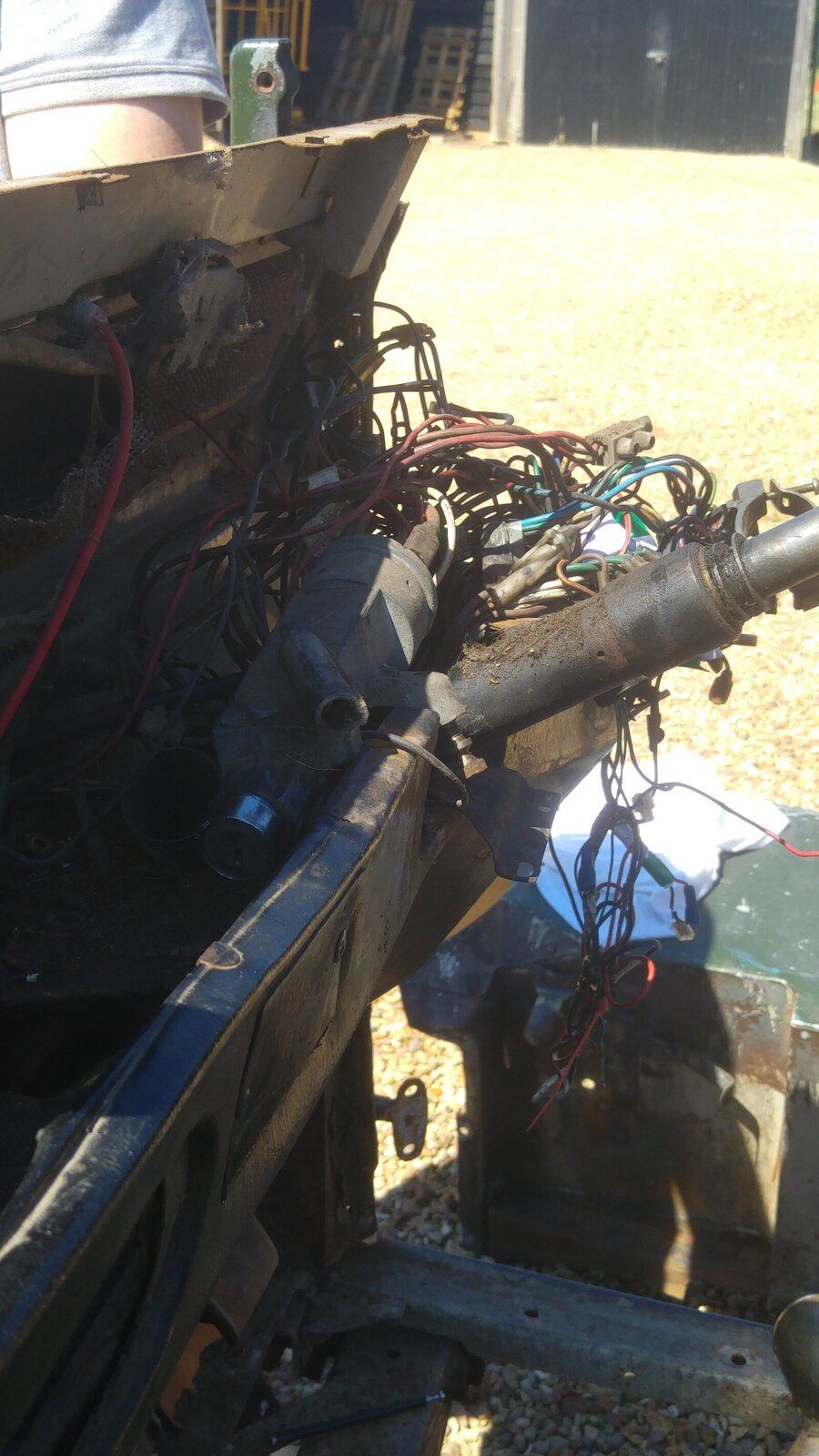

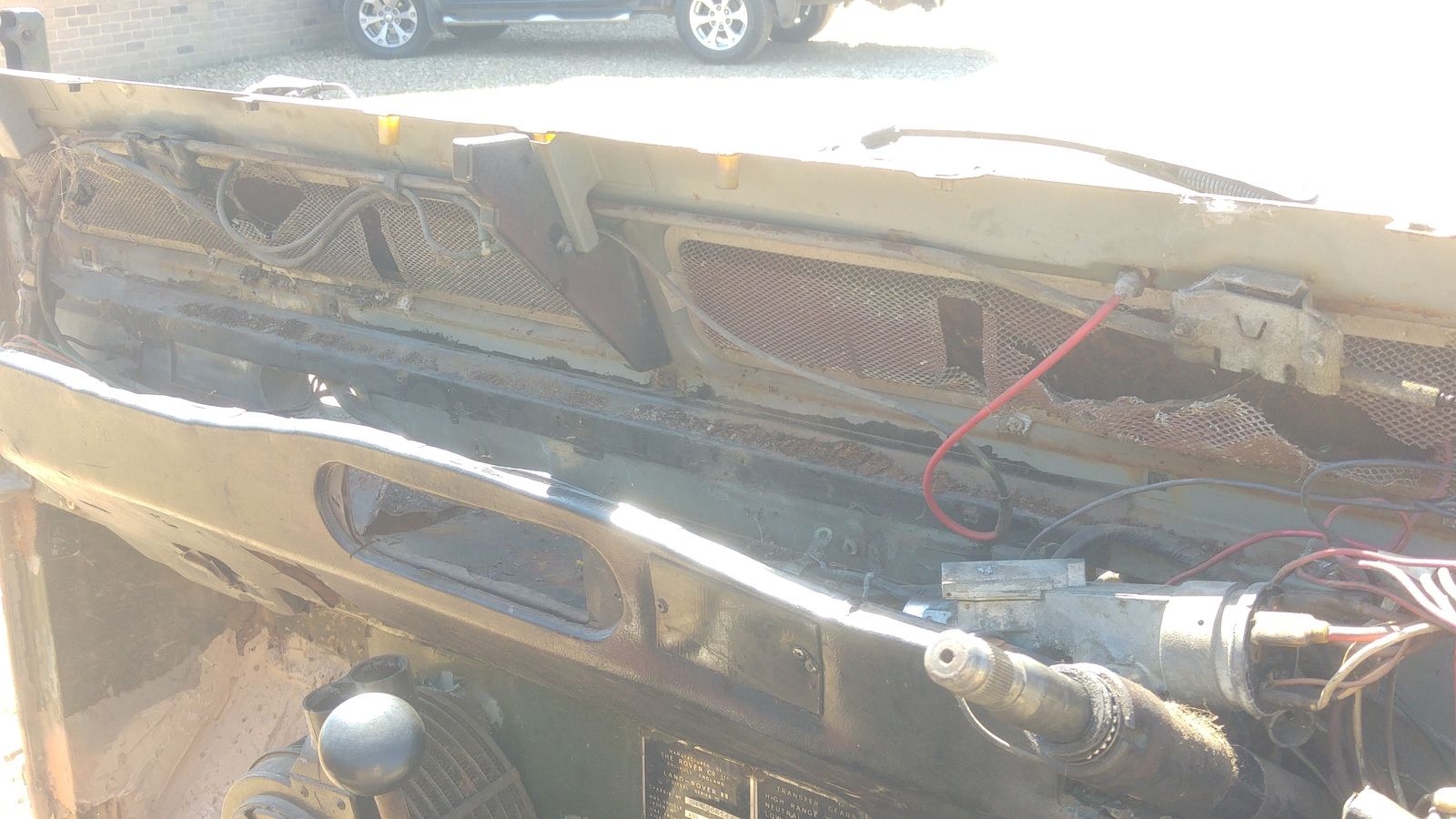

    I also discovered that the vents had been covered over somehow by a metal plate across the front with some filler too, i had to bust off the nearside sill, and regards wiring i have only labelled bunches of wires together with what part they link to in general, as a slight assistance maybe in the future, hoping to redo the lot as was a mess, lots of unconnected cables and filthy terminals etc. Have a lot to practice with with this wiring!

    andy_v and Turboman like this.
  11. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire
    I have had the idea to remove the engine and trans as one, in the hope that might save me time, just to repaint the engine and clean up the box while i get the chassis back to scratch, as i reckon i might do any service and engine maintenance and restoring sometime in the later future rather than now while everything is apart and filling my workshop

  12. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    20,667
    Likes Received:
    9,464
    Location:
    March, Cambs., or On The Cut.
    No reason you couldnt do it with that able looking tractor and front loader! :)

    I would use lifting chains with the loader for the engine and trans though, polyprop rope is brinky with heavy stuff.

  13. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire
    Hey Tman, using the tractor for the bulkhead was a bit lazy tbh but very easy to move about! I will find some good chains im sure we have some fit to lift thor's hammer, i have my uncles old engine crane which ive never used, but also dont trust, so tractor'll do but im not sure where to put it all (what to put it on) once its out, so it doesnt get damaged and i can actually do a little work on it :confused:

  14. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    20,667
    Likes Received:
    9,464
    Location:
    March, Cambs., or On The Cut.
    Well within the capabilities, at a guess that loader would lift 2 tonnes.

    Try using big wood blocks to stand the engine and gearbox on, either under the actual mounts, or other strong points, not the sump.

  15. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire
    Thanks fella, i'll get inventive! :)

    Turboman likes this.
  16. honolulujoe

    honolulujoe Well-Known Member

    Joined:
    Apr 22, 2009
    Posts:
    6,045
    Likes Received:
    990
    Location:
    richmond surrey
    bringing back memories of when I did my bulkhead, had to lift it off on me todd though :D no flashy lifting equipment here

  17. RyanDay1

    RyanDay1 Well-Known Member

    Joined:
    Mar 11, 2015
    Posts:
    523
    Likes Received:
    191
    Location:
    Cambridgeshire
    You probably did a much better job of removin everything off of it first though, i couldve just picked the whole landy up in the air by the bulkhead until it all snapped free! :D

    honolulujoe likes this.
  18. Mr_jacobs

    Mr_jacobs New Member

    Joined:
    Jun 11, 2016
    Posts:
    6
    Likes Received:
    1
    Location:
    Maidstone
    Hey great thread!! Just wondering what's the best oil for a series 3 diesel? And is it worth adding any cleaners or additives to the fuel? Thanks

  19. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    20,667
    Likes Received:
    9,464
    Location:
    March, Cambs., or On The Cut.
    You could try forum search rather than hijacking his good fred! :rolleyes:

    But you want 15/40 mineral multigrade oil, and put a bit of ecomax or similar in the fuel from time to time, help lubricate the DPA pump. Try and keep the fuel tank as full as possible all the time as well.

  20. Mr_jacobs

    Mr_jacobs New Member

    Joined:
    Jun 11, 2016
    Posts:
    6
    Likes Received:
    1
    Location:
    Maidstone
    Ok thank you, I didn't mean to offend! New and not great at navigating the site yet !

    Turboman likes this.
