Seat belt shoulder bracket

Discussion in 'Defender 90 / 110 / 130' started by Discokids, Feb 9, 2018.

  1. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,107
    Location:
    Derbyshire

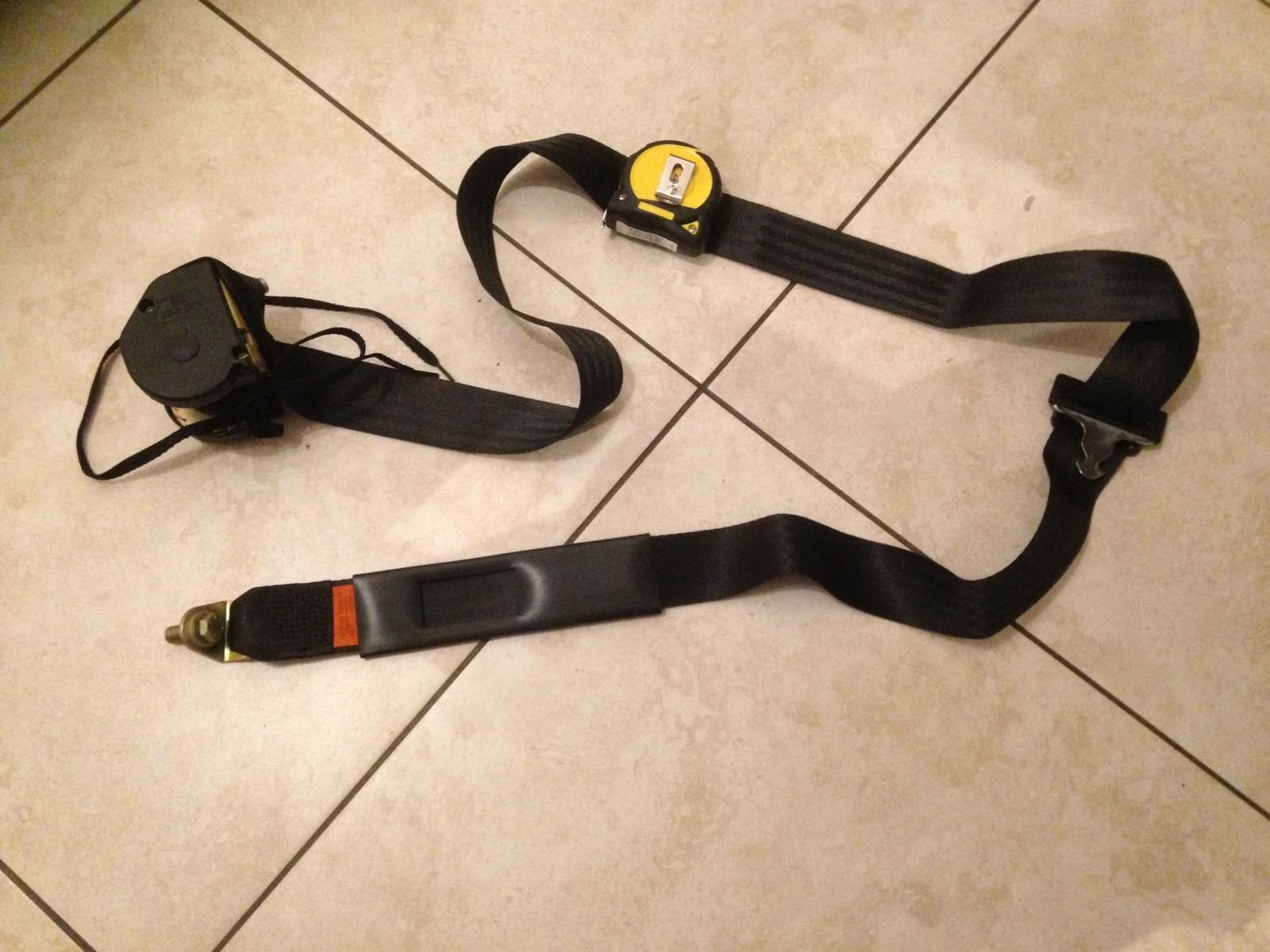

    IMG_5503.JPG Hi all, just a quickie - I have four new boxed seat belts as pictured. I went to fit them in my one-ten but discovered there's a Mount missing. Where the tape measure is, on my old belts is a triangle bracket the belt moves through, which bolts up and behind the shoulder, but new belts don't have it.
    Obviously this needs to be done correctly for safety of me and my passengers but is there something obvious I'm just not getting? Or do I need to ditch these and buy more? IMG_5503.JPG
    It's worth noting that the belt can only be pulled out from above (bolt of inertia reel at the bottom) so I can't see a way these could possibly work.

    Thanks in advance.

    Andy

  2. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    5,274
    Likes Received:
    1,000
    Location:
    North of the Wall
    I might be missing something here, but how do new belts work without it? I'm off to look through my pics. Or, I could be sensible and pop outside for a second! :rolleyes:

  3. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    5,274
    Likes Received:
    1,000
    Location:
    North of the Wall
    Yeah, my seat belts are not like that!

  4. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    5,274
    Likes Received:
    1,000
    Location:
    North of the Wall
    I did go outside in the lounge pants and T shirt, bloody freezing, even for us Northerners. Lounge pants are just silk though ;)

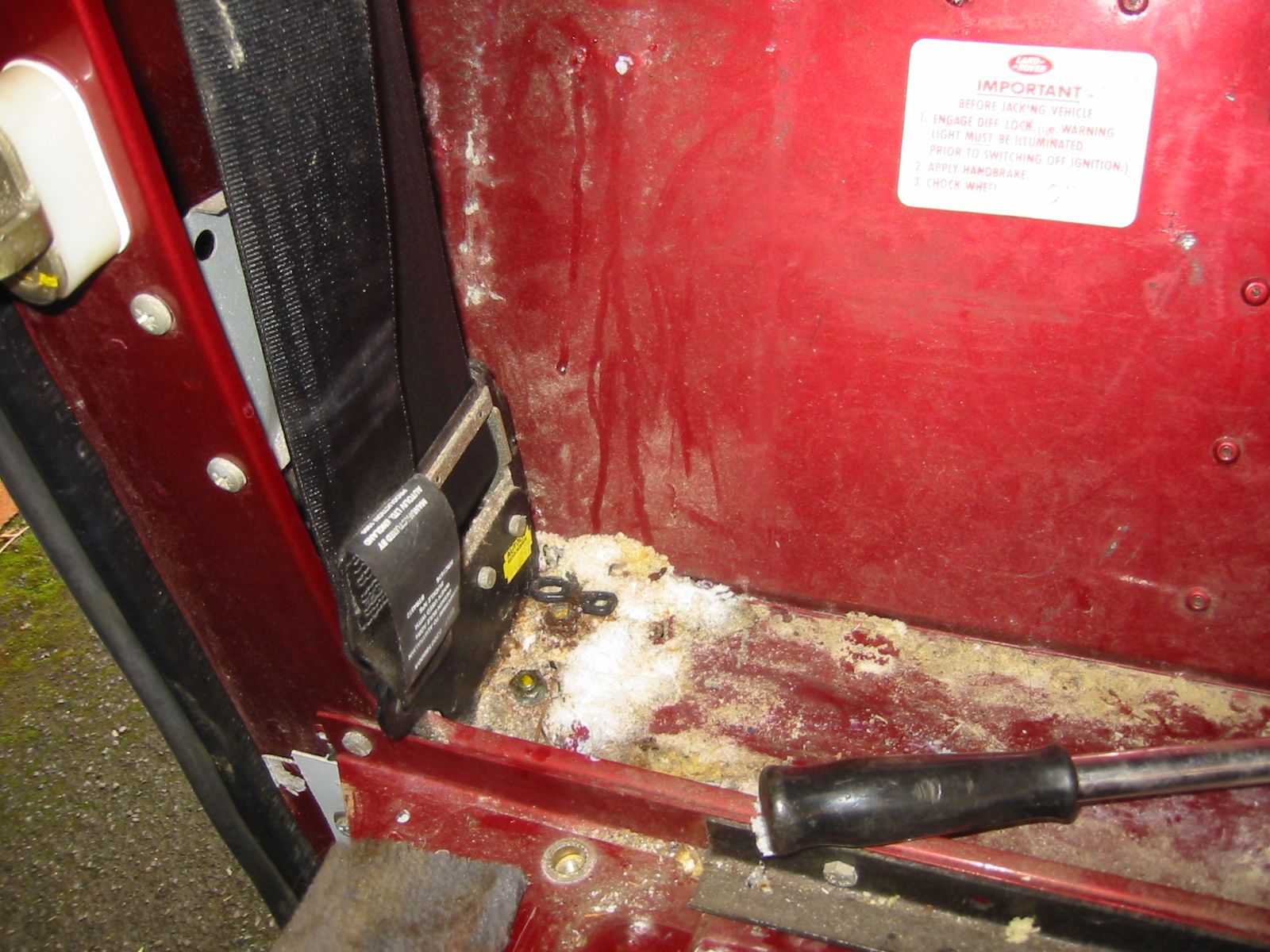

    Right, my seat belt real has a bracket sticking out the side, which ties the other end of the belt. This is a pre rebuild picture so excuse the aluminium oxide. :oops::rolleyes:

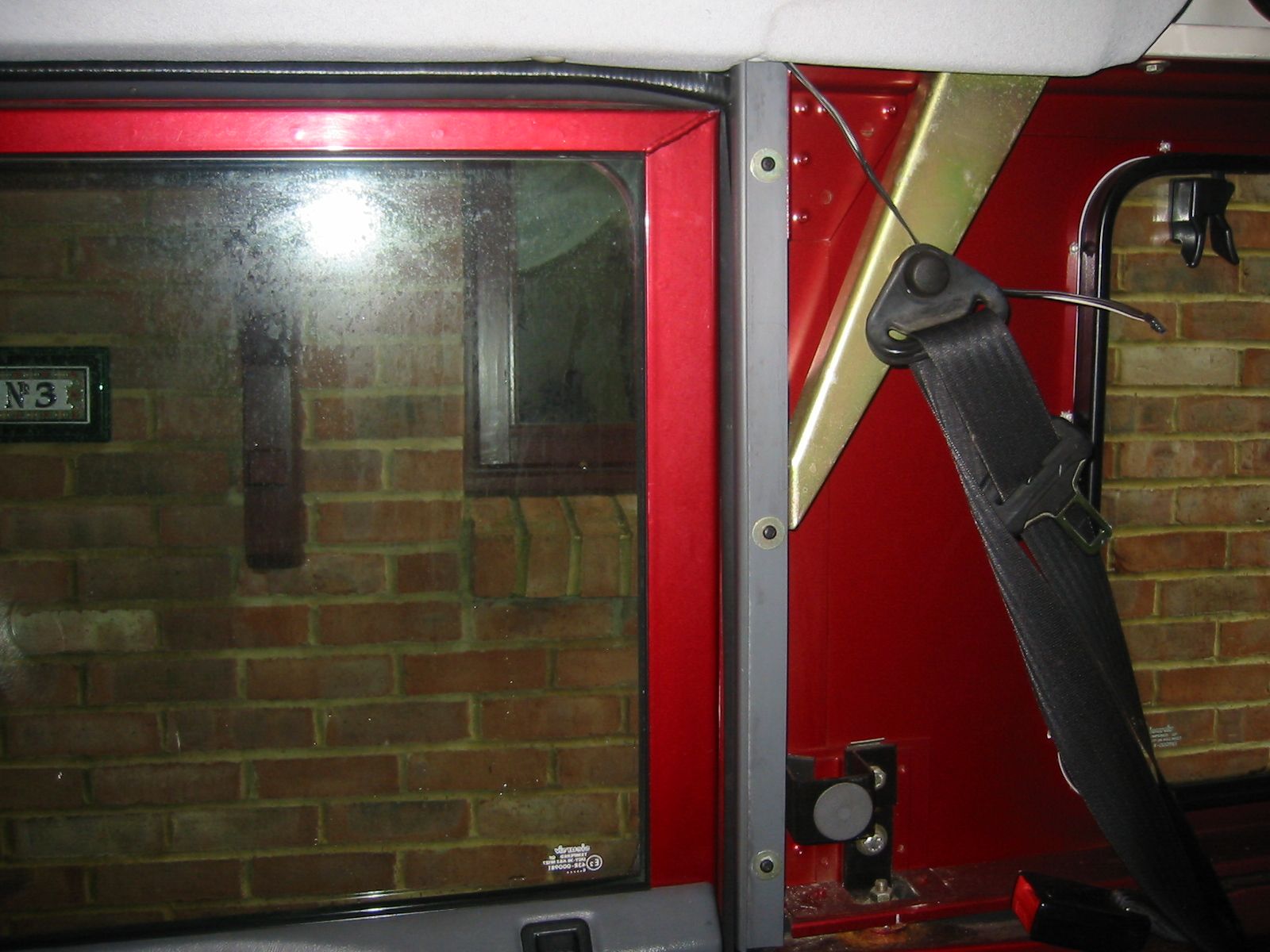

    Then, above the shoulder, is the triangular mount that the belt slides through.

  5. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    12,327
    Likes Received:
    4,426
    Location:
    Oxfordshireness
    Mine was the same as @Al2O3 's piccies, before I got rid of the roof.

    Where did you get the belts from? are they folding rear seat belts or summin?

    Cheers

  6. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    608
    Likes Received:
    178
    Location:
    Forfar/Dundee
    bolt the big bit at the bottom and the gold bit at the top.
    should work the same.

  7. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,107
    Location:
    Derbyshire
    Thanks Al - you're a star, better have a drink on me to warm up:)

    My uncle gave me them, he bought them for something a few years ago but can't remember what although it would have been a landrover of some sort. He thinks it was his ninety but he's had so many landies he's not sure. Either way they were never used and he gave them to me last year. Thing is, they're totally useless without that triangle mount and the way they are made means it can't be added / removed.

    This did occur to me but there's no room for the inertia reel at the side of the seat box:(

  8. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    12,327
    Likes Received:
    4,426
    Location:
    Oxfordshireness
    As the driver you could use a piece of baling twine...your choice. But for the thought of your passengers fit the correct kit, it is not that expensive.

    Cheers

  9. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,107
    Location:
    Derbyshire
    That's my preferred route - this is one area I don't intend to skimp on, just didn't want to buy a load of new seat belts to open the boxes and find the same thing because I'd missed something obvious:)

    neilly likes this.
  10. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    5,274
    Likes Received:
    1,000
    Location:
    North of the Wall
    No bother, marra. They must be off a vehicle where they inertia reel is mounted above the shoulder? Better to be safe than sorry though.

  11. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,107
    Location:
    Derbyshire
    Possibly, but then the belt doesn't un-roll. Strange...

  12. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    1,824
    Likes Received:
    523
    Location:
    Henley on Thames, Oxfordshire
    Definitely needs the missing bracket/guide for a Defender. Probably came in a blue box.

  13. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,107
    Location:
    Derbyshire
    Any ideas what they might fit would be appreciated, so I can bang em on eblag.

  14. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    12,327
    Likes Received:
    4,426
    Location:
    Oxfordshireness
    Are there no part numbers visible on them?

    Cheers

  15. Scooby22

    Scooby22 Active Member

    Joined:
    Aug 11, 2017
    Posts:
    185
    Likes Received:
    47
    Location:
    County Durham
  16. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,107
    Location:
    Derbyshire
  17. Scooby22

    Scooby22 Active Member

    Joined:
    Aug 11, 2017
    Posts:
    185
    Likes Received:
    47
    Location:
    County Durham
    True a small price to save a life.
