Scored cylinders on a M62 V8 4.4L in 2002 L322 Range Rover

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

What should I do?

  • Replace the block

    Votes: 0 0.0%

  • Rebuild anyway?

    Votes: 0 0.0%
  • Total voters
    0
O

Olllyh

Member
Posts
28
Location
surrey
Hi there,

I hope this is in the correct part of the forum

I went to replace the headgaskets on my engine and found the following score marks on the cylinders. There was carbon build up on the piston head and the exhaust chambers so I can only assume that oil is getting into the cylinder.

I have this on three of my cylinders - pics attached as a file (first time posting here!)

I checked compression before the rebuild and it was consistent across all of the cylinders

Should I replace the block or just roll with the rebuild? What are the downsides?


Attachments

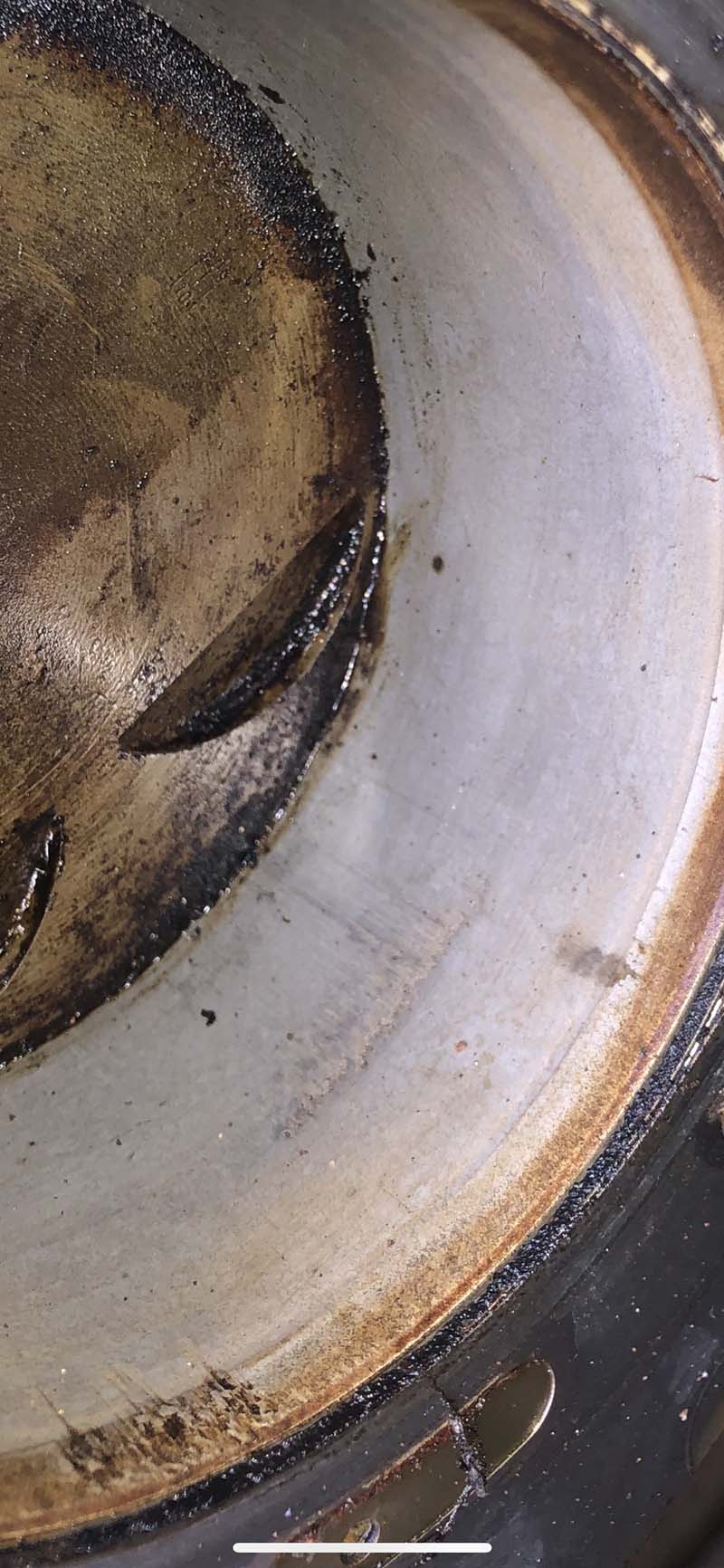

  • IMG_2891.jpg
    144.7 KB · Views: 198

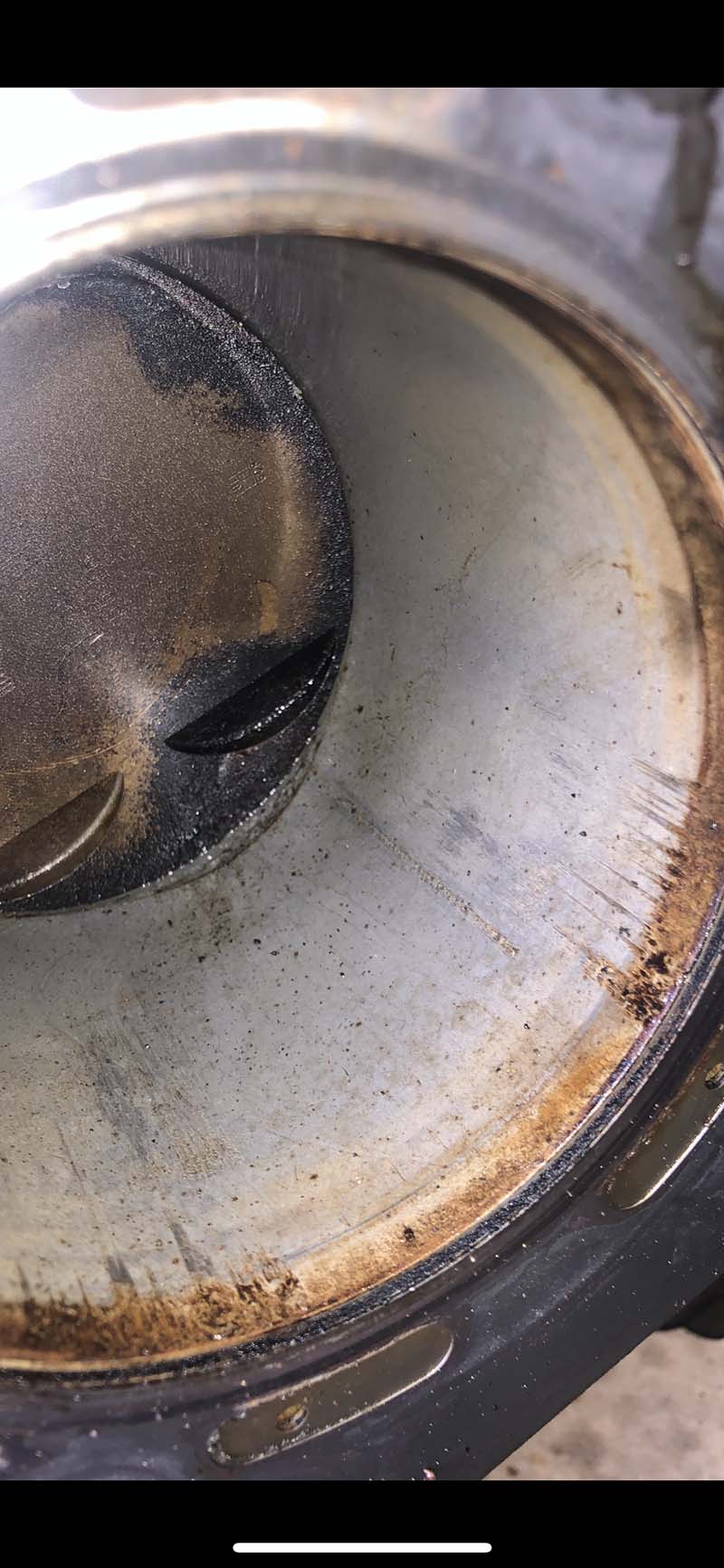

  • IMG_2890.jpg
    128.3 KB · Views: 188

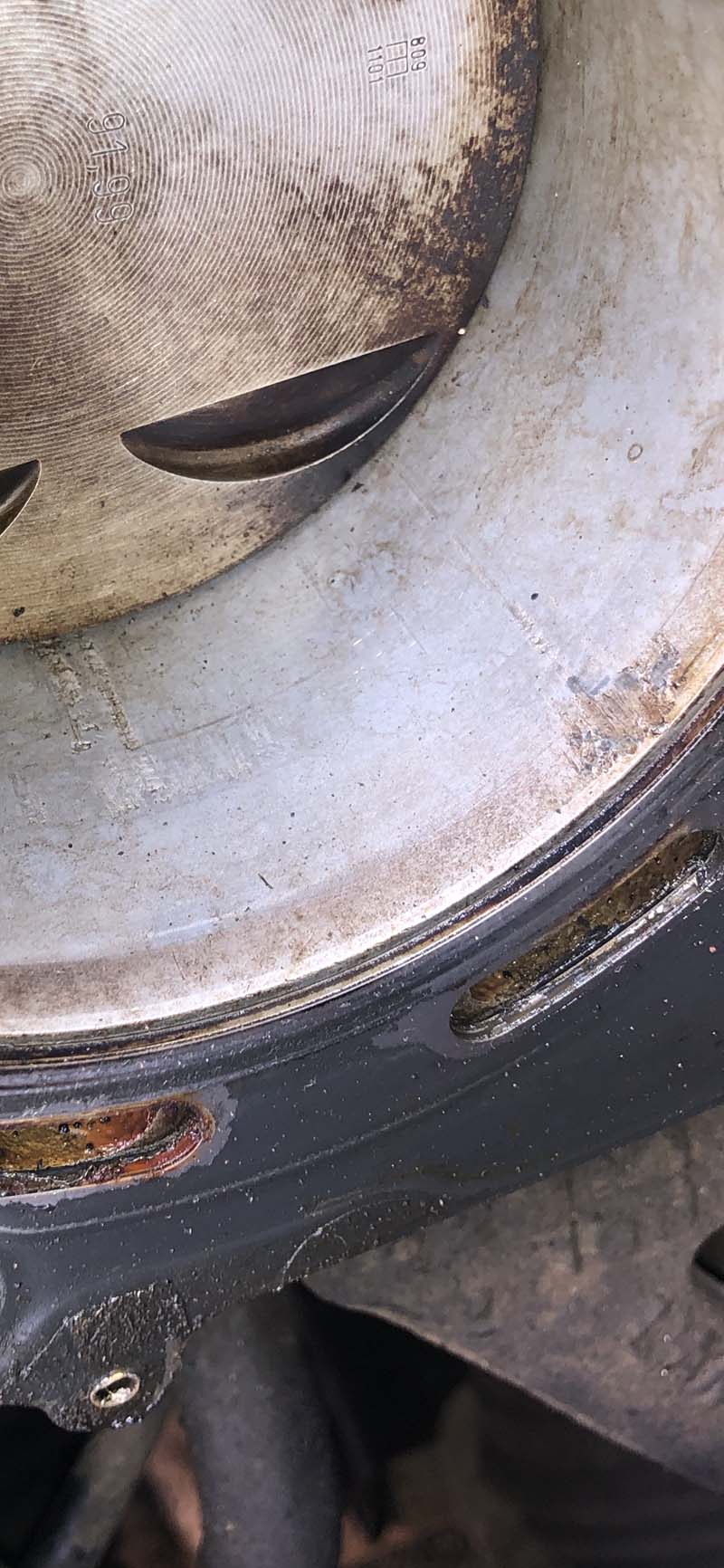

  • IMG_2889.jpg
    151.6 KB · Views: 186

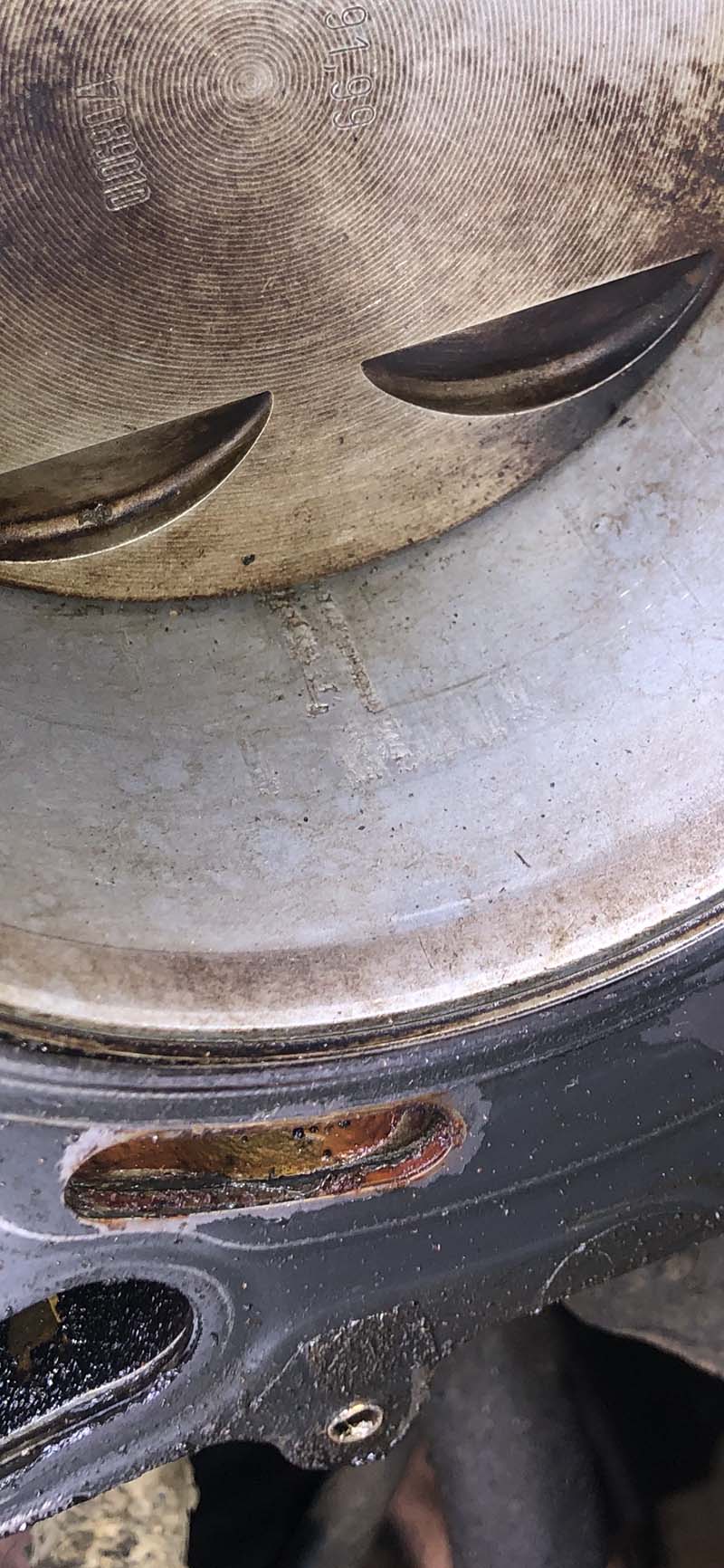

  • IMG_2888.jpg
    170.7 KB · Views: 182
Doesn't look too great to me, if you've got all the bits there ready to go I'd put it together but mentally prepare myself that its going to need attention at some point.

Cannot see any hone marks
Is that water staining on some of the bore sidewalls?
Is the bore gouged in pic 2889, bottom of piston edge between valve cutouts?
Has ii heat seized in the past?

lynall said:
Cannot see any hone marks
Is that water staining on some of the bore sidewalls?
Is the bore gouged in pic 2889, bottom of piston edge between valve cutouts?
Has ii heat seized in the past?
Click to expand...

no hone marks - I’ve done some reading and in not sure that the bores are honed because of the silicone stuff??

it is gouged on 2889

probably copious amounts of WD than water as I’ve been cleaning the carbon off the pistons and coating in WD for protection

it has never heat seized

Olllyh said:
no hone marks - I’ve done some reading and in not sure that the bores are honed because of the silicone stuff??

it is gouged on 2889

probably copious amounts of WD than water as I’ve been cleaning the carbon off the pistons and coating in WD for protection

it has never heat seized
Click to expand...


Ah see silicone bores are new to me, never had nowt to do with them.
It was the gouge and the water stains that made me think its either been heat seized or had water standing in the cylinder for some time.

So I assume its non reborable or honeable? in which case slap it together and see how she goes.

Olllyh said:
no hone marks - I’ve done some reading and in not sure that the bores are honed because of the silicone stuff??

probably copious amounts of WD than water as I’ve been cleaning the carbon off the pistons and coating in WD for protection

it has never heat seized
Click to expand...
lynall said:
Ah see silicone bores are new to me, never had nowt to do with them.
It was the gouge and the water stains that made me think its either been heat seized or had water standing in the cylinder for some time.

So I assume its non reborable or honeable? in which case slap it together and see how she goes.
Click to expand...

yeah none honeable or borable for a reasonable price
