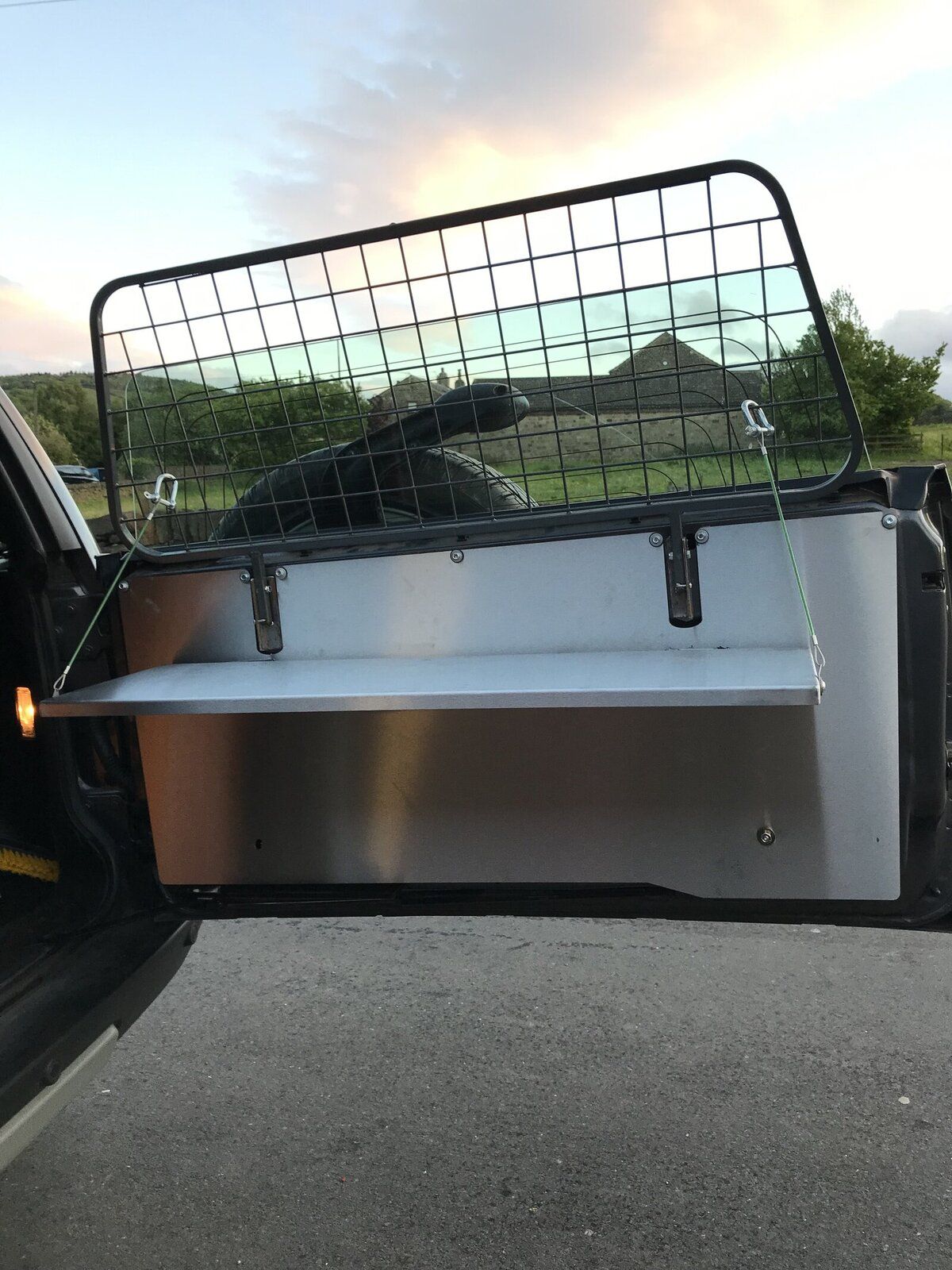

Sale - rear door conversion

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Garls86

Member
Posts
20
Location
West Yorkshire

Attachments

  • CCB15E00-9B7C-4B82-A46D-88EE2AFB47D8.jpeg
    292.9 KB · Views: 144
Why not just replace the fuel pump?
Because I have been quoted £1200 for the pump and fitting and then there’s the risk that the metal filings will have travelled through to the injectors (I’ve already replaced 2 at £700) it would mean flushing the system too. Not prepared to waste any more money.

Because I have been quoted £1200 for the pump and fitting

£1200!!:eek:

A decent reconditioned fuel pump costs £180 exchange and no more than 3 hours to fit, in fact I can change the HP pump in under 2 hours.

There won't be anything wrong with the injectors, as the pump can't send rubbish to them.

They're talking out of their asses.:(

£1200!!:eek:

A decent reconditioned fuel pump costs £180 exchange and no more than 3 hours to fit, in fact I can change the HP pump in under 2 hours.

There won't be anything wrong with the injectors, as the pump can't send rubbish to them.

They're talking out of their asses.:(
Oh wow!! That is a different tale!! I might look into sorting it then! Cheer for the info mate!

I have to agree with John, whom have you been taking your Freelander to? when you require work on it, even a good know second hand HPFP would cost no more than £65.00 and a couple of hours work, which is not that hard to do, in fact I am almost sure I know someone around west Yorkshire ( Liversedge ) whom might take on the job for you, its not me but a contact I know through the R40 forums.

I have to agree with John, whom have you been taking your Freelander to? when you require work on it, even a good know second hand HPFP would cost no more than £65.00 and a couple of hours work, which is not that hard to do, in fact I am almost sure I know someone around west Yorkshire ( Liversedge ) whom might take on the job for you, its not me but a contact I know through the R40 forums.
Cheers Arctic 2, it’s a freelance bloke over near Wakefield. Perhaps he’s got the wrong end of the stick on this one!? What mine is doing is it is smoking and juddering on startup and spitting fuel out into the plastic cover under the sump. He advised me not to try anymore injectors but that the High pressure fuel pump was breaking down and that it needs to run at a certain PSI. While it’s leaking it can’t do this, so it makes the engine run lumpy.

Cheers Arctic 2, it’s a freelance bloke over near Wakefield. Perhaps he’s got the wrong end of the stick on this one!? What mine is doing is it is smoking and juddering on startup and spitting fuel out into the plastic cover under the sump. He advised me not to try anymore injectors but that the High pressure fuel pump was breaking down and that it needs to run at a certain PSI. While it’s leaking it can’t do this, so it makes the engine run lumpy.

If it's dropping fuel, then the pump is leaking. This needs just a rebuild, or a reconditioned unit, I'd fit the latter. It doesn't need injectors as those will be fine, it's just a pump head seal that's failed.

Normally the pump continues to supply sufficient fuel pressure, even though it's leaking. This can be proven with a simple pressure check using the live data from the EDC.

I suggest you find someone who actually knows how a common rail diesel engine works. Arctic2 is well versed with the TD4 engine, and if he's recommended someone, than that's a top recommendation.

If it's dropping fuel, then the pump is leaking. This needs just a rebuild, or a reconditioned unit, I'd fit the latter. It doesn't need injectors as those will be fine, it's just a pump head seal that's failed.

Normally the pump continues to supply sufficient fuel pressure, even though it's leaking. This can be proven with a simple pressure check using the live data from the EDC.

I suggest you find someone who actually knows how a common rail diesel engine works. Arctic2 is well versed with the TD4 engine, and if he's recommended someone, than that's a top recommendation.
Cheers bud! Yeah you guys know your stuff! Who is your man at Liversedge @Arctic2 ? That might be really helpful! Thanks guys!

there are 3 independent LR places around here ..
have heard good things about all 3 regarding working on FL1's ..
.. but no 1st hand experience with them ..

Simmonites in bradford
StoneLake of halifax
MPB 4x4 in keighley

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Hello James.
I have contacted Russ the chap who lives in Liversedge and he said I can pass on his number to you with pleasure and he is willing to help you, he says that if you can get a good second hand or refurbished pump, plus the tool to fit it then he will do the job for you, I have sent number through a conversation Pm to you.

Item for the tool.
https://www.ebay.co.uk/itm/FREELAND...132382?hash=item3af21da59e:g:VgAAAOSwA3dYTUkL

I have also sent you an email address to contact Mick whom can most likely sort you out a known good second hand HPFP which will have been tested on the T4

first I would give Russ a call and go from there, he may well come to you and look the FL over first so you both know what is going on, mention to him that I said Mick may have an HPFP cheers Arctic.

Hi James.
I contacted Mick and he as just sold his last HPFP, so you will need to source one, and the tool give Russ a ring he may come to you? do let us know the out come cheers Arctic2

Hi James.
I contacted Mick and he as just sold his last HPFP, so you will need to source one, and the tool give Russ a ring he may come to you? do let us know the out come cheers Arctic2

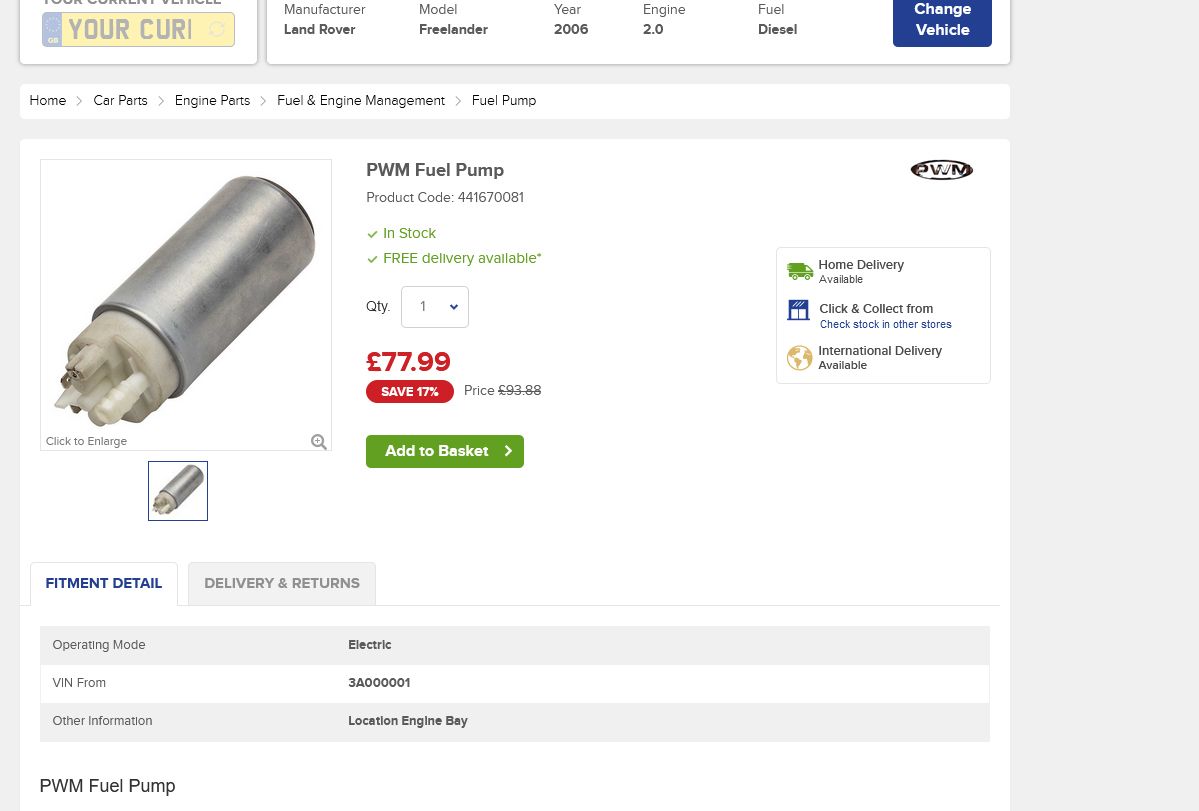

Hey Steve! I spoke to Russ. He doesnt have a tool but will do the job if I need him to. I just need to source a pump (See attached image) and the tool. Is the attached file the correct item...seems so! Thanks for putting me in touch with a good bloke!! Cheers, James


Attachments

  • pump.jpg
    61.5 KB · Views: 116
Hey Steve! I spoke to Russ. He doesnt have a tool but will do the job if I need him to. I just need to source a pump (See attached image) and the tool. Is the attached file the correct item...seems so! Thanks for putting me in touch with a good bloke!! Cheers, James

Where is the fuel leaking from? Front driver's side, or rear driver's side?

Last edited:
I will look at purchasing this one then!
That was just an example of the type of pump you need.

I'd actually buy this one https://www.pfjones.co.uk/landrover...bosch-common-rail-diesel-pump-0445010011.html, but remember they are exchange. ;)
Is there a slightly cheaper one than the Bosch that will be almost as good

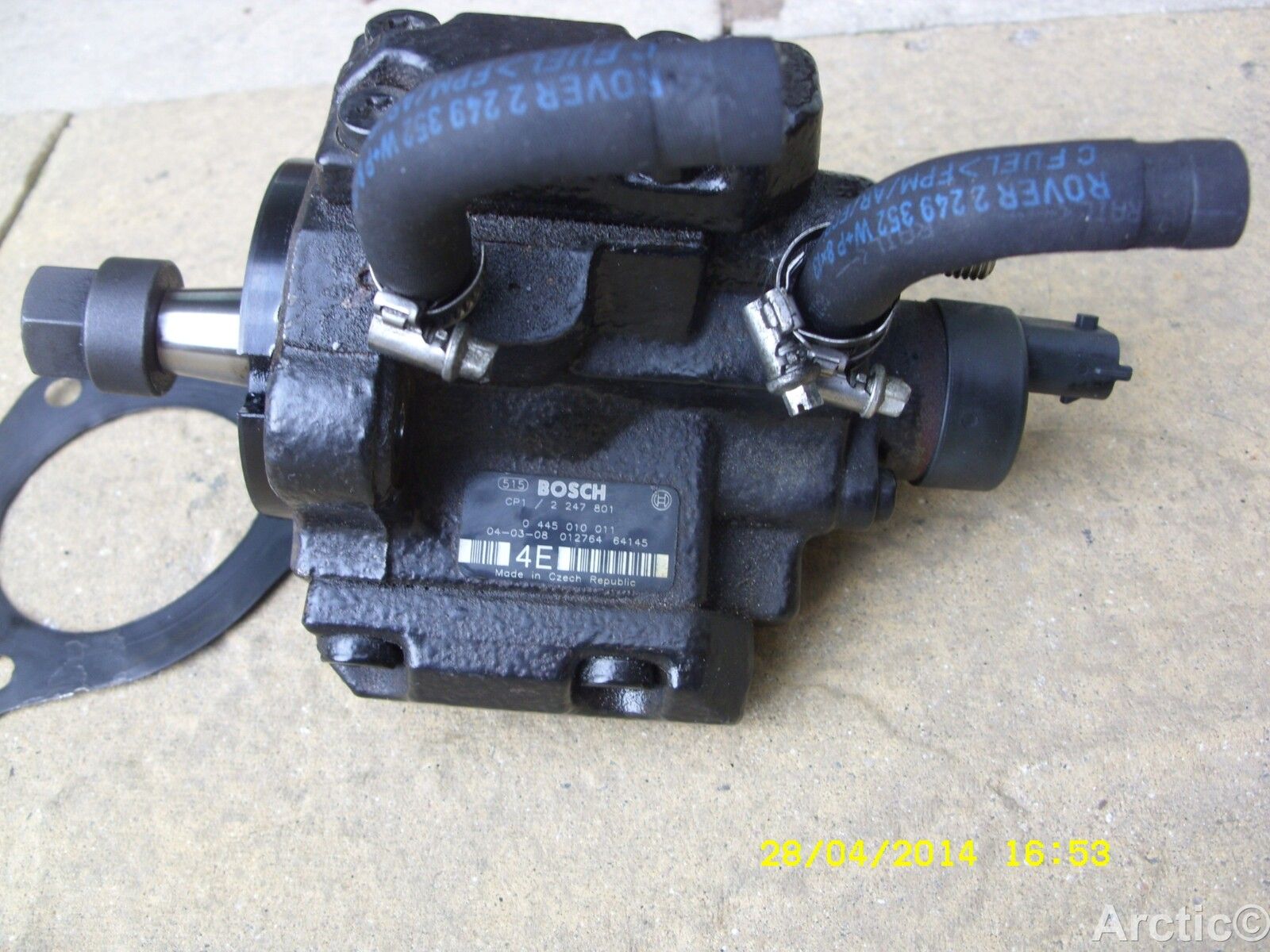

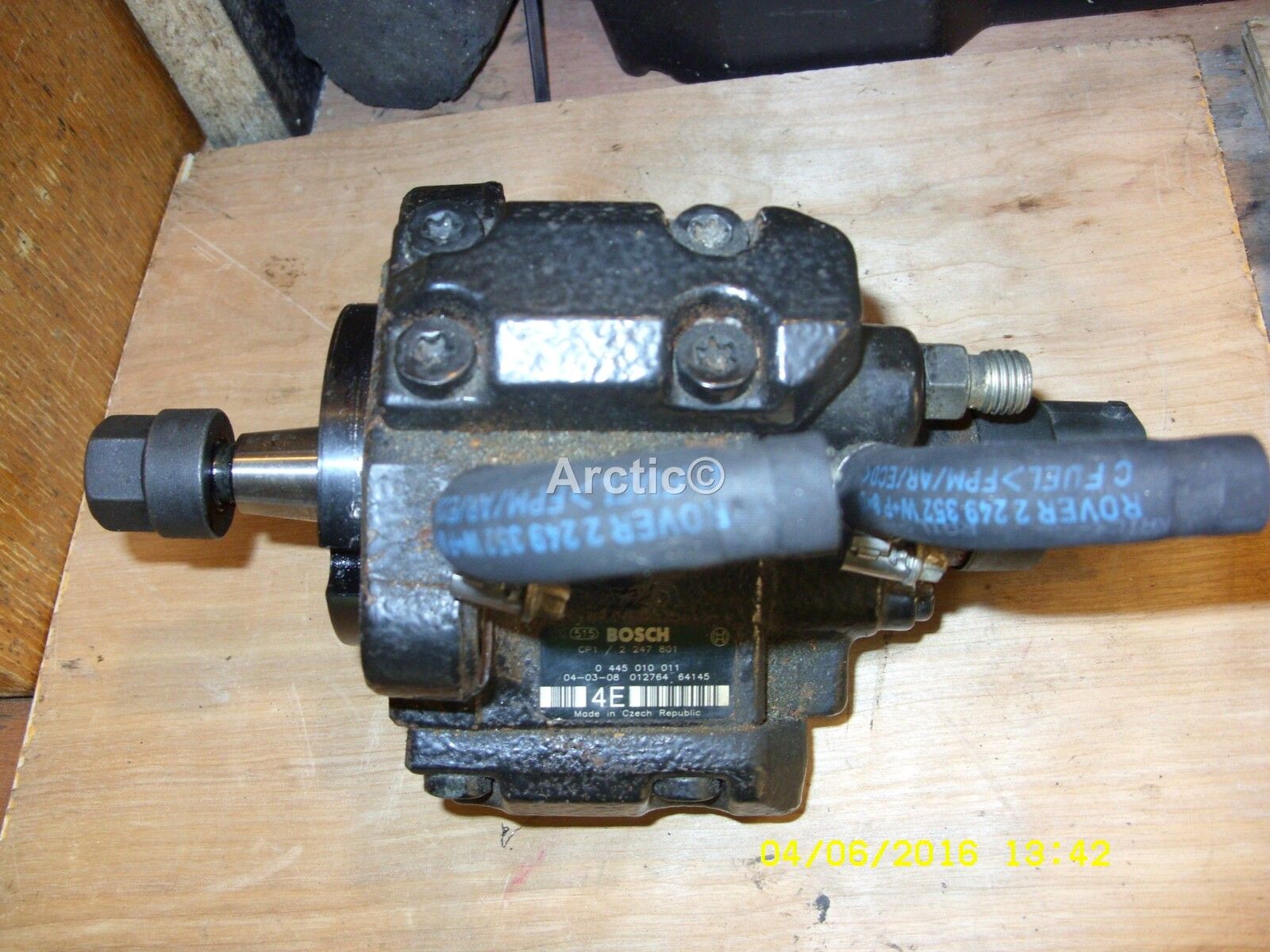

No as the pump is made by Bosch, it's a Bosch CP1 high pressure fuel pump. It's specifically designed for common rail fuel injection systems, like that fitted to the TD4.
The pump is silly expensive new, but a decent reconditioned pump is £180, as shown above.

Thanks Nodge68 I will look at purchasing this one then! Is there a slightly cheaper one than the Bosch that will be almost as good? Thanks for your help!

That was just an example of the type of pump you need.

I'd actually buy this one https://www.pfjones.co.uk/landrover...bosch-common-rail-diesel-pump-0445010011.html, but remember they are exchange. ;)
No as the pump is made by Bosch, it's a Bosch CP1 high pressure fuel pump. It's specifically designed for common rail fuel injection systems, like that fitted to the TD4.
The pump is silly expensive new, but a decent reconditioned pump is £180, as shown above.

I have also sent you a message in conversation

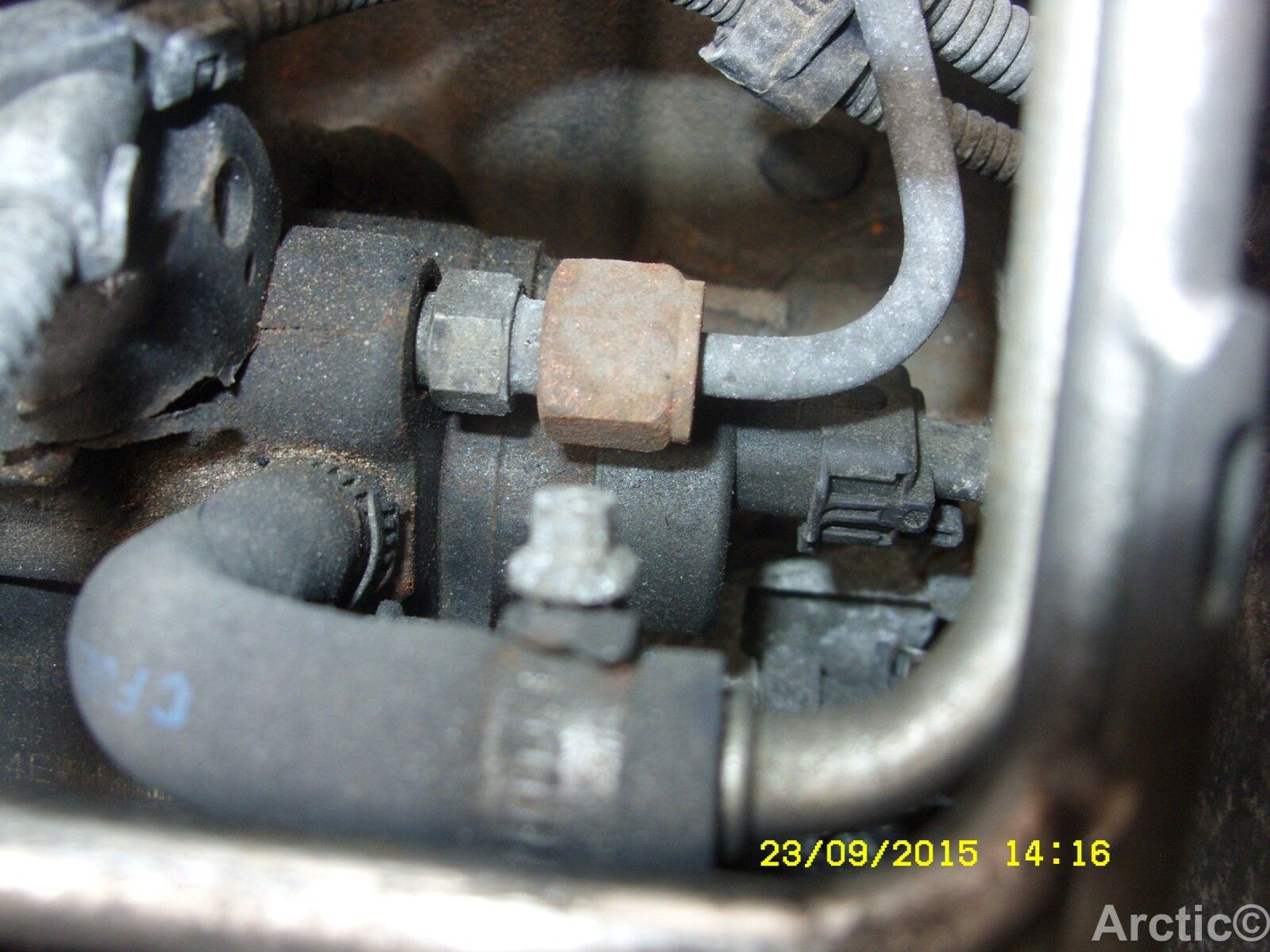

John is bang on unless you know of someone whom as a good used one with the seals changed, I contacted Mick and he had just sold his last pump, don't forget you will need the special tool also unless you can borrow one, link below for the removal tool which must be used.

https://www.ebay.co.uk/itm/Injectio...086806?hash=item3af21cf396:g:BccAAOSw-0xYTUkK

https://www.ebay.co.uk/itm/A-668P-D...009850&hash=item3b397c169d:g:~88AAOSww8ldSpO9


Attachments

  • SDC15212.JPG
    280.1 KB · Views: 88
  • SDC11735.JPG
    243.3 KB · Views: 103
  • SDC12456 (2).JPG
    SDC12456 (2).JPG
    267.1 KB · Views: 84
Last edited:
